Kubota V3800-CR-TE4 TIE4 TE4C TIE4C Diesel Engine Workshop Manual

Description

Kubota V3800-CR-TE4 TIE4 TE4C TIE4C Diesel Engine Workshop Manual

The Kubota V3800-CR-TE4 TIE4 TE4C TIE4C Diesel Engine Workshop Manual is a comprehensive 165-page service reference for the V3800-CR-TE4, V3800-CR-TIE4, V3800-CR-TE4C and V3800-CR-TIE4C engines. It is organized around Information, General, Mechanism and Servicing material, taking the reader from engine identification and scheduled maintenance through system operation, mechanical troubleshooting, specifications, tightening torques, component removal and installation, and detailed engine-body inspection.

The manual is especially useful where work involves the common rail fuel system, EGR equipment, turbocharger, diesel oxidation catalyst and diesel particulate filter, because these systems are shown alongside the mechanical engine, sensors, wiring and maintenance requirements. It also gives the dimensional and service-limit data needed to judge wear rather than relying only on visual inspection.

File Details

• Manual type: Workshop Manual – Diesel Engine
• Brand: Kubota
• Models: V3800-CR-TE4, V3800-CR-TIE4, V3800-CR-TE4C, V3800-CR-TIE4C
• Language: English
• Pages: 165
• Format: PDF
• Code No.: 9Y121-06510
• Date: November 2011

What This V3800-CR Workshop Manual Covers

Early sections establish the engine’s basic data and service context. The specification page identifies a four-cylinder, vertical, water-cooled, 4-cycle DI diesel engine with 100 × 120 mm (3.94 × 4.72 in.) bore and stroke and 3769 cm³ (230.0 cu.in.) displacement. The manual also includes performance curves for the TE4/TE4C and TIE4/TIE4C versions, engine dimensions, harness layouts and a complete system wiring diagram.

Maintenance material is arranged by actual service intervals: daily checks, initial 50 hours, every 50, 250, 500, 1000, 1500 and 3000 hours, plus one-year and two-year items. Procedures cover engine oil and filter service, fuel filters and water separator, coolant, radiator and hoses, fan-belt inspection and adjustment, air cleaner service, valve clearance, injector-tip inspection, EGR cooler checks, PCV and oil-separator service, turbocharger inspection, DPF cleaning and related hoses and pipes. Fuel and lubricant guidance includes API CJ-4 engine oil and diesel-fuel requirements, with additional biodiesel precautions.

IMAGES PREVIEW

Chapters Covered

• Information
  • Safety First
  • Specifications
  • Performance Curves
  • Dimensions
  • Wiring Diagram – engine intermediate harness, injector intermediate harness, ECU intermediate harness and system wiring diagram
• General
  • Engine Identification – model name, engine serial number, E4B engine and cylinder number
  • Muffler Full Assembly Identification – part number and serial number
  • General Precautions
  • Maintenance Check List
  • Check and Maintenance – daily, initial 50 hours, 50, 250, 500, 1000, 1500 and 3000-hour service, plus 1-year and 2-year service
  • Special Tools
• Mechanism
  • Engine – cylinder block, cylinder head and piston
  • Lubricating System – oil cooler
  • Cooling System – thermostat and bottom bypass system
  • Common Rail System (CRS) – overview, supply pump, rail, injector and engine control system
  • EGR System – overview, EGR valve and reed valve
  • After Treatment System – after-treatment devices
• Servicing
  • Troubleshooting
  • Servicing Specifications
  • Tightening Torques – general-use and special-use fasteners
  • Checking and Adjusting – engine body, lubricating system, cooling system, electrical system and turbocharger
  • Disassembling and Assembling – engine oil and coolant draining, external components, turbocharger and EGR, common rail, cylinder head and valves, thermostat, supply pump, water pump and oil cooler, gear case and timing gear, piston and connecting rod, flywheel and crankshaft, intake air heater, starter and alternator
  • Engine Body and Servicing – cylinder head, timing gears, piston and connecting rod, crankshaft, cylinder, oil pump, starter and alternator

Together, these chapters provide a working path from routine inspection to major mechanical service. The technician can identify components and systems, follow removal and assembly sequences, compare measurements with factory specifications and allowable limits, and apply the specified tightening values during reassembly.

Common Rail, EGR and DPF Coverage

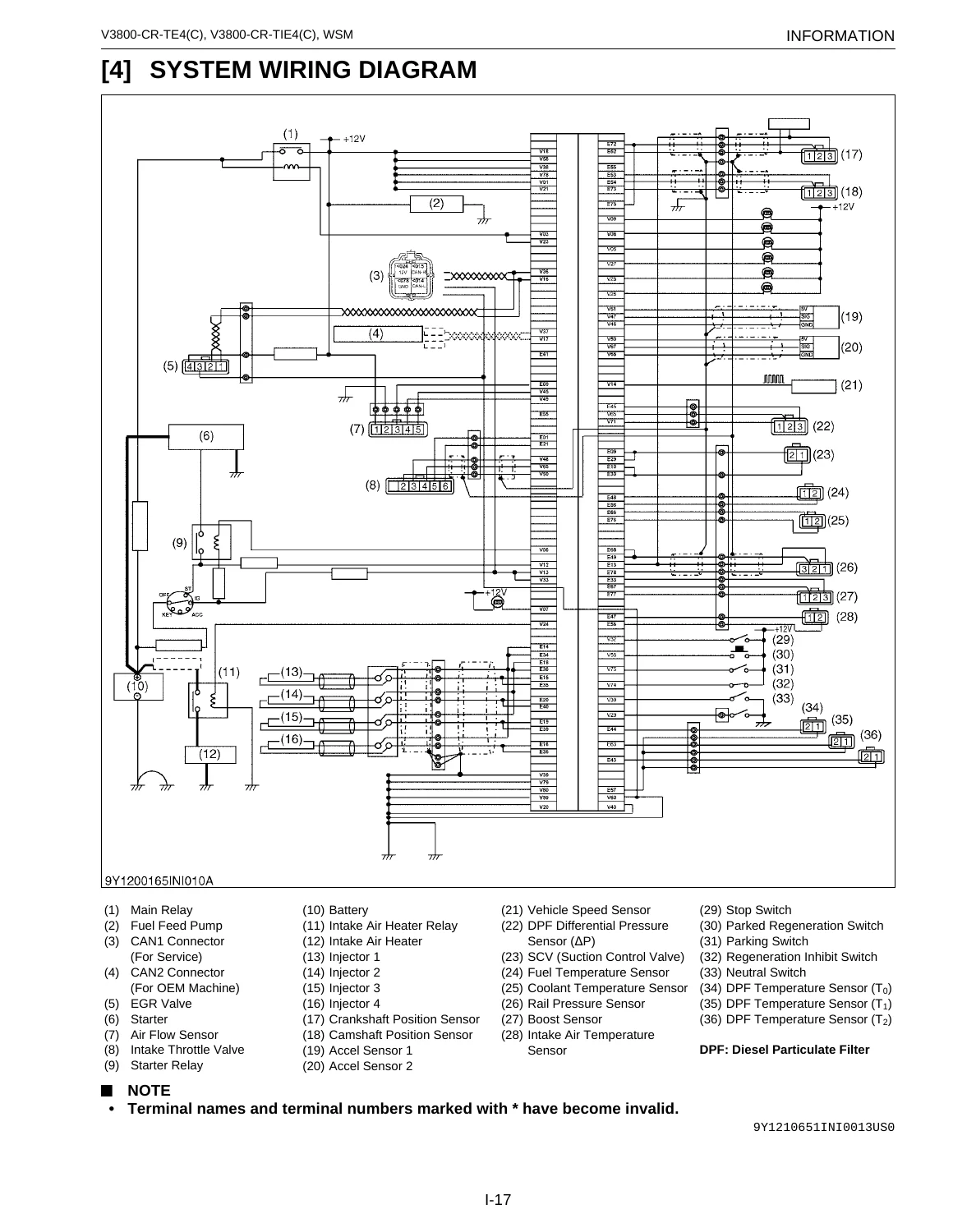

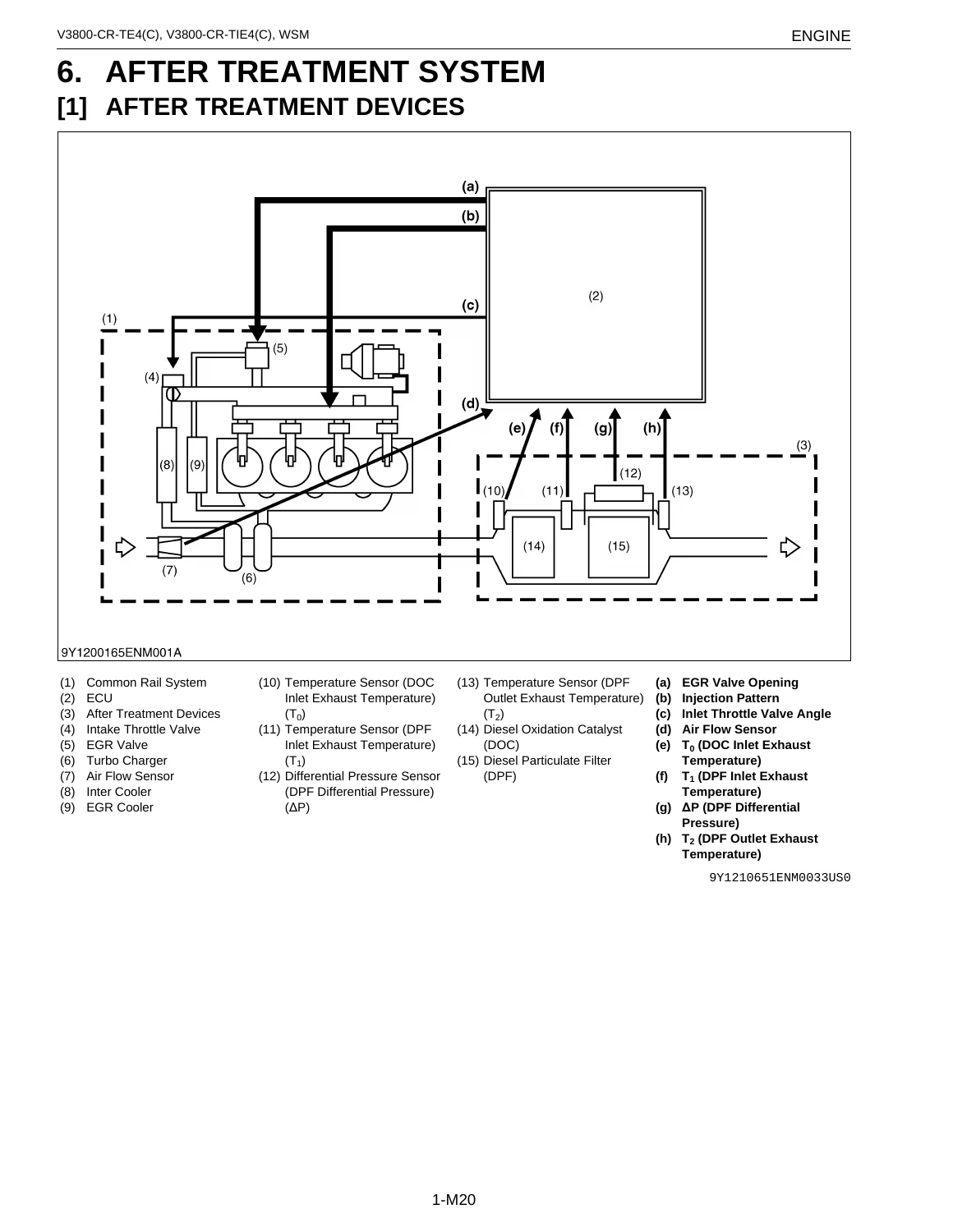

The Kubota V3800-CR workshop manual explains the electronically controlled common rail system through its supply pump, SCV, rail, pressure limiter, injectors, ECU and sensors. Injector operation, QR/ID-code correction, crankshaft and camshaft position sensing, temperature sensing and boost sensing are illustrated. The manual also explains the EGR valve and reed valve and shows the after-treatment system linking the DOC, DPF, intake throttle valve, EGR, turbocharger and sensor network.

DPF service is covered in practical detail, including muffler and filter-component removal, cleaning preparation, reassembly direction, temperature sensors, differential-pressure piping, specified tightening torques and judgments for filter reuse. The manual also explains regeneration states and the role of the DOC and DPF. Before DPF removal for cleaning, it calls for recording engine and DPF identification information and operating time, with Diagmaster referenced for service-tool functions.

Mechanical Diagnosis, Inspection and Overhaul Data

The troubleshooting section addresses mechanical symptoms such as no-start, starter failure, uneven engine speed, white or blue exhaust, black or dark-gray exhaust, deficient output, excessive oil consumption, fuel or water mixing with lubricating oil, low or high oil pressure, and overheating. The manual then connects those symptoms to checking procedures and component service pages.

Servicing specifications cover cylinder-head flatness, top clearance, compression pressure, valve seats and guides, valve clearance and timing, valve springs, rocker and bridge-arm clearances, tappets, camshaft, timing-gear backlash, piston rings, connecting rods, crankshaft journals and pins, cylinder bore, oil-pump clearances, oil pressure, thermostat operation and electrical components. Detailed procedures show how to check compression, oil pressure, fan-belt tension, thermostat opening temperature, battery condition, starter and intake-air-heater operation, turbocharger leakage, crankshaft-position-sensor air gap and other service points.

For deeper engine work, the manual covers cylinder-head removal and gasket selection, valves, supply pump timing and removal, water pump and oil cooler, gear case and timing gears, piston and connecting rod, flywheel, crankshaft, crankcases, starter and alternator. The final engine-body servicing pages add measurement and repair procedures for valve components, timing gears, piston and ring clearances, crankshaft bearings, cylinder wear and oversize correction, and oil-pump inspection.

Important Coverage Note

This manual includes mechanism information specific to these V3800-CR variants, but it also directs the reader to Workshop Manual Code No. 9Y021-01870 for diesel-engine mechanism material not included here. Its troubleshooting table covers mechanical failures; failures related specifically to the common rail system are referred to the Common Rail System Engine Diagnosis Manual, Code No. 9Y120-01740. These references are important when a repair requires material beyond the scope of this 165-page volume.

Put the Correct Service Information at the Workbench

The Kubota V3800-CR-TE4 TIE4 TE4C TIE4C Diesel Engine Workshop Manual supports routine maintenance, mechanical diagnosis, measurement, adjustment, component removal, reassembly and substantial engine repair work on the four covered V3800-CR models. Having the correct procedures, service limits, wiring information and tightening torques available helps you make repair decisions from the documented specifications and assemble components in the prescribed sequence.

Delivered as an instant PDF after payment, there is no physical book to ship or wait for. Open the manual on a computer, tablet or phone when you need it, and print the pages you want for workshop use.
