Kyocera FS-2020D, FS-3920DN, FS-4020DN Service Manual & Repair Guide PDF
Original price was: $95.00.$16.95Current price is: $16.95.
Complete Official Factory Service Manual for the Kyocera FS-2020D, FS-3920DN, and FS-4020DN laser printers. This professional 150+ page technical guide includes comprehensive self-diagnostic codes, detailed mechanical construction diagrams, and official assembly/disassembly procedures. Master your Kyocera printer maintenance with factory-approved fuser unit repair and firmware update instructions.
Description
Kyocera FS-2020D, FS-3920DN, FS-4020DN Service Manual & Repair Guide PDF DOWNLOAD
DESCRIPTION
Restore your office productivity with the Official Kyocera FS-4020DN Series Service Manual. This technical publication is the definitive resource used by certified field engineers to diagnose, repair, and maintain the Kyocera FS-2020D, FS-3920DN, and FS-4020DN high-speed monochrome printers .
Whether you are performing a complex Kyocera engine PWB replacement or troubleshooting persistent printer image formation problems, this manual provides the step-by-step logic and high-resolution diagrams required for a professional result [cite: 1-4-3, 1-5-8]. The manual is meticulously organized into specialized sections covering everything from paper misfeed detection to the intricate laser scanner unit assembly [cite: 1-4-1, 1-5-9].
Neatly Categorized Technical Content:
General Information & Specifications:
Detailed machine cross-sections and part names [cite: 1-1-2, 1-1-3].
Printing speeds and paper size compatibility for 35ppm, 40ppm, and 45ppm models.
Maintenance & Service Mode:
Full guide to executing maintenance items (toner install, drum refreshing) [cite: 1-3-1, 3206].
Printing and analyzing EVENT LOGS for malfunction history [cite: 1-3-10, 2043].
Expert Troubleshooting & Diagnostics:
Self-Diagnostic Codes: Complete dictionary of error codes (0100 to F186) with causes and corrective measures.
Image Formation Problems: Professional workflows for blank printouts, black dots, and streaks [cite: 1-4-3, 2125].
Repetitive Defects Gauge: Precision measurements for identifying faulty rollers.
Detailed Assembly & Disassembly:
Fuser Section: Heater lamp replacement and thermistor service [cite: 1-5-7, 2267].
Drum & Developing Section: Unit removal and main charger cleaning [cite: 1-5-4, 1-5-5].
PWBs: Step-by-step logic for Main PWB and Engine PWB replacement [cite: 1-5-8].
Mechanical & Electrical Theory:
Mechanical Construction: Paper feed, transfer, and cleaning section logic.

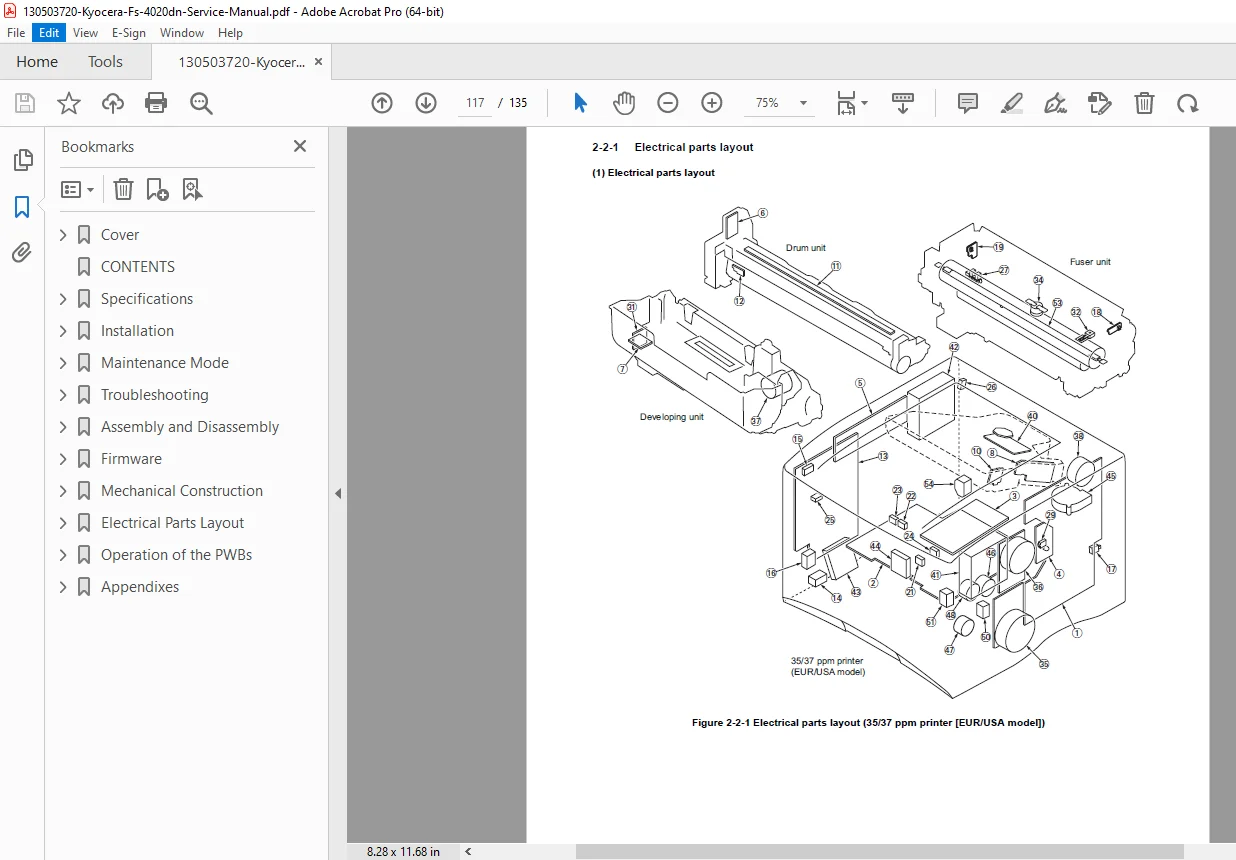

Electrical Data: Comprehensive parts layout and full wiring diagrams [cite: 2-2-1, 2-4-3].
Core Technical Specifications Comparison:
| Feature | 35/37 ppm Printer | 40/42 ppm Printer | 45/47 ppm Printer |
| Warm-up Time | 17 sec or less | 17 sec or less | 17 sec or less |
| Max Resolution | Fine 1200 mode | Fine 1200 mode | Fine 1200 mode |
| Standard Memory | 128 MB | 128 MB | 128 MB |
| Duplex Speed | 17.5 ppm (A4) | 24.5 ppm (A4) | 32.5 ppm (A4) |
FILE DETAILS

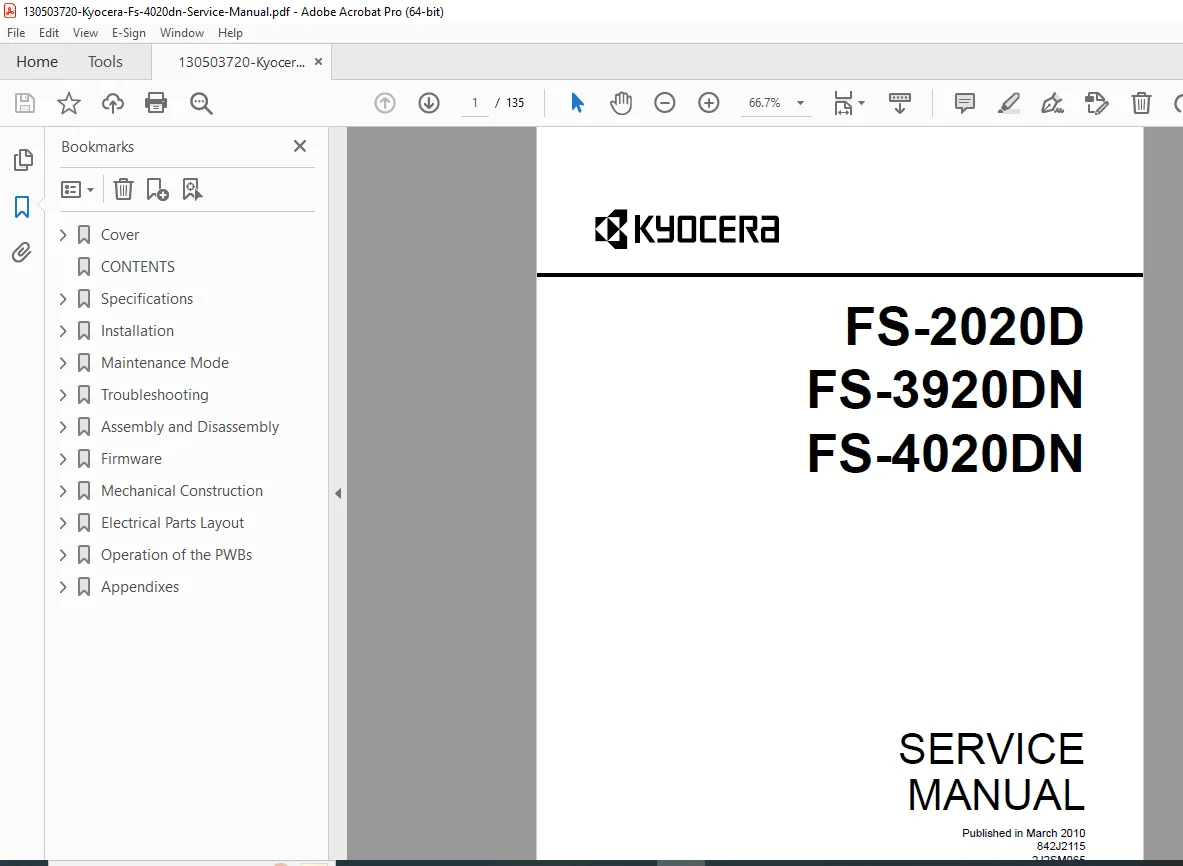

Manual Name: Kyocera FS-2020D/3920DN/4020DN Service Manual
Models Covered: FS-2020D, FS-3920DN, FS-4020DN [cite: 1-1-1]
Year / Revision: March 2010 (Rev. 5)
Manual PDF Quality: Factory Original High-Resolution, Searchable & Fully Indexed
No. of Pages: 135 Pages
โก INSTANT REPAIR ACCESS
Don’t let a “Call Service” error halt your business. Purchase this manual now to instantly download the factory blueprints and diagnostic sequences needed to restore your Kyocera printer to peak performance today!
