Landini Legend TDI 125TDI-185TDI Tractor Operation and Maintenance Manual – PDF

Description

Landini Legend TDI Tractor Operation and Maintenance Manual – Publication 3681 715 M1

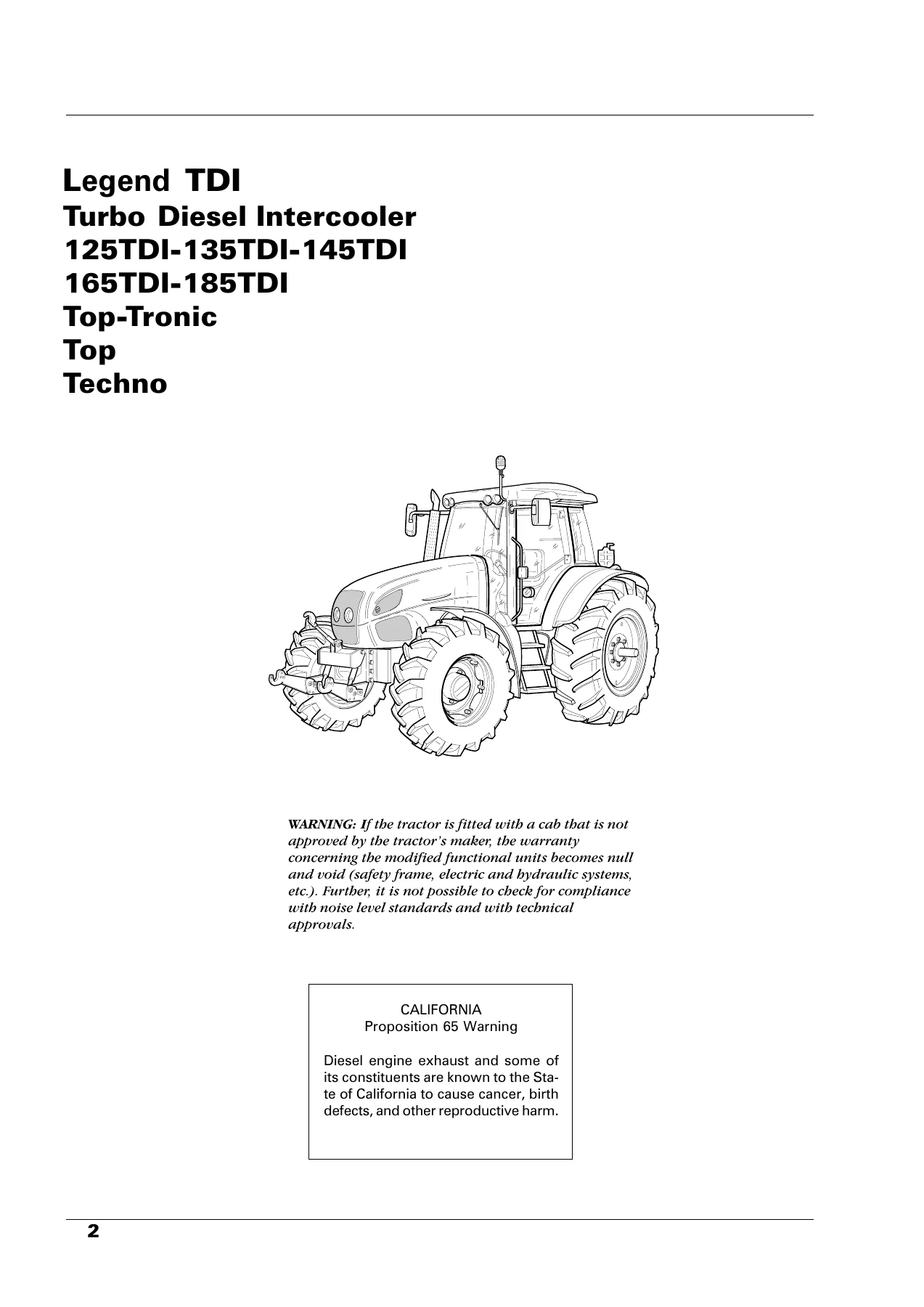

This Landini Legend TDI Tractor Operation and Maintenance Manual is the complete operator guide for the Legend TDI Turbo Diesel Intercooler series, covering the 125TDI, 135TDI, 145TDI, 165TDI and 185TDI models in Top, Top-Tronic and Top Techno configurations, fitted with either a cab or a platform. Published under document number 3681 715 M1 and dated 2005, the Landini Legend TDI manual gives owners and operators the full factory guidance needed to run, service and maintain these tractors safely and correctly, from daily checks through to major scheduled maintenance and technical specifications.

File Details

• Manual type: Operation and Maintenance Manual
• Brand: Landini
• Series: Legend TDI Turbo Diesel Intercooler
• Models covered: 125TDI, 135TDI, 145TDI, 165TDI, 185TDI (Top, Top-Tronic, Top Techno)
• Publication number: 3681 715 M1
• Date: Printed 2005
• Language: English
• Format: PDF
• Page count: Approximately 203 pages

Chapters Covered

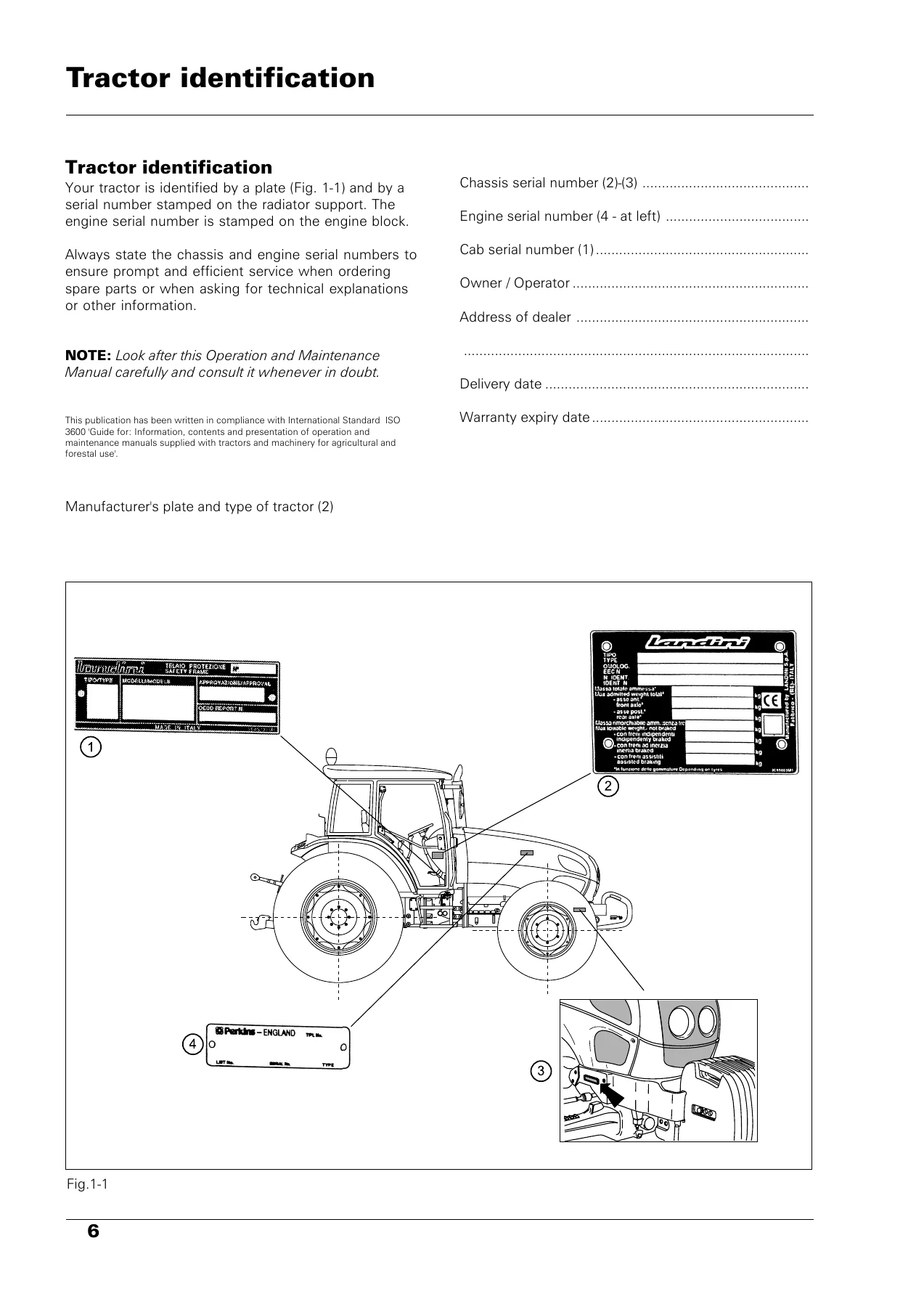

• Tractor identification – manufacturer plate, chassis serial number, engine serial number, cab serial number
• Introduction, warranty and safety notes – warranty procedure, parts warning, safety alert symbols, safety frame and cab safety, operating safely, road transport, risks from noise, position of safety decals

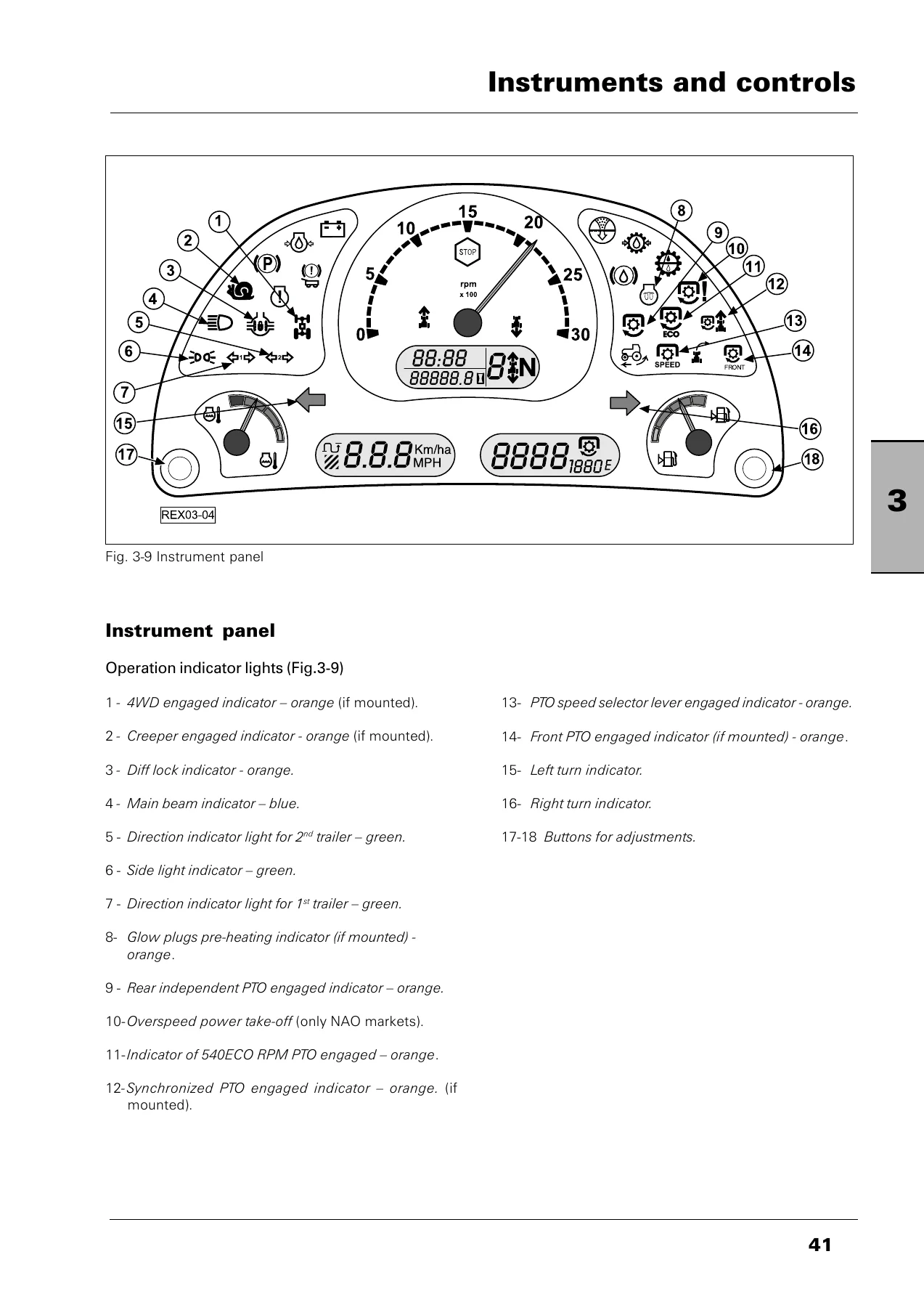

• Instruments and controls – dashboard control panel, instrument panel, digital instrument panel, cab controls, heating and air conditioning, seat adjustment, tool kit, quick couplings
• Operation – starting and stopping the engine, cold weather starting, running in, cruise control, clutch, Speedsix and Powersix gearboxes, Top-Tronic gearbox, mechanical and electrohydraulic power take-off, brakes, differential lock, 2WD and 4WD, front and rear wheel track adjustment, wheels and tyres, ballast, towing devices, three-point linkage, electronic and mechanical hydraulic power lift, auxiliary control valves, front lift, front PTO, tractor transport
• Routine maintenance – maintenance table, running in, long idle periods, bonnet, fuel filling, engine oil and filter, fuel and fuel filter, bleeding the fuel system, dry air filter, engine cooling circuit, hydraulic and transmission oil, Top-Tronic maintenance, clutch, brakes, fan and alternator belt, cab air filter, air conditioning maintenance, 100/250/500/1000 hour service
• Electrical system – battery, starter motor, alternator, headlights, fuses and relays, trailer power socket
• Tractor specifications – weights and dimensions, engine, transmission, ground speed tables, differential lock, PTO, brakes, track adjustment, steering, 4WD front axle, tyres, hydraulic system, hydraulic power lift, three-point linkage, auxiliary control valves, towing devices, cab and safety frame, seat, electrical system, optional extras, suspended front axle, noise level, CE declaration of conformity, technical specifications for hitching, installation of implements, lubricant and fuel chart
• Legend Techno TDI 125-135-145-165 alphabetical index

Across its chapters, this Landini Legend TDI operation and maintenance manual works as a genuine working reference for the whole tractor. The Operation chapter alone walks through every control and procedure on the machine – clutch and gearbox selection, Powersix underdrive and overdrive shifting, Top-Tronic reverse shuttle and Park Lock, PTO engagement modes, differential lock and 4WD logic, three-point linkage setup, electronic power lift draft and position control, and front lift operation. The Routine Maintenance chapter sets out the service intervals and step-by-step procedures that keep these Perkins-powered tractors running, including engine oil and filter changes, fuel system bleeding, dry air filter servicing, cooling circuit flushing and antifreeze concentration, transmission and hydraulic oil checks, brake fluid, fan and alternator belt tension, and cab air filter and air conditioning maintenance. The Specifications chapter gathers the weights, dimensions, torque values, tyre options, track adjustment tables and ground speed tables that many operators never have on hand when they need them.

Because the Landini Legend TDI manual covers the 125TDI through 185TDI with Top, Top-Tronic and Top Techno variants in one document, it suits mixed fleets as well as single-tractor owners. Anyone maintaining a Legend TDI can use this manual to identify the correct engine oil and lubricant, set valve clearance, bleed the fuel system after a filter change, adjust wheel track for a specific row spacing, choose the right PTO shaft for the implement, set up the three-point linkage for draft control ploughing, or diagnose a warning light on the instrument panel – all without guesswork.
