Liebherr CBW 40/29.5 ST Cargo Deck Crane Instruction & Maintenance Manual Volume 1

Description

Liebherr CBW 40/29.5 ST Cargo Deck Crane Instruction & Maintenance Manual Volume 1

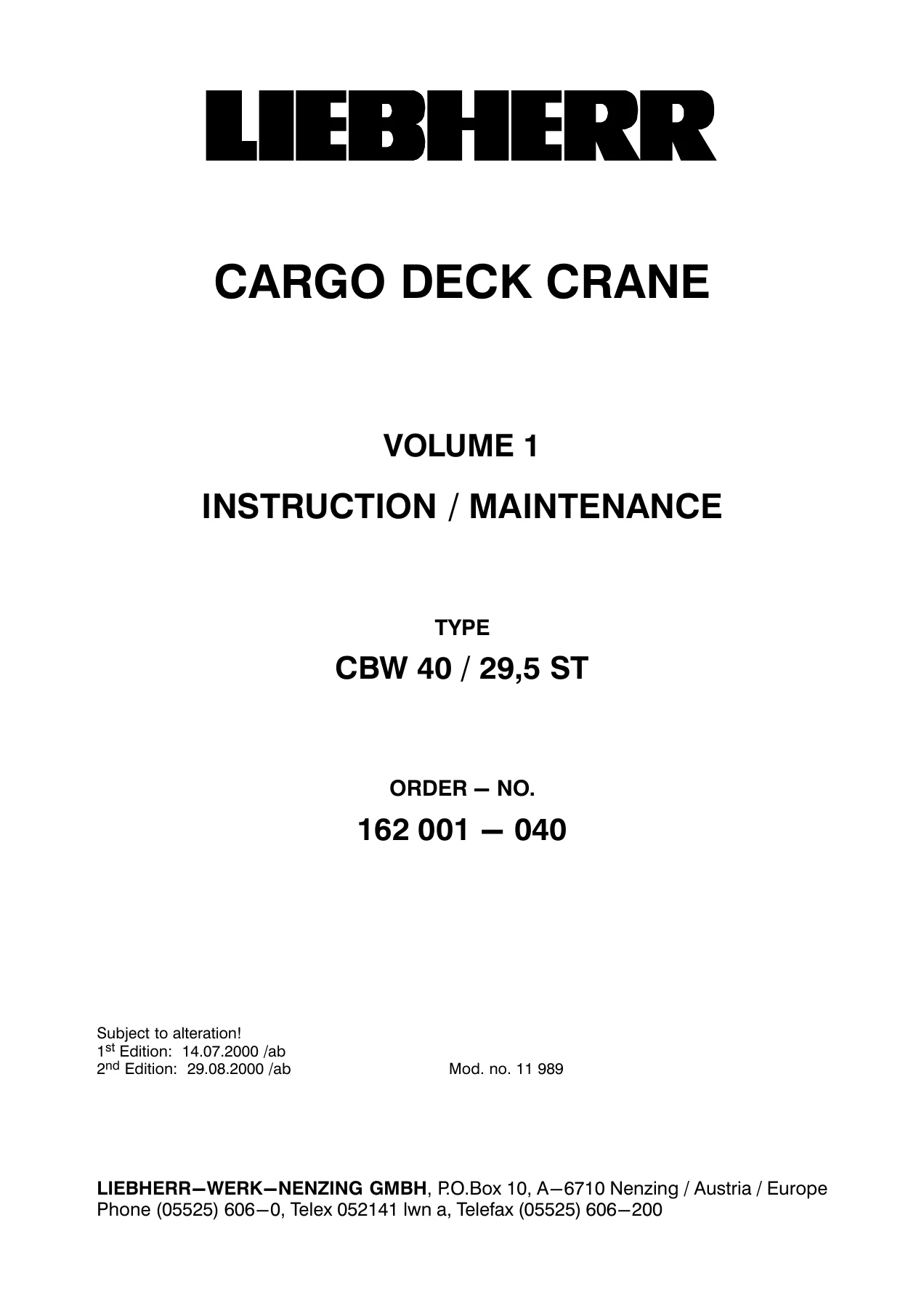

This is the complete Volume 1 Instruction / Maintenance manual for the Liebherr CBW 40/29.5 ST Cargo Deck Crane, order number 162 001 – 040. Published under modification number 11 989 with a first edition dated 14.07.2000 and a second edition dated 29.08.2000, this document serves as the primary operating and maintenance reference for the CBW 40/29.5 ST ship crane.

File Details

• Manual Type: Instruction / Maintenance Manual (Volume 1)
• Brand: Liebherr
• Model: CBW 40/29.5 ST Cargo Deck Crane
• Document Number: 162 001 – 040
• Modification Number: 11 989
• Edition: 1st Edition 14.07.2000 / 2nd Edition 29.08.2000
• Language: English
• Page Count: 112 pages
• File Format: PDF

Chapters Covered

The manual is organized into three main sections, each with extensive sub-sections:

• Section 1 — Safety and General Information: To the Owner, General Information (Crane Serial Number, Spare Parts/Repairs, Preservation, Welding Operations), Crane Application and Operation, Conversion Table, Standard Hand Signals for Controlling Crane Operations, General Hints and Advice for Crane Operation, Explanation of Safety Signs (Prohibition, Warning, Mandatory, Rescue), Liebherr World-wide Service Organization
• Section 2 — General Description: Arrangement of Cranes on Ship, Arrangement of the Main Parts of the Crane (Slewing Column, Jib), Technical Description (Hoisting System, Luffing System, Slewing System, Power Regulation, Crane Control, Heating, Cooling, Operator’s Cabin, Safety Devices, Emergency Descent, Load Diagram), Layout of the Operator’s Cabin, Explanation of Control Elements on the Control Stand, Switch Unit X20 for Crane Control, Lighting and Heating, Controls on the Switch Cabinet X1, Preparations for Crane Operation, Additional Crane Operation (Working Cage Operation)
• Section 3 — Maintenance: General Maintenance Intervals, High Adhesion Lubricant or Underwater Grease, Disposal of Used Materials, Special Safety Regulations, Maintenance of Hydraulic System, Filter Elements, Hydraulic Fluid, Flushing of Hydraulic Circuit, Hydraulic Lines and Hoses, Valve and Filter Plate Aggregate Room, Return Flow Filter Hydraulic Oil Tank, Pressure Accumulators, Liebherr Condition Monitoring, Gearboxes (Slewing, Hoist Winch, Auxiliary Hoist Winch), Multiple Disc Brakes, Instructions for Use of Crane Ropes, Replacement of Ropes, Rope Pulleys, Roller Slewing Ring, Electrical System, Maintenance Instructions for Slip Ring Unit, Lubrication and Greasing Diagram, Maintenance Lists, Service Spare-Parts and Standard Tools, Table of Lubricants

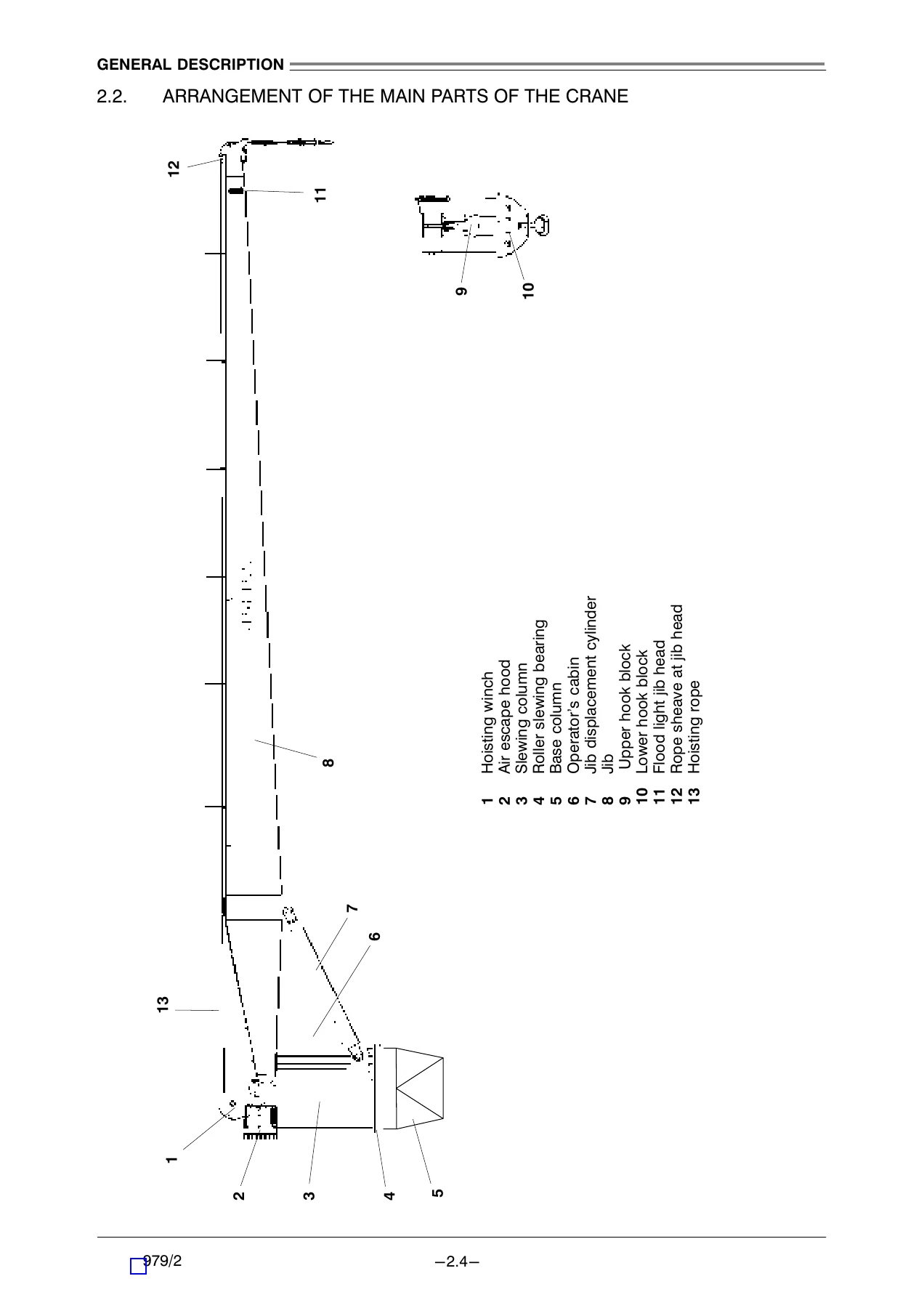

This instruction and maintenance manual for the Liebherr CBW 40/29.5 ST cargo deck crane provides the complete framework for safe operation and routine servicing. The opening section establishes the safety foundation every operator and service technician needs, from standard hand signals and general operating hints to the full explanation of prohibition, warning, mandatory, and rescue signage used across the crane. Section 2 moves into the physical layout of the crane — how the four cargo deck cranes are arranged on the ship, the arrangement of the main parts on the slewing column, and the technical description of the hoisting, luffing, and slewing systems. The operator’s cabin layout, joystick functions, switch unit X20, and switch cabinet X1 controls are all documented with the detail needed to operate the crane and understand what each control does.

The maintenance section is where the CBW 40/29.5 ST manual delivers its real value for the long-term care of the crane. It covers the hydraulic system in depth — filter elements, hydraulic fluid specifications, flushing procedures, lines and hoses, valve and filter plate assemblies, and the return flow filter. The pressure accumulators, gearboxes, multiple disc brakes, rope pulleys, roller slewing ring, and slip ring unit each receive dedicated maintenance instructions. The rope section is particularly thorough, covering selection, installation, maintenance, inspection, untwisting procedures, and discard criteria, followed by step-by-step rope replacement procedures for both the main hoisting winch and the auxiliary hoist. The maintenance lists break down service tasks by interval — daily, weekly, first 100 hours, every 500 hours, first 1000 hours, and every 2000 hours — with filling quantities and a complete table of lubricants.

Liebherr CBW 40/29.5 ST Cargo Deck Crane Maintenance and Repair

This manual gives technicians the procedures and specifications needed to carry out everything from daily inspections to major component service on the CBW 40/29.5 ST cargo deck crane. The hydraulic system maintenance chapter provides the filter element replacement procedures, hydraulic oil cleanliness requirements, and flushing instructions that keep the hoisting, luffing, and slewing circuits operating correctly. The gearbox section covers the slewing gearboxes, hoist winch gearbox, and auxiliary hoist winch gearbox with their splash lubrication systems, oil change procedures, and oil level inspection methods. The multiple disc brake chapter explains the spring-loaded brake layout, the critical arrangement of discs and springs, and the inspection requirements after an emergency stop with full load.

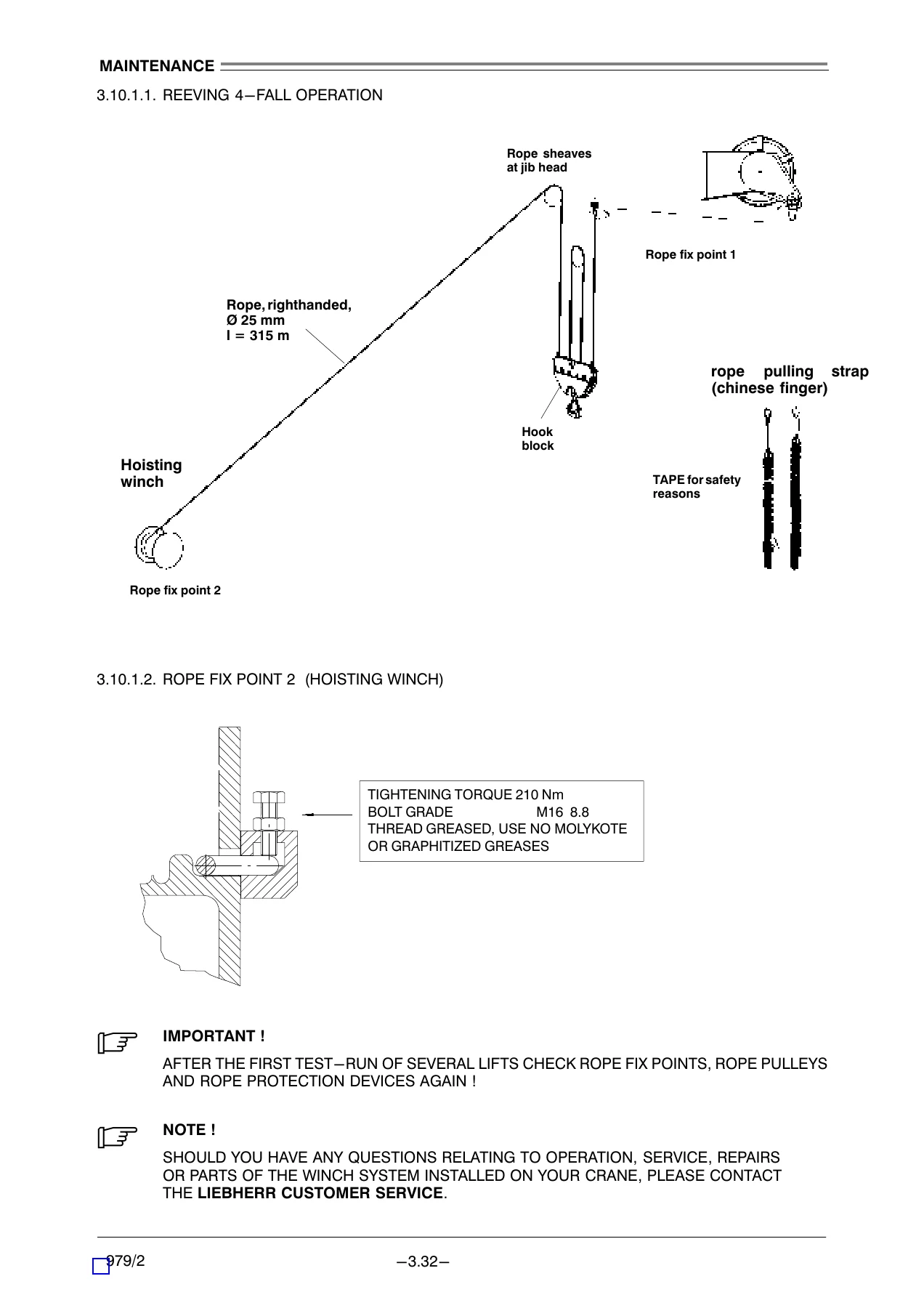

The rope maintenance and replacement procedures are among the most valuable parts of this document. Rope replacement on the main hoisting winch requires careful handling — the manual walks through disconnecting from rope fix points, using cable pulling straps and auxiliary nylon ropes, and ensuring no torsion is transmitted to the new rope. The reeving plans for both the 4-fall main hoist and the auxiliary hoist show the complete rope path from the winch drum through the jib head sheaves to the hook block. Torque specifications for the rope fix point bolts are given — 210 Nm for the M16 8.8 bolts on the hoisting winch and 23 Nm for the M8 8.8 bolts on the auxiliary hoist.

The electrical system section covers maintenance to the switch cabinet, fuses, bulbs, and filter cleaning, plus the complete slip ring unit maintenance for the terminal box, power section, signal section, and cable insulation. The safety devices chapter documents the emergency stop buttons located at the switch unit X20, switch cabinet X1, and ascent ladder, along with the limit switches on the hoisting and luffing systems. The emergency descent procedure using the rescue device is fully illustrated, and the load diagram shows the 40-tonne capacity across the 2.8 to 30-metre radius range in 4-fall operation.

Why This Liebherr CBW 40/29.5 ST Manual Matters

Proper maintenance of a cargo deck crane is not optional — it is a safety-critical requirement. The Liebherr CBW 40/29.5 ST instruction and maintenance manual provides the exact procedures, fluid specifications, torque values, and inspection intervals that Liebherr specifies for this crane. Using the correct hydraulic oil, replacing filter elements at the right intervals, inspecting ropes against the discard criteria, and maintaining the multiple disc brakes correctly are all essential to keeping the crane operating safely and preventing structural damage or personal injury. The manual’s safety section makes clear that crane operation is prohibited if safety devices are not working properly, and the maintenance lists provide the schedule to keep everything in order.

Whether you are an operator needing to understand the control layout and safety devices, a maintenance technician performing scheduled service, or a ship’s engineering team responsible for a fleet of cargo deck cranes, this manual covers the systems and procedures you need. It includes the Liebherr Condition Monitoring program information for oil analysis, the pressure accumulator inspection requirements (mandatory every two years), the roller slewing ring bolt pretensioning specifications, and the complete table of lubricants with recommended products from Agip, Aral, AVIA, BP, Castrol, Chevron, Elf, Esso, Fina, Fuchs Lubritech, Mobil, Shell, Texaco, and Verkol.

Get Your Liebherr CBW 40/29.5 ST Instruction & Maintenance Manual Today

IMAGES PREVIEW

This Liebherr CBW 40/29.5 ST Cargo Deck Crane Instruction & Maintenance Manual Volume 1 is delivered as an instant PDF download — no shipping, no waiting. You can access it immediately after payment on any device, whether you are on the ship, in the workshop, or at the office. The PDF is printable, so you can keep a paper copy in the operator’s cabin or the maintenance office. With 112 pages covering safety, operation, and the complete maintenance schedule for the CBW 40/29.5 ST, this manual is an essential reference for anyone responsible for this cargo deck crane.
