NMF Board Crane DK Vs 35024 30028 Instruction Manual – Order 80793

Description

File Details

• Manual Type: Board Crane Instruction Manual
• Brand: NMF (Neuenfelder Maschinenfabrik GmbH)
• Model: DK Vs 35024/30028
• Order Number: 80793
• Date: September 2008
• Language: English
• Page Count: 387
• File Format: PDF

Chapters Covered

The NMF Board Crane DK Vs 35024 30028 instruction manual is organized into eight main chapters plus a comprehensive drawings and spare parts section. Each chapter provides the detailed technical information required to operate, maintain, and repair this shipboard loading crane correctly.

• 1. What is worth knowing about this operating manual – Manufacturer information, operator’s duty of care, terms and shortcuts, technical amendments, guarantee, copyright, hydraulic symbols (pumps, cylinders, way valves, pressure valves, flow control valves, non-return valves, pipe connections)
• 2. Safety – Intended use, general safety instructions, personnel requisites, symbols on the crane, warning signals, safety devices and their functional test (control lever, pressure switch, pressure sensor, hydraulic overload safety, limit switch), dangers and behaviour in case of danger, emergency exit

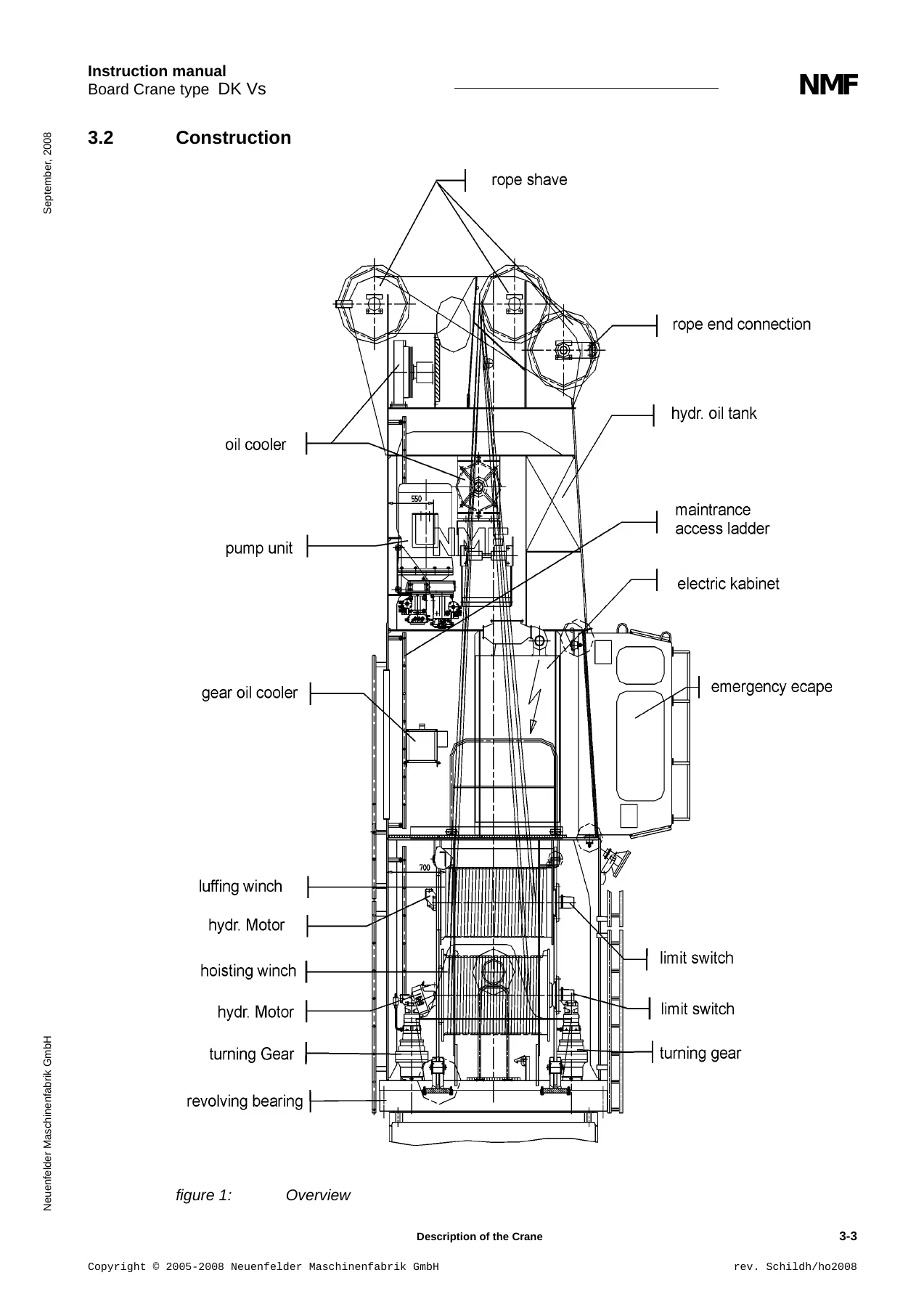

• 3. Description of the Crane – Technical data, construction, general aspects, pump unit, lifting gear, luffing gear, slewing gear, gear oil cooler, hydraulic oil cooler, heating, slack rope switch, gear limit switch, slip ring assembly, functional description of hydraulics, electrical equipment including the 4-channel current regulator print card and fault notification card

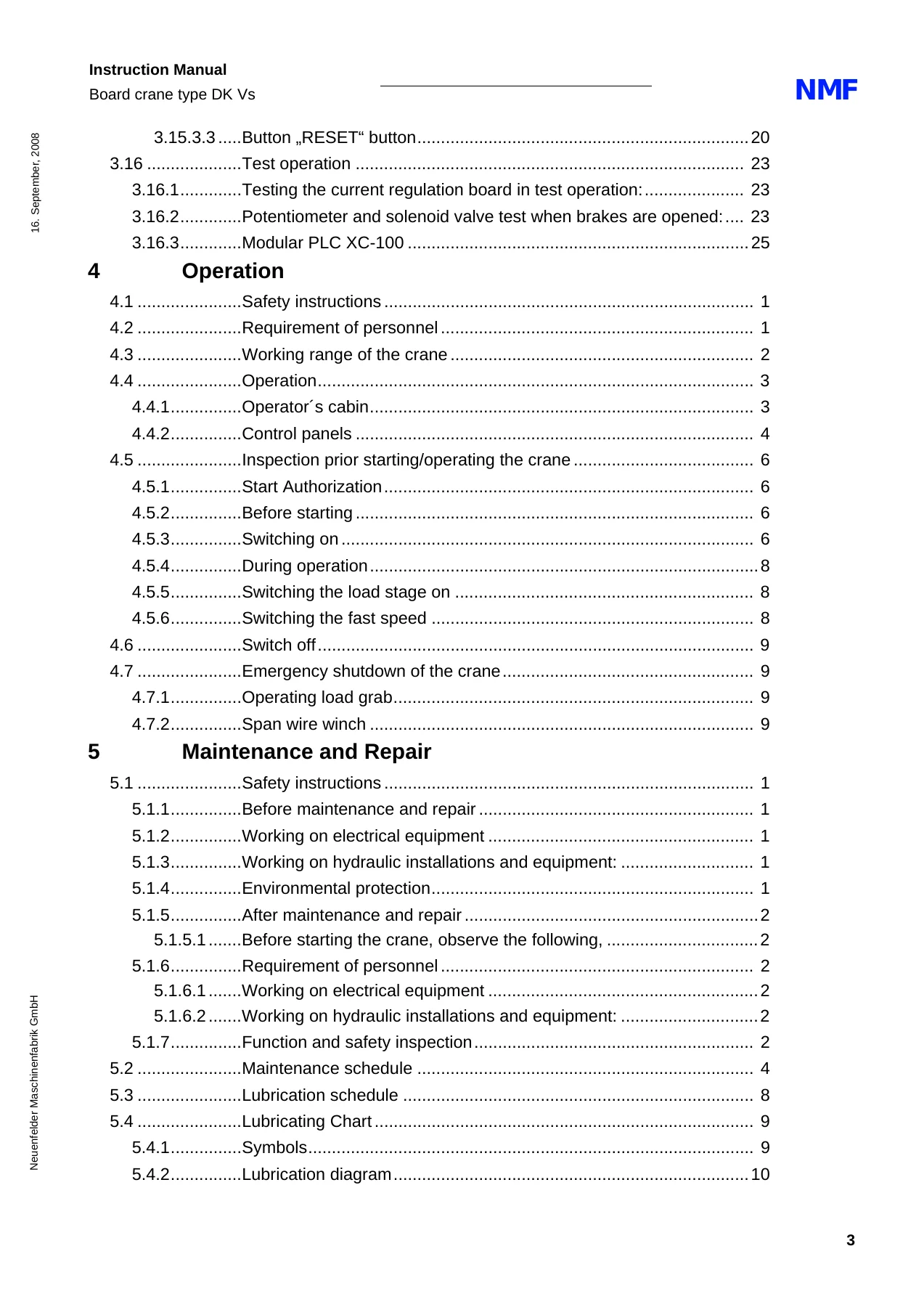

• 4. Operation – Safety instructions, personnel requirements, working range of the crane, operator’s cabin, control panels, inspection prior to starting/operating, start authorization, switching on/off, emergency shutdown, operating load grab, span wire winch
• 5. Maintenance and Repair – Safety instructions, maintenance schedule, lubrication schedule, lubricating chart, illustrations of lubrication points, cleaning, greasing, gear maintenance, oil changes, gear box inspection, pump distribution gear, filters, bottom hook block, slew ring gear, slip ring assembly, load measuring bolts, slack rope switch gear, wire rope maintenance/service/discard criteria
• 6. Monitoring, Failure, Troubleshooting and Elimination – Safety instructions, brake relay monitoring, fault notification card, speed monitoring, brake description and maintenance, manual emergency release, lifting of brakes in case of emergency, gear cam limit switch, PLC replacement procedures
• 7. Spare parts – Ordering spare parts, spare parts list with original NMF part numbers
• 8. Subcontractor documentation – Documentation for hydraulic pumps, motors, winch units, slewing gears, oil coolers, solenoid valves, filters, cabins, descender devices, and lifting blocks
• Drawings and spare parts – Detailed technical drawings, exploded views, hydraulic circuit diagrams, and complete parts lists

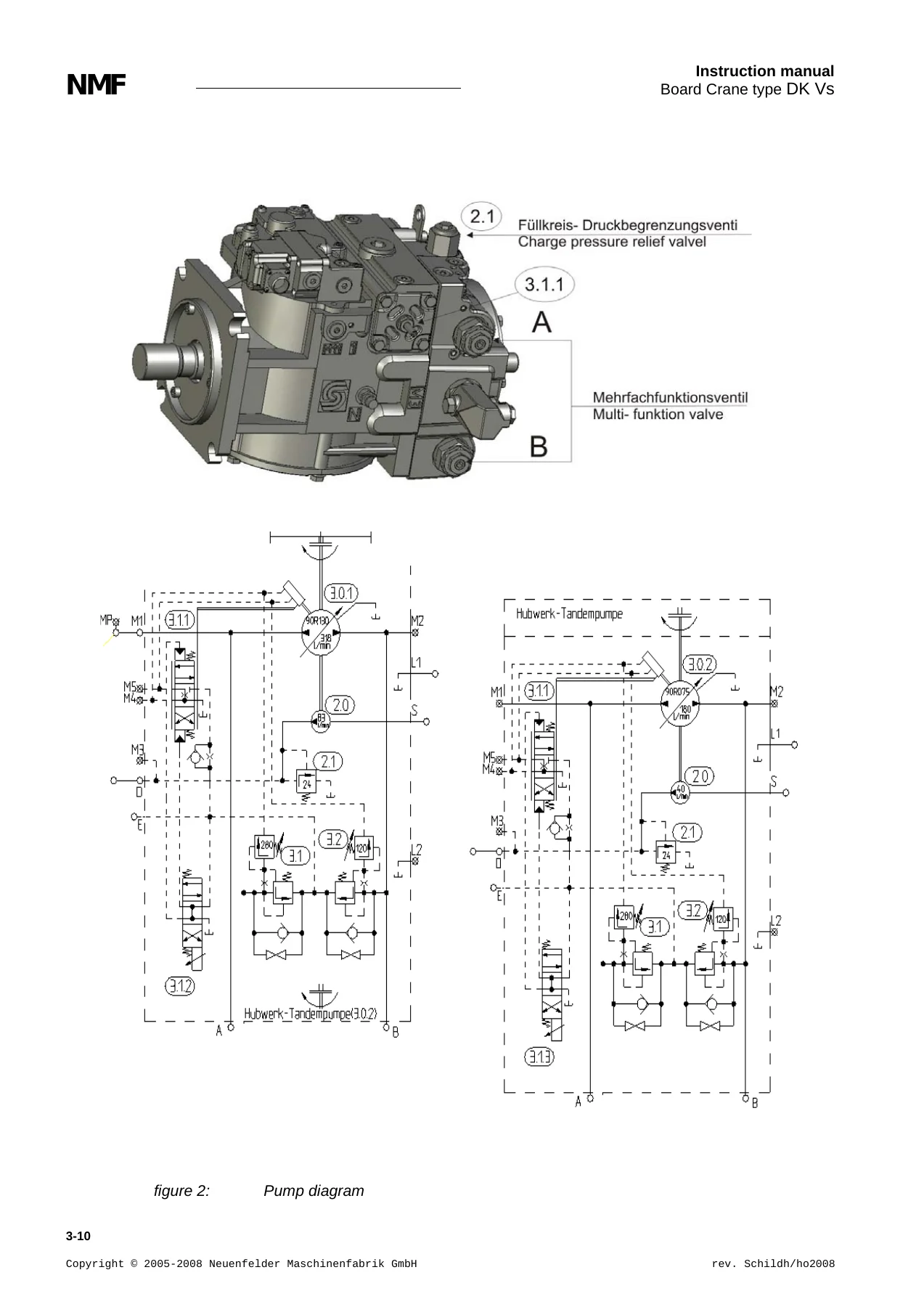

The NMF DK Vs 35024 30028 board crane instruction manual opens with critical safety information and the manufacturer’s duty of care requirements before progressing into full technical descriptions of every crane system. The hydraulic system section is particularly thorough, covering the pump unit with its variable reversible high-pressure axial piston pumps, the hoisting gear, luffing gear, and slewing gear in complete detail. The electrical equipment chapter documents the 4-channel current regulator print card, the fault notification card, switch board controls, and the modular PLC XC-100.

For operators, this NMF board crane manual details the complete working range of the crane including load stages for 35t, 30t, and grab operation, fast speed selection for loads up to 14t, and the proper procedures for switching loads, emergency shutdown, and operating the load grab. The control panel layouts for both the right and left panels are clearly illustrated with numbered callouts for every switch, button, and indicator lamp.

Maintenance Documentation

Maintenance personnel will find a complete maintenance schedule that spans from prior-to-operation checks through weekly, monthly, quarterly, semi-annual, yearly, and multi-year intervals. The lubrication schedule lists specific grease and oil types for every lubrication point on the crane, including gear oil for the winch gear, slewing gear, and pump distribution gear, grease for open spur gears and wire ropes, and hydraulic oil specifications. The lubrication diagram and illustrations of lubrication points show exactly where to apply grease and oil on door hinges, the electric motor, slewing bearing teeth, wire sheaves, rope end connections, bottom hook block, slewing gear, and winches.

The wire rope section provides detailed inspection criteria covering type and number of wire breakages, position of breakages, reduction of rope diameter, corrosion, abrasion, rope deformations, and heat effects. Replacement state of wear criteria are clearly defined, including the requirement to replace wire rope if the diameter is reduced by 15% or more due to structural changes, or by 10% or more due to corrosion or abrasion.

Troubleshooting and Diagnostics

The troubleshooting chapter addresses brake relay monitoring, fault notification card diagnostics, speed monitoring for the jib winch and lifting gear winch, brake malfunctions, and step-by-step procedures for lifting brakes in emergency situations using the hand pump. The gear cam limit switch section provides complete adjustment procedures for the hoisting gear, luffing gear, and jib limit switches. The PLC replacement guide covers the XC-CPU 201 and XIOC modules with battery replacement instructions.

Hydraulic and Electrical Systems

The hydraulic system documentation includes a complete circuit diagram with numbered components, functional descriptions of the electro-hydraulic control, detailed explanations of the hoisting gear operation at different load levels, luffing gear operation, slewing gear operation, and the hydraulic overload cut-off system. The electrical equipment section covers the electronic regulator print card with its parameter settings, the fault notification card, switches in the switch board including TEST, Testload, and RESET buttons, and the modular PLC XC-100 operating states.

Why This NMF Board Crane Manual Matters

Operating and maintaining a board crane without the correct documentation risks expensive damage, unsafe conditions, and potentially catastrophic failures. The NMF DK Vs 35024 30028 instruction manual gives you the exact procedures, specifications, and safety requirements established by the manufacturer for this specific crane model. Whether you need to perform routine maintenance, diagnose a hydraulic fault, replace a brake component, adjust limit switches, change wire rope, or troubleshoot an electrical issue, this manual provides the step-by-step guidance needed to complete the job correctly and safely.

The detailed hydraulic diagrams and electrical schematics alone make this document invaluable for troubleshooting. The spare parts lists with original NMF part numbers ensure you order exactly the right components. The maintenance schedule helps you plan service intervals and avoid unexpected downtime. The safety instructions and danger warnings help protect personnel and equipment during all phases of crane operation and service.

IMAGES PREVIEW

Instant PDF Delivery

This NMF Board Crane DK Vs 35024 30028 instruction manual is delivered as a PDF file immediately after payment. There is no shipping, no waiting for a physical book, and no risk of a damaged or lost package. The document can be viewed on any computer, tablet, or smartphone, and you can print specific pages or the entire manual for use in the workshop, crane cabin, or maintenance office.

Whether you are an operator, maintenance technician, or ship’s engineer responsible for an NMF DK Vs board crane, this instruction manual is an essential reference that belongs with the equipment. Order your copy today and have the complete factory documentation at your fingertips.
