Linde E35 E40 E45 E50 Series 388-01 Forklift Parts Catalogue – 388 801 00 00

Description

Linde E35 E40 E45 E50 Series 388-01 Parts Catalogue

This is the full illustrated spare parts catalogue for the Linde E35, E40, E45 and E50 series 388-01 electric counterbalance forklift range. Published under document number 388 801 00 00 and dated 18.08.2016, it is the parts identification reference used to look up original order numbers, quantities, assemblies and supersession information for every major component group on these trucks. With 729 pages of exploded views, position-numbered illustrations and matching order tables, it turns an ambiguous repair job into a straight part number lookup.

File Details

• Manual type: Illustrated spare parts catalogue (Ersatzteilkatalog / Spare Parts List)
• Brand: Linde Material Handling
• Model series: E35 / E40 / E45 / E50 (series 388-01)
• Document number: 388 801 00 00
• Date: 18.08.2016
• Language: Multilingual cover and column headers (German, English, French, Italian, Spanish); parts tables predominantly in German
• Pages: 729
• Format: PDF

Chapters Covered

• Antrieb Motor (Drive – Motor)
• Antrieb: Getriebe (Drive – Transmission)
• Fahrzeugaufbau (Vehicle body / superstructure)
• Lenkanlage und Räder (Steering system and wheels)
• Bedienelemente (Operating controls)
• Elektrische Anlage (Electrical system)
• Hydraulikanlage (Hydraulic system)
• Hubgerüst (Mast / lift frame)
• Sonderausrüstung (Special equipment)
• Sonstiges (Miscellaneous)

Each top-level chapter expands into detailed sub-assemblies – motor unit, service units, geared axle assemblies, frames and counterweights, overhead guards, doors, windows, mirrors, seats, pedals, brake valve, control valve actuation, armrests, tilt sensors, electrical modules, battery connectors, contactor panels, main wiring harnesses, various cable sets, work lights, road traffic lighting and warning beacons, control blocks VW10-M3 and VW10-M4, hydraulic pumps, oil tank and filters, pump unit, electric motor, tilt cylinders, auxiliary hydraulic lines, fork carriers and fork tines, standard and triplex masts, lift cylinders, middle and outer cylinders, sideshifts, Linde Load Assistant, road traffic equipment, load backrest, tilt cylinder guards, roof guards, clipboard, sun protection roof, battery trays and battery lifting devices, hydraulic battery removal, decals, joystick decals, operating fluids and document bags. The amount of engineering detail is exactly what a parts professional expects from a factory parts catalogue – every figure is drawn as an exploded assembly view with the numbered callouts that map directly to the order tables on the facing pages.

What This Parts Catalogue Gives You

A parts catalogue is not a repair guide, and this one is honest about its job: it identifies parts. What it delivers is the fastest possible path from a broken component to a purchasable order number. For every item in the book you get the position number shown on the illustration, the Linde order number (Bestell-Nr.), the quantity required (Menge), the part name, any superseding part number (ersetzt durch), the version or design variant (Ausführung), any validity note (Gültigkeit) and the specific vehicle variants that take that part (Fahrzeuge). That last column is the difference between ordering the right counterweight and ordering one that fits a different build. Series 388-01 trucks were produced in short-chassis and long-chassis formats, standard cab and container versions, standard and elevated driver positions, and different mast types, so the vehicle-scope column matters.

Exploded views at every assembly level

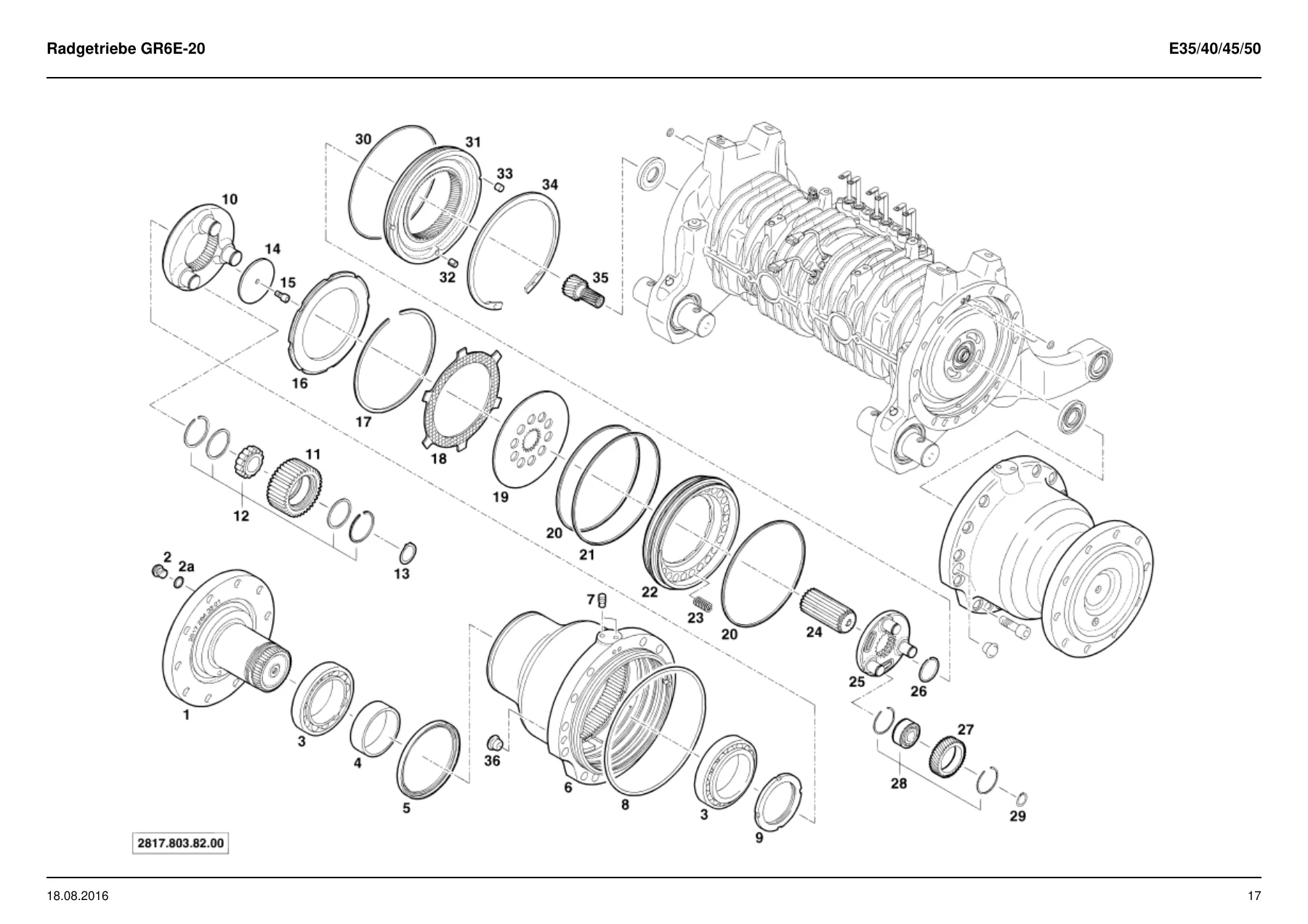

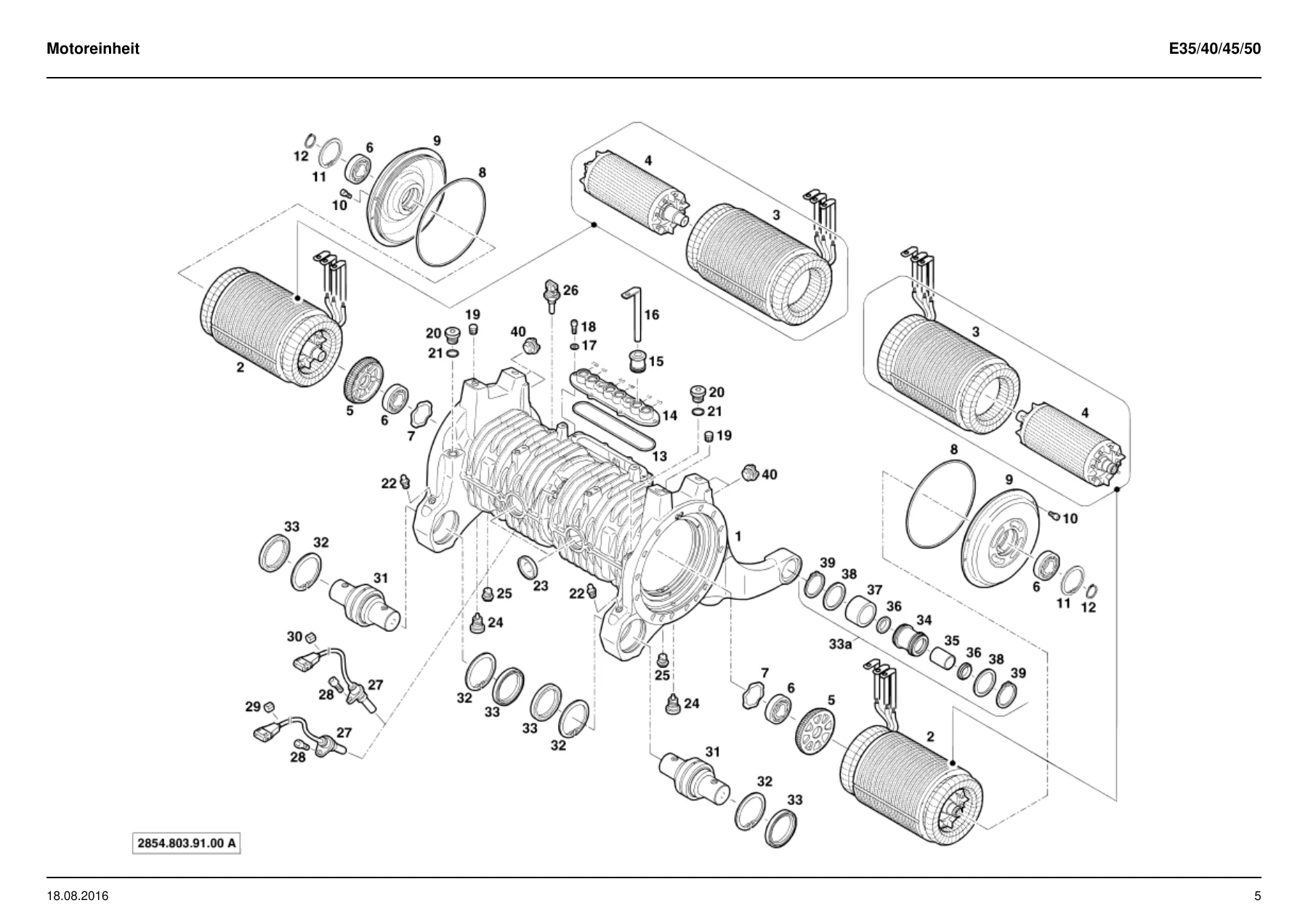

Illustrations are provided for the major assemblies and, where the original design had multiple variants, more than one illustration is included to keep the numbering unambiguous. Examples include the motor unit with rotor, stator, bearings, sealing rings, flanges and sensors; the geared axle service unit and the GR6E-20 / GR6E-21 reduction gear with planet carriers, brake discs, brake piston, hollow wheel and sun gear shaft; the AL35 steering axle with stub axles, wheel bearings, track rod and steering cylinder; and the brake pedal and accelerator pedal assembly with potentiometer, return springs, pivot bolts and bearings.

Supersession and discontinued-part notes

Discontinued items are flagged with auslaufendes Ersatzteil and the replacement part is listed in the adjacent column, so you know before you order whether a number is still current or has been superseded. Where a full assembly is sold as a service unit or repair kit, the included positions are listed so you can confirm exactly what arrives in the box.

Coverage – Linde E35, E40, E45, E50 (Series 388-01)

The catalogue explicitly references the E35H-600, E40H-600, E45H-600, E40HL-600, E45HL-600, E50HL, E50HL-600, E40L-600, E45L-600, E50L and E50L-600 designations, plus E50-600 variants, and covers both standard and elevated driver positions, cab and container executions, and the twin-tyre configurations called out in the wheels and tyres section. Where a part is common across the E35 through E50 range it is listed once; where a part is specific to one capacity class or one cab variant, the vehicle column makes the split.

Who This Is For

Forklift fleet workshops, independent lift-truck engineers, parts counter staff and owners doing their own maintenance. Anyone who has ever tried to identify a Linde part from a photo or a description alone knows the value of the position number and the vehicle-scope column. This document supplies both.

Get Instant Access

IMAGES PREVIEW

Stop guessing part numbers. With the Linde E35 E40 E45 E50 Series 388-01 Forklift Parts Catalogue – 388 801 00 00 in front of you, you can pull the correct order number for a hydraulic pump, a lift cylinder seal kit, a door gas strut, a seat height adjustment lever, a warning beacon, a contactor, a wiring harness connector or a mast chain in a few minutes instead of a few days. Ordering the exact part first time avoids cross-shipping, wrong-fit returns and unnecessary downtime. The file is delivered as an instant PDF download – no shipping, no waiting, printable from any computer, tablet or phone, and available to your workshop as soon as payment clears.
