Linde H25 H30 H35 Series 393-02 Forklift Parts Catalogue PDF – 393 801 01 00

Description

Linde H25 H30 H35 Series 393-02 Parts Catalogue – 393 801 01 00

This is the complete Linde spare parts catalogue for the H25, H30 and H35 counterbalance forklift trucks built on the 393-02 series platform. Published under document number 393 801 01 00, it is the reference used to identify, order and replace components across the entire machine – from the engine block and transmission assembly to the mast, hydraulic circuit, operator compartment and special equipment.

The catalogue is written in German, English, French, Italian, Spanish and Chinese, with part names and numbers presented in a consistent tabular layout. Every section pairs a numbered exploded illustration with a parts list so that a component can be located visually, matched to its position number and ordered by its exact part number.

File Details

• Manual type: Spare Parts List / Ersatzteilkatalog
• Brand: Linde
• Models covered: H25, H30, H35
• Series: 393-02
• Document number: 393 801 01 00
• Date shown: 26.07.2018
• Languages: German, English, French, Italian, Spanish, Chinese
• Pages: 1402
• Format: PDF

Chapters Covered

The Linde 393-02 parts catalogue is organised into the following top-level groups, each with its own exploded views and component tables:

• Motor (Engine) – basic engine, cylinder block with pistons, cylinder head, crankshaft and connecting rod bearings, pistons and rings, timing belt and tensioner, camshaft and valves, oil pump, oil filter, coolant pump, coolant regulator, turbocharger, exhaust manifold, emission purification system, air conditioning compressor, alternator, starter motor, ignition leads, lambda sensor, engine control unit.
• Accionamiento: Motor / Transmission – service unit HPV75-02R, control unit MPR50, hydraulic axle AH35-03 and AH35-04, constant displacement motor HMF550R, brake valve, distribution valve and cabling.
• Bastidor (Chassis) – counterweight chassis, frame with protection bar, frame for elevated driver seat, hood and panelling, front and side panelling, rear panelling, cleaning openings and underbody protection, front console, insulation mats, driver seat and air suspension seat, rotating seat installation, driver cab glazing, windscreen, roof glazing, rear window, wiper, mirrors, doors, sliding windows, split doors, safety door, plastic doors, heating and air conditioning console, radio.
• Sistema de dirección y ruedas (Steering and Wheels) – hydrostatic steering and piping, steering column, steering axle AL35-01, solid tyres, pneumatic tyres, front and rear mudguards.
• Elementos de mando (Control Elements) – pedal actuation, parking brake, distribution valve actuation, armrest trim, tilt sensor, tilt sensor panel.
• Sistema eléctrico (Electrical System) – electrical accessories, central electrical box and controllers, battery and accessories, main wiring harness sections for diesel and LPG versions, working lights, vehicle lighting and hazard warning installation, LED lighting harnesses, rear position and brake lights, emergency and warning lights, Blue Spot, Truck Spot, LED light bar, warning signal cables, reverse warning cables, valve block harness, wiper harness, heating and air conditioning harness, vehicle disconnection harness, LPG indicator harness, LPG ultrasonic level harness, Linde truck data management (LFM), LFM online, LSP harness, remote data transmission, Linde Load Assistant.
• Conjunto hidráulico (Hydraulic Assembly) – distribution valve and cabling, control block VW12-M3 and VW12-M4, oil tank with pipes and accessories, oil filter and pipes for traction hydraulics, tilt cylinder, accumulator, pressure relief circuit, auxiliary hydraulics for standard mast type 188, auxiliary hydraulics for duplex/triplex mast type 188, right hose reel for single auxiliary hydraulic, left hose reel for double auxiliary hydraulic, 3-way auxiliary hydraulic for fork carriage, 3-way auxiliary hydraulic for side shift, distribution valve for auxiliary hydraulics.
• Mastil (Mast) – fork carriage and forks, standard mast type 188, duplex mast type 188, triplex mast type 188, lift cylinder for standard mast type 188, middle cylinder for duplex/triplex mast type 188, outer cylinder for duplex/triplex mast type 188, integrated side shift for standard mast type 188 with roller guidance, integrated side shift for duplex mast type 188 with roller guidance, integrated side shift for triplex mast type 188 with roller guidance, fork positioner for standard mast type 188, fork positioner for duplex mast type 188, fork positioner for triplex mast type 188, fork positioner for standard mast type 188 View, fork positioner for duplex mast type 188 View, fork positioner for triplex mast type 188 View.
• Equipos especiales (Special Equipment) – road traffic equipment, cylinder impact protection, load backrest for mast type 188, fire extinguisher, sun protection roof, overhead guard grille, terminal board.
• Varios (Miscellaneous) – indication decals, North America indication decals, control lever decals for single lever and multiple lever, user documentation bag, diesel service media, LPG service media.

Beyond this top-level breakdown, the catalogue descends into the full part-number structure of the machine. Engine coverage alone reaches individual components such as the cylinder block, cylinder head, crankshaft, connecting rod bearing shells, pistons, timing belt protection, camshaft, valves, valve springs, oil filter housing, coolant pump, thermostat housing, turbocharger oil return pipe and the alternator and starter assemblies for the different engine variants. Transmission and drive coverage extends to the service unit, the hydraulic axle shaft housing, brake piston, brake discs, wheel hub, steering knuckle and the constant displacement motor’s internal components. The mast sections list complete lift cylinder assemblies by lift height, chain sets by link count, roller assemblies, fork carriage assemblies and fork positioner cylinders.

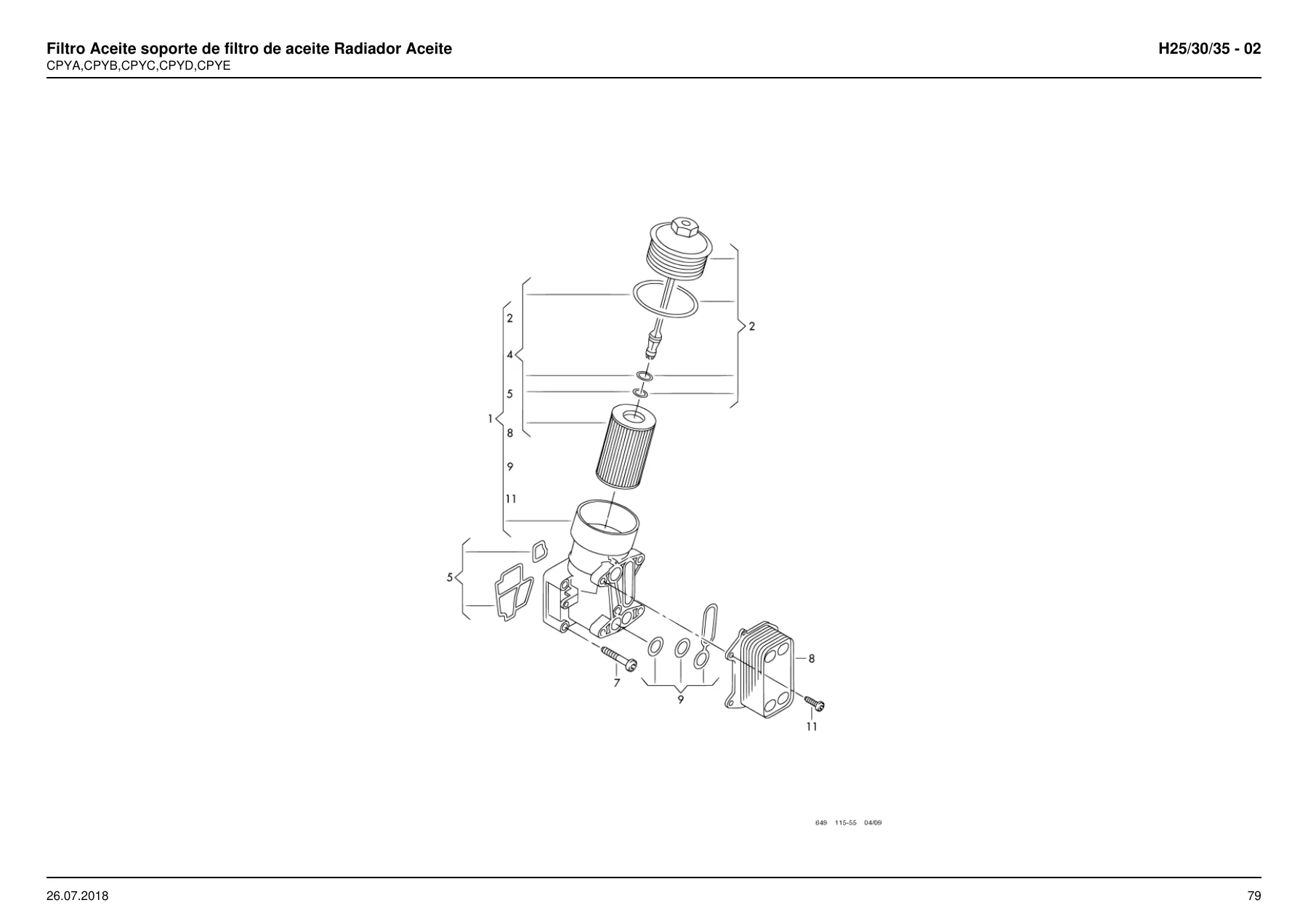

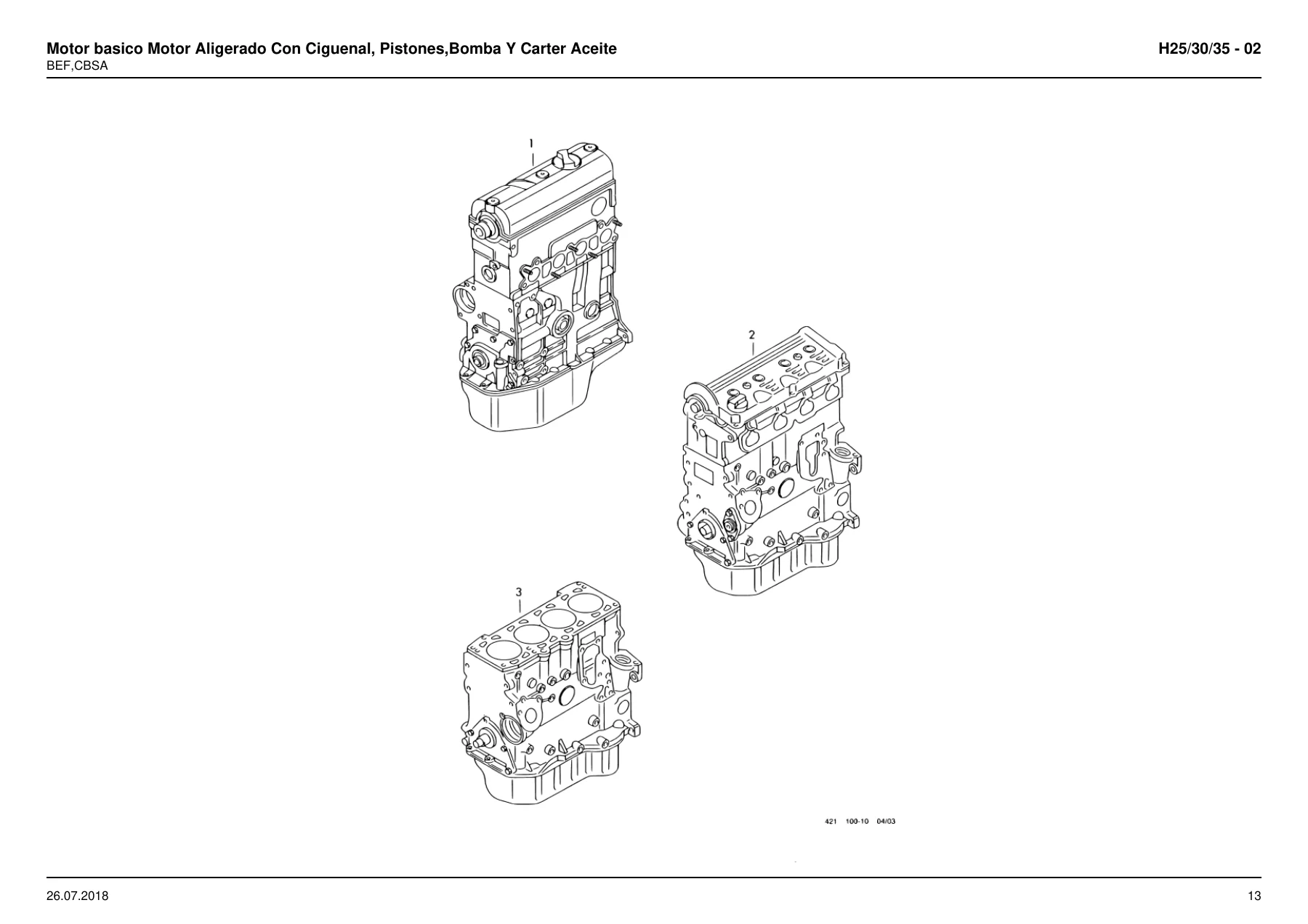

Because the part lists are shown alongside their exploded illustrations, this Linde parts catalogue is not simply an index – it is a complete visual reference for how each assembly goes together. A technician can identify a component by its position number on the diagram, cross-check the corresponding entry in the table, and confirm the exact part number before ordering. That matters on a forklift where a wrong bearing shell, seal kit or hydraulic hose can mean a machine standing idle while the correct item is re-sourced.

Engine Variants Referenced in This Catalogue

The parts lists are indexed to specific engine identification letters, which allows the correct components to be selected for the engine actually fitted to a given truck. The engine designations referenced in this document include:

• ADG – 350 Diesel
• ADF – 350 LPG
• BXT – 391/392 Diesel
• BEQ – 392 Diesel
• BEU – 393 Diesel
• CBHA – 393 Diesel
• CPYB / CPYC / CPYE – 393 Diesel
• BEF – 391/392/393 LPG
• CBSA – 391 Natural Gas
• BJC – 394 Diesel
• CBJB – 394 Diesel
• CPYA / CPYD – 394 Diesel
• BMF – 394 LPG
• CWTA – 394 LPG
• CKPA – 396 LPG

A notation of Teilenummer + X = AT-Teil indicates that a part number with the suffix X identifies a factory exchange part.

What This Parts Catalogue Enables

Working from this document, a Linde H25, H30 or H35 owner or workshop can:

• Identify the exact part number for any component on the truck, from a single O-ring to a complete mast cylinder assembly.
• Match parts to the correct engine variant using the engine identification letters listed throughout the catalogue.
• Verify component assembly order and orientation using the numbered exploded views.
• Distinguish between standard, duplex and triplex mast configurations and the parts unique to each.
• Order components for diesel and LPG versions of the same truck without mixing up the part numbers.
• Locate electrical harnesses, connectors and relays for the specific equipment fitted to a given machine.
• Identify hydraulic hoses and pipe assemblies by their lift-height range on standard, duplex and triplex masts.
• Reference the torque values and service limits that appear alongside certain assemblies.

Having the correct part number the first time is the difference between a planned repair and an unplanned delay. This catalogue removes the guesswork by tying every part to a drawing, an engine variant and, where relevant, a mast configuration.

Why This Document Matters

Forklift parts are not interchangeable across model years or engine families, and the Linde 393-02 platform covers a wide spread of variants. A part that fits an H25 with the CPYA engine is not necessarily the same part that fits an H35 with the BEF LPG engine. This catalogue accounts for that by listing parts under the exact engine and model designation they belong to, so the buyer sees the correct number for their specific truck rather than a generic approximation.

The exploded illustrations also make the catalogue useful during reassembly. When a seal kit or a bearing set has been removed and the order of the components is no longer obvious, the diagram shows how the pieces fit back together. That reduces the risk of fitting a seal the wrong way round, omitting a spacer or over-torquing a fastener – the kind of mistake that turns a straightforward job into a repeat repair.

Delivery

IMAGES PREVIEW

The catalogue is supplied as an instant PDF download after payment. There is no shipping, no waiting for a physical book and no risk of a damaged parcel. The file can be opened on a workshop computer, a laptop, a tablet or a phone, and individual pages can be printed and taken to the machine when working on it. Because it is a PDF, the same copy can serve the whole workshop.
