Linde E35 E40 E45 E50 Forklift Parts Catalogue 2018 – PDF Spare Parts List 3888010001

Description

Linde E35 E40 E45 E50 Electric Forklift Parts Catalogue – 2018 Spare Parts List

This Linde E35 E40 E45 E50 parts catalogue is the complete 2018 spare parts list for the E35, E40, E45 and E50 electric forklift series. Published under document number 388 801 00 00 (3888010001) and dated 6.11.2018, it covers the full range of assemblies and components fitted to these trucks, from the axle drive gears and steering axle through to the lift mast, hydraulic unit, electric equipment and special equipment. Every section is organised by figure number with corresponding part numbers, quantities and descriptions, making it straightforward to identify the exact component required for a given build, service or repair. The catalogue covers both standard and raised driver’s seat configurations, as well as variants such as E35H-600, E40H-600, E45H-600, E40L-600, E45L-600, E50HL-600 and E50L-600.

File Details

• Manual type: Spare Parts List / Parts Catalogue
• Brand: Linde
• Model series: E35, E40, E45, E50
• Document number: 388 801 00 00 (3888010001)
• Date: 6.11.2018
• Language: English, German, French, Italian, Spanish, Chinese
• Page count: 908
• File format: PDF

Chapters Covered

• Axle Drive Gear GR6E-20
• Axle Drive Gear GR6E-21
• Chassis, Overhead Guard and Counterweight
• Cab, Doors, Windows and Roof
• Driver Seat and Armrest
• Pedal Operation, Brake Valve and Pilot Valve
• Steering Axle and Hydrostatic Steering
• Wheels and Tyres
• Fenders and Mudguards
• Electric Equipment
• Hydraulic Unit
• Lift Mast
• Special Equipment
• Miscellaneous

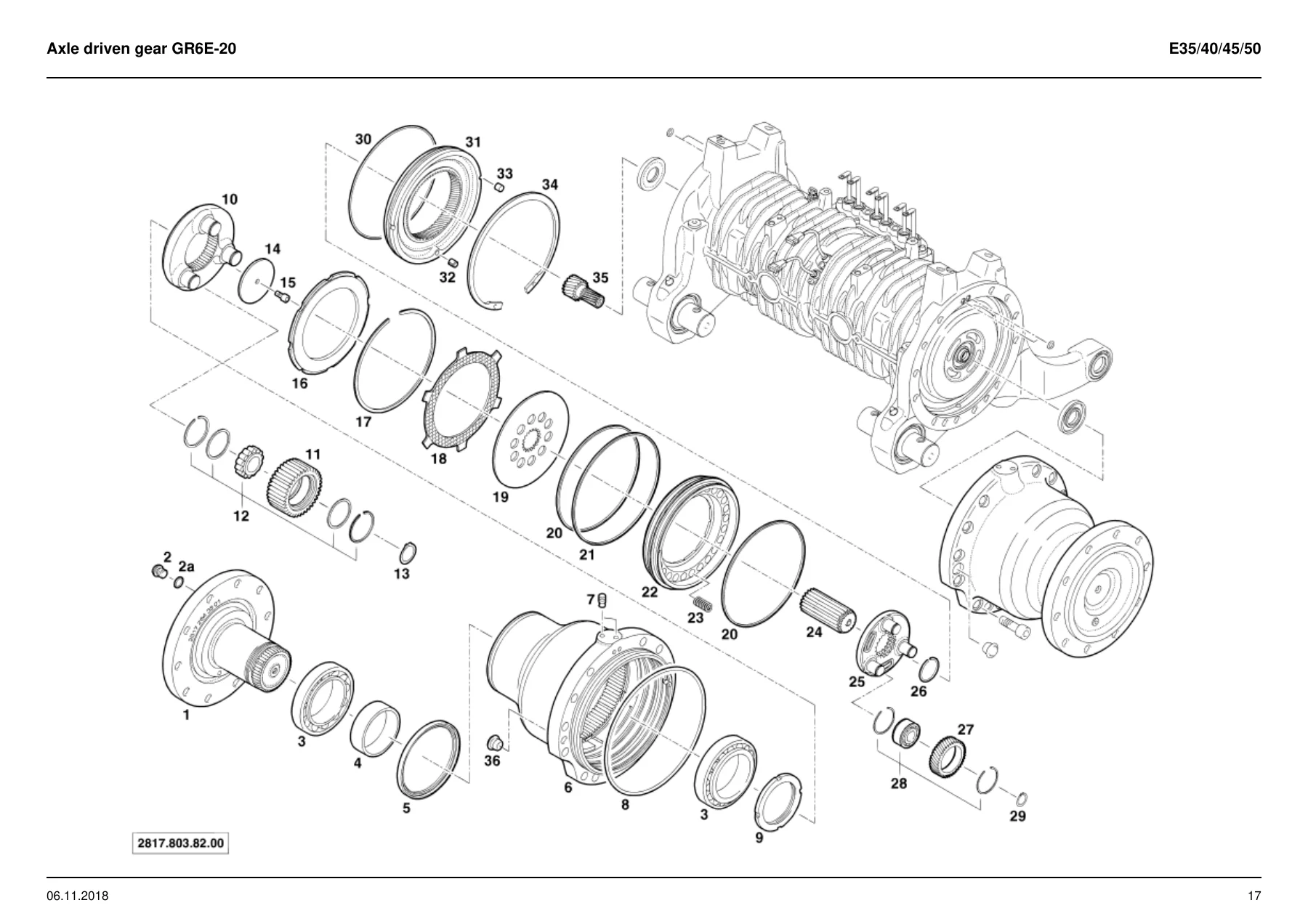

Axle Drive Gear GR6E-20

The GR6E-20 axle drive gear section covers the complete assembly fitted to the E35, E40, E45 and E50 series. It includes the wheel shaft, tapered roller bearings, spacer rings in a range of thicknesses, shaft seal, housing assembly, planet gear carrier, planet gear assemblies, cylindrical roller bearings, locking rings, washer, socket head screws, snap ring, brake discs, quad rings, brake piston, compression springs, sun gear shaft, planetary gear carrier stage 1, snap ring A45, planet wheel assemblies, angular roller bearings, locking rings, O-rings, annular gear assembly, slotted spring pin, cylindrical rollers, locking rings and sealing plugs. Exploded diagrams break down each sub-assembly so that every individual part can be identified by its figure number.

Axle Drive Gear GR6E-21

The GR6E-21 variant section covers the wheel shaft GR6H-03, tapered roller bearing 32019X-P900, spacer rings from 105×95,1×92,45 through to 105×95,1×92,93, radial seal ring 172x192x8,5-V80, snap ring 195×3, housing assembly GR6E, plug HK9x9,5x41AK, O-ring 253,59×3,53-FKM80, slotted nut M95x2, planet gear carrier stage 2, planet gear assemblies, planet wheels, cylindrical roller bearings, locking rings, washers, socket head screws, snap ring 220×3, brake discs (outer and inner), quad rings, brake piston GR6E, compression springs, sun gear shaft stage 2, planet gear carrier stage 1, snap ring A45, planet wheel assemblies, angular roller bearings, locking rings, O-rings, annular gear assembly stage 1, slotted spring pin, cylindrical rollers, locking rings and sealing plugs.

Chassis, Overhead Guard and Counterweight

This section covers the chassis assembly for all model variants, the overhead guard assemblies for different cab configurations (E35H-600, E40H-600, E45H-600, E40L-600, E45L-600, E50HL, E50L, E50HL-600, E50L-600, and raised driver’s seat versions), counterweights for all models, step plates, hexagon head screws in various sizes (M12x65, M16x50, M24x100, M24x210, M8x25), washers, cable grommets, sealing plugs in multiple sizes, edge protection, joining plates, supports, covers, adaptors, ballast weights, spring elements, and all associated mounting hardware.

Cab, Doors, Windows and Roof

Detailed coverage of the windscreen assembly (standard, plastic, green tinted and container versions), roof panel assemblies (standard, sun protection, green tinted, plastic and sight-optimised), rear window assemblies (standard, heatable and green tinted), door assemblies for both right and left sides across all model variants, sliding window spare part groups, door windows, profile rubber seals, hinges, gas springs, handles, locks, wiper motors, wiper arms, wiper blades, washer system components, water tanks, pumps, hoses, check valves, and all mounting hardware. The section also includes sun blinds, roof window assemblies and associated seals and profiles.

Driver Seat and Armrest

This section covers the complete range of driver seats fitted to the E35/E40/E45/E50 series, including standard, comfort and Super Comfort versions with fabric or imitation leather upholstery, seat heating, manual weight adjustment and buckle monitoring options. It includes seat cushions, backrests, armrests, handles, covers, switches, wiring harnesses, rocker arms, shock absorbers, seat guides, compressors, valves, springs, and repair kits. Both left-hand and right-hand configurations are covered.

Pedal Operation, Brake Valve and Pilot Valve

Coverage of the pedal operation assembly including floorplates, bottom plates, bearing blocks, brackets, guides, compression springs, coach bolts, hexagon nuts, washers, accelerator pedal assemblies, brake pedal assemblies, pedal coverings, needle bearings, torsion springs, potentiometers, gears, pinion gears, and sensors. The brake valve section covers brake valves, solenoid coils, solenoid valves, seal sets and sensors. The pilot valve actuator section covers joystick levers (central, cross and single lever), bellows, handles, covers, consoles, panels, diaphragms, cutting screws, clamps, push-buttons, switches, and wiring harnesses.

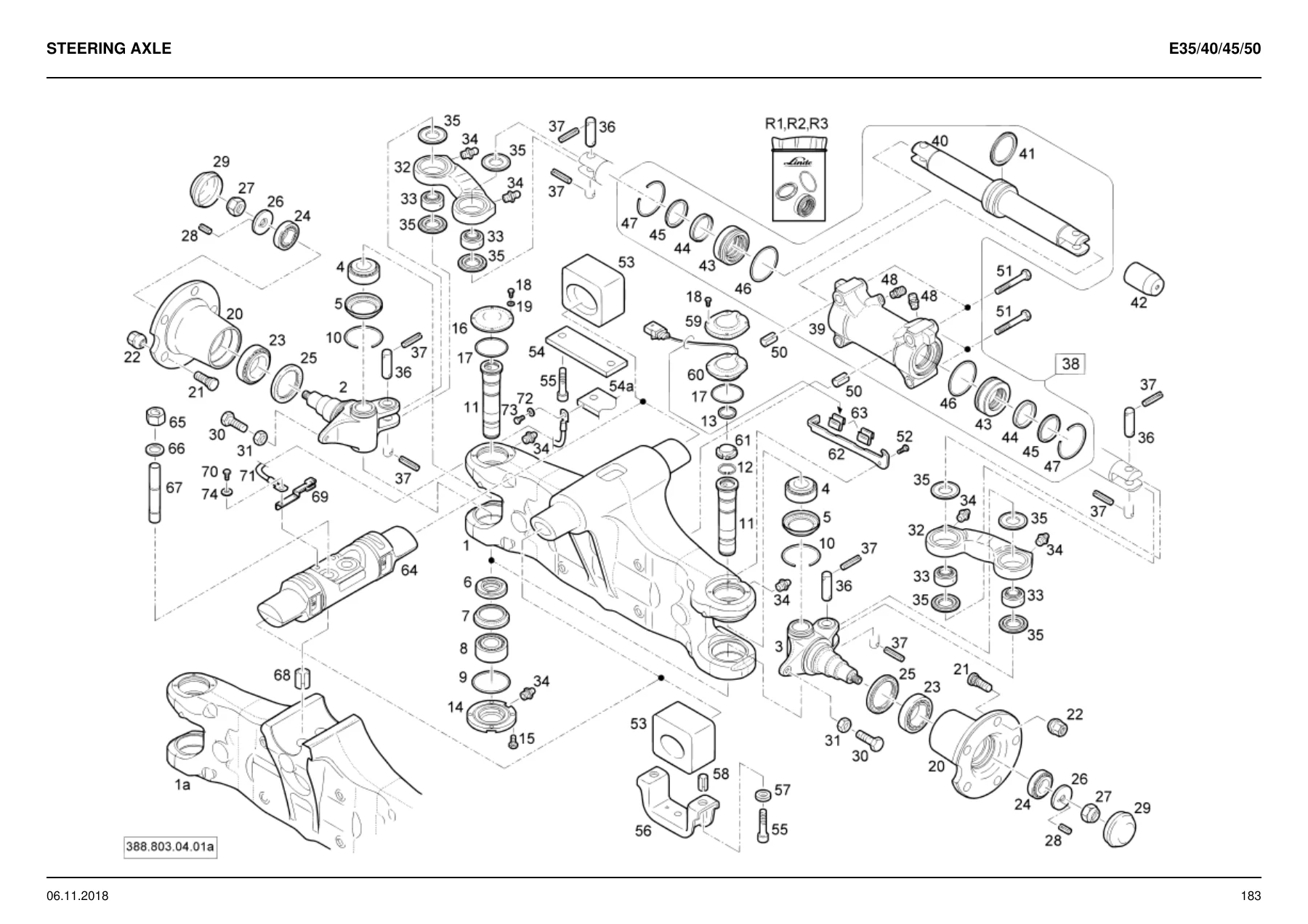

Steering Axle and Hydrostatic Steering

The steering axle section covers the complete steering axle assembly (standard, cold store specification and ALS version), axle beams, axle stubs (right and left), repair kits, tapered roller bearings, wiper rings, spacer rings, O-rings, snap rings, steering pivot pins, locking rings, quad rings, flanges, hexagon head screws, covers, wheel hub assemblies, wheel bolts, wheel nuts, repair kits for wheel mounting, shaft seals, washers, hexagon nuts, slotted spring pins, hubcaps, track rod assemblies, spherical bearings, lubricating nipples, seals, bolts, and slotted spring pins. The hydrostatic steering section covers the steering control valve, steering column assemblies (standard and adjustable), bushes, hexagon head screws, washers, protective caps, handles, clamping holders, pipes, guides, supports, steering wheels, sealing plugs, sensors, pipe unions, hose lines for various model variants, banjo bolts, sealing rings, cable ties, clamping clips, and edge protection.

Wheels and Tyres

Complete listing of solid tyres in sizes 225/75-10, 225/75-15, 28×9-15 and 200/50-100, including clean and NM versions, CS20 and CS20-SIT compounds, solid wheel assemblies for inner and outer positions, disc wheels, wheel nuts, hexagon head screws, and tape. Both single and twin tyre configurations are covered.

Fenders and Mudguards

Mudguard assemblies, coach bolts, hexagon nuts, washers, supports for single and twin tyres, mudflaps, joining plates, hexagon head screws, sealing plugs, and all mounting hardware for the fender and mudguard assemblies.

Electric Equipment

This extensive section covers electric armatures including consoles, display units, cutting screws, ropes, lock washers, push-buttons, covers, screws, sheet metal nuts, housings, lids, star handles, key switches, clamps, panelling, horns, signal transmitters, relays, flasher units, supports, socket head screws, hexagon head screws, switches, protective caps, edge protection, fuse links (5A, 10A, 15A, 20A, C1, C2, C5, C7.5, C10, C15, C20), timer relays, keys, cable ties, toggle switches for various functions (parking brake, lighting, work lights, windscreen wipers, hazard warning, rotating beacon, heating), push buttons, wiring harnesses, and supports. It also covers power modules and battery accessories including emergency off switches, circuit breakers, handles, supports, socket-outlets, battery male and female connectors (80V / MRC 320A, SBE 320A), electric cables in various sizes, output modules (LAC-24/20, LAC-24/21, LAC-24/50), plates, pin housings, pin contacts, single wire seals, cable ties, and supports. Battery plug section covers socket housings, pin housings, sliders, coding pins, clips, contact bushes, contact pins, adaptors, handles, screws, spacers, and self-tapping screws.

Hydraulic Unit

Coverage of the control valve and lines including control blocks, supports, socket head screws, clamping clips, joining plates, washers, hexagon head screws, hose lines for various lift heights and configurations, pipe unions, banjo bolts, O-rings, screw plugs, and edge protection. The control block VW10-M3 and VW10-M4 sections cover the complete control block assemblies for E35, E40, E45 and E50 models with various pressure ratings (230 bar, 250 bar, 275 bar), O-rings, magnet tubus switches, solenoid coils, nuts, threaded pins, self-locking nuts, valve blocks, screw plugs, and socket head screws. The hydraulic pump, oil tank, filter and lines section covers gear pumps, socket head screws, washers, flanges, O-rings, valves, pipe unions, flexible formed hoses, oil tank assemblies, filter housings, filter inserts, covers, oil dipsticks, hose clips, angles, accumulators, sensors, banjo bolts, sealing rings, supports, spring elements, hexagon head screws, couplings, pipe clips, oil coolers, fans, housings, hose lines, and adaptors. The pump aggregat section covers pump-motor units, pump motors, carbon brush sets, contactors, valve cartridges, solenoid coils, oil tank assemblies, breather filters, screen filters, O-rings, non-return valves, pressure relief valves, and hose clamps. The electric motor section covers motor assemblies, stators, parallel pins, rotors, shaft seals, bearing flanges, locking rings, grooved ball bearings, spring washers, rings, transmitters, sensors, socket head screws, hexagon head screws, seals, terminal strips, and identification plates.

Lift Mast

The lift mast section covers fork carriage and fork arms for standard and triplex mast types in various widths (1350mm, 1750mm, 2000mm) with 6 or 8 rollers, stops, parallel pins, socket head screws, filler pieces, support rollers, shim rings, screw plugs, hexagon head screws, washers, hexagon nuts, fork arms in multiple lengths (1000mm to 2000mm) and cross-sections (120x50mm, 130x60mm), and latch assemblies. The standard mast type section covers lift mast outer and inner assemblies for lift heights from 3100mm to 6300mm, support rollers, shim rings, guides, locking rings, chain rollers, joining plates, hexagon head screws, angles, washers, chain anchors, chain pins, split pins, washers, hexagon nuts, leaf chains for each lift height, chain supports, socket head screws, sealing plugs, hose lines, supports, spacers, throttle valves, and line break safety valves. The triplex mast type section covers lift mast outer, middle and inner assemblies for lift heights from 2830/4225mm to 4330/6315mm, support rollers, shim rings, guides, locking rings, washers, sealing plugs, socket head screws, washers, hose lines, line break safety valves, throttle valves, pipe unions, clips, supports, hose clips, connection pieces, pipes, chain pins, split pins, leaf chains, plates, screw plugs, O-rings, hexagon nuts, washers, chain anchors, brackets, spacers, fork clevises, sealing plugs, thrust washers, bolts, chain rollers, needle roller cages, snap rings, seal rings, pipes, and ring assemblies. The lift cylinder, middle cylinder and external cylinder sections cover cylinder assemblies for all lift heights and model variants, piston rods, cylinder pipes, cylinder heads, O-rings, grooved rings, wipers, hexagon head screws, seal rings, snap rings, rings, piston covers, bushes, sets of seals, pistons, threaded pins, guides, and springs.

Special Equipment

Coverage of highway equipment including supports, rivet nuts, hexagon head screws, washers, wheel chocks, coach bolts, hexagon nuts, warning triangles, velcro strips, rotating beacons, protective covers, warning strips, rivets, and spring pins. The load backrest section covers load backrest assemblies for lift masts, hexagon head screws, washers, hexagon nuts, socket head screws. The tilt cylinder protection section covers guard plates, guide assemblies, brackets, wear strips, threaded bushes, hexagon nuts, hexagon head screws, washers, bushes, plates, clamping pieces, and hardware. The overhead guard grille section covers guard grilles, supports, clamping pieces, socket head screws, washers, spring elements, hexagon nuts, washers, countersunk screws, bushes, and hexagon head screws. The terminal board section covers clipboard assemblies, supports, covers, lights, union nuts, washers, self-tapping screws, clamping pieces, rivet nuts, socket head screws, pipes, star-grip handles, clips, sealing plugs, and clamping pieces. The sun blinds section covers sun shade assemblies, washers, and socket head screws. The battery carrier and battery removal tool section covers battery support assemblies, covers, rivet nuts, socket head screws, washers, battery removal tool assemblies, and chains. The hydraulic battery reach section covers battery support assemblies, rails, countersunk screws, extrusions, joining plates, plates, adaptors, spacers, threaded bushes, reach cylinders, fork clevis assemblies, bolts, lock washers, supports, angles, pipe unions, sensors, rings, collar bushings, hose clips, hose lines, hexagon head screws, washers, threaded studs, hexagon nuts, socket head screws, microswitches, plates, and cable ties.

Miscellaneous

Coverage of plates including nameplates, labels, adhesive foils, warning labels, capacity labels, and configuration labels for Linde and Fenwick branding, along with label texts for E35, E40, E45 and E50 models in standard and special paint finishes. The operating material section covers spray cans, chain spray, lubricating grease, and cold store specification grease. The bag for technical documentation section covers document bags, hexagon head screws, and washers.

Why This Parts Catalogue Matters

Having the correct Linde E35 E40 E45 E50 parts catalogue is essential for any workshop, fleet operator or maintenance technician working on these electric forklifts. The catalogue’s figure-numbered exploded diagrams and comprehensive part tables let you identify the exact component needed without guesswork, reducing downtime and avoiding costly ordering errors. Whether you are rebuilding an axle drive gear, replacing a hydraulic pump, servicing the steering axle, renewing cab seals, or sourcing a specific solenoid coil or sensor, the correct part number and quantity are right there. The catalogue covers standard and raised driver’s seat configurations, multiple lift mast types, and a wide range of special equipment options, making it a single reliable reference for the entire E35/E40/E45/E50 series.

IMAGES PREVIEW

Instant PDF Delivery

This Linde E35 E40 E45 E50 spare parts list is delivered as a high-quality PDF download immediately after purchase. No shipping, no waiting for a physical book — the file is available right away and can be viewed on any computer, tablet or smartphone. Print the pages you need for the workshop, or keep the entire catalogue on your device for quick reference. With 908 pages of detailed parts information, exploded diagrams and part numbers, this PDF is a practical, searchable resource that belongs in every Linde forklift workshop.
