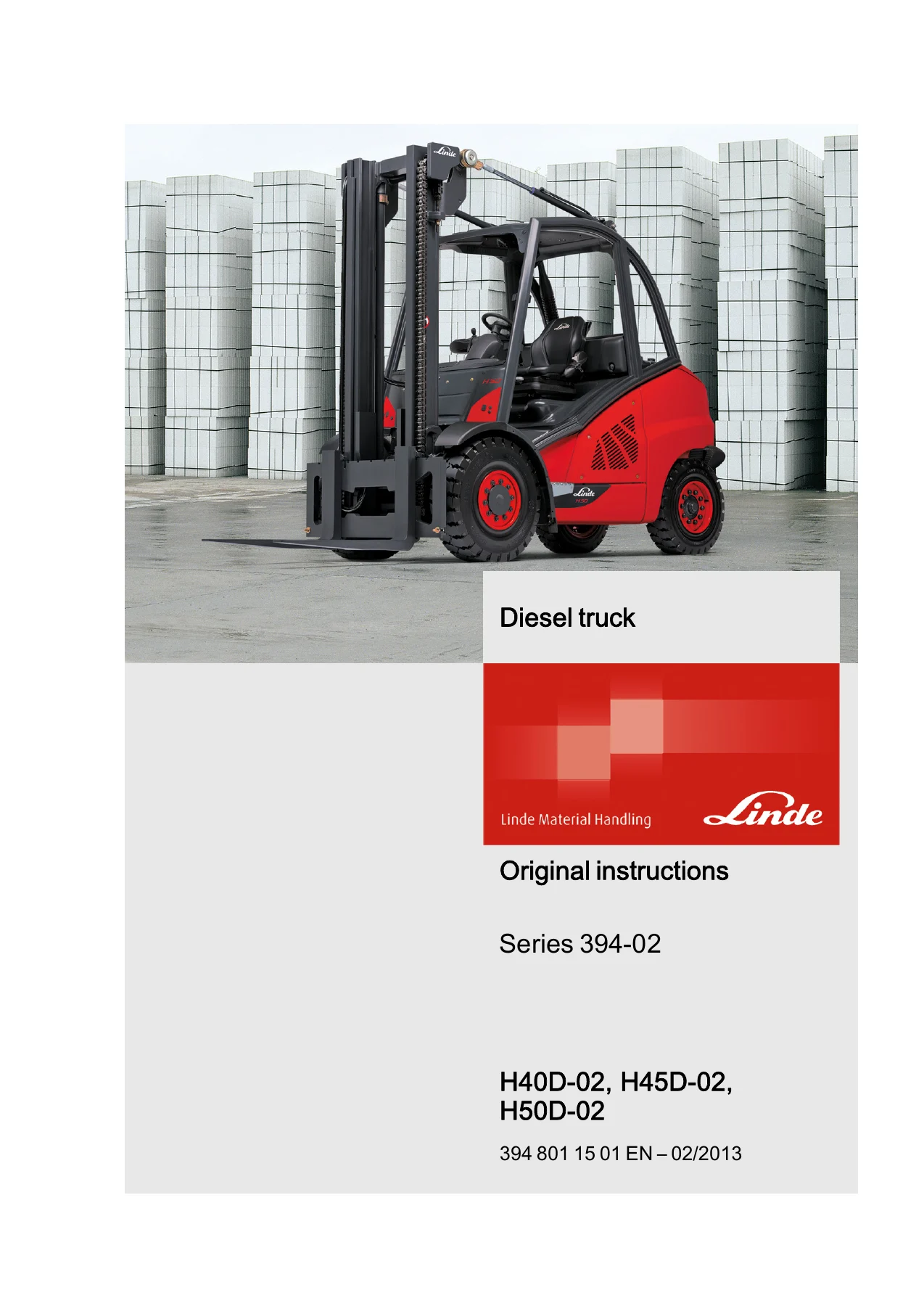

Linde H40D-02 H45D-02 H50D-02 Diesel Forklift Operating Instructions Manual – Series 394-02

Description

Linde H40D-02 H45D-02 H50D-02 Diesel Forklift Operating Instructions Manual

This is the full Linde operating instructions manual for the H40D-02, H45D-02 and H50D-02 diesel counterbalance forklift trucks, part of the Linde Series 394-02. The document carries the Linde reference 394 801 15 01 EN and is dated 02/2013. It is the same operating instructions book that ships with the truck and it covers every day-to-day task a driver or fleet operator is expected to perform — from pre-shift checks and seat adjustment right through to the 12,000-hour service plan and the type sheets at the back.

Three capacity classes are covered in one book: the 4.0 t H40D-02, the 4.5 t H45D-02 and the 5.0 t H50D-02 (including the H50D-02/500 and H50D-02/600 variants). Because these trucks share the same cab, hydrostatic drive, joystick layouts and Linde Load Control electronics, this manual is the single reference for the whole family.

File Details

• Manual type: Operating Instructions (Original Instructions)
• Brand / manufacturer: Linde / Linde Material Handling GmbH
• Models covered: H40D-02, H45D-02, H50D-02, H50D-02/500, H50D-02/600
• Series: 394-02
• Document number: 394 801 15 01 EN
• Edition / date: 02/2013
• Language: English
• Page count: approximately 274 pages
• File format: PDF

Chapters Covered

The book follows the standard Linde numbering and runs through the truck in the order a technician would actually need it:

• 1. Introduction — Intended use, impermissible use, description of use and climatic conditions, symbols used, technical description, truck operation when using a shovel, receiving the industrial truck, legal requirements for placing on the market.
• 2. Safety — Safety guidelines, residual risks, stability, in the case of tip-over, handling consumables, competent person, regulations, fitting attachments (mechanical and hydraulic connection, additional capacity rating plate), fork carriage emergency lowering, emergency exit with attached rear window.

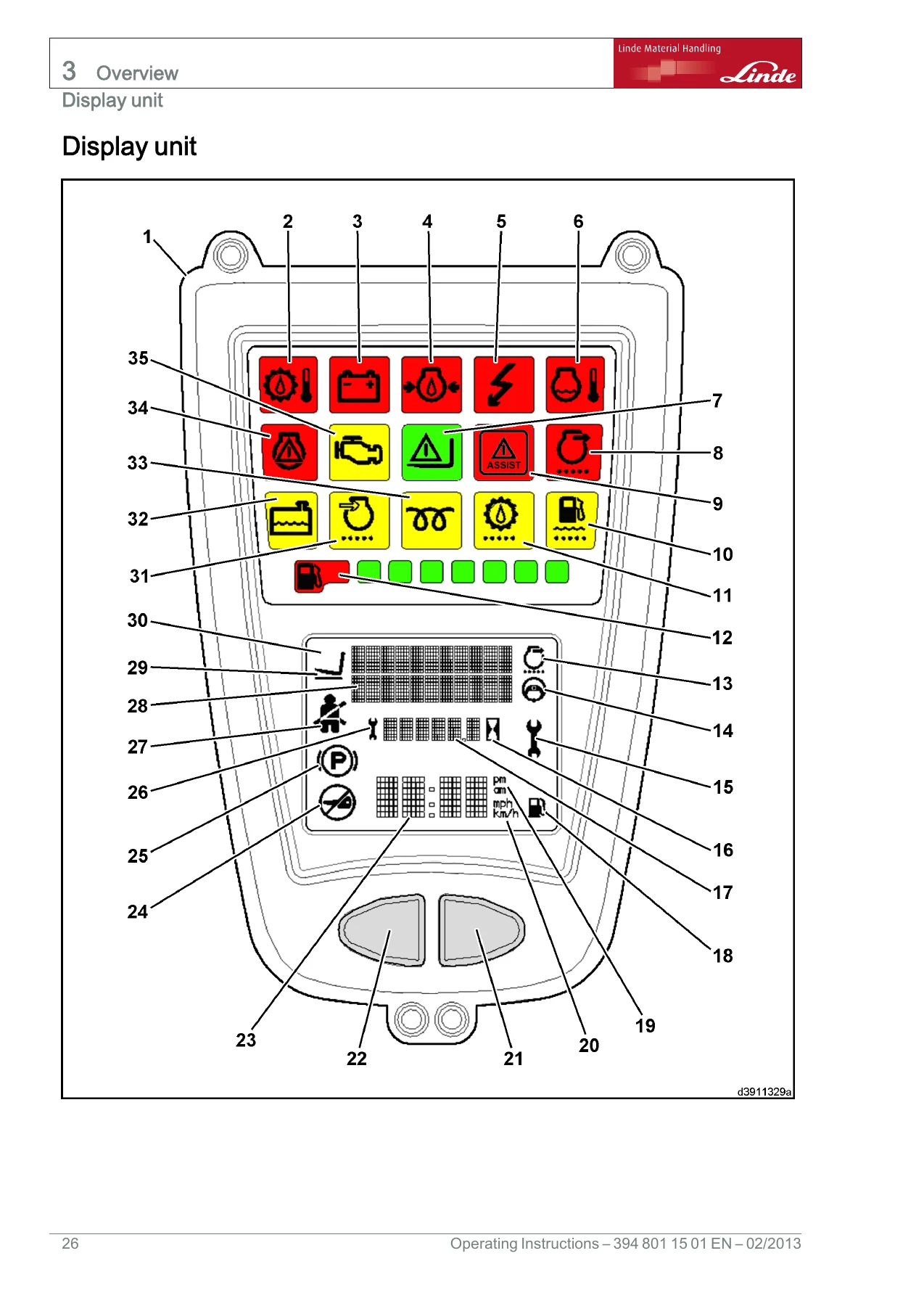

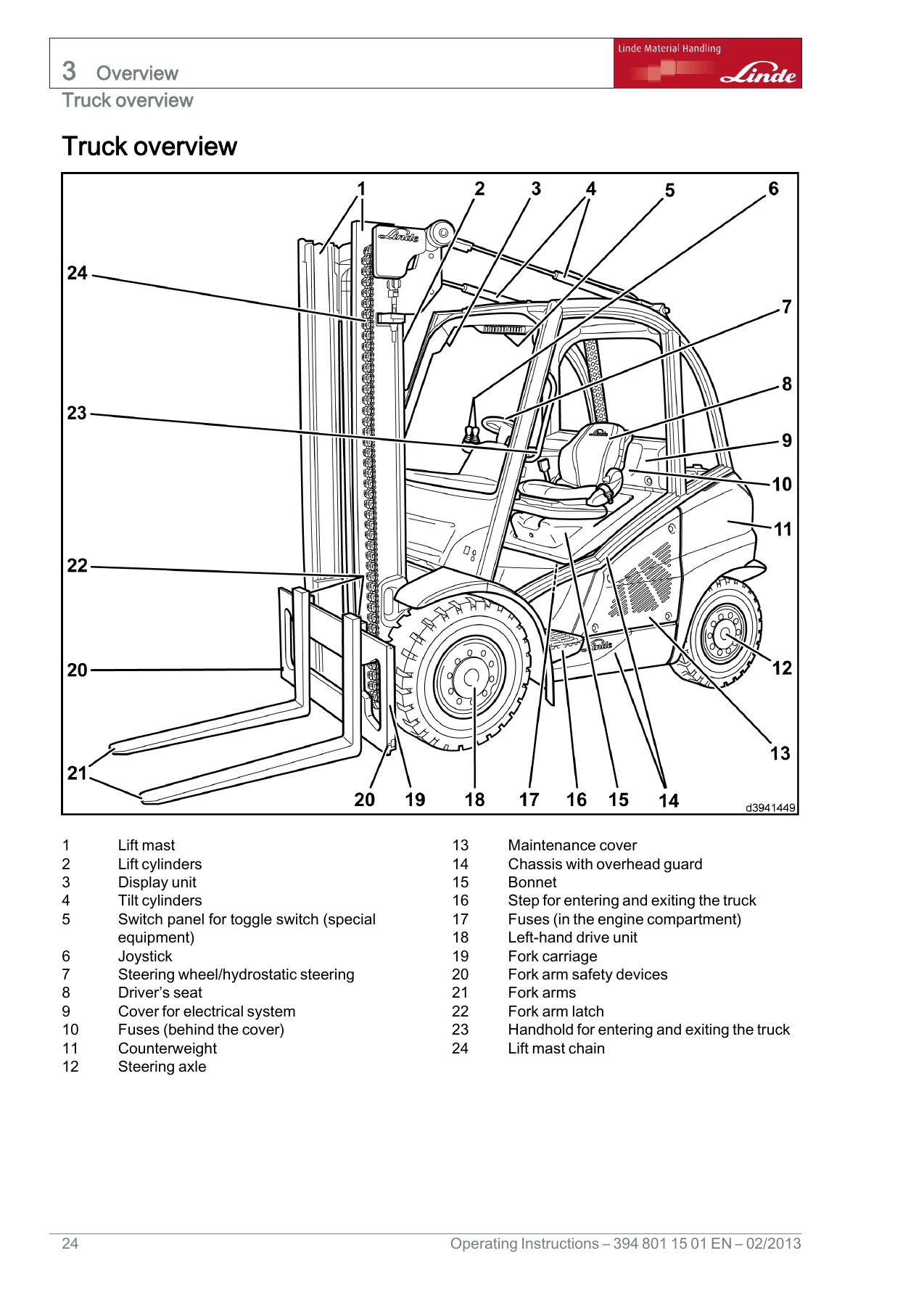

• 3. Overview — Identification plates (nameplate, chassis serial number, lift mast number, drive axle plate, engine plate, steering axle plate), truck overview, operating devices, display unit with all indicator lights and warning lamps, switch panel.
• 4. Operation — Service plan before initial commissioning, running-in instructions, entering and exiting the truck, adjusting the standard / comfort / height-adjustable comfort / luxury / luxury active driver’s seats, armrest, steering column, clock, seat belt, starting and stopping the engine (dual-pedal and single-pedal operation), driving, steering system, brake system, signal horn, joysticks with central-lever and single-lever operation, special equipment (depressurisation, driver’s cab, lighting, windscreen wipers, window heater, heating system / air conditioning, Linde Forklift Data Management, rotating seat, lift mast positioning, sweeper function), working with a load (picking up, adjusting fork arms, travelling, setting down), towing device, leaving the truck, loading and transporting, securing the hose pulley, driving without the lift mast.
• 5. Maintenance — General information, inspection and maintenance data, recommendations for consumables (diesel fuel, hydraulic oil, bio hydraulic oil, lubricating grease, coolant, refrigerant, battery grease, chain spray, engine oil), inspection and maintenance overview, service plans as required / 1000-hour / 3000-hour / 6000-hour / 12,000-hour, engine (oil level, oil and filter change, fuel, water drainage from fuel filter, filter change, fuel tank ventilation hose, coolant level, coolant change and concentration, water cooler and hydraulic oil cooler, engine mounts, V-ribbed belt, toothed belt, water pump, air filter cartridge and safety cartridge, dust discharge valve, breather filter, prefilter, oil bath air filter, intake and exhaust leaks, particle filter system), gearbox (axle clamps, wheel motors, drive axle side stops and bearings, hydraulic pump mounting), chassis, bodywork and fittings (cleaning, bonnet, floorplate, heating/AC, seat belt, chassis mounting, bearing points, washer tank), chassis frame (wheel change, wheel nuts, tyres, tyre pressure, antistatic belt, steering axle), operating devices (parking brake, pedal group, bellows), electrics (cables, battery, disposal), hydraulics (oil level, oil change, filters, bleeder valve, leaks, tilt cylinder bearings, double hoses), load lift system (lift mast, chain, lift cylinders, end stops, forks, fork quick-releases, sideshift), self-help (electrical cover, fuses for basic and special equipment, main fuses, diagnostic connector, malfunctions during operation, diesel engine faults, hydraulic faults, jump start, towing), shutting down.
• 6. Technical data — Overview of dimensions, type sheets for H40D-02, H45D-02, H50D-02/500, H50D-02/600, elevated driver’s compartment versions and container versions, lift mast data type 189, truck configuration, tyre variants and rim sizes, load capacity diagrams, additional capacity rating plate for attachments, noise emission values, vibration characteristic values.
• Index — Full alphabetical index.

What the whole document delivers is a complete operational envelope for the truck. It defines how each machine should be driven, how the hydrostatic service brake and multi-disc parking brake are meant to be used, how the Linde Load Control and Linde Truck Control electronics behave, what every warning symbol on the display unit means, and how each service task on the truck — engine, gearbox, hydraulics, electrics, lift mast, chassis — is supposed to be carried out at each service interval. The final technical section then pins down the machine with dimensions, weights, tyre pressures, torque values, capacities and the load capacity charts that determine what each truck can safely lift at a given load centre and lift height.

Engines, Capacities and Service Data Included

The engine chapter documents the VW / CPYA four-cylinder diesel used across the range — 1968 cm³, rated 55 kW at 2700 rpm — along with the fuel, oil, coolant, hydraulic and refrigerant quantities, the wheel fastener torque figures (front 425 Nm, rear 640 Nm), tyre pressure tables, and the Linde chain spray and grease recommendations. These are the numbers a service technician needs to hand when servicing or recommissioning the truck.

Safety and Emergency Procedures

A dedicated safety chapter covers residual risks, stability limits, tip-over procedure, consumables handling, and the mandatory periodic safety inspection under FEM 4.004. It also includes the manual fork carriage emergency lowering procedure using the 8 mm WAF socket wrench through the floor plate, and the emergency exit through the rear window using the supplied emergency hammer — practical information that is not always reproduced elsewhere.

Special Equipment Coverage

Several optional systems get their own sections rather than being lumped into a single appendix: Linde Forklift Data Management (PIN and transponder variants), lift mast positioning, the sweeper function, rotating driver’s seat, driver’s cab, window heater, and heating / air conditioning. Each has its own operating sequence and status-code explanations.

Who This Manual Is For

Anyone responsible for operating, inspecting, servicing or maintaining an H40D-02, H45D-02 or H50D-02 needs this book on hand. It is written for the driver carrying out the daily pre-shift checks and for the workshop technician working through the 1000, 3000, 6000 and 12,000-hour service plans. Fleet supervisors will use the load capacity diagrams and type sheets when assessing whether a specific truck can be assigned a particular job. The warning and error-code tables in the display unit chapter are the fastest first-line diagnostic reference when an indicator light comes on and the buzzer sounds.

Why This Operating Instructions Manual Matters

The H40D-02, H45D-02 and H50D-02 are hydrostatic-drive trucks with electronically controlled lift and drive functions. Getting a service procedure wrong — a torque value, a coolant mix ratio, a chain adjustment — can affect stability, braking performance or lift capacity. Having the manufacturer’s own operating instructions close at hand keeps the work inside the tolerances the truck was designed for and keeps operators aware of what the display unit is actually telling them. Whether you are running a single truck on site or maintaining a mixed fleet, this manual is the reference point for the whole 394-02 diesel family.

IMAGES PREVIEW

Instant PDF Delivery

The manual is supplied as a PDF that arrives immediately after checkout — no shipping, no waiting for a printed book. It can be read on a workshop laptop, a tablet on the shop floor or a phone in the cab, and individual pages can be printed if you prefer a paper copy on the bench. Because the file is a PDF, you can jump straight to the section you need, whether that is the pre-shift checklist, the correct torque for a wheel fastener or the fault-finding table for a warning light. Everything is delivered in a single download, ready to use the moment payment is confirmed.
