LiuGong CLG766A Backhoe Loader Parts Manual 2023 – Full PDF Parts Catalog

Description

This LiuGong CLG766A Backhoe Loader Parts Manual is the complete illustrated parts catalog for the CLG766A backhoe loader, published August 15, 2023 under document number 43F00180001B001. It contains exploded-view illustrations and part-number tables for every major assembly on the machine, covering multiple engine and transmission configurations including Perkins IV, Perkins mechanical, Perkins electronic, and Weichai powerplants. Whether you are ordering replacement parts, identifying a component during a rebuild, or verifying the correct part number for your machine’s specific configuration, this PDF manual gives you the illustrations and part numbers you need.

File Details

• Manual Type: Parts Manual (零件图册 / Parts Catalog)
• Brand: LiuGong (柳工)
• Model: CLG766A Backhoe Loader (挖掘装载机)

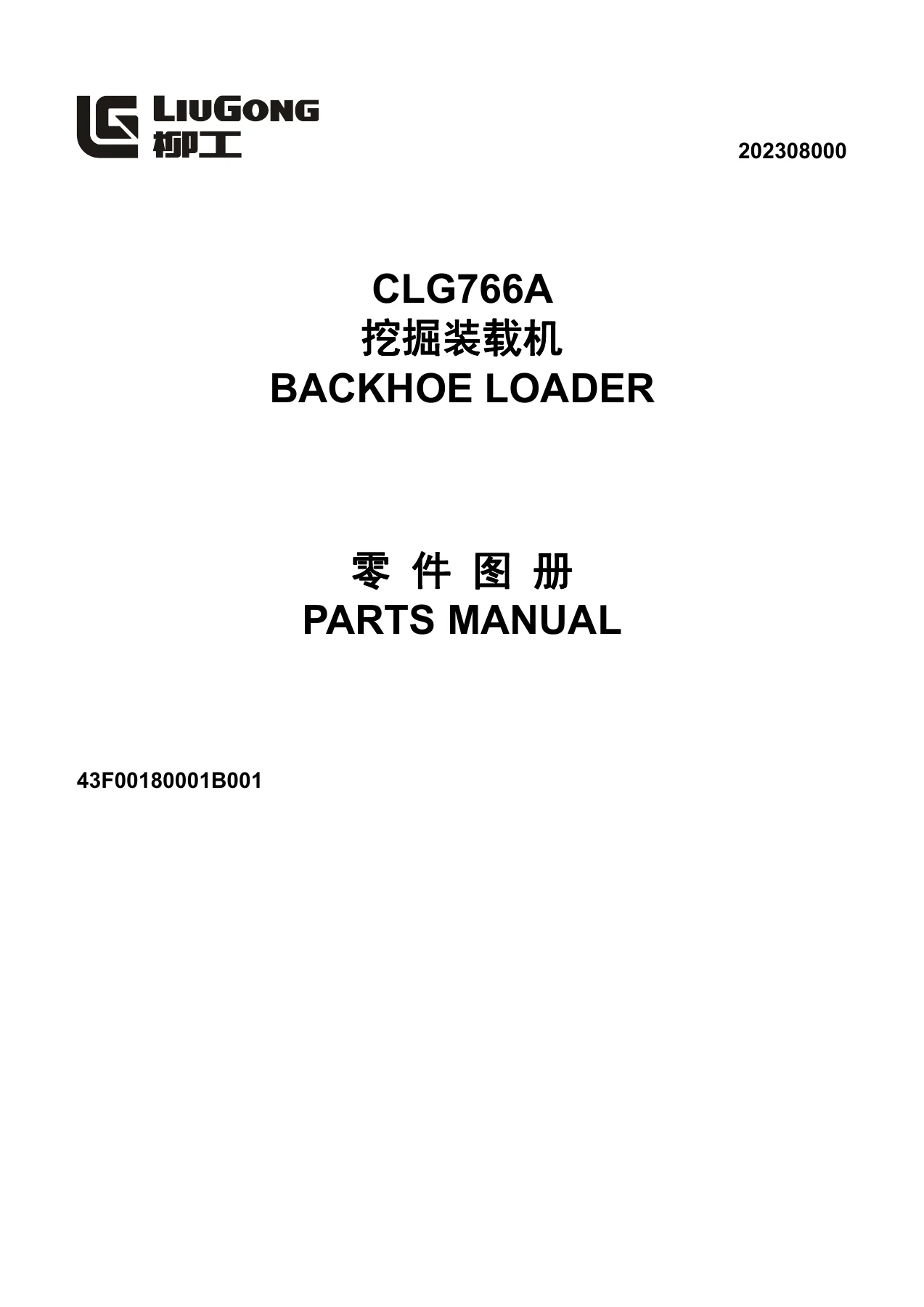

• Publication Number: 43F00180001B001
• Date: August 15, 2023
• Language: Chinese / English (bilingual)
• Page Count: 440
• File Format: PDF

Chapters Covered

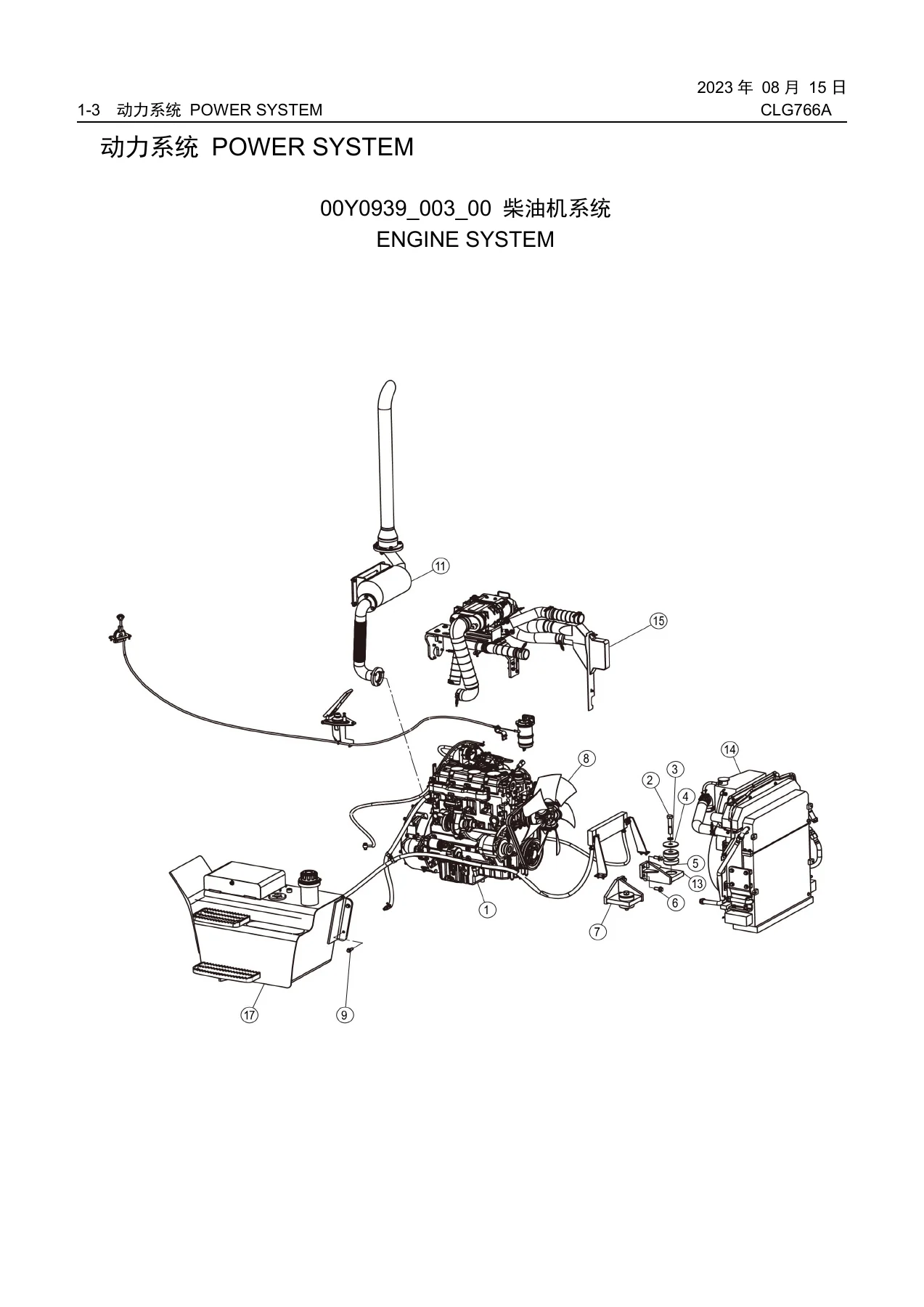

• Power System (动力系统): Diesel engine systems for Perkins IV, Perkins mechanical, Perkins electronic, and Weichai configurations — intake and exhaust, cooling, radiator, fan, air filter, muffler, fuel lines, mounting brackets, and vibration dampers

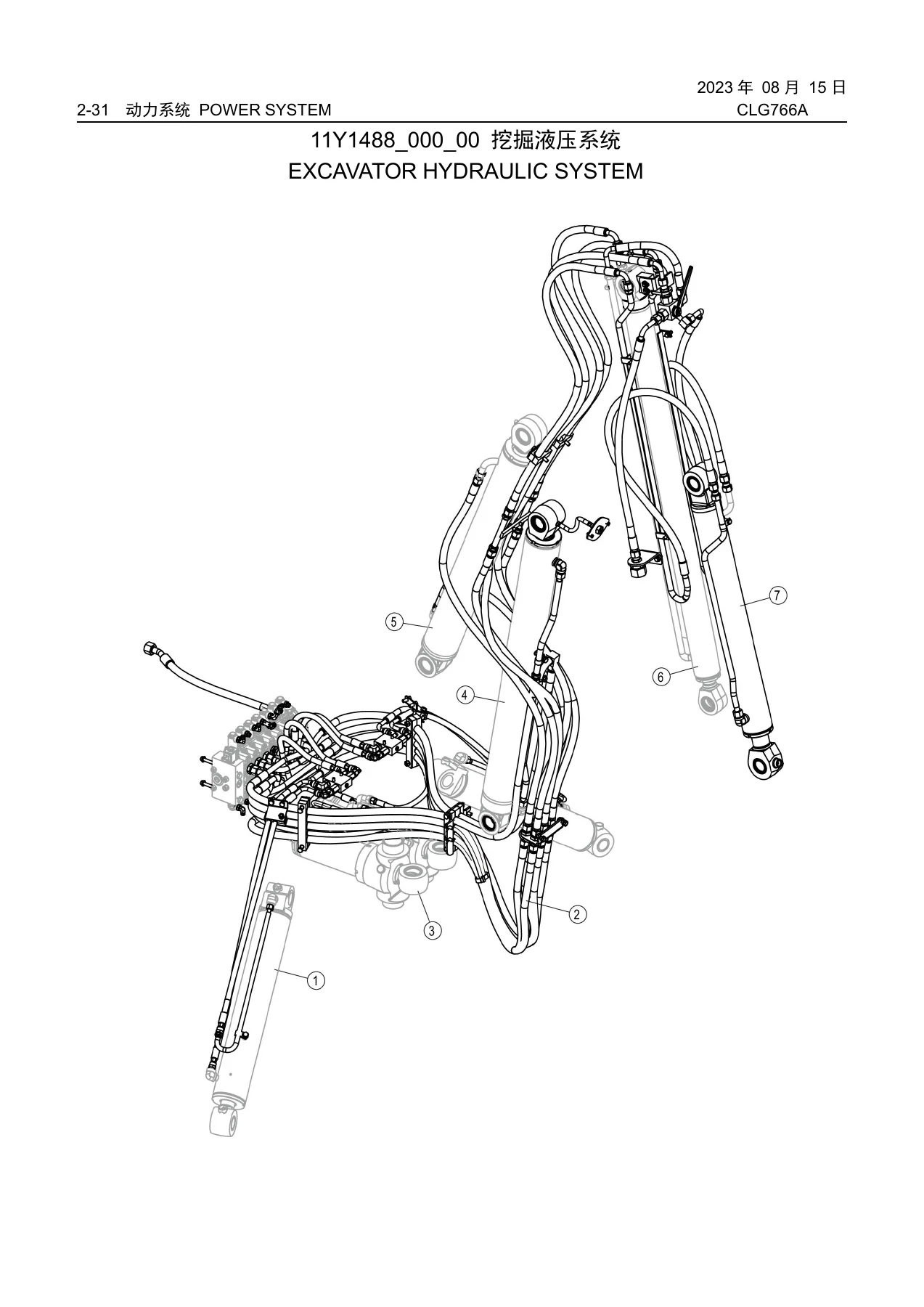

• Hydraulic System (液压系统): Suction and return lines, centralized pressure testing, auxiliary hydraulics (loader and excavator ends), pilot control system, excavator hydraulic circuits including telescopic arm variants, loader hydraulics with boom suspension option, and steering hydraulics
• Power Train System (传动系统): Torque converter and gearbox assemblies for Perkins and Weichai engines, front and rear drive shafts, front and rear axles (Carraro, Nanjing, and non-drive configurations), tire and rim systems, and transmission control linkages
• Brake System (制动系统): Parking brake for Carraro and Nanjing rear axles, and service brake with hydraulic assist
• Structure (结构): Frame systems for multiple axle and transmission configurations, backhoe work equipment (standard and telescopic), loader work equipment, outrigger cylinder lines, counterweight groups, auger, attachments, and safeguards
• Cab (驾驶室): Steering column assemblies, operator seat assemblies, cab variants for different engine and transmission combinations, interior trim, doors, windows, glass, mirrors, and mounting hardware
• Engine Hood & Covers (机罩及其它覆盖件): Hood assemblies for Perkins IV and Weichai engines, fenders, heat shields, and related panels
• Electrical System (电器系统): Main wiring harnesses, engine and cab wiring, work light circuits, preheating systems (including Weichai cold-start), and electrical schematics
• Air Conditioning & Heating (空调及暖风系统): A/C systems, heater systems, control units, compressor mounting, condensers, evaporators, blowers, ducting, and refrigerant lines
• Machine Accessories (整机附件): Decal groups for domestic Chinese, North American, ISO Spanish, and ISO Portuguese markets; steering column; fenders; key hook; spare parts list; and oil specification list

This parts manual is organized by assembly group, with each section showing an exploded-view illustration alongside a table of item numbers, part numbers, part names (Chinese and English), service codes, interchangeability codes, quantities, and specifications. The manual covers multiple 15-digit machine codes, so you can match your specific machine’s configuration to the correct parts breakdown. Engine variants include Perkins IV, Perkins 1104D and 1104D-E44T/TA electronic engines, Perkins mechanical engines, and Weichai engines. Transmission and axle variants cover Carraro and Nanjing configurations with both power shift and synchro shift gearboxes. The decal section alone covers domestic Chinese, North American, ISO Spanish, and ISO Portuguese markets.

Coverage and Configuration Notes

The CLG766A is a mid-mounted backhoe loader (中置式挖掘装载机), and this manual reflects the multiple configurations available across different production runs and market requirements. Before ordering parts, identify your machine’s 15-digit code from the delivery note or machine plate and match it to the corresponding section in this manual. The parts tables include service codes that tell you whether a part is available individually, only as part of an assembly, or through a repair kit, and interchangeability codes that explain whether updated parts can replace older ones or vice versa. This level of detail helps you avoid ordering the wrong component and ensures compatibility with your machine’s exact build configuration.

Hydraulic sections cover the complete circuit from the tank and suction lines through the pumps, control valves, pilot system, and cylinders to the return lines. Engine sections cover the full installation including the radiator, fan, air intake, exhaust, fuel system, and mounting hardware for each available engine variant. The electrical section includes wiring harnesses for the frame, engine, cab, and work lights, along with the electrical schematic listings. The A/C and heater sections provide parts breakdowns for compressor mounting, condenser, evaporator, blower, ducting, and control units. Structural sections cover the frame, outriggers, backhoe and loader work equipment, and all associated pins, bushings, seals, and mounting hardware.

Why This Manual Matters

Ordering the wrong part costs time and money. This CLG766A parts manual eliminates guesswork by showing exactly how each assembly goes together and listing the exact part number for every item. Whether you are replacing a hydraulic hose, rebuilding a brake system, or tracking down a specific bolt or washer, the exploded views and part tables give you the reference you need. The manual also includes interchangeability and service codes so you can understand which parts are superseded, which are interchangeable, and which are only available as part of a larger assembly.
