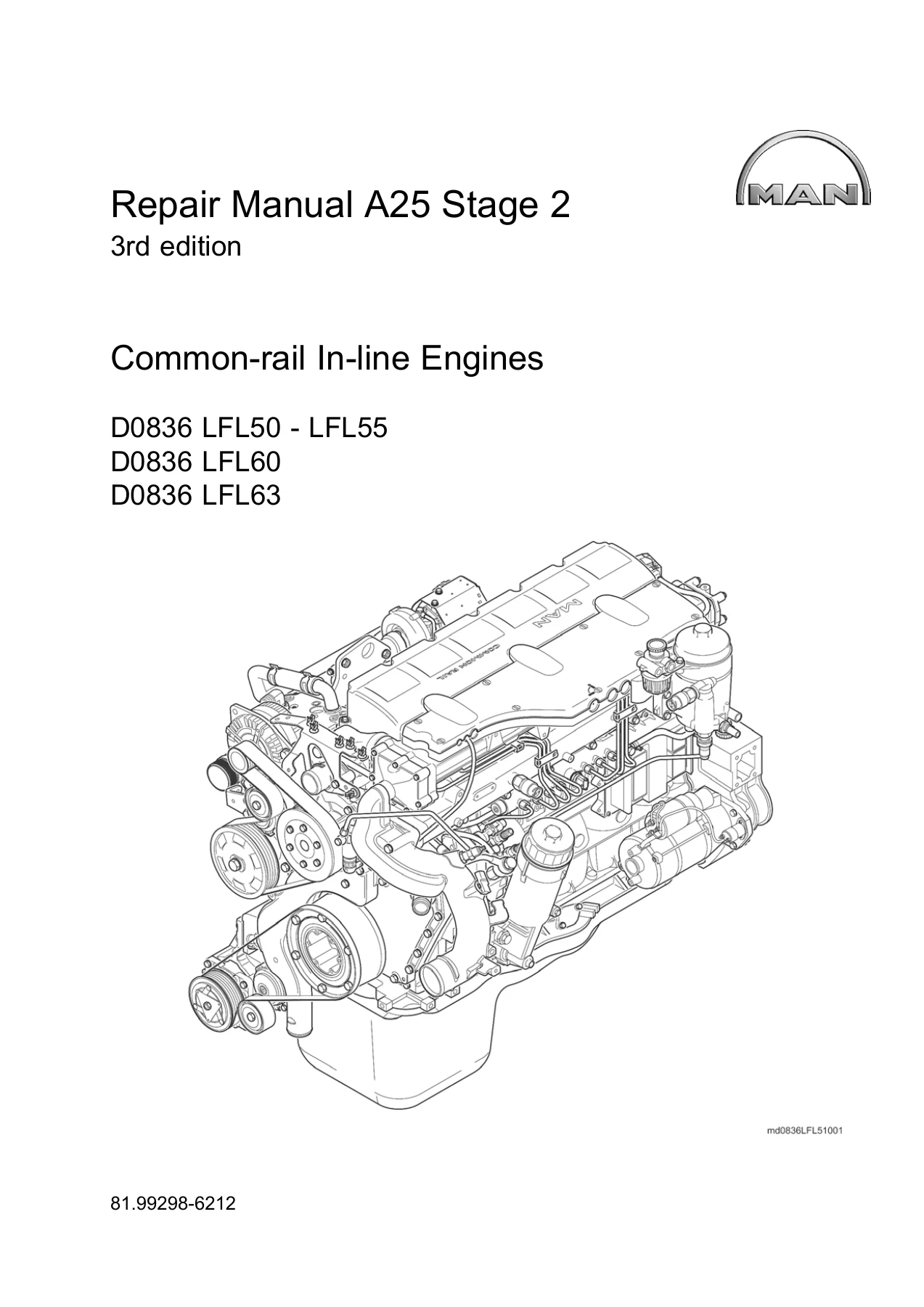

MAN D0836 LFL50-LFL55 LFL60 LFL63 Common-Rail Diesel Engine Repair Manual – A25 Stage 2 (3rd Edition)

Description

MAN D0836 Common-Rail In-Line Engine Repair Manual

This is the complete MAN Nutzfahrzeuge repair manual for the D0836 LFL50, LFL51, LFL52, LFL53, LFL54, LFL55, LFL60 and LFL63 common-rail in-line diesel engines. It is the A25 Stage 2 repair manual, 3rd edition, issued under document number 81.99298-6212 with a copy deadline of 12.2009. It is written for the technician who actually pulls these engines apart: every section starts with the preparatory jobs, then walks through the removal, dismantling, assembly and installation work, with the tightening torques that deviate from standard called out where they matter.

The D0836 family is a liquid-cooled, turbocharged six-cylinder four-stroke diesel with exhaust-gas turbocharger, running the common-rail high-pressure injection system with EDC 7 electronic diesel control. It covers the Euro 4, Euro 5 and EEV emissions standards across the LFL50 to LFL63 range. Whether you are working on a D0836 LFL50, an LFL55, or an LFL63, the procedures in this manual apply to the engine in front of you.

File Details

• Manual type: Repair Manual (Reparaturanleitung)
• Brand / manufacturer: MAN Nutzfahrzeuge Aktiengesellschaft
• Engine family: D0836 common-rail in-line engines
• Models covered: D0836 LFL50, LFL51, LFL52, LFL53, LFL54, LFL55, D0836 LFL60, D0836 LFL63
• Language: English
• File format: PDF
• Page count: 452 pages
• Document number: 81.99298-6212
• Edition: 3rd edition
• Copy deadline: 12.2009

Chapters Covered

• Introduction
• Engine electrics
• Cooling system
• Mounted components
• Common-rail system
• Turbocharging
• Intake / exhaust system
• Cylinder head
• Valve timing
• Timing gears
• Engine lubrication
• Crank mechanism
• Crankshaft oil seals
• Engine housing
• Power take-off
• Technical Data

Introduction

The opening section sets out the safety instructions for working on these engines, then explains the engine itself: model plate and model designation decoding, the characteristic data tables for each LFL variant, and a full engine description covering the crankcase, crankshaft, cracked connecting rods, three-ring pistons, single-section cylinder head, camshaft, forced-feed lubrication, the thermostat-controlled cooling circuit, the low-temperature intercooling arrangement, and the intake and exhaust layout. There is also a dedicated block on working on the common-rail system, including the pacemaker warning and the cleanliness regime that governs every job on the fuel side.

Engine Electrics

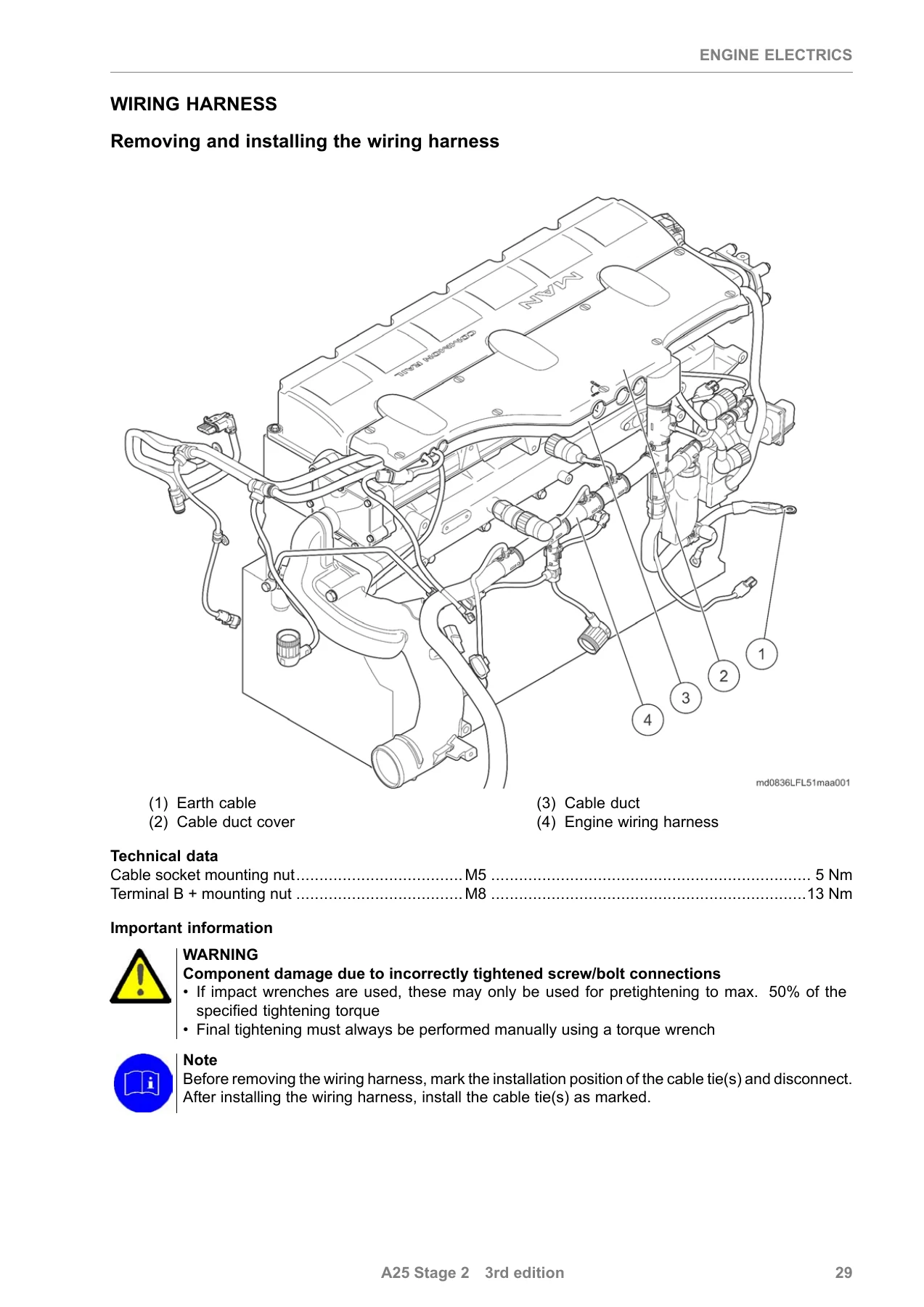

Covers removal and installation of the wiring harness and the engine electrics, with the connector-by-connector disconnection sequence for the control valve, proportional valve, EGR positioning cylinder, charge-air manifold pressure sensor, oil level sensor, refrigerant compressor, alternator, speed sensors, flame start system, metering unit, pressure transmitter, rail-pressure sensor, EGR module temperature sensor, air distributor pipe temperature sensor, fuel service centre and the engine control unit. Cable socket and terminal tightening torques are listed, and the section closes with the engine electrics sensor layout and its mounting torques.

Cooling System

Fan removal and installation is covered for both the DMR 704 and DMR 725 variants, including the adapter flange, fan clutch and the different belt drive arrangements (without hydraulic pump and Grosskopf alternator, with hydraulic pump, with Grosskopf alternator). The coolant manifold, the thermostat with its housing and the coolant pump are all handled here, with the coolant pump dismantling and assembly covering the hub, circlip, impeller, bearing and slide ring seal, along with the press-in dimensions for the impeller and slide ring seal projection.

Mounted Components

This is the group of driven accessories: the front power take-off and its left-hand-thread mounting bolt, the 1-cylinder air compressor and power steering pump mounting, the full belt drive family (without Grosskopf alternator or hydraulic pump, Grosskopf alternator belt drive, hydraulic pump belt drive, and the Stretchbelt belt drives with one or two guide rollers), the alternator and Grosskopf alternator, the starter, the refrigerant compressor, and the hydraulic pump. Belt tensioning values and the refrigerant compressor belt track check and adjustment procedure for the LFL50 to LFL55 variants are included.

Common-Rail System

The heart of the manual for anyone working on the fuel side. Protective sleeves for the injectors and rail, the high-pressure pump in both CP3.3 and CP3.3 NH variants (removal, installation, dismantling and assembly), the fuel service centre (protective sleeves, removal and installation, dismantling and assembly), the flame start system, and the engine control unit. The injector and rail section covers the pressure flange, high-pressure lines, rail connections, pressure screws, the extractor tooling for pulling injectors, the pressure limiting valve and rail-pressure sensor, with the complete initial/final torque schedule for the high-pressure connections.

Turbocharging and Intake / Exhaust System

Intercooler removal and installation, the charge-air pipes and charge-air manifold for the Euro 5 and EEV variant, and the turbocharger in three separate variants: single-stage charging, two-stage charging without intercooler, and two-stage charging with intercooler. The intake/exhaust side covers the air distributor pipe, the EGR module for both Euro 4 and Euro 5/EEV variants (including EGR positioning cylinder preload setting with dial gauge), and the exhaust manifold for both emissions families with the staged torque sequence.

Cylinder Head and Valve Timing

Rocker arm mechanism removal and installation plus dismantling and assembly with the shaft and bushing wear limits, cylinder head removal and installation with the five-stage cylinder head bolt torque sequence, valve clearance checking and setting (including the EVB adjustment dimension), valve stem seal removal and installation, and the camshaft and camshaft bearings including the bearing installation sequence and centring tooling.

Timing Gears

Removal and installation of the timing gears: intermediate gears 1 and 2, the oil pump drive gear, crankshaft gear and camshaft gear, with the radial and axial play values for each intermediate gear and the backlash values for every gear pairing in the train.

Engine Lubrication

Oil module removal and installation with the oil cooler, oil filter and pressure transmitter, oil sump and oil intake pipe for the Euro 4 variant, oil sump lower and upper sections for the Euro 5 and EEV variant, the oil pump (including oil pump gear axial play and radial play checks), and the oil injector nozzles with the oil pressure valve.

Crank Mechanism and Crankshaft Oil Seals

Vibration damper, flywheel for manual gearbox including the ring gear replacement and clutch pilot bearing, pistons and connecting rods (piston ring gaps, connecting rod bearing shell spread, piston pin bushing, piston standout), the crankshaft with bearing cap and thrust washer handling and the crankshaft bearing inside diameter checks, and the front and rear crankshaft oil seals with the PTFE handling precautions.

Engine Housing and Power Take-off

Crankcase ventilation for the LFL50/53, LFL51/52/54/55 and LFL60/63 variants, the flywheel housing in variants without power take-off and with 300 Nm and 600 Nm power take-offs, the crankcase yoke for LFL50-55, the timing case cover and timing case, and the rear power take-off.

Technical Data

A consolidated technical data section repeats every tightening torque, wear limit, clearance and adjustment value from across the manual, so you do not have to page back through the repair sections to find a value.

Why This MAN D0836 Repair Manual Matters

These D0836 common-rail engines are unforgiving of guesswork. A high-pressure connection tightened by feel rather than by the initial-torque-plus-angle schedule can leak or fail; a cylinder head bolt sequence done out of order can cost you a head gasket job twice over; an injector extracted without the correct rail connection removed first can dump dirt into the injector bore. This manual gives you the torque values, the wear limits, the special tooling references and the step-by-step removal and installation sequences that MAN specifies for the D0836 LFL50 through LFL63, covering both the Euro 4 engines and the Euro 5 and EEV variants.

It covers real jobs: replacing injectors and high-pressure lines, rebuilding the high-pressure pump, setting valve clearance and EVB clearance, replacing the coolant pump seal and bearing, setting timing gear backlash, pulling the crankshaft and pistons, dealing with the EGR module and positioning cylinder, and diagnosing through the engine electrics and sensors. Every chapter tells you what to take off first, what to mark, what to renew and what to torque to.

IMAGES PREVIEW

Delivered as an instant PDF download, this MAN D0836 repair manual is ready to use on any device and is printable if you prefer a paper copy in the workshop. No shipping, no waiting.
