Massey Ferguson MF 250 XE Tractor Parts Catalog C025003 – Complete Illustrated Parts Manual PDF

Description

Ordering the wrong part for a tractor is rarely a cheap mistake. This is the complete Massey Ferguson MF 250 XE Tractor Parts Catalog C025003 — the illustrated parts manual for the TRATOR MF 250 XE built with the Simpsons engine and horizontal exhaust. Every assembly on the machine is broken into exploded drawings with numbered callouts, and every callout is tied to a part number, a quantity and a description in the table alongside. Before you order a bearing, a gasket, a casting or a single bolt, you can confirm exactly which one the tractor was built with.

The catalog runs 589 pages and spans the whole machine — engine installation, front and rear axles, transmission, hydraulics, electrical system, operator platform, bodywork and decals, wheels and ballast, independent PTO, three-point linkage and the tool kit. It is printed in Portuguese with an English technical specification column, which is where most of the fastening detail lives: thread sizes, grades, lengths and finishes are spelled out for the hardware, not just the big components. That single column is what turns a parts book into a working reference on the bench.

File Details

• Manual type: Illustrated parts catalog
• Brand: Massey Ferguson
• Model: TRATOR MF 250 XE
• Document number: C025003
• Engine fitment: Simpsons engine, horizontal exhaust
• Language: Portuguese, with English technical specifications
• Page count: 589
• File format: PDF

Chapters Covered in the MF 250 XE Parts Catalog

• Instalação do Motor
• Eixos
• Sistema de Transmissão
• Sistema Hidráulico
• Sistema Elétrico
• Plataforma
• Chassi
• Rodas
• Sistema de Acionamento de Implementos
• Acoplamento
• Acessórios

Instalação do Motor — Engine Installation and Internals

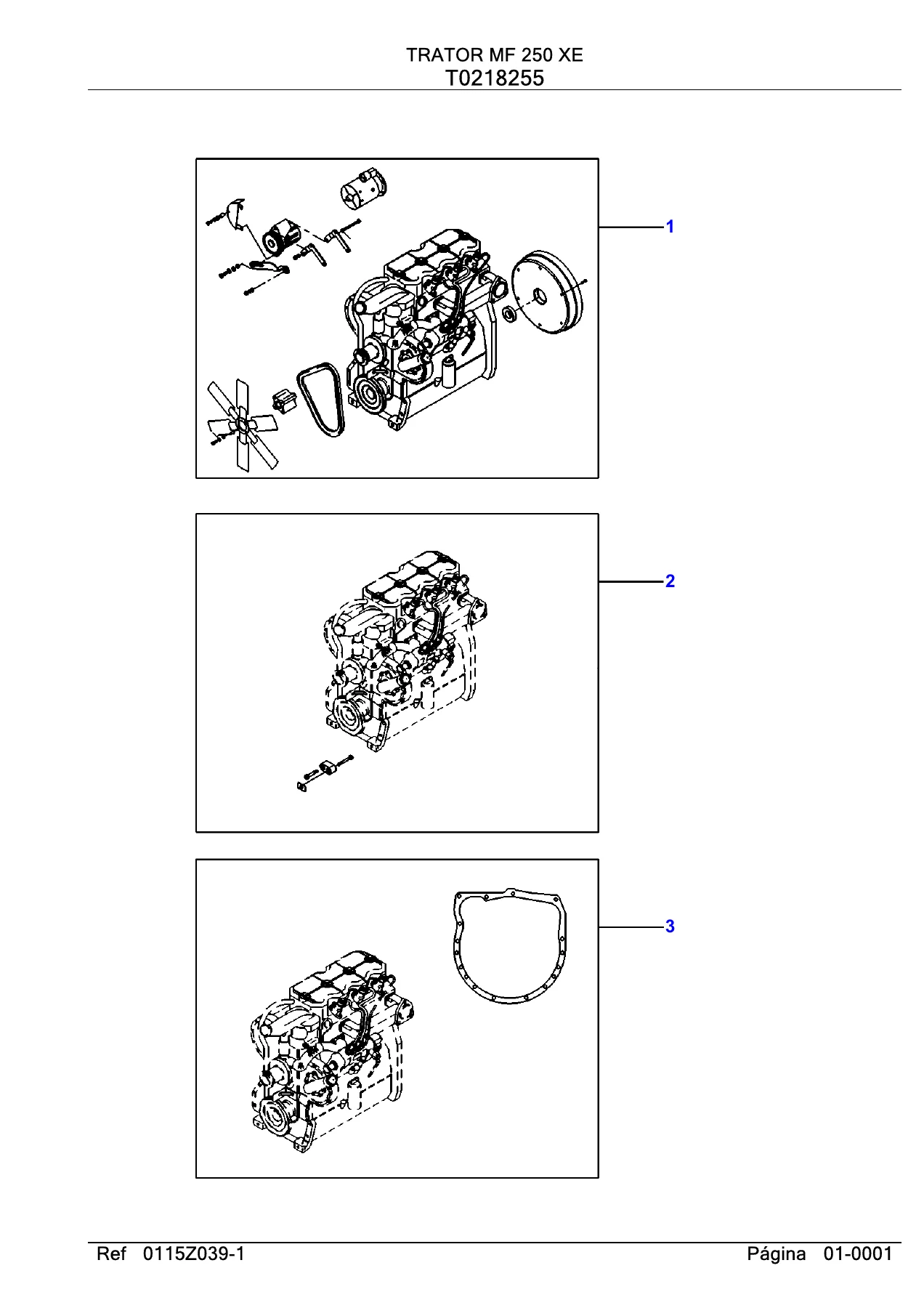

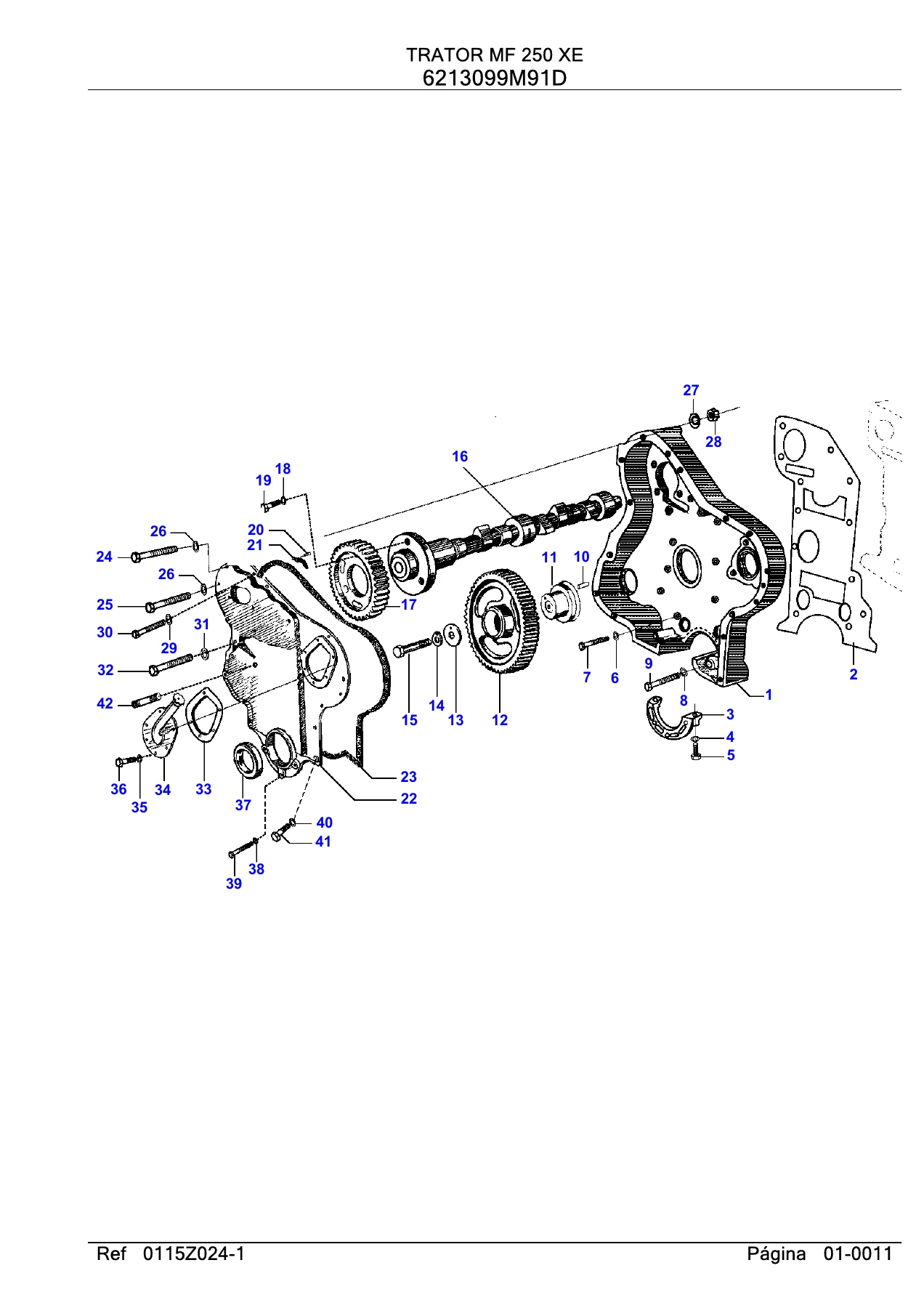

This is the deepest section of the catalog and the one most owners end up in. It starts at the mounting hardware and works inward: the engine plate assembly, the starter motor (3821819M91, listed as a 12V 4.2 kW unit on its own breakdown page), the alternator in its 12V 55A with pulley and fan configuration, the tensioner, the fan and spacer, the drive belt at 13 x 1215, and the flywheel assembly. From there the catalog opens the engine itself — cylinder block and liners, crankshaft with standard and undersize main bearings, connecting rod assemblies and rod bearings, pistons and ring kits, cylinder head with intake and exhaust valves, valve guides, springs and caps, rocker shaft and rockers, pushrods, tappets, the camshaft and timing gear train, the gear case and its cover, the oil pump, the water pump with its repair kit and hoses, the injection pump and injectors with their fuel lines, the intake and exhaust manifolds, the oil filter head and element, and the full gasket set laid out as a numbered set of twenty. If you are resealing or rebuilding a Simpsons engine out of an MF 250 XE, the part numbers for every seal, O-ring and gasket are here in one place.

Eixos — Rear Axle, Front Axle and Driveline

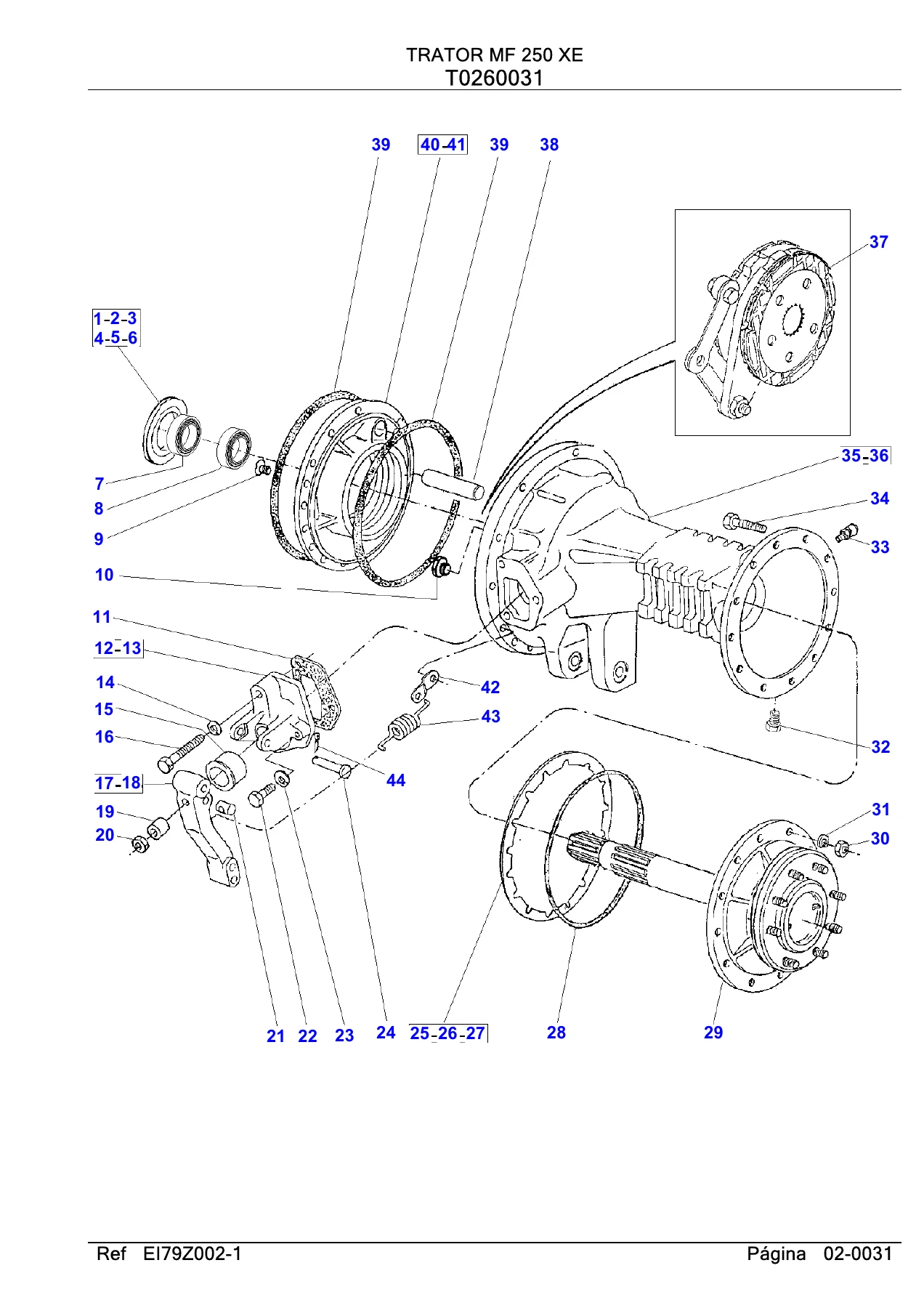

The axle chapter is written around the serial number of the machine, because the rear axle fixing arrangement changed partway through production. You get the complete rear axle housing, differential carrier and crown wheel and pinion sets, final reduction assemblies, the oil-bath brake packs with friction, intermediate and organic discs, the actuating cylinders, the half shafts and the complete brake control linkage with levers, yokes, springs and clevis pins. The front axle is covered in several distinct versions — the Carraro 20.14 and the ZF APL335 among them — each with its own housing, kingpin and swivel housing, wheel hub, crown wheel and pinion, differential, steering cylinder repair kit and the full shim selection used to set bearing preload. Cardan shafts and their guards, crosses, flanges and sleeves appear as separate breakdowns so you can rebuild a worn driveline joint by joint.

Sistema de Transmissão — Clutch and Gearbox

The transmission section opens with the 12-inch dual clutch in the ND 21-spline configuration, including the cover assembly, pressure plates, diaphragm springs, release levers, pins and the repair kit, and it also details the split torque clutch variant and its installation hardware. Behind the clutch sits the 8-speed sliding gearbox and the later 8×2 transmission, both broken down into input shaft, counter shaft, gear clusters by tooth count, selector forks, rails, detents, springs, bearings and retaining rings. The transmission housing, cover plates, levers, boots and the support and lever bracket assembly are all listed separately, so linkage wear can be fixed without buying an entire assembly.

Sistema Hidráulico — Steering, Lift and Remote Valves

Hydrostatic steering is documented for both two-wheel-drive and four-wheel-drive tractors, with the steering column, the Danfoss steering unit rated at 80 cm³/rot for 2WD and 100 cm³/rot for 4WD, the reservoir with its element and repair kit, the pressure and return lines, connections and clamps. The hydraulic lift section covers the standard lift cover, the depth and position quadrant assemblies, the rocker shaft and lift arms, the lift cylinder rated at 2100 kgf with its piston and seal kit, the hydraulic pump with its valve block, relief valve and internal components, the auxiliary hydraulic pump, and the single-body remote control valve with its flow divider and couplers. Every O-ring in the pump breakdown is listed with its dimensions, which is exactly what you need when a lift drifts or a remote spool weeps.

Sistema Elétrico — Battery, Lighting, Instruments and Harness

The electrical chapter is itemised down to individual fuses and bulbs: the 12V 95A battery, the front and rear harness assemblies with their serial number breakpoints, the instrument panel in both the with-temperature-gauge and without-temperature-gauge versions, ignition switches and keys, headlamp and work lamp assemblies, rear lamp clusters, the trailer socket, the licence plate light, the glow plug cold-start heater with its valve and tube, the horn installation and the fuse box with 5A, 10A and 15A fuses and relay. Sensors for oil pressure and coolant temperature are listed together with their adaptors and sealing washers, so a faulty gauge can be traced to the right sender rather than guessed at.

Plataforma and Chassi — Operator Station and Bodywork

The platform chapter covers the narrow seat and the armrest seat with seat belt, the accelerator pedal and linkage with its rods, levers and return springs, the brake and clutch pedal assemblies for four-wheel-drive tractors, the individual left and right brake pedals, the clutch pedal and the full rod and clevis hardware. The chassis chapter handles the bonnet and side panels, the front grille with its latch, handle and foam seals, the safety structure and folding ROPS, the canopy, the mirrors and their mounting rails and brackets, the footstep and step plates, the rear fenders with extensions and brackets, the emblem and decal sets including the English and Spanish variants, and the speed scale decal. Bodywork fasteners are given with their exact thread and finish so replacements match.

Rodas — Wheels, Tyres and Ballast

Wheel assemblies are documented by size and by serial range: the 6.00 x 16 front set, the 8.00 x 18 R1 and 250/80-18 R1 front assemblies, the 7.50-15 front wheel, the 8.30-24 R1 front wheels, and the rear assemblies in 12.4 x 24, 14.9 x 24, 12.4 x 28 and 16.9 x 24 R1. Rims, discs, wheel bolts, nuts and washers are itemised individually, including the Maxion, GKN and Rodaza wheel build variants. Front weight supports, the 25 kg front weight set and the 40 kg and 52 kg rear wheel weight kits appear with their studs, spacers, plates and counterweights, so ballasting can be specified rather than improvised.

Sistema de Acionamento de Implementos — Independent PTO

The independent PTO section covers the 540 rpm unit end to end: the control lever and knob, the side cover, the PTO clutch pack with its friction and steel discs, piston, seal rings and retaining rings, the gear train with its shaft, gears, rollers and plates, the PTO shaft and hub assembly, the tube and filter, the auxiliary hydraulic pump that feeds the circuit, and the PTO guard. TDP and TDPI cover and lever assemblies are shown both with and without the hydraulic lift, which matters when two tractors of the same model are fitted differently.

Acoplamento and Acessórios — Linkage, Drawbar and Tools

The coupling chapter lists the drawbar, its support, pins and clip pins, the hydraulic lift arms and levelling arms with their ball ends, tubes and springs, the third-point top link in its narrow configuration, the stabiliser assemblies with their turnbuckles, terminals and lock pins, and the full set of link pins, clevises and lock washers. The accessories chapter closes the catalog with the tool kit — the spanner set, pliers, screwdriver, Allen key and the tool box itself — plus the grease gun, the ear defender and the Brazil-built decal set.

Reading the Catalog: Serial Breaks, Alternatives and Supersessions

Three conventions run through this MF 250 XE parts book and they are worth understanding before you order. First, entries that read VEJA A PÁGINA point you to a dedicated breakdown page for that sub-assembly — the catalog deliberately stops at the assembly level and hands you off rather than listing the internals twice. Second, many components are split by serial number, and the catalog states the exact break: the alternator, for example, is listed as one part number up to a given serial and a different one from the next serial onward, and the rear axle brake plates, front axle variants and bonnet grille follow the same pattern. Third, several lines are marked ALTERNATIVO, and bearings appear in standard and stepped undersizes of -0.25 mm, -0.50 mm and -0.75 mm for both mains and rods, which is how a worn crankshaft gets matched to the right shell without guesswork.

What This Massey Ferguson MF250XE Parts Manual Lets You Do

A parts catalog earns its place in the workshop because it removes the two most expensive habits in tractor repair: ordering on description and ordering on memory. With the MF 250 XE illustrated parts manual open, you can walk a dealer counter or an online parts store with the correct number in hand, confirm which of two alternators or which of several front axle variants your machine actually carries, check whether a fastener is a 3/8-16 UNC at 1-1/2 inch in SAE grade 5 zinc or something else entirely, and verify that the gasket you are about to fit belongs to the housing revision your serial number falls under. For anyone rebuilding a Simpsons engine, refreshing a brake pack, resealing a hydraulic pump or simply replacing a cracked step plate on a working tractor, this is the reference that keeps the job moving in one direction.

IMAGES PREVIEW

Instant PDF Delivery

The C025003 parts catalog is delivered as a PDF the moment payment clears. There is no shipping, no waiting on a courier and no risk of a paper copy disappearing into a workshop drawer. Open it on a laptop at the bench, on a tablet next to the tractor, or print just the pages for the assembly you are working on and take them outside with you. Every diagram and every part table stays legible at full size, which is precisely how a parts book should be used.
