Mercury 30 Jet & 40 HP Four-Cylinder Outboard Service Manual 1996 – PDF Repair Guide

Description

Mercury 30 Jet & 40 HP Four-Cylinder Outboard Service Manual

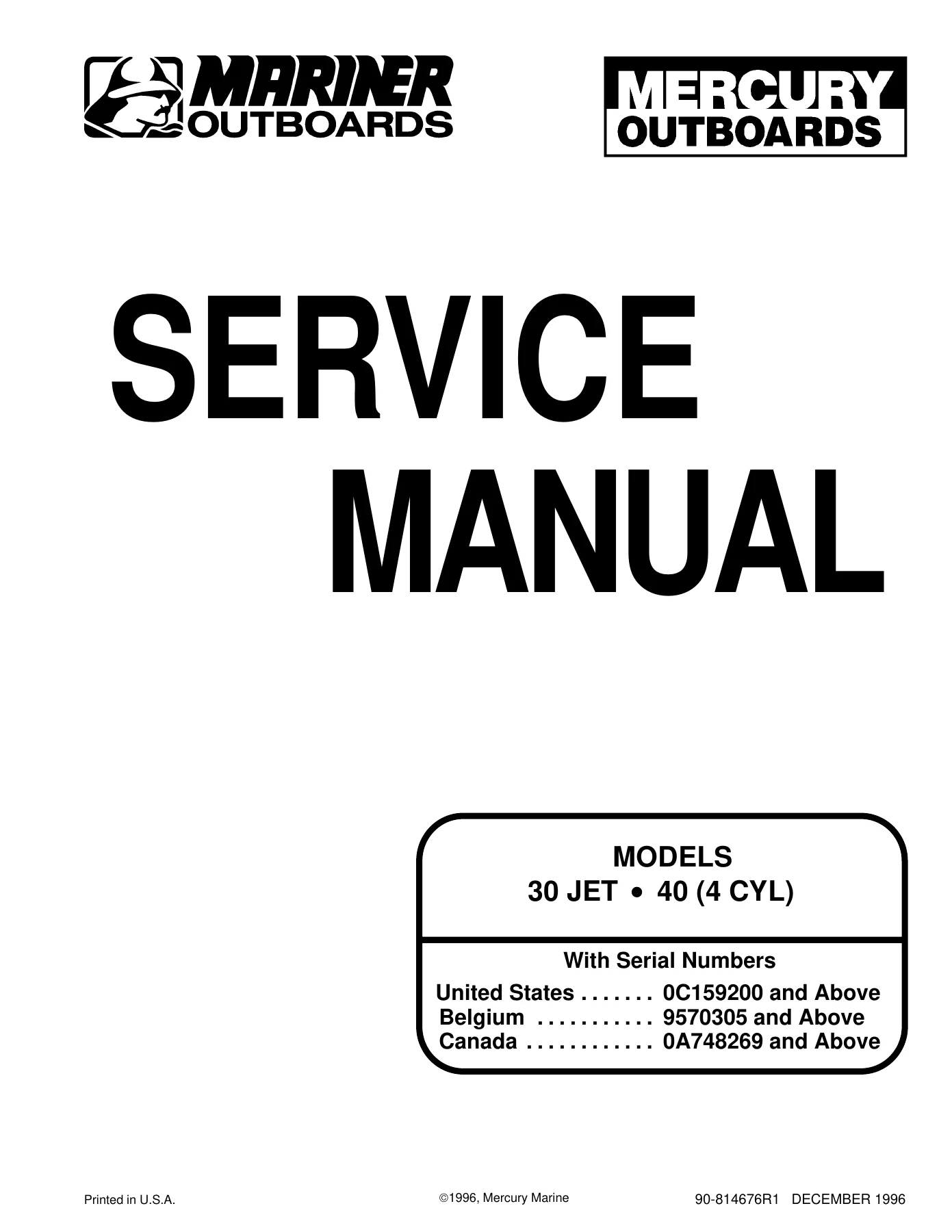

This 532-page service manual covers the Mercury 30 Jet and 40 HP four-cylinder outboard motors in complete detail. Published by the Mercury Marine Service Department under document number 90-814676R1 (December 1996), it provides the same repair, maintenance, and diagnostic procedures used by dealers and professional marine mechanics. Whether you are servicing a 30 Jet or a 40 HP 4-cylinder, this manual delivers the specifications, exploded views, wiring diagrams, and step-by-step instructions needed to do the job correctly.

File Details

• Manual Type: Service Manual
• Brand: Mercury Marine
• Models: 30 Jet, 40 (4 Cylinder)
• Language: English
• Page Count: 532
• File Format: PDF
• Document Number: 90-814676R1
• Publication Date: December 1996
• Serial Coverage: United States 0C159200 and Above; Belgium 9570305 and Above; Canada 0A748269 and Above

Chapters Covered

• Section 1 — Important Information
• Section 2 — Electrical & Ignition
• Section 3 — Fuel System & Carburetion
• Section 4 — Powerhead
• Section 5 — Mid-Section
• Section 6 — Lower Unit
• Section 7 — Outboard Motor Installation/Attachments
• Section 8 — Oil Injection System

Section 1 — Important Information

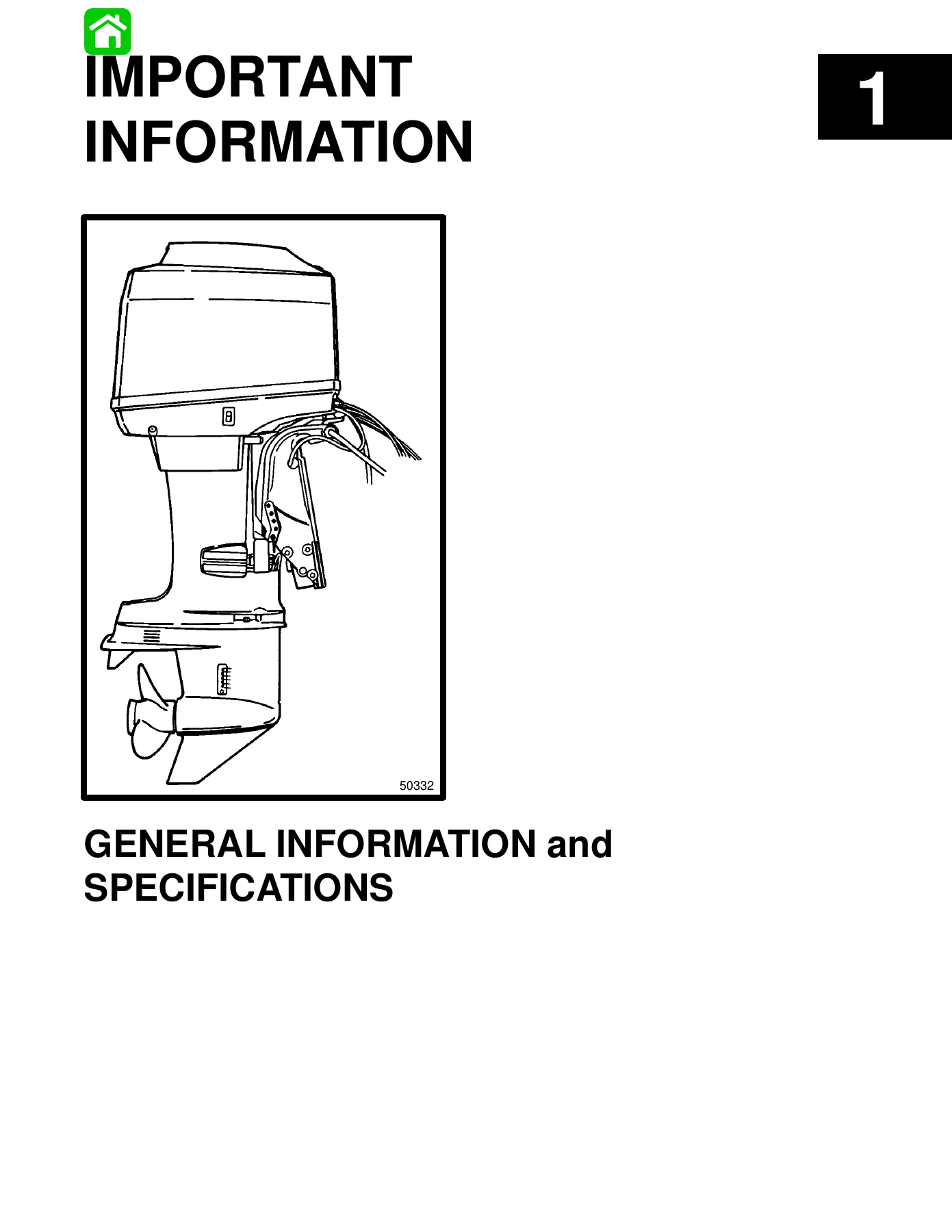

Opens with general specifications for the 40 HP model — displacement, bore, stroke, firing order, gear ratio, weight, fuel and oil recommendations, and battery requirements. Covers propeller selection and installation, trim angle adjustment, boat performance testing, lubrication points, gear housing lubrication, salt water corrosion protection, flushing procedures, submersion recovery, out-of-season storage, and detonation causes and prevention. This is the section every owner should read before touching anything else on the outboard.

Section 2 — Electrical & Ignition

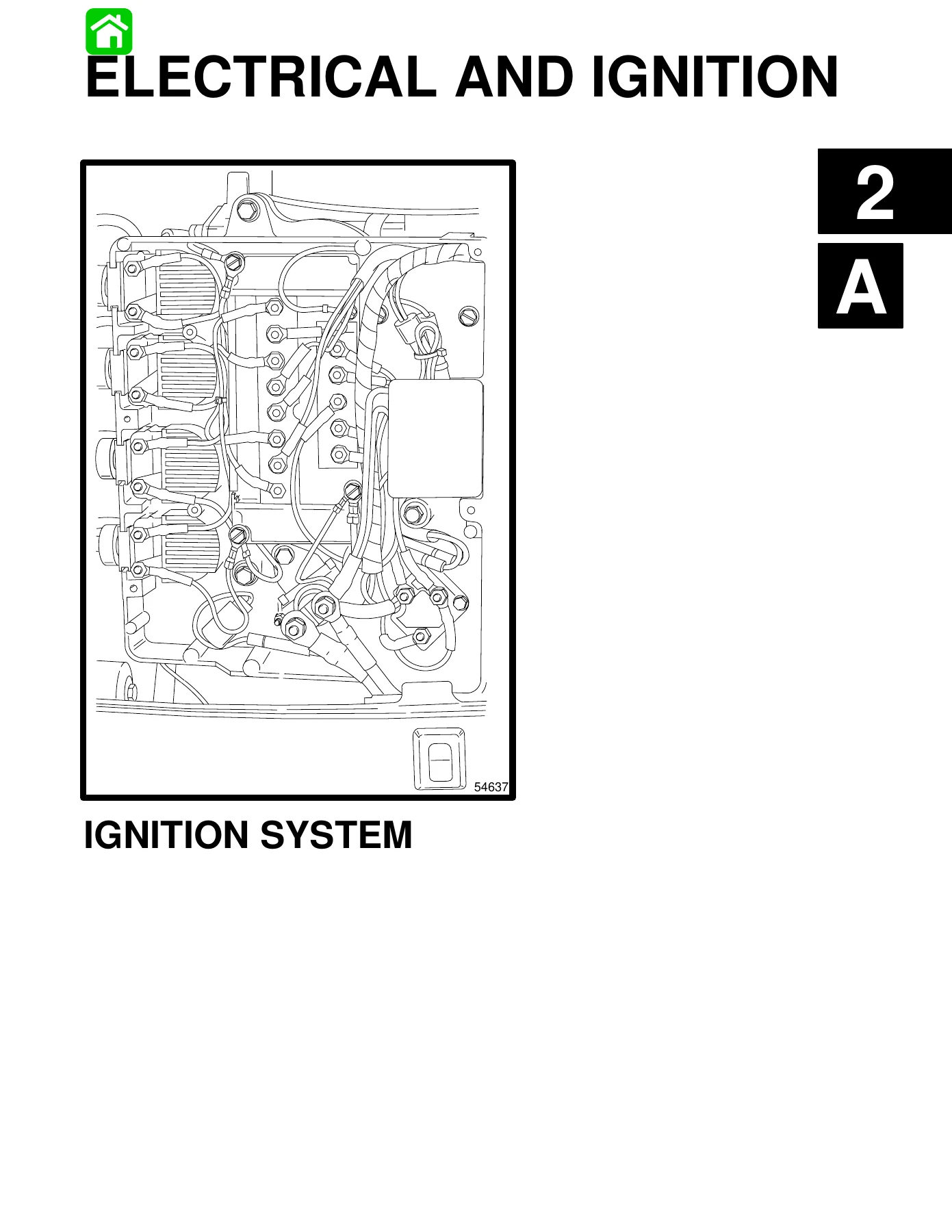

Broken into four parts for clarity. Part A covers the Thunderbolt capacitor discharge ignition system — stator, trigger, switch box, ignition coils, and spark plugs — with detailed troubleshooting flow charts and DVA test procedures for both black stator and red stator models. Part B covers the battery, charging system, and starting system including battery testing, rectifier and voltage regulator testing, starter motor disassembly and reassembly, and starter solenoid testing. Part C covers timing, synchronizing, and adjustment including static timing, throttle primary and secondary pick-up adjustment, maximum timing adjustment, and idle RPM adjustment. Part D provides complete wiring diagrams for Commander 2000 side mount remote controls and panel mount controls.

Section 3 — Fuel System & Carburetion

Details the fuel pump (both Design 1 and Design 2), carburetor removal and disassembly, fuel system troubleshooting charts, float adjustment for WMA7B and WMA9 carburetors, main jet and vent jet adjustment, high altitude jetting charts, enrichment system for electric start models, primer system, and fuel line and primer bulb assembly maintenance. Includes carburetor jet orifice size charts and air/fuel mixture adjustment procedures.

Section 4 — Powerhead

Covers complete powerhead disassembly and reassembly including cylinder block and crankcase, crankshaft, pistons, connecting rods, reed blocks, upper and lower end caps, and all torque specifications. Includes detailed cleaning and inspection procedures, honing procedures, piston measurement, connecting rod alignment checks, crankshaft inspection, and reassembly with proper shimming, sealing, and torque sequencing.

Section 5 — Mid-Section

Divided into seven parts covering the clamp/swivel bracket and drive shaft housing, plus four power trim designs and two manual tilt designs. Covers transom bracket components, drive shaft housing, tilt lock lever, power trim hydraulic systems (Designs I through IV), manual tilt systems (Designs I through IV), with complete hydraulic flow diagrams, troubleshooting charts, disassembly and reassembly procedures, and electrical troubleshooting for power trim circuits.

Section 6 — Lower Unit

Part A covers the standard gear housing including drive shaft components, propeller shaft components, water pump removal and reassembly, bearing carrier and propeller shaft removal, forward gear and bearing removal, pinion gear depth checking, forward gear backlash checking, and complete gear housing reassembly. Part B covers the jet drive including jet pump assembly, impeller removal and installation, impeller clearance adjustment, liner replacement, bearing carrier disassembly and reassembly, and jet drive tiller handle adaptor kit installation.

Section 7 — Outboard Motor Installation/Attachments

Covers outboard motor installation on transom, mounting height determination, drilling mounting holes, Ride-Guide steering attaching kit installation for single and dual outboards, steering coupler assembly, trim tab adjustment, remote control installation, shift and throttle cable installation and adjustment, tiller handle components and installation, Co-Pilot installation, rewind starter disassembly and reassembly, and rewind spring tension adjustment.

Section 8 — Oil Injection System

Covers the oil injection system operation, components, flow system, pump drive assembly, oil pump to powerhead assembly, setup instructions, filling and bleeding procedures, oil pump volume test, oil warning module removal and installation, and engine mounted oil reservoir removal and installation. Includes a troubleshooting chart for warning horn issues and oil level sensor diagnostics.

Why This Mercury Service Manual Matters

Whether you are a professional marine mechanic or a serious DIY boat owner, having the correct service manual for your Mercury 30 Jet or 40 HP four-cylinder outboard is essential. These engines have specific torque values, clearances, and adjustment procedures that cannot be guessed at or borrowed from other models. The Thunderbolt capacitor discharge ignition system, the oil injection system, and the power trim systems all have unique diagnostics and service requirements that this manual details step by step.

With 532 pages of detailed procedures, this manual covers everything from routine maintenance like gear housing lubrication and spark plug service to complete powerhead disassembly and lower unit rebuilding. The wiring diagrams alone are worth the cost of admission — they cover all the major remote control and panel mount configurations with wire colors and connection points clearly labeled.

The troubleshooting sections for the ignition system use a logical step-by-step approach with DVA meter readings, so you can pinpoint electrical faults without guessing. The power trim sections include hydraulic flow diagrams that show exactly how oil moves through the system in each mode, making it possible to diagnose even complex hydraulic problems.
