Mercury Mariner 30 40 HP Outboard Service Manual PDF – 2 Cylinder 1997 Repair Guide

Description

The Mercury Mariner 30 40 HP Outboard Service Manual is the workshop-level repair guide for the two-cylinder 30 and 40 horsepower Mercury and Mariner outboards listed on the cover. Published by the Mercury Marine Service Department as document 90-826148R2 (Revision No. 1, March 1997), it is written for dealer mechanics and service personnel working on these specific engines — which means every procedure, specification, torque figure and diagnostic step inside is aimed at the 30/40 HP platform rather than a broad range of motors.

File Details

• Manual Type: Service / Workshop Manual
• Brand: Mercury Marine / Mariner

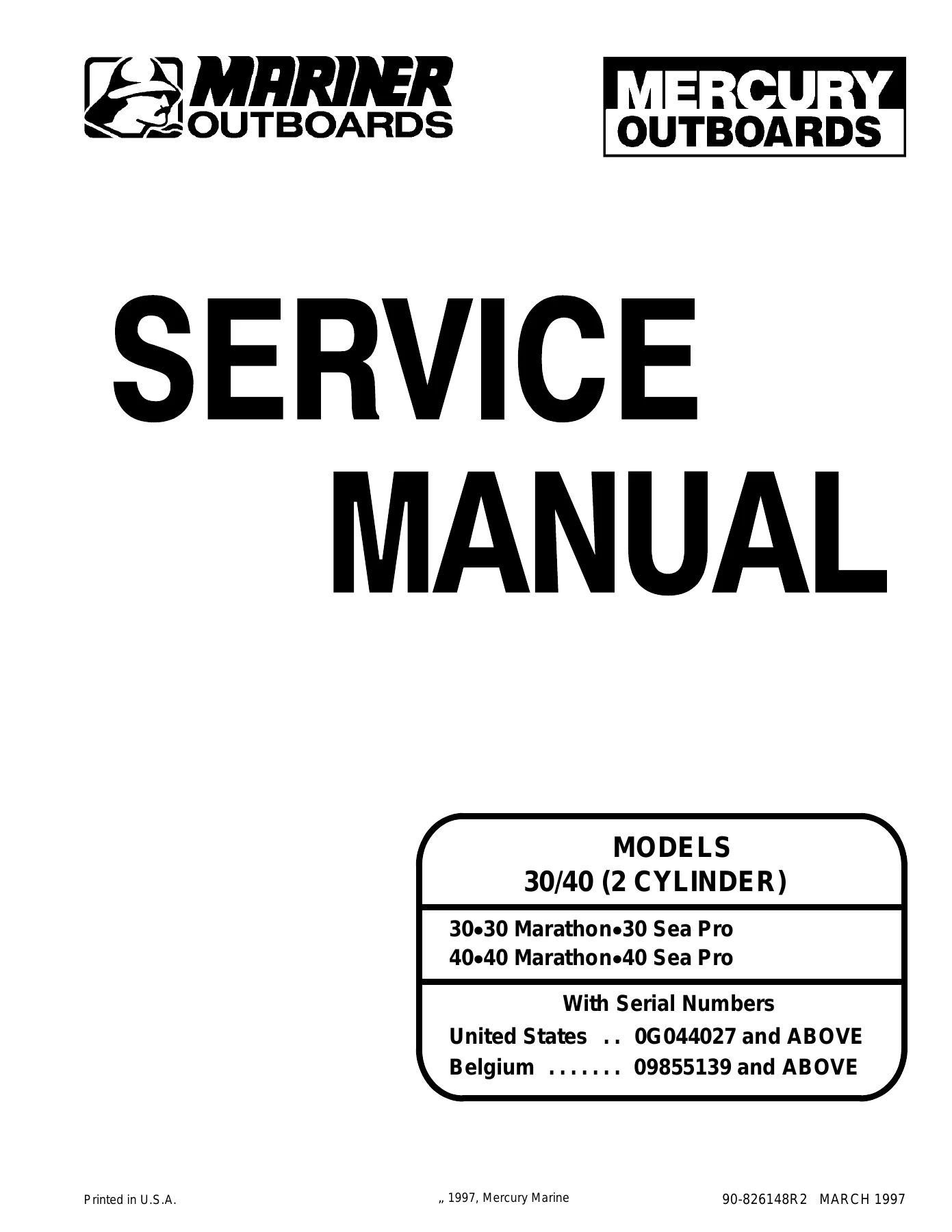

• Covered Models: 30, 40, 30 Marathon, 30 Sea Pro, 40 Marathon, 40 Sea Pro
• Engine Configuration: 2-cylinder, 2-stroke outboard
• Covered Serial Numbers: United States 0G044027 and above; Belgium 09855139 and above
• Document Number: 90-826148R2
• Revision / Date: Revision No. 1, March 1997
• Language: English
• Page Count: 333 pages
• File Format: PDF (instant download, printable, viewable on any device)

Chapters Covered

• Section 1 — Important Information: Specifications, Maintenance Schedule, General Information, Outboard Installation
• Section 2 — Electrical: Ignition, Charging & Starting System, Timing / Synchronizing & Adjusting, Wiring Diagrams
• Section 3 — Fuel System: Fuel Pump, Carburetor, Oil Injection
• Section 4 — Powerhead
• Section 5 — Mid-Section: Clamp / Swivel Brackets & Drive Shaft Housing, Power Trim, Manual Tilt
• Section 6 — Lower Unit
• Section 7 — Attachments / Control Linkage: Throttle / Shift Linkage, Tiller Handle
• Section 8 — Manual Starter

This Mercury Mariner 30 40 HP outboard service manual covers the whole engine rather than a single subsystem. Section 1 opens with the general specifications, scheduled maintenance intervals and outboard installation, giving the technician a baseline for every job that follows. From there the electrical section walks through ignition theory, stator, trigger and CDM testing, charging and starting system troubleshooting, timing and synchronization procedures, and the complete wiring diagrams for both manual-start and electric-start configurations. The fuel system section handles the crankcase-pressure-driven fuel pump, the WME carburetor family used across the 30 and 40 HP models, and the variable-ratio oil injection pump with bleeding and synchronization procedures.

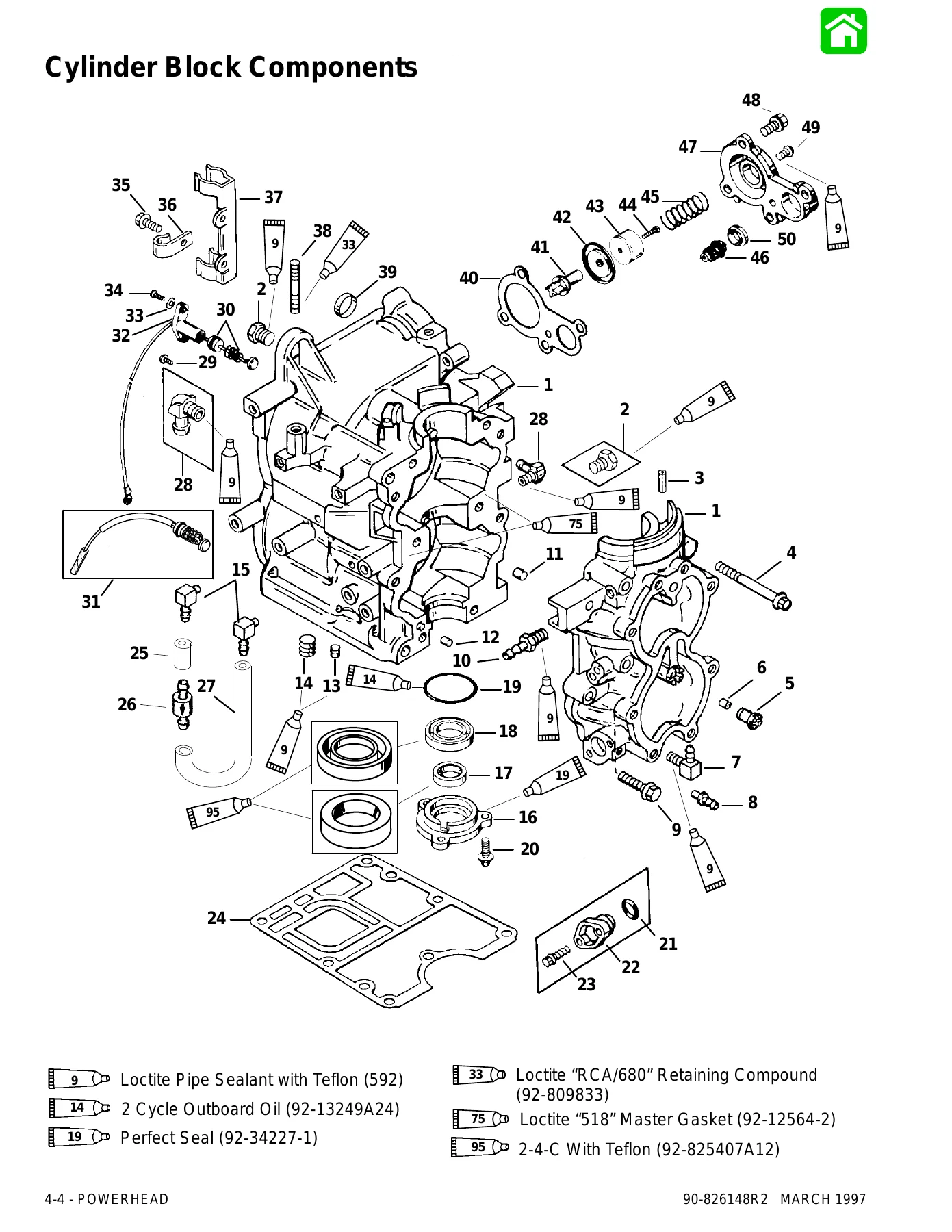

The powerhead chapter takes the engine all the way down — cylinder block, crankshaft, pistons, connecting rods, reed blocks, thermostat, check valves and bleed hose routing — with assembly torque sequences and inspection criteria built into the reassembly steps. The mid-section chapter deals with clamp and swivel brackets, drive shaft housing, the power trim system and manual tilt, including hydraulic flow diagrams for trim-up, tilt-up, maximum tilt, down mode and both shock functions. The lower unit chapter is a full gearcase overhaul guide: gear housing disassembly, water pump service, forward and reverse gear inspection, clutch dog and cam follower, bearing carrier, pinion gear and drive shaft assembly, pressure testing and gear lube filling. Section 7 handles throttle and shift linkage plus tiller handle adjustments, and Section 8 covers rewind starter disassembly, spring tension and interlock cable adjustment.

What Makes This Manual Useful

Because this is a factory-level Mercury Mariner 30 40 HP service manual, the procedures assume the reader is doing real diagnostic and repair work, not just fluid changes. That means step-by-step disassembly and reassembly sequences, resistance and DVA voltage test values, float level and idle mixture settings, timing specifications for both pre-0G590000 and 0G590000-and-above serial ranges, gearcase backlash checks, torque tables built into each component listing, and exploded parts diagrams that show exactly how the assemblies go together. The wiring diagrams alone are worth the download if you are chasing an intermittent ignition or charging fault on a 30 or 40 HP outboard.

If you own a 30 HP or 40 HP Mercury or Mariner two-stroke outboard — including the 30 Marathon, 30 Sea Pro, 40 Marathon and 40 Sea Pro variants — this repair guide is the reference the dealer used. Instead of guessing torque values, carburetor settings or timing marks, you work from the numbers Mercury published for these exact engines.

What You Can Do With This Mercury 30/40 HP Outboard Repair Guide

• Diagnose no-spark and weak-spark conditions on both cylinders using the DVA and resistance test procedures
• Rebuild the fuel pump and WME carburetor, set the float level and dial in idle mixture
• Service the oil injection system, bleed the pump and synchronize it with the carburetor linkage
• Tear down the powerhead — pistons, rods, crankshaft, reed blocks, thermostat and check valves
• Rebuild the lower unit: water pump, forward and reverse gears, clutch dog, bearing carrier and pinion

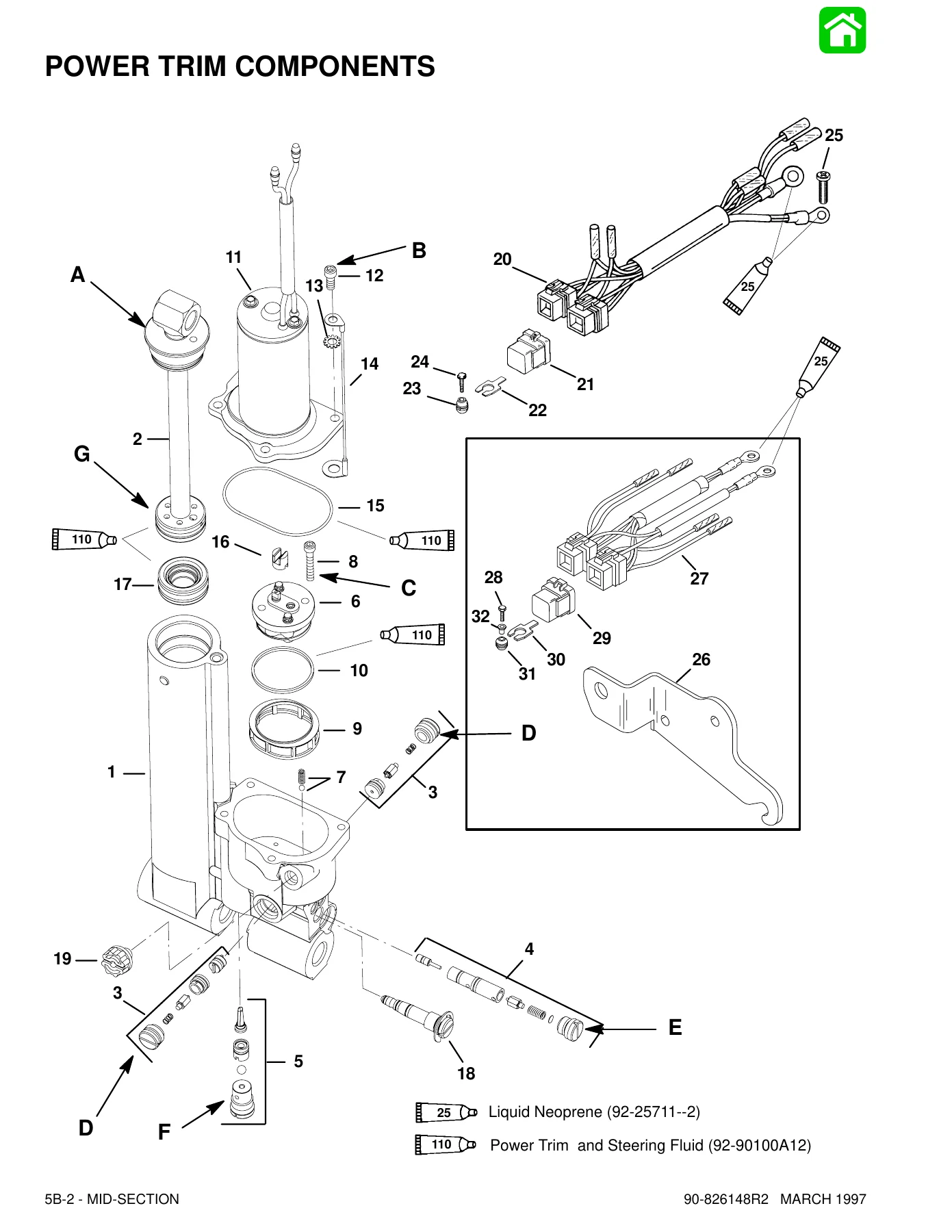

• Service the power trim unit, manual tilt, and understand the hydraulic flow paths
• Adjust the throttle and shift linkage, and set the tiller handle synchronisation
• Reassemble the rewind starter and set interlock cable tension
• Reference the full Mercury 30/40 wiring diagrams for electrical troubleshooting

IMAGES PREVIEW

Delivery is instant. The PDF is available for download immediately after checkout, with no shipping and no waiting. It prints cleanly if you want a paper copy, and it opens on any laptop, tablet or phone so you can keep it beside the engine while you work. This Mercury Mariner 30 40 HP outboard service manual is the fastest way to put the correct procedures and specifications for your 30 or 40 HP two-stroke engine in your hands.
