The Mercury Verado 200 225 250 275 2005 Service Manual – July 2004 is an extensive service reference for the Verado 200, 225, 250 and 275 outboard models. Across 834 pages, it brings together master specifications, scheduled maintenance, installation procedures, electrical diagnosis, fuel-system operation and service, powerhead overhaul procedures, mid-section and lower-unit work, power steering service and colored wiring diagrams. The manual is written for technicians who already understand marine service practices and includes detailed procedures, special-tool references, component illustrations, test values and tightening specifications throughout.

File Details

• Manual type: Service Manual
• Brand: Mercury Marine
• Models: Verado 200, 225, 250 and 275
• Model year shown: 2005
• Language: English
• Page count: 834 pages
• File format: PDF
• Publication date: July 2004

Core Specifications and Service Data

The opening specification section makes the manual useful as a day-to-day bench reference before any disassembly begins. It identifies the four power ratings as 149 kW (200 HP), 168 kW (225 HP), 186 kW (250 HP) and 205 kW (275 HP). All use a 2.6 L six-cylinder four-stroke powerhead, with a specified 5800-6400 RPM wide-open-throttle range and 550 +/- 50 RPM idle speed. The induction system is described as SmartCraft DTS electronic throttle with intercooled supercharged aspiration and electronic boost pressure control, while fuel delivery is computer-controlled sequential multi-port electronic fuel injection.

Service data extends well beyond basic model identification. The manual includes ignition specifications, charging and starting values, cylinder-head dimensions and valve clearances, cylinder-block and crankshaft limits, power-trim pressures, engine-oil data, standard- and counter-rotation gear-housing specifications, power-steering information and propeller charts for each horsepower model. Examples include the NGK ILFR6G spark plug, 0.8 mm gap, 1-3-5-6-4-2 firing order, 1.85:1 gear ratio, 970 ml gearcase capacity and a 7 liter wet engine-oil capacity. Detailed service-limit tables support measurement and inspection during mechanical repair rather than relying on general descriptions.

Chapters Covered

• 1 – Important Information
  • Master Specifications
  • Maintenance
  • General Information
  • Outboard Motor Installation

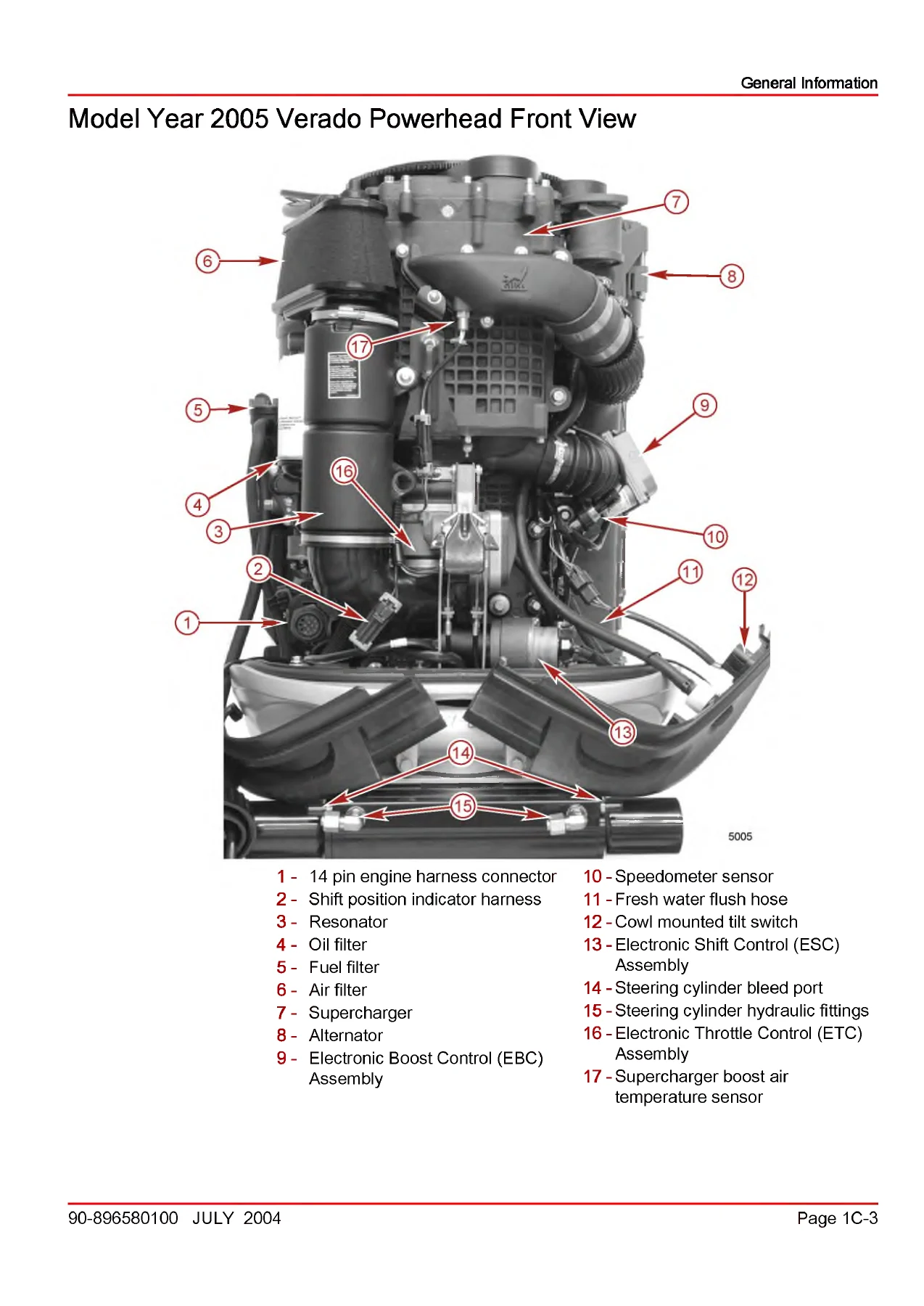

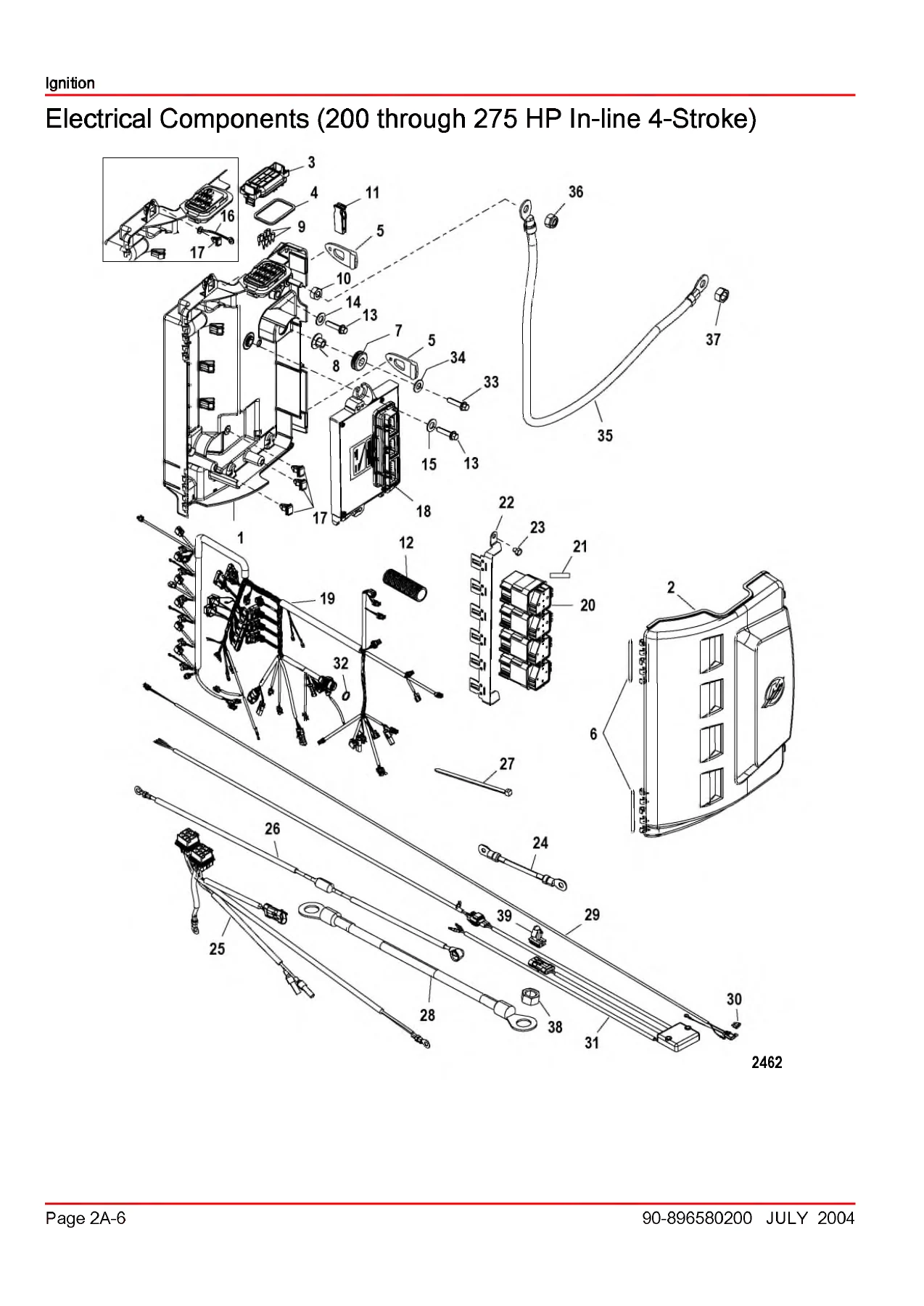

  IMAGES PREVIEW







• 2 – Electrical
  • Ignition
  • Charging and Starting System
  • Timing, Synchronizing and Adjusting
  • Digital Throttle and Shift
• 3 – Fuel System
  • Fuel System Operation
  • Troubleshooting and Diagnostics
  • Service Procedures
  • Emissions
• 4 – Powerhead
  • Cylinder Block/Crankcase
  • Cylinder Head
  • Lubrication
• 5 – Mid-Section
  • Pedestal/Mount Cradle and Driveshaft Housing
  • Adapter Plate
  • Power Trim
• 6 – Lower Unit
  • Right Hand Rotation
  • Left Hand Rotation
• 7 – Attachments
  • Attachments
• 8 – Power Steering
  • Power Steering
• 9 – Colored Wire Diagrams
  • Colored Wire Diagrams

Taken as a whole, this structure follows the outboard from routine inspection and rigging through electronic control, fuel delivery, internal engine service and drivetrain systems. It gives the technician both the broad system description needed to understand how the Verado operates and the component-level procedures needed when a fault has to be isolated, a part has to be removed, or an assembly has to be measured and rebuilt.

Maintenance, Installation and Setup

The maintenance material covers inspection intervals before each use, after each use, every 100 hours or yearly, and every 300 hours or three years. Procedures include cooling-system flushing, cowl removal and installation, battery inspection, air-filter cleaning, fuel-line and water-separating-filter service, corrosion-control anodes, propeller replacement, spark-plug inspection, fuse service, DTS wiring checks, accessory-drive-belt inspection, power-trim and power-steering fluid checks, engine-oil and filter changes, storage preparation, gearcase lubrication and submerged-outboard response.

Installation coverage is equally practical. The Mercury Verado 200 225 250 275 service manual explains mounting-height considerations, transom drilling and fastening, lifting the outboard, routing cables and fuel hose through the cowl, fuel-hose requirements, DTS data-harness installation, command-module and junction-box arrangements, battery-cable sizing, single- and dual-engine wiring layouts, propeller installation and paddle-wheel speed-sensor installation. The illustrated DTS sections show how the electronic control system is routed for single-engine, dual-engine, single-helm and dual-helm configurations.

Electrical and Diagnostic Coverage

Electrical chapters go into ignition operation, charging and starting, PCM-controlled timing and idle functions, and Digital Throttle and Shift. The ignition section covers the PCM, pencil coils, crankshaft and camshaft position sensors, cylinder-block and cylinder-head temperature sensors, MAP and MAT sensors, supercharger outlet temperature sensing, oil pressure and temperature sensing, water-in-fuel monitoring, knock sensing and fuses. Diagnostic procedures use voltage, resistance and continuity checks as well as the Digital Diagnostic Terminal and Computer Diagnostic System where specified.

Troubleshooting material addresses conditions such as an engine that cranks but will not start, an engine that will not crank, start-and-stall complaints, rough idle, excessive idle speed, rough running below or above 3000 RPM and Guardian-related speed reduction. Rather than stopping at symptom names, the manual links those symptoms to checks of battery voltage, fuel pressure, fuses, relays, spark plugs, ignition coils, sensors, wiring, electronic throttle control and mechanical condition.

Fuel, Supercharger and Powerhead Service

The fuel-system portion describes air induction, sequential fuel injection, key powerhead sensors, the Fuel System Module, lift and high-pressure pumps, pressure regulation, fuel cooling, injectors, vent-canister components and electronic boost control. Service procedures then move into component removal and installation, including the Fuel System Module, induction components, charge-air cooler, intake manifold, fuel lines, electronic boost control assembly, supercharger and fuel rail. This makes the manual valuable for both operational diagnosis and hands-on repair of the supercharged EFI system.

The powerhead section is substantial and includes dressed-powerhead removal, removal of attached engine components, cylinder-head removal, flywheel work, cleaning and inspection, bore and piston measurement, connecting-rod and crankshaft measurement, bearing selection, piston and ring installation, timing-chain work, crankshaft sealing and complete reassembly. The manual repeatedly provides specified clearances, service limits, torque values and assembly sequences where those details are critical to correct repair.

Mid-Section, Gear Housing, Steering and Wiring

Beyond the engine itself, the manual covers the pedestal and mount cradle, driveshaft housing, adapter plate and power trim, followed by both right-hand and left-hand rotation lower units. Power-steering coverage is included as a dedicated section, and the final colored wiring section supports electrical tracing across the systems covered earlier in the book. Illustrated component views, exploded assemblies and wire diagrams make it easier to identify parts and follow connections while working through a procedure.

Use the Manual for Accurate Verado Service

The Mercury Verado 200 225 250 275 2005 Service Manual – July 2004 supports routine maintenance, fault diagnosis, electrical testing, DTS service, fuel and induction work, powerhead disassembly and rebuilding, trim and steering service, lower-unit repairs and installation work. Having the specified procedures, test values, clearances, service limits and torque data in one reference helps reduce guesswork and gives technicians a consistent basis for checking components before reuse or replacement.
