Mindray WATO EX-20/EX-30 Anesthesia Machine Service Manual PDF – 1,018 Pages, Complete Repair & Calibration

Description

Mindray WATO EX-20 / EX-30 Anesthesia Machine Service Manual – Complete Technical Reference

The Mindray WATO EX-20 and EX-30 Anaesthesia Machines – Service Manual is the definitive factory-level document for servicing and repairing these advanced anesthesia workstations. Spanning 1,018 pages, this PDF provides biomedical engineers, authorized technicians, and service representatives with comprehensive procedures for assembly, disassembly, pneumatic circuit analysis, system checkout, performance testing, and component-level troubleshooting. This is not a condensed user guide or quick-start sheet – it is the full service manual required to maintain the WATO EX-20 and EX-30 to original factory specifications.

This manual covers both the standard and maximum configurations, including gas supply systems (O2, N2O, Air, pipeline and cylinder), vaporizer manifolds, breathing systems, mechanical and manual ventilation, the anesthetic gas scavenging system (AGSS), and all electronic control boards. Every major subsystem is explained with detailed pneumatic circuit diagrams, electrical wiring schematics, and step-by-step disassembly sequences. The document also includes complete calibration procedures, factory maintenance routines, and a dedicated troubleshooting section for technical alarms, tidal volume inaccuracies, leaks, and valve/sensor failures.

File Details

• Manual Type: Full Service & Repair Manual
• Brand / Models: Mindray WATO EX-20 and EX-30 Anesthesia Machines
• Language: English
• Page Count: 1,018 pages (PDF file)
• File Format: Digital PDF (instant download)
• Document Number: 046-000250-00 (1.0)
• Revision / Date: Revision 1.0, Released August 2009

Chapters Covered

The manual is structured to support complete service operations from initial inspection through final system checkout. The major sections include:

• Safety Information – Dangers, warnings, cautions, equipment symbols, and static discharge precautions
• Theory of Operation – Full pneumatic circuit breakdown: gas flow from supplies (pipeline/cylinder), anesthetic gas delivery system, flowmeter and O2-N2O cut-off valve operation, ACGO, vaporizer manifold, pneumatically-controlled ventilator module, breathing circuit (mechanical and manual modes), and AGSS
• Checkout and Test – Complete system inspection, pipeline and cylinder tests, flow control system tests, vaporizer back pressure test, O2 flush test, breathing circuit tests (bellows, leak tests in mechanical and manual modes, APL valve, pressure relief valve), alarm tests, AGSS inspection, power failure test, and electrical safety tests
• Maintenance and Calibration – One-year and three-year replaceable parts lists with part numbers, system tests (mechanical ventilation checks, sensor zero point, flow/pressure sensor accuracy), system calibration procedures (user flow calibration, factory flow and pressure calibration, pressure/flow zeroing, O2 sensor calibration, CO2 module calibration), software upgrade and function activation, airway pressure gauge zeroing, and APL valve adjustment
• Troubleshooting – Technical alarm diagnosis, pneumatic circuit system problems, gas supplies and drive gas, anesthetic gas delivery system, patient circuit, tidal volume inaccuracy, sensor/valve failures using the Valves-test Tool, hardware and electrical faults
• Repair and Disassembly – Step-by-step disassembly of every major assembly: top plate, control boards (main, monitor, power signal, network, calibration power interface), display/keypad/encoder, flowmeter, three-way valve, gas supply inlet, system switch, pressure gauges, cylinder rack, vaporizer manifold, circuit adapter, O2 flush button, common gas block, ACGO, expiratory valve, gas reservoir, drawer, isolation transformer, casters, and breathing system components (O2 sensor, breathing tubes, flow sensors, manual bag, bellows, pop-off valve, check valves, CO2 absorbent canister, water collection cup, bag arm, and APL valve)
• Electrical and Pneumatic Connections – Detailed wiring diagrams, component reference tables, and pneumatic tubing schematics for multiple configurations (O2+N2O+Air, with/without cylinders, O2 or Air drive gas, national/European/American standards)

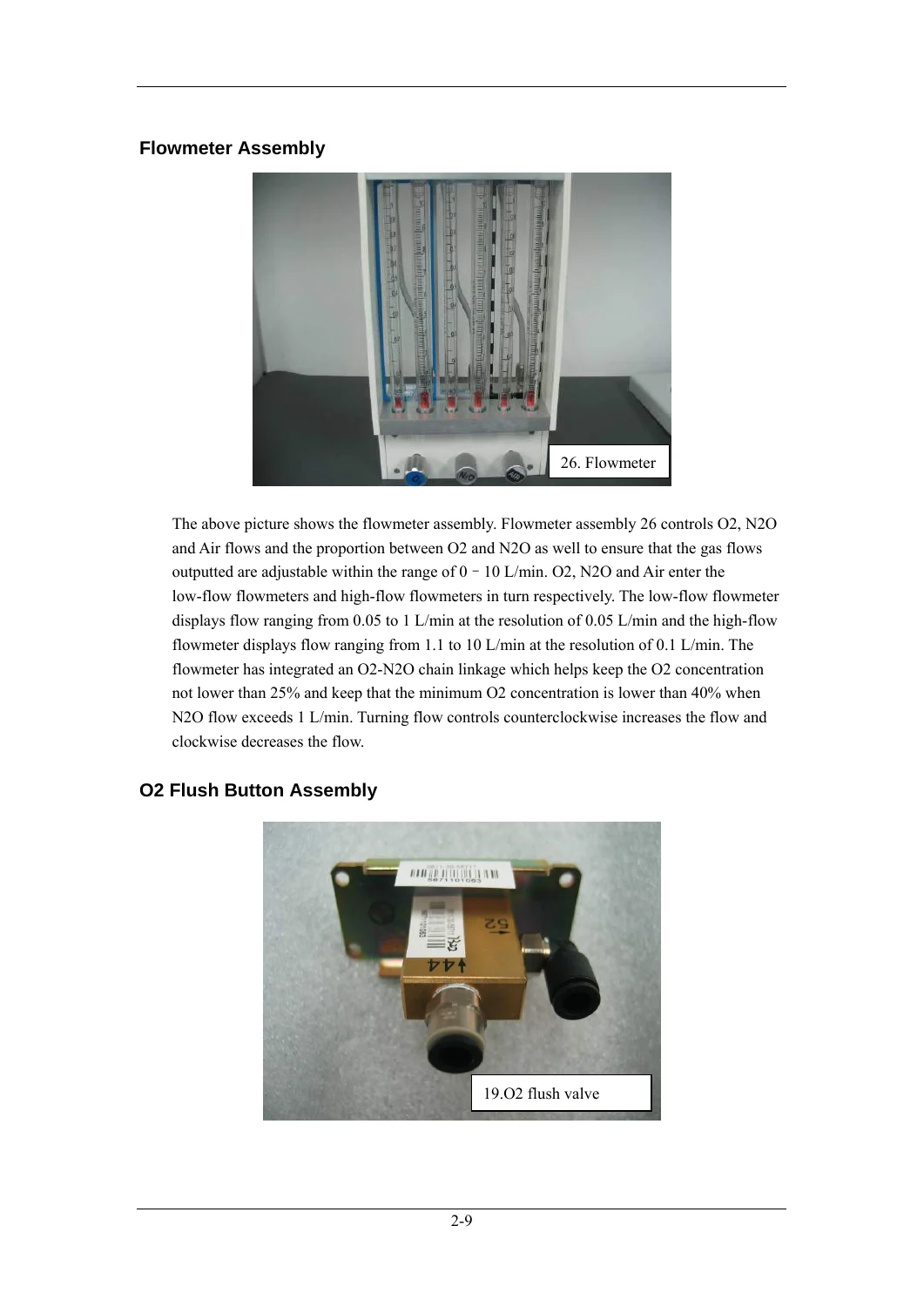

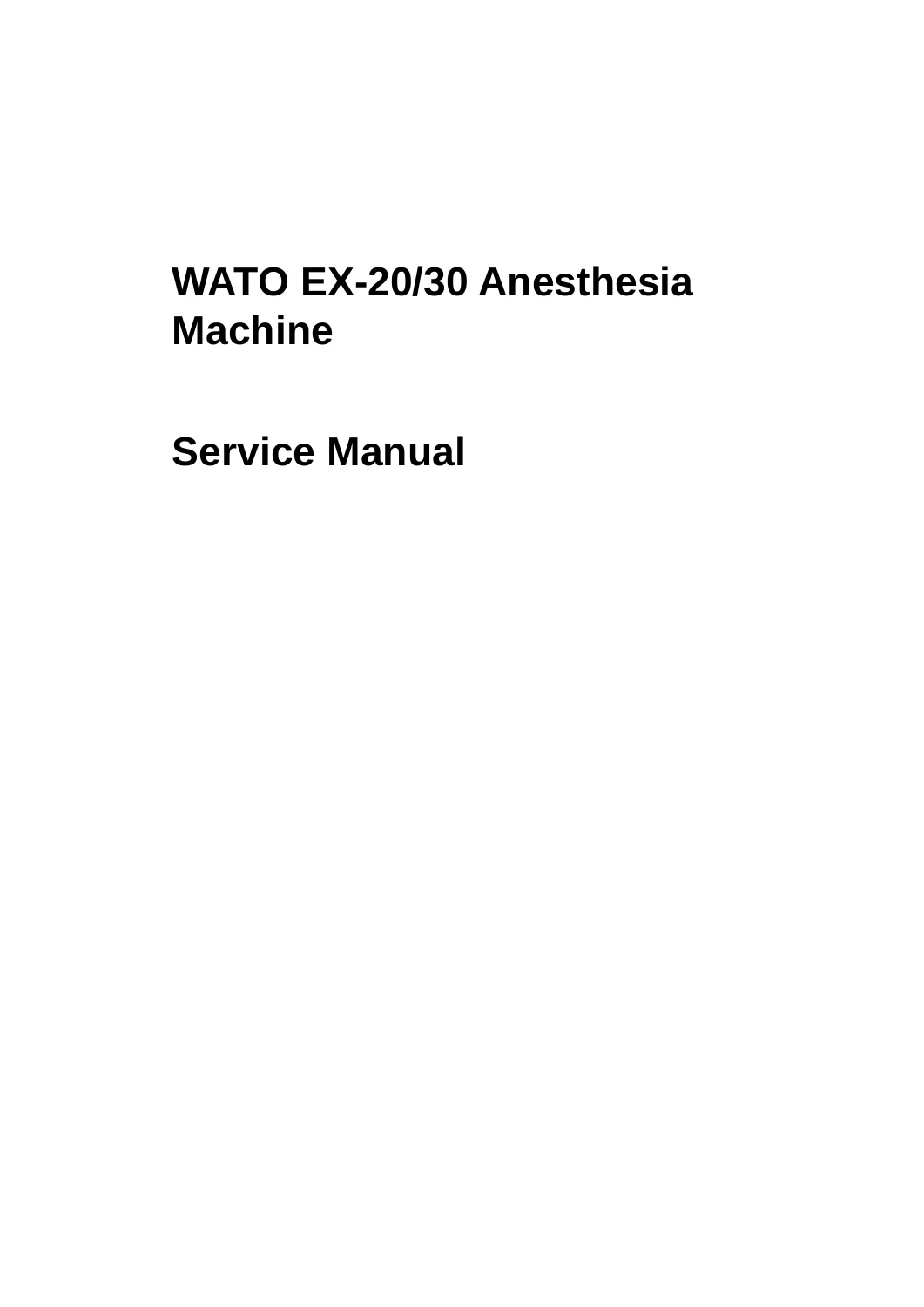

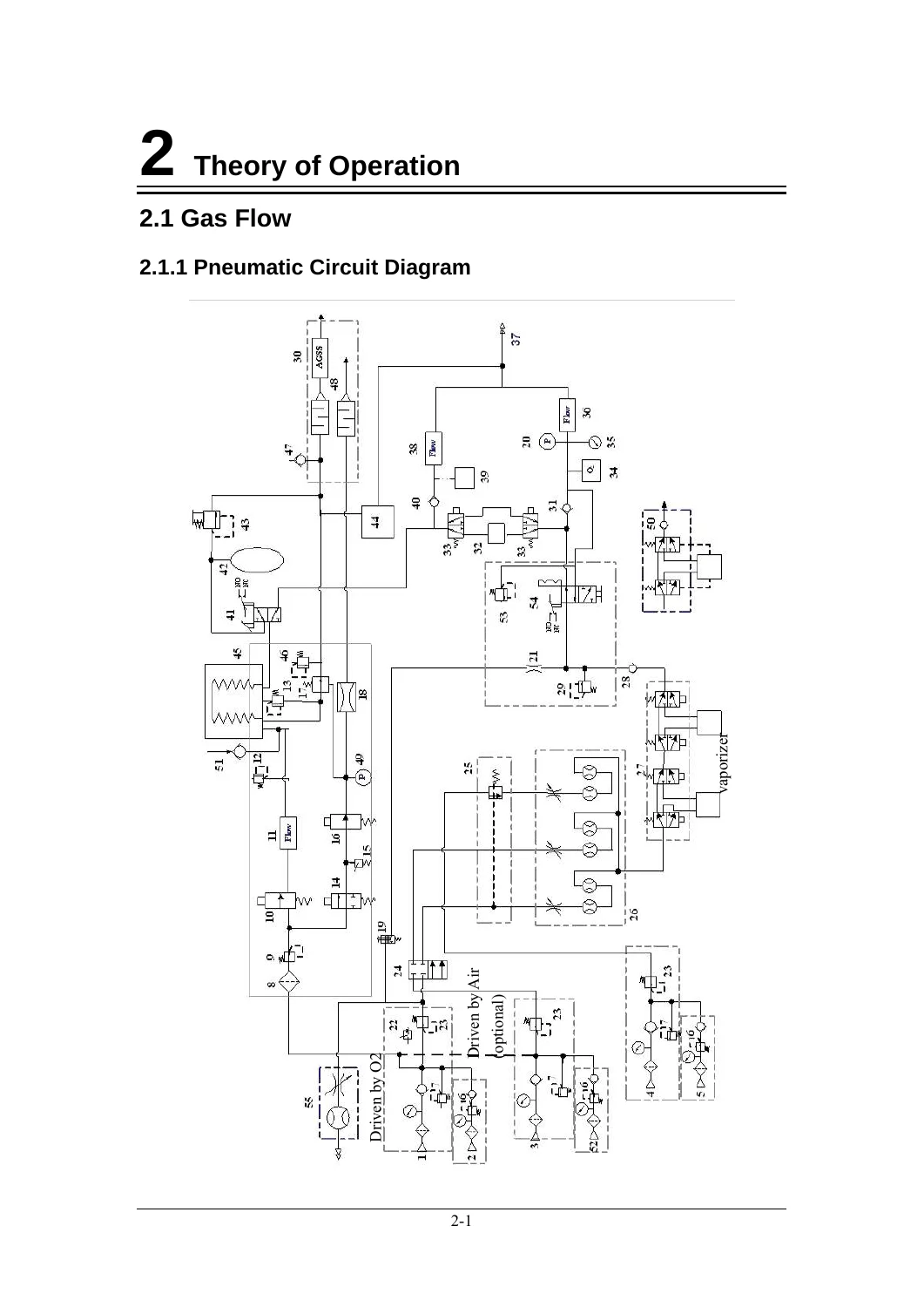

IMAGES PREVIEW

This service manual equips the technician with all necessary procedures to keep the Mindray WATO EX-20 and EX-30 operating safely and accurately. It covers mechanical ventilation checks, leak tests, sensor calibration, and component replacement schedules that are critical for maintaining the unit’s performance and patient safety. The document also includes detailed diagnostic routines using the built-in Valves-test Tool, which allows real-time monitoring of sensor A/D values, valve states, and pressure/flow measurements without requiring external equipment in many cases.

With its comprehensive coverage of the pneumatic, electronic, and mechanical systems, this manual is the essential reference for any workshop or biomed department responsible for Mindray anesthesia machines. The 1,018 pages leave nothing to guesswork: every tube connection, calibration step, disassembly sequence, and alarm condition is documented with clarity and precision.

What This Manual Enables You To Do

• Perform full system inspection and operational checkout to verify machine integrity after service or transport
• Diagnose and repair pneumatic leaks in the gas supply, anesthetic delivery, breathing circuit, and AGSS
• Calibrate flow sensors, pressure sensors, and O2 sensors to restore measurement accuracy and ventilation control
• Troubleshoot technical alarms (O2 supply failure, ventilator hardware errors, valve failures, communication errors)
• Disassemble and replace every major component – from control boards to bellows assemblies – with precise torque and sealing requirements
• Upgrade system software and activate optional ventilation modes (PCV, PSV, SIMV, loops) using factory procedures
• Adjust APL valve accuracy and zero the airway pressure gauge for correct pressure readings in manual ventilation
• Understand the complete gas flow path from pipeline/cylinder through the vaporizer, ACGO, breathing system, and scavenging system

Correct service of anesthesia machines requires factory-authorized procedures, proper calibration tools, and an understanding of the interlocking safety systems. This manual delivers all of that, including detailed explanations of the O2-N2O link system, the oxygen flush path, and the PEEP valve operation. It also includes the required one-year and three-year maintenance schedules with specific part numbers (e.g., gas supply inlet filter 0611-20-45600, bellows 0601-10-69901, lithium battery M05-010001-06) to simplify ordering.

Whether you are replacing a faulty monitor board, performing a breathing system leak test, or upgrading the software to enable pressure control ventilation, this PDF service manual provides the exact guidance you need. It is intended for authorized service personnel and biomedical engineers, and it assumes familiarity with anesthesia equipment but explains every procedure in sufficient detail to be followed safely.

Instant Digital Delivery

This listing is for a digital PDF download – no physical item will be shipped. After payment, you will receive immediate access to the complete 1,018-page service manual. You can view it on any device (computer, tablet, smartphone) and print specific sections for use in the workshop. The PDF preserves all diagrams, schematics, and tables with clear resolution, making it a reliable reference during repair work. Keep a copy on your service laptop and have the full technical data at your fingertips without the weight of a printed binder.

Invest in the correct service documentation and ensure your Mindray WATO EX-20 or EX-30 anesthesia machine remains in top working condition. The cost of this manual is small compared to the value of accurate repairs, reduced downtime, and patient safety. Download it now and start working with the same information used by factory-trained technicians.
