Mitsubishi Fuso Fighter X Euro IV 6M60 Diesel Engine Workshop Manual – PWTE-TA 0222

Description

Mitsubishi Fuso Fighter X Euro IV 6M60 Diesel Engine Workshop Manual

This Mitsubishi Fuso Fighter X Euro IV 6M60 Diesel Engine Workshop Manual carries publication number PWTE-TA 0222 and is the engine-volume service reference for the 6M60T5 and 6M60T6 six-cylinder in-line, water-cooled, four-cycle diesel used in the Fighter X. It covers the complete engine assembly from the rocker case down to the crankcase, together with the lubrication, fuel and engine control, cooling, intake and exhaust, and emission control groups that support it. Every procedure is written around measured values, tightening torques and special tool numbers, so the workshop manual works as a bench companion rather than a reading book.

File Details

• Manual type: Diesel engine workshop manual
• Brand: Mitsubishi Fuso
• Model line: Fighter X (Euro IV)
• Engines covered: 6M60T5, 6M60T6
• Publication number: PWTE-TA 0222
• Language: Indonesian
• File format: PDF
• Extent: 214 pages

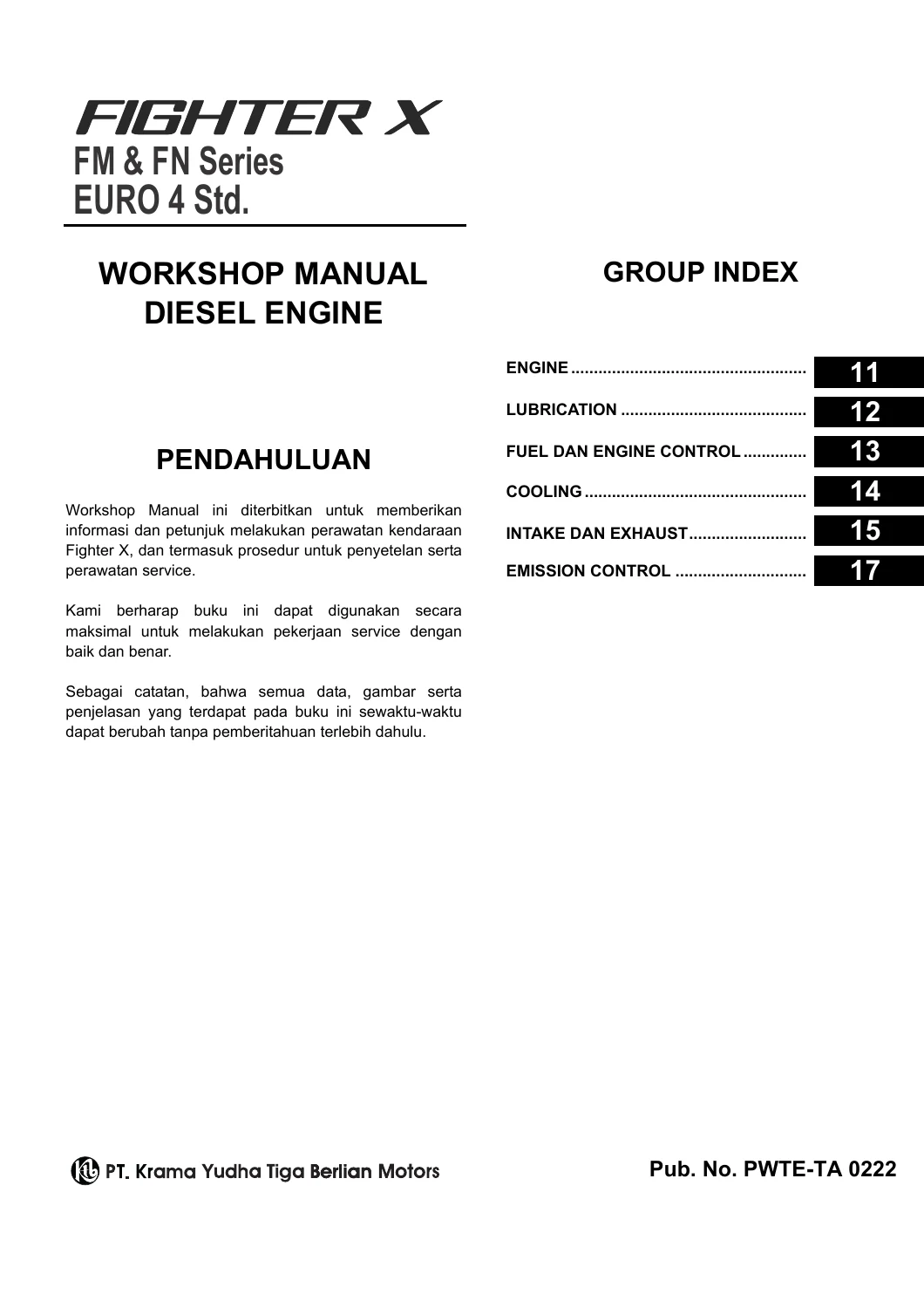

Chapters Covered

• 11 ENGINE – engine proper, rocker and bracket assembly, camshaft, rocker case and cylinder head gasket, valve mechanism, connecting rod, piston, timing gear, flywheel
• 11 ENGINE (service) – engine removal and installation, engine mounting, cylinder head and valve mechanism, piston and connecting rod, cylinder liner, flywheel and flywheel housing, timing gears, crankshaft and crankcase
• 12 LUBRICATION – lubrication system layout, oil pump, oil cooler and bypass valve, oil filter and bypass alarm switch, oil pan, oil jet and oil level sensor, regulator valve, oil pressure measurement
• 13 FUEL AND ENGINE CONTROL – common rail system, supply pump and SCV, common rail and flow damper, injector operation, fuel filter and water separator, fuel tank, accel control, fuel system troubleshooting, air bleeding
• 14 COOLING – cooling system flow, thermostat, water pump, radiator and fan shroud, automatic cooling fan coupling, coolant hoses and pipes, coolant replacement and flushing
• 15 INTAKE AND EXHAUST – air cleaner and air duct, turbocharger with variable geometry nozzle vanes, muffler and catalyst, intercooler, intake manifold, exhaust manifold, exhaust pipe, exhaust shutter
• 17 EMISSION CONTROL – exhaust gas recirculation system, EGR valve, EGR pipe and EGR cooler, blow-by gas recirculation device and PCV valve

Read end to end, the Mitsubishi Fuso Fighter X Euro IV 6M60 Diesel Engine Workshop Manual gives a technician the full service chain for this engine: how each assembly is built, what has to come off before it, which measurements decide whether a part is reused or replaced, and which torque or angular figure closes the job. The specification tables run alongside the procedures instead of being tucked away in an appendix, so compression pressure limits, valve clearance, camshaft end play, gear backlash, bearing oil clearance, piston projection and cylinder head bolt tightening angles sit exactly where the work is being done.

Engines and Coverage

The base specification block identifies the engine as a six-cylinder, in-line, water-cooled, four-cycle diesel with direct injection and an overhead camshaft system, bore and stroke of 118 x 115 mm, total displacement of 7545 cm3 and a compression ratio of 16.1. Rated output is 177 kW (240 PS) at 2400 rpm with maximum torque of 785 N.m (80 kgf.m) between 1200 and 1800 rpm. Both 6M60T5 and 6M60T6 variants are listed, and the connecting rod bearing data is split between them, so bearing clearance and free-span limits are read from the correct column rather than a single generic figure.

What the Engine Group Delivers

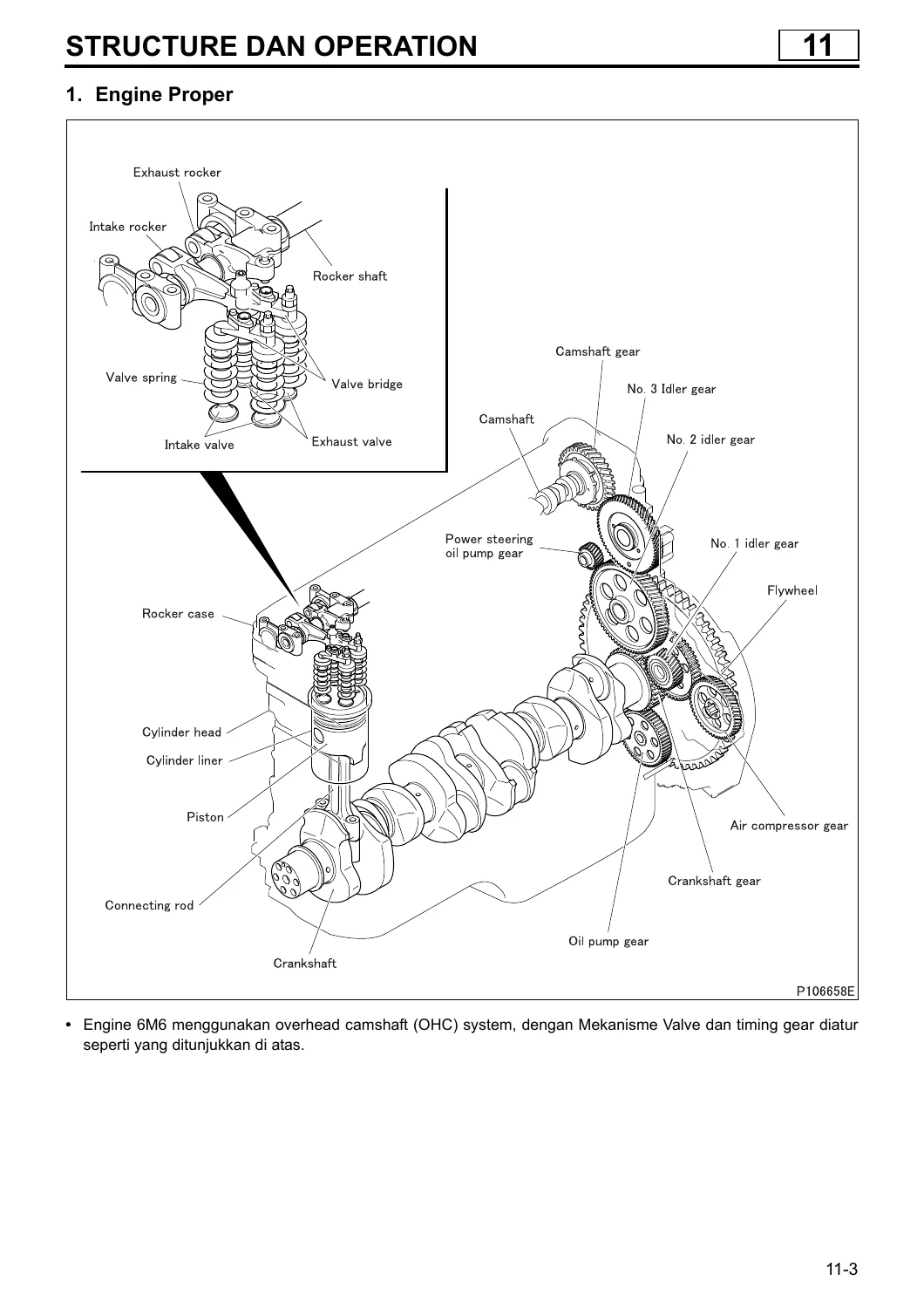

The engine group is the largest part of the manual. It opens with the timing gear train and the stamped alignment marks that must line up on the camshaft gear, crankshaft gear, air compressor gear and the numbered idler gears, then moves into the rocker and bracket assembly, which is serviced as a matched unit because the camshaft journals run directly in the rocker case without separate camshaft bearings. Valve clearance setting is covered in detail, including the feeler gauge technique on the valve bridge and the pad, the adjusting screw procedure on both the bridge and the rocker arm, and the lock nut torques that follow.

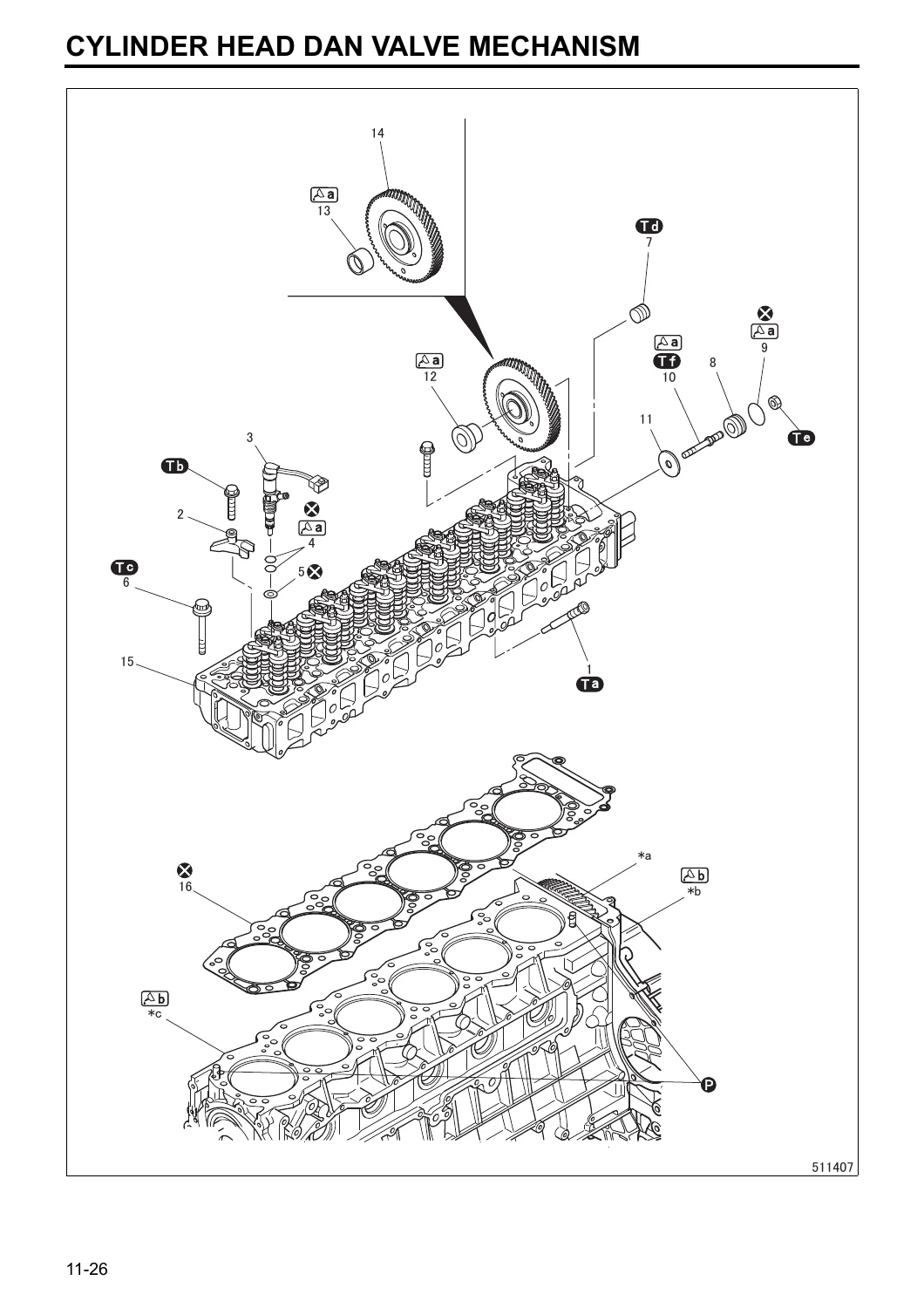

Cylinder head work is treated with equal care: the punch marks that record how many times a cylinder head bolt has been tightened in the plastic region, the three gasket thickness classes matched to measured piston projection, the diagonal bolt loosening sequence, and the torque-plus-angle tightening pattern with the numbered bolt order. Piston, connecting rod and cylinder liner service includes piston ring end gap and side clearance, piston pin clearances, connecting rod bend and twist limits, bushing replacement with oil hole alignment, and liner size marks that must match the crankcase and piston markings. Crankshaft coverage extends to end play, main bearing oil clearance, bend and roundness limits, undersize grinding dimensions and the finishing direction for the grinder and sandpaper.

Fuel, Lubrication, Cooling and Air Systems

The common rail fuel group explains supply pump operation, the suction control valve duty control, the flow damper that shuts off abnormal delivery, injector control chamber operation through the ball seat and orifice plate, and the injection start and end phases. It also handles the practical side: fuel filter and water separator service, air bleeding with the manually operated pump, injection pipe and fuel pipe mounting, and the initialization step required after a supply pump is replaced. Lubrication covers the gear-type oil pump, oil cooler and bypass valve, the combination full-flow and bypass filter with its alarm switch, and the piston cooling oil jets with their check valves. Cooling covers the bottom bypass thermostat, water pump rebuild with flange and impeller runout limits, radiator core repair, pressure cap testing and fan shroud clearance. Intake and exhaust covers air cleaner element cleaning and inspection, the variable geometry turbocharger with its movable nozzle vanes, intercooler leak testing, and exhaust shutter butterfly valve clearance checks.

Diagnostics and Troubleshooting

Symptom-based troubleshooting tables appear in the engine, lubrication, fuel and intake/exhaust groups, linking complaints such as low power output, abnormal engine noise, overheating, oil pressure loss, excessive oil consumption, exhaust gas heat and black smoke back to likely causes and the group where the repair is described. Compression pressure testing is covered with the service standard, the limit, the maximum permitted difference between cylinders, and the follow-up oil test that separates worn piston rings from valve or head gasket faults.

Get the Job Done to Specification

Whether the task is a routine valve clearance check, a cylinder head removal, a piston and liner replacement, a supply pump swap or an EGR cooler inspection, this Mitsubishi Fuso Fighter X Euro IV 6M60 Diesel Engine Workshop Manual gives the sequence, the measuring points and the numbers that decide the outcome. Working from the correct clearance, torque and angular figures is what prevents comebacks, oil leaks, gas leaks and repeat failures on a common rail diesel that is sensitive to assembly accuracy. The file is delivered instantly as a PDF after checkout, there is nothing to ship or wait for, and it can be opened on a workshop laptop, tablet or phone and printed page by page for use at the engine stand.

IMAGES PREVIEW
