Mooney M20M Series Aircraft Illustrated Parts Catalog (S/N 27-0001 Thru 27-TBA)
Original price was: $39.95.$24.95Current price is: $24.95.
Comprehensive Mooney Aircraft Corporation Illustrated Parts Catalog (Manual Number 252) for Mooney M20M series aircraft (S/N 27-0001 thru 27-TBA). Contains full group assembly breakdowns, exploded pictorial illustrations, Next Higher Assembly indenture relationships, attaching hardware listings, and complete alpha-numeric part number indexes.
Description
Mooney M20M Series Aircraft Illustrated Parts Catalog (S/N 27-0001 Thru 27-TBA)
The Mooney M20M Series Aircraft Illustrated Parts Catalog (S/N 27-0001 Thru 27-TBA) is the definitive technical parts reference manual issued by Mooney Aircraft Corporation for the high-performance turbocharged Mooney M20M airframe. Whether you are maintaining, restoring, or inspecting an aircraft in the field, this comprehensive Mooney M20M parts catalog provides authoritative identification of every replaceable structural part, flight control linkage, landing gear mechanism, powerplant accessory, interior furnishing, and system component. Every section is organized according to standardized aviation system breakdown principles, enabling aircraft owners, licensed A&P mechanics, and maintenance facilities to pinpoint exact part numbers, assess next higher assembly relationships, and verify serial-number-specific applicability across the entire Mooney M20M production run.
File Details
- Document Title: Mooney M20M Illustrated Parts Catalog
- Manual Number: 252
- Manufacturer: Mooney Aircraft Corporation (Louis Schreiner Field, Kerrville, Texas)
- Publication / Initial Issue Date: January, 1997
- Applicable Aircraft Model: Mooney M20M (including Mooney TLS configurations)
- Serial Number Effectivity: S/N 27-0001 thru 27-TBA
- Language: English
- Page Count: 598 pages
- File Format: Portable Document Format (PDF)
Comprehensive Airframe & Subsystem Coverage
Engineered to support comprehensive parts identification, this Mooney M20M parts catalog breaks down the complete aircraft into ten primary assembly groups. Detailed exploded drawings and adjoining itemized text pages clarify the mechanical assembly of components across all critical aircraft systems:
IMAGES PREVIEW
- Powerplant & Propeller Groups: Comprehensive parts breakdowns for the turbocharged Lycoming TIO-540-AF1A and TIO-540-AF1B installation, covering engine baffle assemblies, cowling and cowl flap mechanisms, control linkage attachments, Lord engine mount hardware, turbocharger ducting, air induction assemblies, alternate air doors, oil cooler installations, and Hartzell propeller/spinner assemblies.
- Chassis & Landing Gear Mechanisms: Exploded views of the main landing gear, steerable nose gear, trunnions, torque links, shock absorption discs, retraction transmission gearboxes, emergency manual extension pull systems, hydraulic brake cylinders, calipers, brake lines, wheels, and aerodynamic gear doors.
- Primary & Secondary Flight Controls: Complete diagrams of dual control yokes, forward and aft aileron and elevator push-pull tubes, bellcranks, idlers, rudder pedals, steerage linkages, electric/vacuum speed brake installations, wing flap drive actuators, flap position indicators, elevator trim assemblies, and rudder trim controls.
- Fuselage, Wing & Empennage Structure: Center section and outboard wing spar structures, wing skins, fuel tank access panels, wing tips, welded steel cabin roll-cage tubular framework, tailcone bulkheads, smooth lower belly fairings, cabin door assemblies, baggage door latches, horizontal stabilizer, vertical fin, elevators, and rudder.
- Fuel, Hydraulic & Environmental Systems: Wet wing fuel feed plumbing, electric auxiliary boost pumps, selector valves, fuel strainers, gascolators, cabin combustion/ram-air heating, defrosters, overhead fresh air ducts, high-altitude built-in oxygen systems, vacuum manifolds, and instrument static plumbing.
- Electrical Power, Avionics & Instrument Panels: Master relay mounts, dual 24V battery compartment hardware, auxiliary power ground receptacles, 28V to 14V power adapters, circuit breaker subpanels, glare shield compass mounts, avionics cooling blowers, and external strobe, recognition, taxi, and landing illumination.
Catalog Organization & Parts Ordering Logic

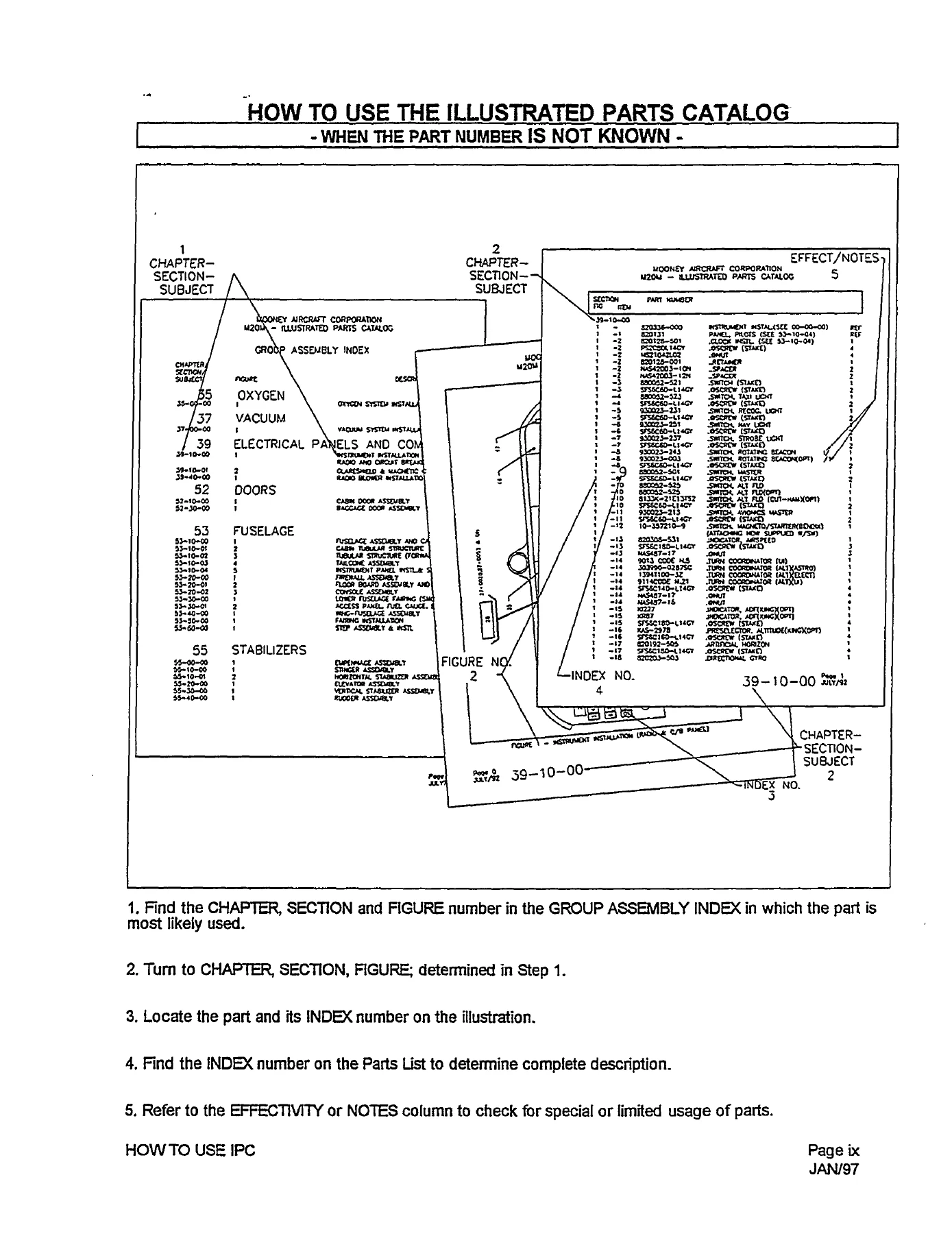

To ensure total accuracy when procuring airframe hardware, the Mooney M20M Series Aircraft Illustrated Parts Catalog (S/N 27-0001 Thru 27-TBA) utilizes a structured numbering and indentation system. Each illustration is assigned a Figure and Index Number cross-referenced to its adjoining parts listing. Item descriptions are systematically indented one column to the right of their Next Higher Assembly (NHA), ensuring technicians can instantly distinguish between complete subassemblies and individual replacement piece-parts. Attaching hardware items are specifically noted with an ‘@’ symbol and represent the exact quantity required to install one unit of the preceding component. In addition, effectivity notes and serial number breakpoints (such as early versus late console installations or braking configurations) are clearly stated to prevent incorrect part procurement. A massive alpha-numeric index sorted by standard sequence (spaces, dashes, special characters, numeric 0 through 9, and alphabetical A through Z) allows rapid retrieval when searching by an existing part number.
Chapters Covered
- 00 General Arrangement: General Assembly, Dimensions, and 3-View Airframe Geometry
- 08 Weighing: Charlie Weight Ballast Installation and Tailcone Mounting
- 11 Placards and Markings: Exterior & Interior Paint Trim Schemes, Decals, and Placards
- 21 Environmental Systems: Cabin Air & Heating, Defroster, Overhead Ducting & Vent Systems
- 23 Communications: Static Discharge Wicks and Installation
- 24 Electrical Power: Dual Battery Compartment, Master Relay, and Auxiliary Power Receptacle
- 25 Seats & Interior: Pilot/Copilot Seats, Rear Bench Seats, Padding, Headrests, and Soundproofing
- 26 Fire Protection: Cabin Portable Fire Extinguisher Installation
- 27 Flight Controls: Control Wheels, Ailerons, Elevators, Rudder, Flap Actuator, Trim & Speed Brakes
- 28 Fuel: Fuel System Plumbing, Fuel Selector Valve, Boost Pump, and External Sight Gauges
- 30 Ice and Rain Protection: Propeller Electro-Thermal De-Ice System Installation
- 32 Landing Gear: Main Gear, Nose Gear, Gear Doors, Retraction Actuators, Wheels, and Brakes
- 33 Lights: Landing Lights, Taxi Lights, Recognition Lights, and Flashing/Rotating Beacons
- 34 Navigation: Pitot Tube and Static Pressure System Installation
- 35 Oxygen: Fixed High-Altitude Oxygen Cylinder, Lines, Masks, and Regulators
- 37 Vacuum: Engine-Driven Vacuum Pumps, Plumbing, Regulators, and Relief Valves
- 39 Electrical Panels & Components: Radio & Circuit Breaker Panels, Glaresheet & 28/14V Adapters
- 52 Doors: Cabin Entry Door, Baggage Door, Latches, Handles, and Hinges
- 53 Fuselage: Cabin Skin, Tubular Roll Cage, Tailcone, Firewall, Floorboards, Console, and Fairings
- 55 Stabilizers: Empennage Assembly, Tail Stinger, Horizontal Stabilizer, Fin, Rudder, and Elevators
- 56 Windows: One-Piece Windshield, Cowl Deck, and Tinted Cabin Side Windows
- 57 Wings: Center & Outboard Sections, Spar Assemblies, Inspection Covers, Flaps, and Ailerons
- 61 Propellers: Constant Speed Propeller and Spinner Assembly Installation
- 71 Powerplant: Lycoming TIO-540-AF1A/B Installation, Engine Baffles, Cowling, Cowl Flaps, and Mounts
- 76 Power Plant Controls: Vernier Throttle, Propeller, and Mixture Control Linkages
- 79 Oil: Engine Oil Cooler System, Lines, Fittings, and Filter Mounts
- 95 Special Equipment: Fly-Away Kit, Control Surface Travel Boards, Gear Rigging Tools, and Test Units
- Alpha-Numerical Part Number Index: Complete Cross-Reference Index Covering All Part Numbers
Together, these catalog divisions provide maintenance technicians, parts brokers, and Mooney operators with an exhaustive, single-source reference to every structural member, mechanical fastener, and system component installed on the M20M airframe.
Maintenance Capability, Ordering Confidence & Instant PDF Delivery
Working on a high-performance aircraft like the Mooney M20M demands exact compliance with factory parts specifications. Guessing part numbers or relying on outdated supersessions risks costly shipping errors, grounded aircraft (AOG), and non-airworthy installations. By utilizing the genuine Mooney M20M Series Aircraft Illustrated Parts Catalog (S/N 27-0001 Thru 27-TBA), you gain immediate access to exact factory callouts, original manufacturer part numbers, AN/MS/NAS standard hardware designations, and precise effectivity records. Whether you are ordering a replacement landing gear bushing, sourcing cowl flap hinge components, rebuilding fuel selector valves, or verifying cabin interior hardware, this Mooney M20M parts manual eliminates guesswork and ensures total ordering accuracy.
Delivered as an instant high-quality digital PDF download immediately upon checkout, there are no shipping delays or physical handling costs. You can store and search the document across all your digital devices—including desktop workshop computers, laptops, and hangar tablets—or print out individual exploded assembly pages directly for grease-and-oil reference right beside the aircraft.
Reviews
There are no reviews yet.
