Mooney M20R M20S Illustrated Parts Catalog Manual 261 – June 2000 PDF
Original price was: $39.95.$24.95Current price is: $24.95.
495-page Mooney M20R and M20S Illustrated Parts Catalog, Manual Number 261, initial issue June 2000. Covers standard replacement-part identification for M20R S/N 29-0001 thru 29-TBA and M20S S/N 30-0001 thru 30-TBA, with illustrated assembly breakdowns, part numbers, descriptions, effectivity information, and an alpha-numerical parts index.
Description
Mooney M20R M20S Illustrated Parts Catalog Manual 261 – June 2000 PDF
The Mooney M20R M20S Illustrated Parts Catalog Manual 261 – June 2000 PDF is a detailed parts-identification reference for the Mooney M20R and M20S series aircraft covered by this publication. It is designed to help identify standard replacement parts through a combination of assembly illustrations, indexed callouts, adjacent parts listings, effectivity information, and an extensive alpha-numerical part-number index. The catalog specifically covers the M20R series S/N 29-0001 thru 29-TBA and the M20S series S/N 30-0001 thru 30-TBA, and the introduction states that it should not be used for other Mooney aircraft models.
File Details
- Manual type: Illustrated Parts Catalog
- Brand: Mooney
- Models: M20R and M20S
- Manual number: 261
- Initial issue: June 2000
- Language: English
- Page count: 495 pages
- File format: PDF
Parts Identification and Assembly Breakdown
This catalog is organized around illustrated group assemblies. The parts listings identify the figure and index reference, part number, description, quantity or units per assembly, and effectivity or note references where applicable. The introduction explains how assembly relationships are shown by indentation and how detail parts may reference a next higher assembly. Left-hand and right-hand components can be shown under the same illustration index where appropriate, while alternate or replacement part numbers may also appear in the text listings.
Two locating methods are built into the document. When a part number is already known, the alpha-numerical index can be used to find the associated chapter, section, figure, and index reference. When the part number is not known, the Group Assembly Index leads from the aircraft system or structural area to the applicable illustration and its adjoining parts list. This makes the Mooney M20R M20S Illustrated Parts Catalog useful for working from either a known part number or a visual aircraft-area reference.
Chapters Covered
- 00 General Arrangement: General assembly.
- 08 Weighing: Charlie weight installation.
- 11 Placards and Markings (Paint): Exterior and interior trim; exterior decals and placards; interior decals and placards.
- 21 Environmental Systems: Cabin air and heating system; air conditioning system installation; overhead duct and vent system.
- 23 Communications: Static discharge installation.
- 24 Electrical Power: Battery compartment components and master relay installation; auxiliary power receptacle and cable.
- 25 Seats/Interior: Interior design and installation; seat covers and padding; head rest assembly; pilot/co-pilot seat; arm rest; insulation and soundproofing; rear seat and optional rear bench seat installations.
- 26 Fire Protection: Fire extinguisher installation.
- 27 Flight Controls: Pilot/co-pilot control wheel; forward aileron and elevator controls; rudder, brake and nose-wheel steering system; pedal extension; aft elevator controls; stabilizer and rudder trim; trim indicator; flap actuator and flap indicator; electric speed brake installation.
- 28 Fuel: External fuel gauge assembly; fuel system installation.
- 30 Ice and Rain Protection: Propeller de-ice installation; TKS airframe de-ice installation.
- 32 Landing Gear: Main and nose landing gear assemblies and doors; landing gear retraction; emergency retraction and actuator; main and nose wheel and tire assemblies; hydraulic brake system; dual brake installation.
- 33 Lights: External light systems; wing-mounted landing light; recognition light; flashing and rotating beacons; pulse light installation.
- 34 Navigation: Pitot/static system installation.
- 35 Oxygen: Oxygen system installation.
- 37 Vacuum: Vacuum system installation.
- 39 Electrical Panels and Components: M20R instrument installation and panels; glareshield and magnetic compass; M20S instrument installation and panels; radio blower; 28/14 volt power adapter.
- 52 Doors: Cabin door assembly; baggage door assembly.
- 53 Fuselage: Fuselage and cabin skins; cabin and forward tubular structure; tailcone; instrument panel structures; firewall; floor boards; console; lower fuselage fairing; wing/fuselage assembly; fairings; step assembly.
- 55 Stabilizers: Empennage; stinger; horizontal stabilizer; elevator; vertical stabilizer; rudder assemblies.
- 56 Windows: Windshield and cowl deck installation; window installation.
- 57 Wings: Center and outboard wing assemblies; center and outboard main spars; wing stub and rear spar; wing tip; wing skins and inspection covers; external fuel gauge panel; flap and aileron assemblies.
- 61 Propellers: Propeller and spinner assembly installation.
- 71 Powerplant: Power plant installation; engine baffle installation; oil-cooler winterization kit; cowling; engine mount; air induction and alternate-air system.
- 76 Power Plant Controls: Power plant control installation.
- 95 Special Equipment: Optional equipment; fly-away kit; travel boards and rudder trim tooling; landing-gear rigging tools; low-fuel calibration unit; test harness; test box; heater installation.
Across these chapters, the catalog moves from whole-aircraft and cabin items through flight controls, fuel, landing gear, structural assemblies, electrical and instrument installations, wings, propeller, powerplant, and special equipment. The result is a broad illustrated reference to the replaceable components and assembly relationships used throughout the covered M20R and M20S configurations.
Effectivity and Configuration References
Part applicability is handled through the catalog’s effectivity column and associated notes. Where a part applies to all covered M20R and M20S aircraft, the effectivity field may be left blank; special or limited applications are identified by effectivity references. The powerplant section includes Continental engine configurations identified as IO-550-G(5), IO-550-G(6), and optional IO-550-G(7), with additional serial-number and equipment-specific effectivity notes in the relevant listings. The catalog also distinguishes model-specific instrument panel installations for M20R and M20S aircraft.
Illustrations, Indexes and Part Callouts

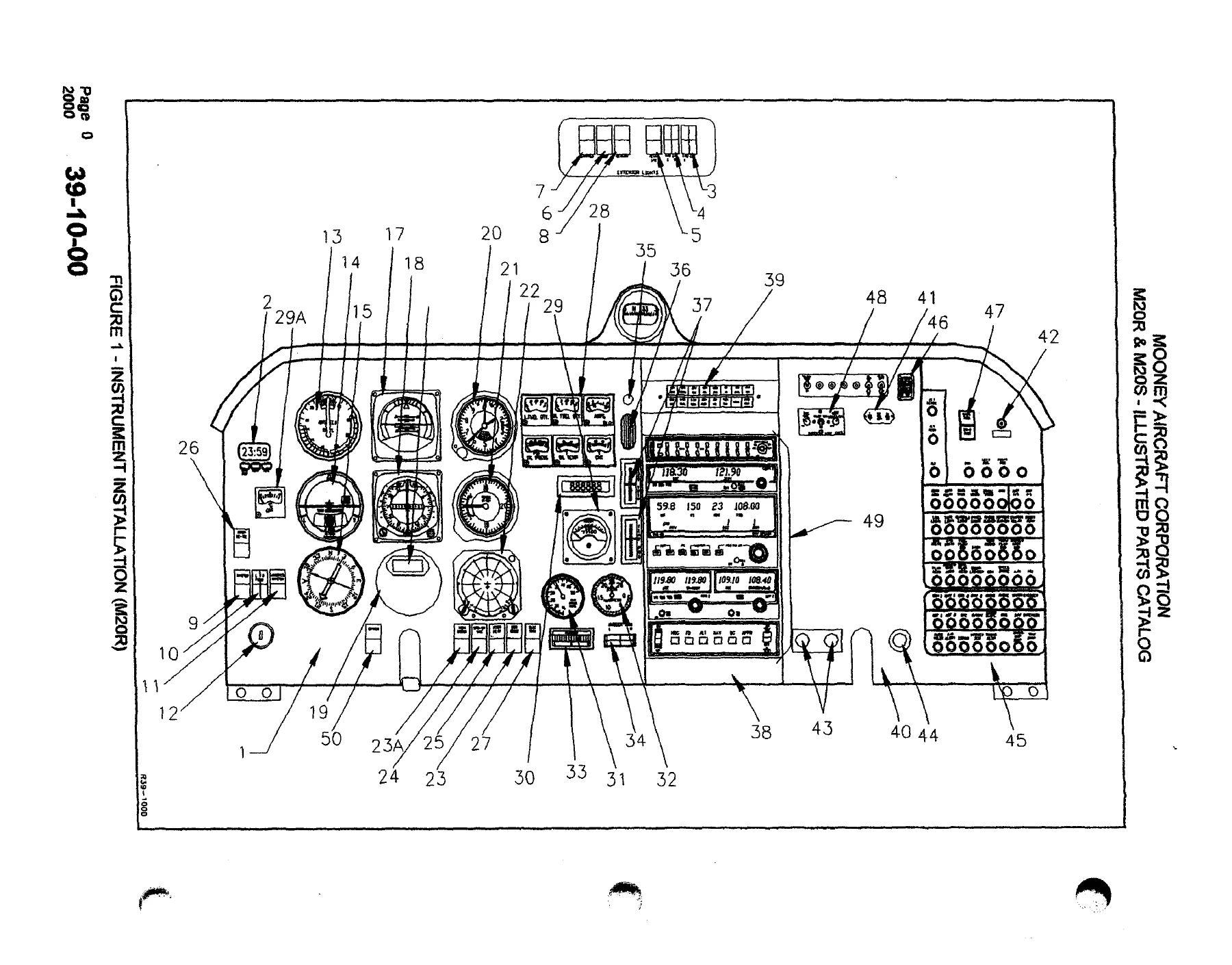

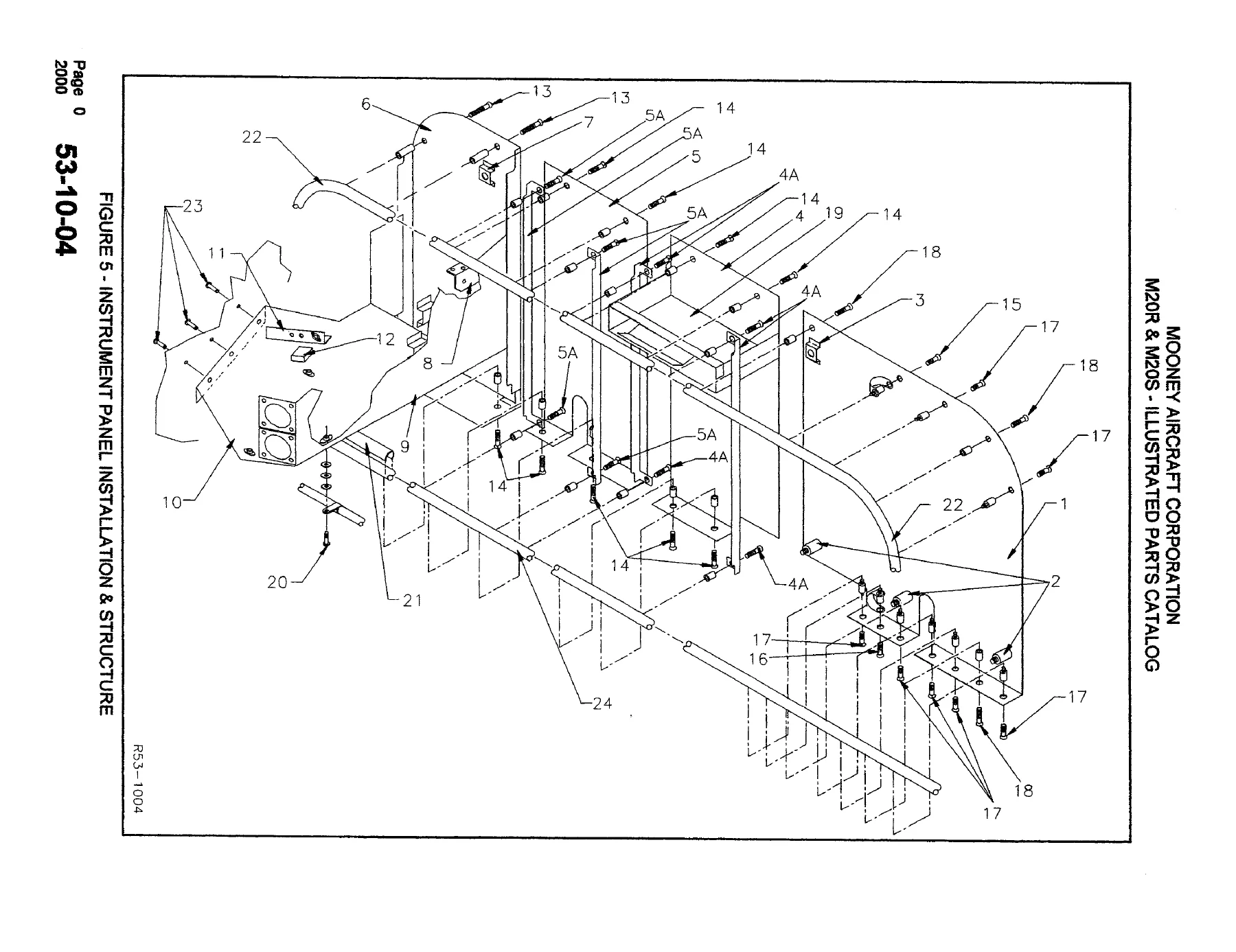

The document contains aircraft-area diagrams and numerous illustrated assemblies tied directly to adjacent parts lists. Illustrated index numbers correspond to the text callouts so a component seen in a drawing can be matched to its part-number entry, description, quantity, and applicability. Major structural and system areas include wing spars and skins, fuselage and tailcone structure, empennage assemblies, landing gear and retraction components, flight-control linkages, instrument panels, cabin and baggage doors, environmental-system components, engine installation items, cowling, propeller and spinner parts, and optional equipment.
An extensive alpha-numerical index occupies a significant portion of the catalog and provides a direct route from part number to the associated chapter, section, figure, and item. For technicians, maintainers, parts staff, and owners who already have a number from an existing component or previous record, this index can substantially reduce the time needed to locate the corresponding illustrated assembly and effectivity information.
Important Use Limitation
This is an illustrated parts catalog for replacement-part identification and ordering reference. The catalog itself cautions that its illustrations omit details and may distort dimensions, system routing, or other features for clarity and space. The drawings are therefore not intended to be used as reassembly or component-installation instructions. Maintenance actions should be carried out with the applicable service and maintenance information rather than treating these parts illustrations as repair procedures.
IMAGES PREVIEW
Instant PDF Download
The Mooney M20R M20S Illustrated Parts Catalog Manual 261 – June 2000 PDF gives you a concentrated reference for identifying parts, tracing assembly relationships, checking model or serial-number effectivity, and locating component numbers across the covered M20R and M20S airframe and systems. Correct part-number and effectivity references matter when selecting replacement components, especially where alternate configurations, left/right assemblies, optional equipment, or serial-number distinctions are involved. After payment, the manual is supplied as an instant PDF download with no physical shipping required. You can open it on compatible computers, tablets, or phones and print the pages you need for convenient workshop or parts-counter reference.
