New Holland TN55 TN65 TN70 TN75 Tractor Repair Manual 87034092 PDF
Original price was: $49.95.$29.95Current price is: $29.95.
Comprehensive New Holland repair manual for TN55, TN65, TN70 and TN75 tractors, covering engine, clutch, mechanical and Power Shuttle transmissions, driveline, axles, PTO, brakes, hydraulics, steering, electrical systems and bodywork. Includes service procedures, troubleshooting, specifications, torque data, system diagrams, wiring information and model-specific repair details.
Description
New Holland TN55 TN65 TN70 TN75 Tractor Repair Manual 87034092 PDF
This comprehensive service reference covers the TN55, TN65, TN70 and TN75 tractors. It consolidates repair information for major mechanical, hydraulic and electrical systems with detailed procedures supported by specifications, tightening data, service limits, cross-sectional illustrations, troubleshooting charts and system diagrams. The manual is organized as a complete repair set covering the engine through the transmission and driveline, front and rear axles, PTO, brakes, hydraulic lift, steering, electrical circuits and platform/bodywork.
Repair Information Built Around the TN Series
This New Holland TN55 TN65 TN70 TN75 repair manual is designed around hands-on service work rather than general operator information. The engine section, for example, identifies the engine types used by the four models and provides general specifications, calibration data, torque settings, special tools, lubrication and cooling diagrams, fault diagnosis and step-by-step removal, dismantling, inspection and reassembly procedures. It includes compression testing, valve clearance adjustment, injector service, Bosch injection pump timing and fuel-system air bleeding, coolant pump overhaul, thermostat service and radiator removal and installation.

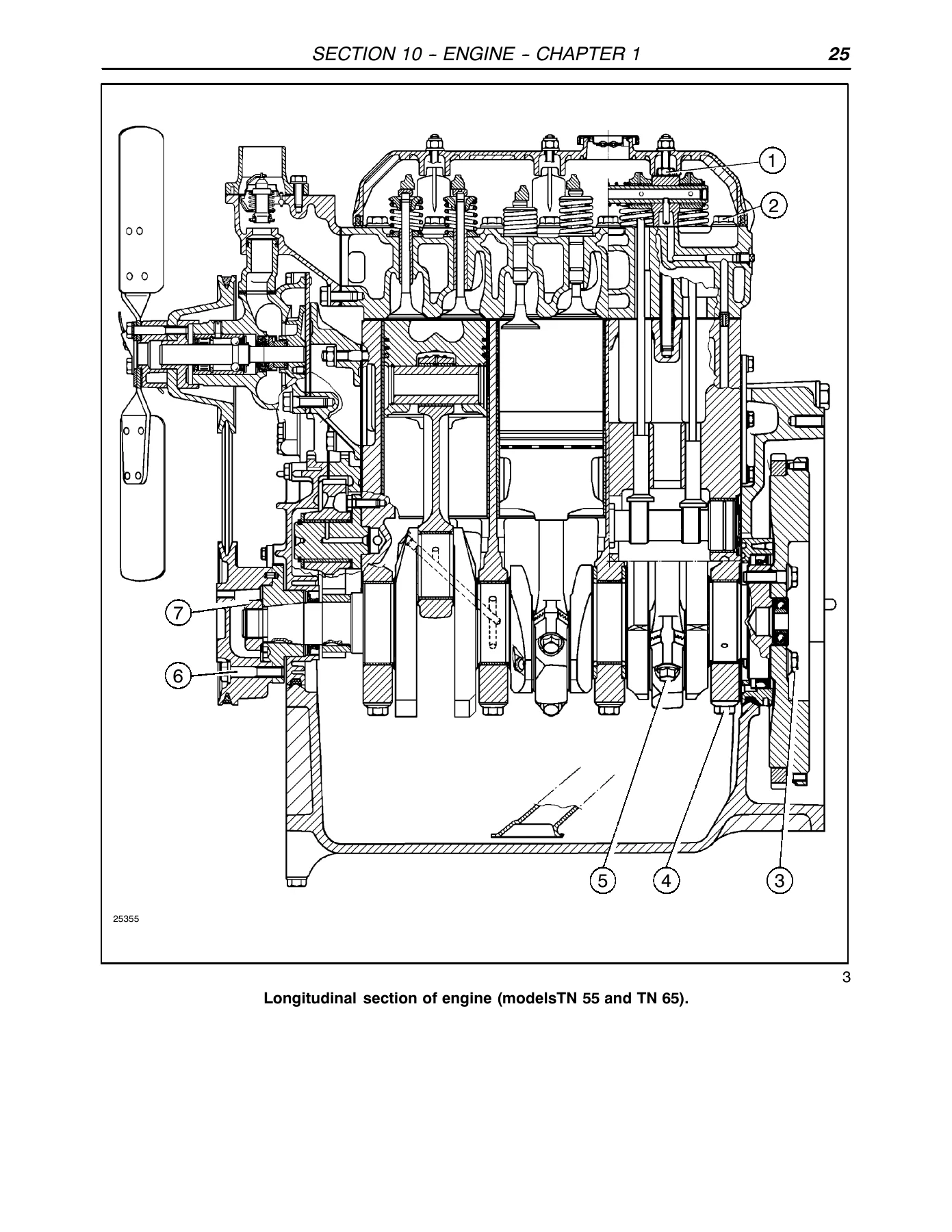

Model-specific engine data is included for the TN55 type 8035.05B.529, TN65 type 8035.05R.539, TN70 type 8035.25R.520 and TN75 type 8035.25.529. The engine specifications show a diesel, 4-stroke, direct-injection layout with three in-line cylinders, a 104 mm piston diameter, 115 mm stroke and 2931 cm³ displacement. The manual distinguishes naturally aspirated TN55/TN65 data from turbocharged TN70/TN75 data, including the GARRETT T 25 turbocharger information shown for the TN70 and TN75. Detailed tables go well beyond basic specifications, covering crankshaft and bearing dimensions, pistons and rings, valve gear, cylinder head measurements, lubrication data, cooling data and tightening torques.
Transmission coverage is similarly broad. The manual includes the mechanical 8 x 8, 16 + 16 Synchro-Command and 8 x 8 non-synchronized transmissions, as well as the Power Shuttle 8 + 8 and 16 + 16 versions. Mechanical transmission material covers main data, operation, gearbox removal and installation, disassembly and assembly, driving and driven shaft clearance adjustments and control lever work. Power Shuttle coverage adds the control valve, solenoids, clutch casing, ECM and CDU functions, self-diagnosis, calibration, stored fault codes and troubleshooting. That makes the New Holland TN55 TN65 TN70 TN75 Tractor Repair Manual 87034092 PDF useful for both mechanical overhaul and electronic Power Shuttle diagnosis.
Specifications, Adjustments and Diagnostic Guidance
Throughout the manual, repair procedures are tied to measurements and checks. Engine work includes wear limits, clearances, injection-pump calibration values, compression-test criteria and torque-plus-angle tightening instructions. The clutch section provides specifications for the LUK clutch assemblies, test-bench overhaul procedures, release-lever adjustments and troubleshooting for slipping, dragging, jerking, noise and stiff pedal operation. Front and rear axle chapters include bevel drive and differential work, final drives, wheel hubs, steering knuckle bearings and alignment checks.
The hydraulic chapters explain the rear mechanical hydraulic lift, open-centre auxiliary control valves, trailer brake auxiliary control valve and non-stop flow gear pump. They include hydraulic circuit diagrams, cross-sectional views, internal control and valve procedures, lift adjustments and troubleshooting. Steering coverage follows the hydrostatic steering system through operation, component service, control-valve disassembly and bench testing, plus power-steering pump work. Braking coverage includes service of the right- and left-hand brakes, hydraulic pump, air bleeding, parking brake disks and handbrake adjustment.
Electrical information is divided into instruments, starting, charging, battery, electrical circuits and electrical components. The circuit chapters distinguish tractors before S/N 1268128 from those after S/N 1268128. Coverage includes fuses and relays, wire colour codes, circuit symbols, ISO and NASO diagrams, starting circuits, operator safety circuits, lighting, 4WD and brake-light circuits, mechanical shuttle and Power Shuttle transmission circuits, ground locations and the Power Shuttle electronic control unit input/output wiring diagram. Starter and alternator sections add system testing, troubleshooting, removal, disassembly and bench-test information.
File Details
- Manual type: Repair Manual
- Brand: New Holland
- Models: TN55, TN65, TN70, TN75
- Language: English
- Page count: 888 pages
- File format: PDF
- Complete Repair part #: 87034092
- Printing: 1st Printing
- Date shown: 5/03
Chapters Covered
- Section 00 – General
- General Instructions
- Safety regulations, repair practices and consumables
- Section 10 – Engine
- General specifications, data and torque settings
- Tools and cross-sectional views
- Lubrication and cooling system diagrams
- Troubleshooting
- Engine removal, installation and assembly
- Compression test
- Coolant pump and alternator drive belt tension adjustment
- Valve guides, injector sleeves and front engine oil seal
- Valve/rocker arm clearance adjustment
- Fuel tank and engine injectors
- Bosch injection pump removal, installation, timing and air bleeding
- Coolant pump overhaul, thermostat and radiator
- Section 18 – Clutch
- General specifications, torque settings and tools
- Cross-sectional views and troubleshooting
- Clutch removal and installation
- 11″/11″ dual clutch test bench overhaul
- 11″ single clutch for Power-Shuttle gearbox test bench overhaul
- Clutch adjustments
- Section 21 – Transmissions
- Mechanical Transmission: 8 x 8, 16 + 16 Synchro-Command and 8 x 8 Non-Synchronized
- Rear transmission/gearbox removal, disassembly, assembly and shaft-clearance adjustments
- Gearbox and range gear control levers
- Power Shuttle Transmission: 8 + 8 and 16 + 16 versions
- Power shuttle control valve and solenoids
- ECM and CDU systems, automatic self-diagnosis and calibration
- Fault codes, stored error codes and Power Shuttle troubleshooting
- Power Shuttle electronic control unit input/output wiring diagram
- Section 23 – Drive Lines
- Main data, torque settings and cross-sectional views
- Description, operation and hydraulic diagrams
- Troubleshooting, transmission shafts and drive gear housing procedures
- Section 25 – Front Axle Mechanical Transmission
- Front axle removal and installation
- Epicyclic final drive, steering knuckle, wheel hubs and bearings
- Bevel drive and front differential overhaul
- LIM-Slip differential and leading wheel toe-in check
- Section 27 – Rear Mechanical Transmission
- Rear transmission/gearbox removal and installation
- Differential lock adjustment
- Final drive housing, drive wheel shaft and epicyclic final drive
- Section 31 – Mechanical Power Take-Off
- Main data, tools, tightening torque and cross-sectional views
- Description, operation, troubleshooting and PTO removal/installation
- Section 33 – Braking System
- Main data, torque settings, tools and troubleshooting
- Brake removal and installation, hydraulic pump and air bleeding
- Parking brake disks and handbrake travel adjustment
- Section 35 – Hydraulic System
- Rear Mechanical Hydraulic Lift
- Open Centre System Auxiliary Control Valves
- Trailer Brake Auxiliary Control Valve
- Non-Stop Flow Gear Pump
- Lift controls, adjustments, cylinder, control valve and pressure relief valve
- Section 41 – Steering
- Hydrostatic steering operation, components and troubleshooting
- Steering wheel and control valve service
- Control valve disassembly, assembly and bench testing
- Non-Stop Flow Gear Pump and power steering oil pump
IMAGES PREVIEW
- Section 44 – Axles and Wheels
- Main data, cross-sectional views, torque settings and tools
- Front axle hub, front axle and stub axle overhaul
- Leading wheel alignment checks
- Section 55 – Electrical System

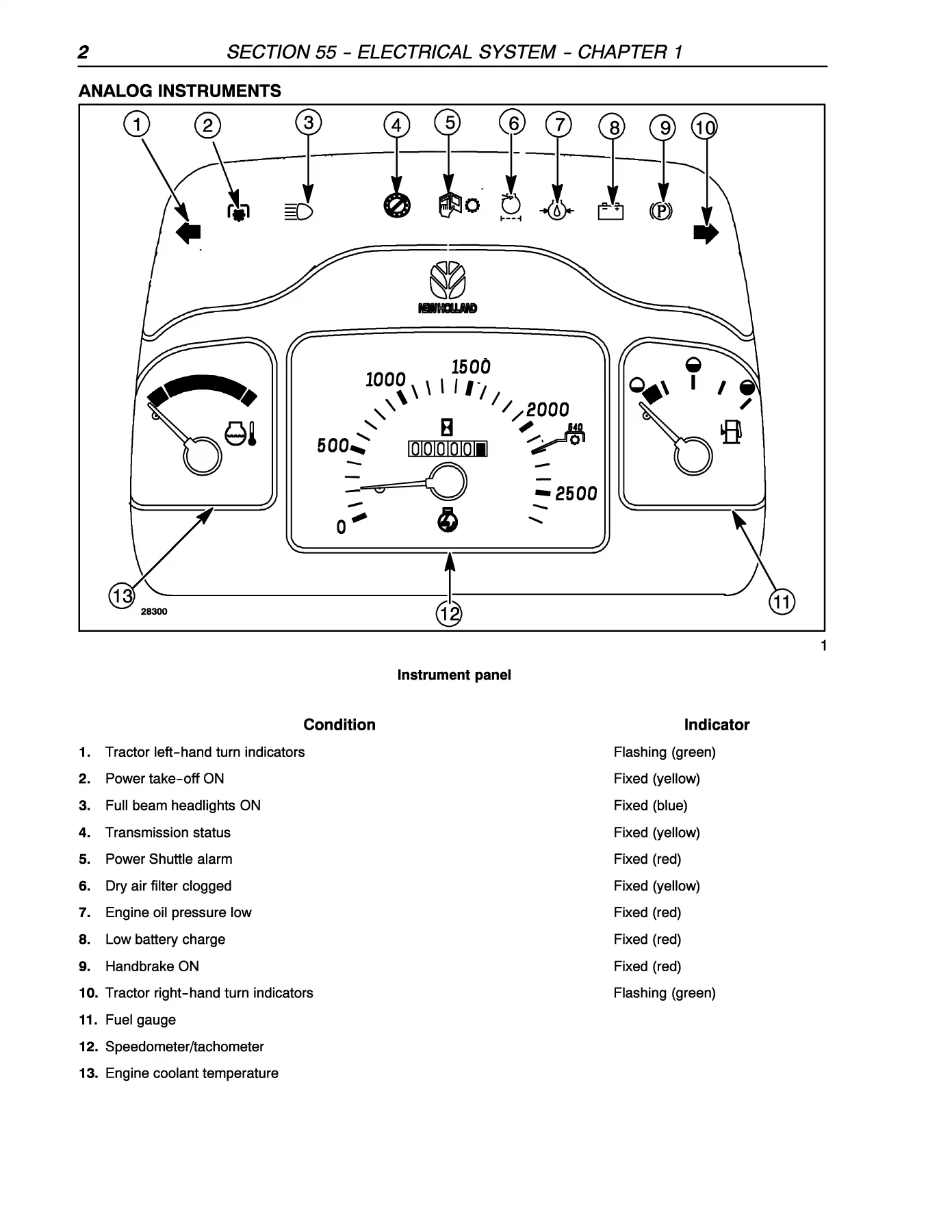

- Instruments
- Starting System
- Charging System
- Battery
- Electrical Circuits – Before S/N 1268128
- Electrical Circuits – After S/N 1268128
- Electrical Components
- Section 90 – Platform, Cab, Bodywork
- Hood, protective grill and hood guard
- Dashboard
- ROPS removal and installation
- Right or left-hand mudguard and rear guard
Across these sections, the manual gives the technician a connected repair path: identify the system and fault, consult the relevant operating description or troubleshooting material, check the specified measurements and settings, then follow the illustrated removal, overhaul, adjustment and installation procedure. Its coverage of mechanical systems alongside Power Shuttle diagnostics and extensive electrical diagrams makes it a broad reference for the four TN tractor models rather than a single-system booklet.
Repair With the Correct Procedures and Data
The New Holland TN55 TN65 TN70 TN75 Tractor Repair Manual 87034092 PDF supports substantial service work ranging from engine diagnosis and internal repair to clutch overhaul, gearbox work, axle and differential service, PTO and brake repair, hydraulic diagnosis, steering service and electrical fault tracing. Having the specified torque values, clearances, service limits, adjustment procedures, circuit diagrams and troubleshooting information together helps you follow the repair sequence and verify components against the values provided for these tractors.
Purchase includes instant PDF delivery after payment. There is no physical book and no shipping delay: open the manual on a computer, tablet or phone, keep it available on any device that can read PDF files, and print the pages you need for workshop use.
