Nissan 1B1 1B2 Forklift Service Manual – Pneumatic & Cushion Models PDF

Description

Nissan 1B1 1B2 Forklift Service Manual – Full Workshop Coverage for Pneumatic and Cushion Models

This Nissan 1B1 1B2 Forklift Service Manual is the complete maintenance and repair reference for the Nissan 1B1 and 1B2 series electric forklifts, covering both the pneumatic tyre and cushion tyre variants. Every section is written around real service work – unit removal, disassembly, inspection, reassembly, installation and final adjustment – so it works as a bench manual, a bay manual and a diagnostic reference at the same time. Whether you are servicing a 1.5 ton 1B1, a 3.5 ton CG1B2, or any capacity in between, the procedures in this Nissan 1B1 1B2 forklift service manual are the ones you will actually reach for.

File Details

• Manual type: Service / Workshop Manual
• Brand: Nissan
• Series: 1B1 and 1B2 (pneumatic and cushion)
• Language: English
• File format: PDF
• Page count: 500+ pages
• Publisher: Nissan Motor Co., Ltd. – Industrial Machinery Division, Engineering Department, Tokyo, Japan

Chapters Covered

• General Information (GI) – safety precautions, jacking and lifting, towing, hoisting, identification plates and vehicle identification numbering
• Maintenance (MA) – lubrication schedule, maintenance intervals, battery care, motor service, tyres and road wheels, brake and steering checks, hydraulic fluid and micron filter replacement, mast and carriage inspection

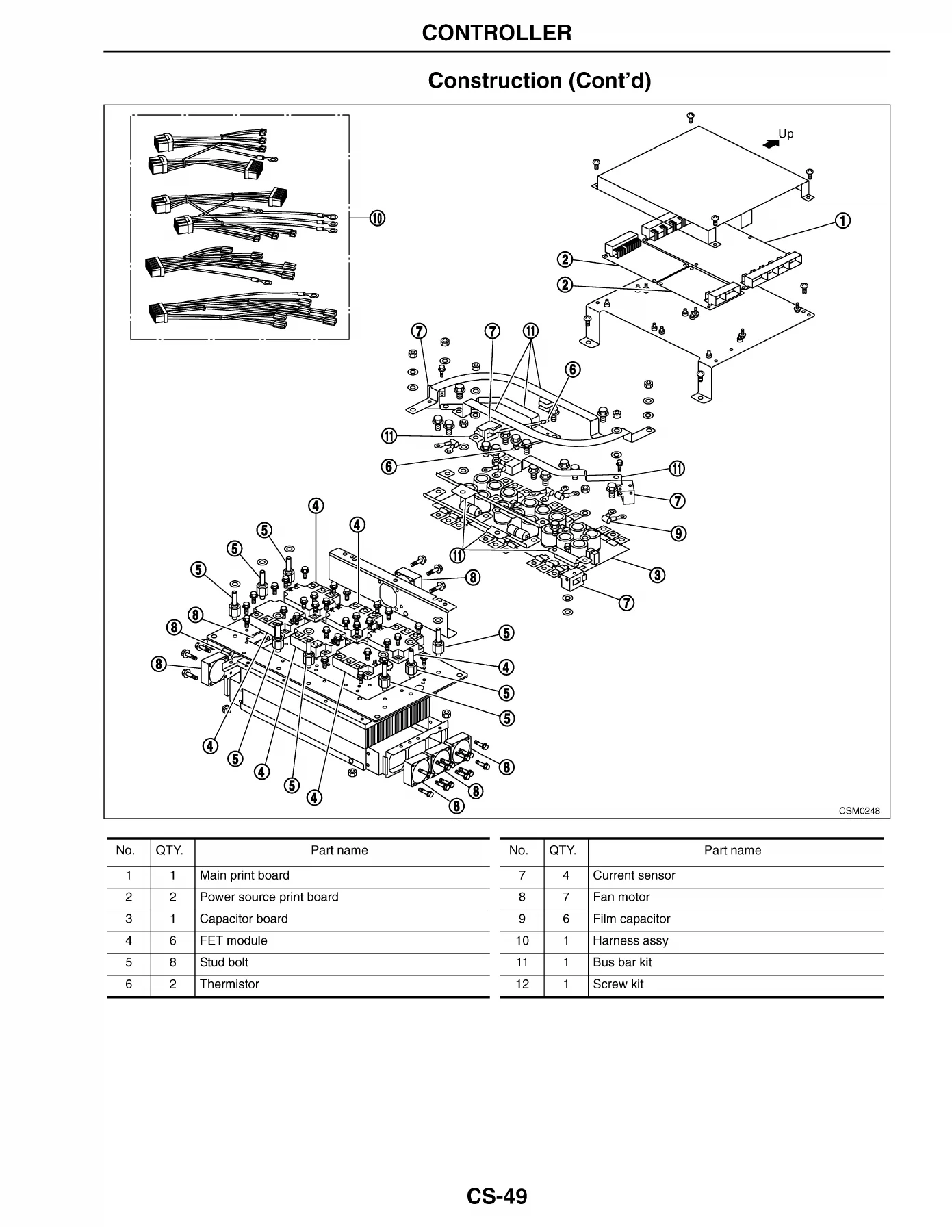

• Control System (CS) – system architecture, meter panel, LCD monitor, adjustment mode, diagnostic mode, error code tables, controller construction and terminal layout, controller element inspection, unit inspection and adjustment, trouble diagnostic flow charts
• Battery & Charger (BC) – battery specifications, removal and installation, cell voltage, specific gravity, external leakage test, body resistance, charger specifications and adjustment
• Electrical System (EL) – fuse inspection and replacement, bulb replacement
• Motor Mechanism (MM) – motor cleaning, rotor inspection, revolution sensor and temperature sensor service
• Differential Carrier (DF) – reduction gear inspection, gear oil level check and replacement
• Front Axle (FA) – wheel bearing grease application, preload adjustment
• Rear Axle (RA) – wheel bearing grease application, preload adjustment
• Brake System (BR) – brake fluid level and replacement, brake bleeding, brake pedal inspection and adjustment, shoe clearance adjustment, parking brake adjustment, exploded brake assembly views
• Steering System (ST) – steering wheel play inspection
• Hydraulic System (HD) – hydraulic fluid replacement, micron filter replacement, suction filter cleaning, hydraulic pressure inspection and adjustment
• Loading Mechanism (LM) – fork inspection and wear limits, carriage height, lift chain tension, carriage roller, mast roller and mast liner, mast and tilt cylinder inspection, greasing points
• Body & Frame (BF)

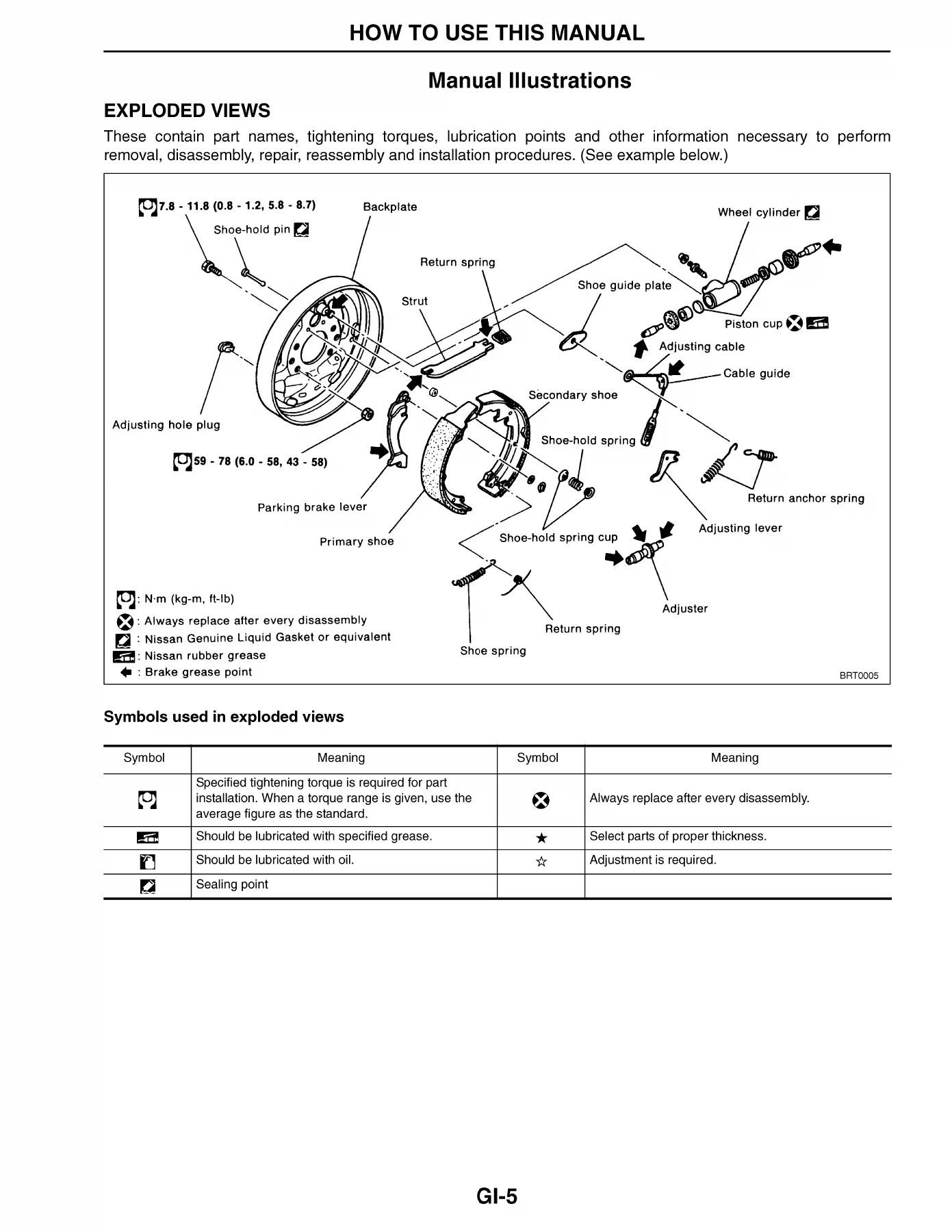

Across these fourteen sections the Nissan 1B1 1B2 forklift service manual delivers the full technician workflow rather than a partial slice of it. Each chapter opens with its own precautions, service data and specifications, trouble diagnosis tables, and required special service tools, then walks through step-by-step removal, inspection and reassembly with tightening torques, standard values and limit values called out as you go. Exploded views and symbols for grease points, seal points, torque requirements and mandatory replacement parts are integrated into the procedures so nothing has to be guessed at on the bench.

Which Nissan Forklifts This Manual Covers

Coverage spans the 1B1 series (1.5 ton and 1.75 ton), the 1B2 series (2.0 ton, 2.5 ton, 3.0 ton and 3.5 ton), and the cushion tyre C1B1, C1B2 and CG1B2 variants. Motor variations listed for the 1B1 include 9.0 kW / 48V, 6.5 kW / 36V, 8.5 kW / 48V (UL-EE for North America) and 6.0 kW / 36V (UL-EE for North America); the 1B2 adds a 12.0 kW / 48V option alongside the 9.0 kW / 36V, 8.5 kW / 48V and 6.0 kW / 36V UL-EE motors. Both standard wheelbase and long wheelbase (G) configurations are referenced throughout, and body size L (standard) and R (large battery compartment, pneumatic only) are identified in the model code breakdown.

Vehicle identification numbers stamped on the front frame are catalogued for the K1B1, KGB1B1, CK1B1, P1B2, PG1B2, CP1B2 and CPG1B2 prefixes, plus the Marengo, Illinois built CK1B1-9AXXXX, CK1B1E-9AXXXX, CP1B2-9CXXXX, CP1B2E-9CXXXX, CPG1B2-9EXXXX and CPG1B2E-9EXXXX series produced from May 2009 onward. Identification plates for the standard, CE and UL-type trucks are reproduced so you can decode model variation, mast, attachment, battery weight and rated capacity directly from the truck.

What the Repair Procedures Give You

Mechanical chapters take you through wheel bearing preload by rotation starting force, brake shoe clearance by adjuster steps, brake pedal free play and pedal height, parking brake lock force, lift chain deflection and carriage height standards. The hydraulic chapter documents fluid replacement with tank capacities per model, micron filter and suction filter service, and main relief, tilt relief, third/fourth relief and power steering relief set pressures for each capacity class. The loading mechanism chapter supplies the full fork inspection routine including the wear caliper method, the 10% blade thickness rule, the 3% fork tip height difference limit and the 0.5% straightness deviation limit, plus mast roller and liner clearance adjustments using shims.

On the electrical side the controller section is unusually complete for a forklift: terminal-by-terminal connector layouts for the drive, pump and meter systems, the FET module resistance tables, current sensor and contactor test values, fuse capacities and bulb wattages, and a full error code table cross-referenced to each failure mode. Self-diagnosis and interactive diagnosis are both documented, with step-by-step flow charts for the classic symptoms – meter dead, forklift inoperative, no forward or reverse, slow traction, no power, regenerative braking fault, loading malfunction, mast will not lower, power steering fault and turn signal fault.

Why Technicians Keep This Manual on the Bench

Electric forklifts of this generation carry controllers, contactors, FET boards, sensors and hydraulics that interact – a fault in one area commonly shows up as a symptom in another. Having the Nissan 1B1 1B2 forklift service manual on hand means the symptom-to-cause chain is already mapped for you, the torque figures are on the same page as the fastener, and the pressure settings are stated in MPa, bar, kg/cm² and psi together so you can read them off whichever gauge you own. The manual also carries the manufacturer’s own safety precautions for jacking, lifting, towing, battery handling and electrical inspection, which is genuinely important given the 48V and 36V systems involved.

IMAGES PREVIEW

Instant PDF Delivery – No Waiting, No Shipping

The Nissan 1B1 1B2 Forklift Service Manual is delivered as a downloadable PDF the moment your order is complete. No shipping charges, no waiting for a physical book, no risk of a courier losing a workshop reference you need this week. Open it on a laptop or tablet in the workshop, print the pages you need for the job in front of you, or keep the whole file on a USB stick in the toolbox. Everything from a routine brake shoe adjustment to a full controller diagnosis is in your hands within minutes of purchase.
