Nissan Diesel PF6 PF6T PF6TA PF6TB Engine Service Manual

Description

Nissan Diesel PF6, PF6T, PF6TA & PF6TB Engine Service Manual

This Nissan Diesel PF6 PF6T PF6TA PF6TB Engine Service Manual is the system-by-system workshop reference for the PF series six-cylinder diesel engine. It covers the naturally aspirated PF6 alongside the turbocharged PF6T and the turbocharged, intercooled PF6TA and PF6TB, and it is written around the engine itself rather than the vehicle that carries it. Maintenance, adjustment, disassembly, inspection, repair and reassembly are all documented to prescribed service standards.

The document applies to engines from serial PF6-101001, PF6-101001T, PF6-101001A and PF6-101001B onward, and is based on vehicles manufactured on or before May 1, 1996. Because all four model variants are treated side by side, differences in injection timing, compression ratio, valve timing, aspiration and cooling hardware are visible in the same reference instead of being split across separate books.

File Details

• Manual type: Engine Service Manual
• Brand: Nissan Diesel
• Models covered: PF6, PF6T, PF6TA, PF6TB
• Engine serial ranges: PF6-101001~ / PF6-101001T~ / PF6-101001A~ / PF6-101001B~
• Language: English
• Page count: 319 pages
• File format: PDF
• Applies to: vehicles manufactured on or before May 1, 1996

Chapters Covered

• GENERAL – Engine Specifications, Engine Numbers, Lubrication and Recommended Fuel and Lubricants, Recommended SAE Viscosity Number, Capacities, General Precautions on Servicing, Cleaning and Inspection, Tightening Torque of Standard Bolts
• MAINTENANCE – Service Data, Tightening Torque, Tools, Periodic Maintenance Schedules, Maintenance Intervals, Periodic Parts Replacement, Maintenance Procedure covering the Basic Mechanical System, Lubrication System, Cooling System, Fuel System, Intake and Exhaust System and Others
• TROUBLE DIAGNOSIS – Diagnosis Guide and symptom-led checks for Difficult Engine Starting, Black Exhaust Smoke, White Exhaust Smoke, Irregular Engine Operation, Decreased Engine Power, Excessive Oil Consumption, Excessive Fuel Consumption, Noisy Engine and Engine Overheats
• ENGINE DISASSEMBLY AND REASSEMBLY – Service Data, Tightening Torque, Tools, Construction of the Engine, Gear Train and Engine Rear PTO, plus Disassembly and Reassembly of the Outside of Engine, Cylinder Head, Engine Proper and Engine Rear PTO
• ENGINE PROPER – Inspection of Cylinder Block, Crankshaft, Main Bearing Shell, Cylinder Liner, Piston and Connecting Rod, Camshaft, Gear Train, Flywheel, Flywheel Housing, Rear End Plate, Front Cover, Crank Pulley and Damper, V-Belt, plus Repair and Replacement procedures
• CYLINDER HEAD AND VALVE – Construction, Disassembly, Inspection, Repair and Replacement of the Cylinder Head, Valve, Valve Insert, Valve Guide and Valve Rocker Bushing, Reassembly and Installation
• LUBRICATION SYSTEM – Specifications, Service Data, Lubricating System, Tools, Oil Pump, Oil Cooler, Oil Filter and Oil Jet
• COOLING SYSTEM – Specifications, Service Data, Water Pump, Thermostat, Radiator and Coolant Reservoir Tank, Fan Clutch
• FUEL SYSTEM – Injection Pump Assembly, Feed Pump, Timer, Governor, Adjustment, Injection Pump Calibration Data, Nozzle and Nozzle Holder, Fuel Filter and Engine Control System
• AIR INTAKE AND EXHAUST SYSTEM – Turbocharger, Intercooler, Air Cleaner and Exhaust Brake
• ELECTRICAL SYSTEM – Starting Motor, Alternator and Air Heater
• AUXILIARY EQUIPMENT – Air Compressor F9560W12

Taken as a whole, this Nissan Diesel PF6 PF6T PF6TA PF6TB Engine Service Manual gives a technician a single continuous workflow: establish the specification, confirm the clearance or torque, strip the assembly in the documented sequence, inspect against the printed service limits, repair or replace, and reassemble to the stated values. Construction illustrations name the major components and carry the clearances that matter after reassembly, so measurement points are identified before a component is disturbed rather than after.

Engine Families and Model Differences

The PF series is a six-cylinder, in-line, water-cooled diesel with a dry cylinder liner, direct fuel injection, overhead valve mechanism and a bore and stroke of 133.0 x 150.0 mm (5.236 x 5.906 in) for a total displacement of 12,503 cm³ (763 cu in). Compression ratio is 18.0 on the PF6 and PF6T, dropping to 16.5 on the turbocharged and intercooled PF6TA and PF6TB.

Aspiration separates the four variants. The PF6 is naturally aspirated. The PF6T adds a turbocharger. The PF6TA and PF6TB run turbocharger with intercooler. That difference propagates through the manual: fuel injection timing sits at 16° B.T.D.C. on the PF6, 17° on the PF6T, and 16° or 14° on the PF6TA and PF6TB depending on the type. Intake valve opening shifts from 20° B.T.D.C. on the PF6 to 16° B.T.D.C. on the turbocharged and intercooled engines. Cylinder compression pressure, nozzle opening pressure, plunger diameter and fuel injection pump calibration all follow the same split, and each is printed for the correct model.

Specifications, Torque Values and Service Limits

Service data is repeated in each section rather than collected in one place, so the numbers sit next to the procedure that needs them. Maintenance standards and service limits are listed side by side, which makes it straightforward to decide whether a part can be corrected or must be replaced. Standard bolt tightening torque is tabulated by nominal size across 4T, 7T and 9T material codes, with tubing connector torque for flared nuts, nipple nuts and eye connectors listed separately.

Component-level data includes main bearing and crank pin clearances, cylinder liner inside diameter and out-of-roundness, piston and piston ring clearances and end gaps, camshaft journal diameters and cam profile height, idler gear backlash and end play, valve stem and valve guide clearance, valve spring free length and tension, rocker shaft and bushing clearance, oil pump side, tip and backlash values, relief valve spring data, thermostat opening temperature and lift, and turbocharger axial play with bearing and shaft dimensions.

Trouble Diagnosis and Calibration Data

The diagnosis guide is built as a symptom-to-cause table. Starting from the complaint — hard starting, black smoke, white smoke, irregular operation, lost power, high oil or fuel consumption, noise, overheating — the technician works through listed checking points, each tied by dot marks to the probable causes. Causes with the most marks are treated as the central fault, and the guidance is to begin repair with the simplest operation first. The engine does not need to be stripped to run the checks.

Fuel system content goes considerably further than removal and refitting. Injection pump adjustment covers initial injection timing, injection interval, flyweight lift and full load position, maximum speed control and speed droop, idling, damper spring, positive torque control, torque spring, smoke limiter, stop lever position, boost compensator and aneroid compensator. Calibration data is given per ZEXEL pump assembly number with rack positions, pump speeds, injection quantities, maximum variation between cylinders and test conditions, so a pump can be set up on a tester to the printed figures.

Pictorial Content

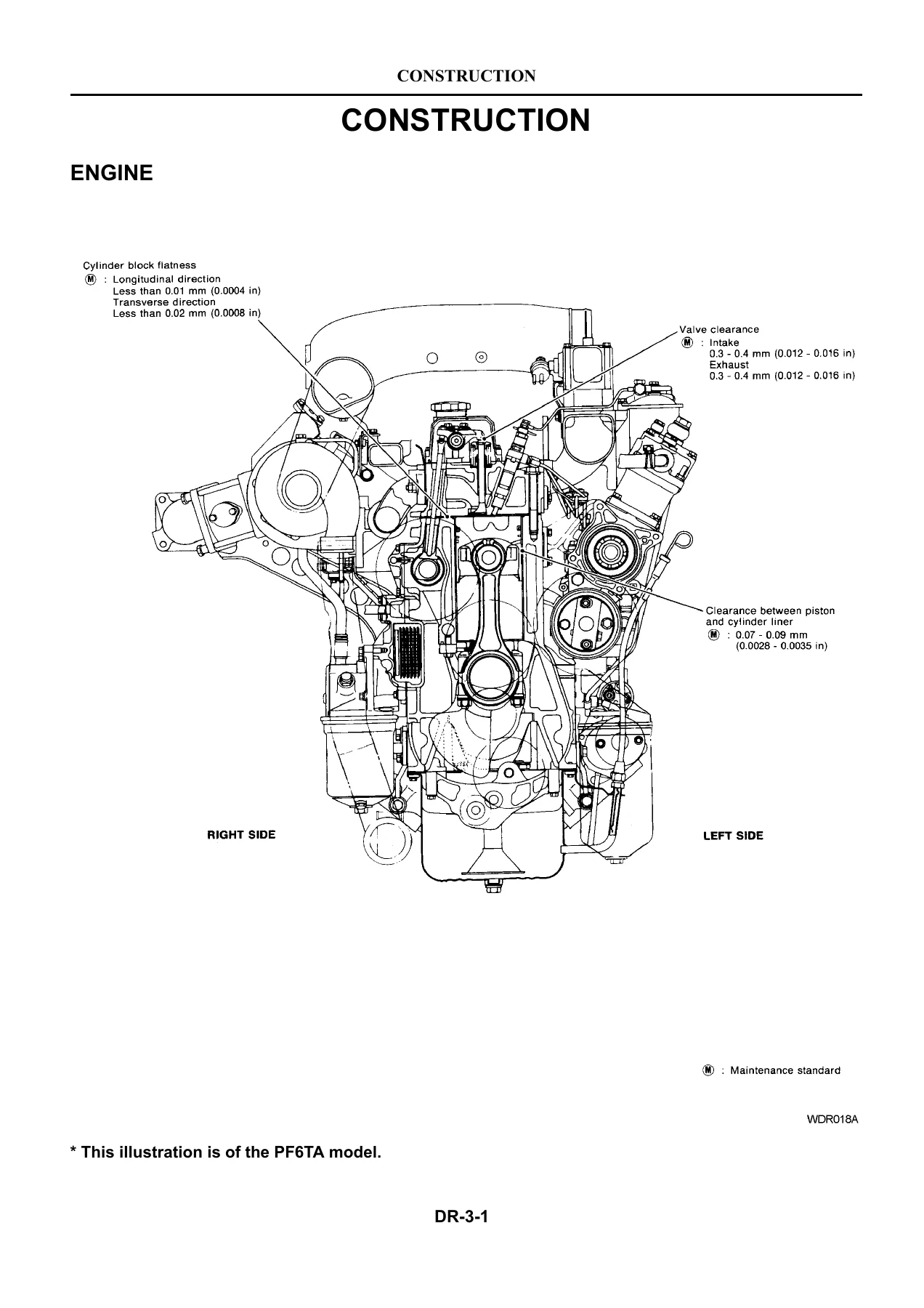

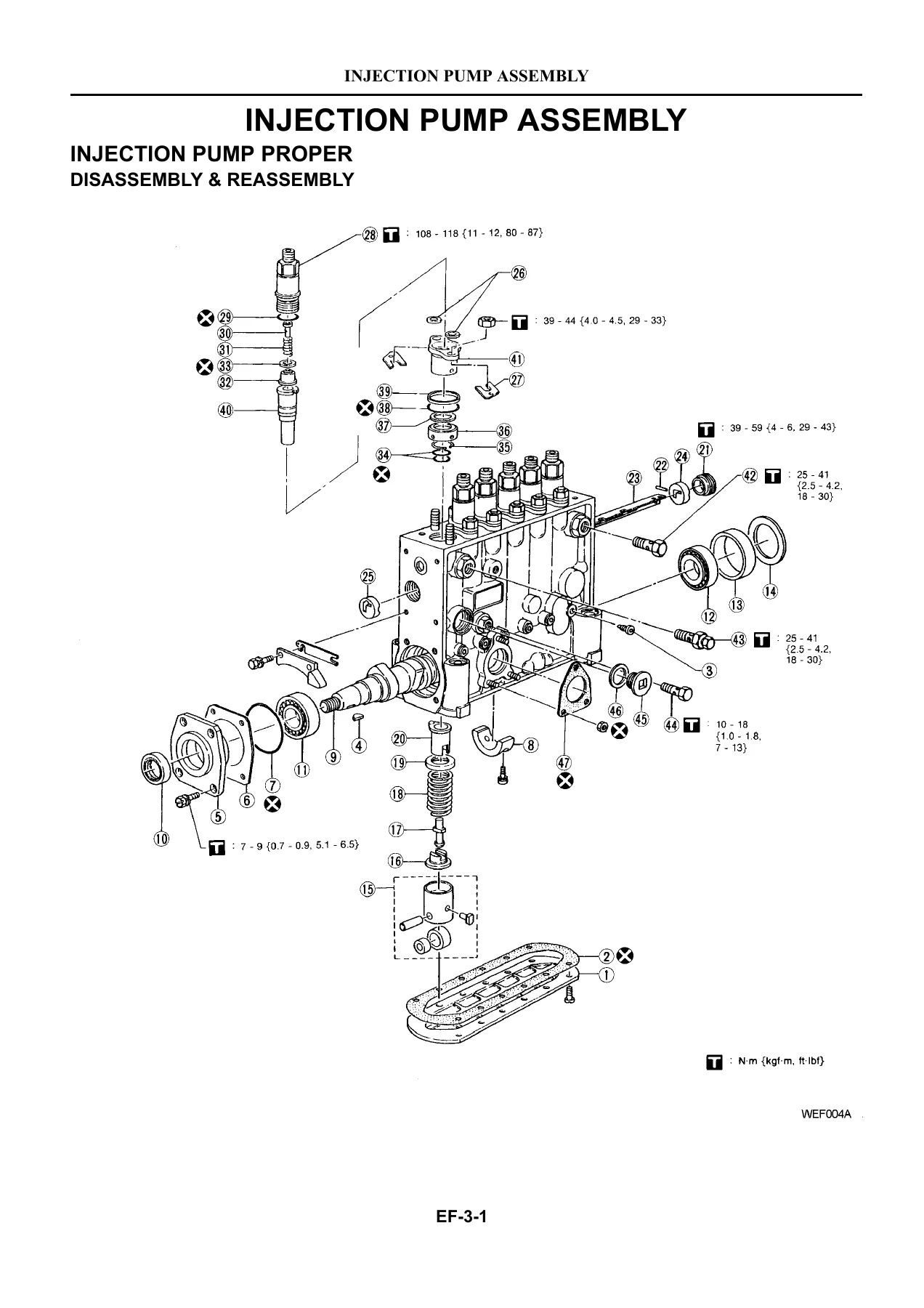

Construction and exploded illustrations run through every major section. They show the assembled unit with component names and the clearances that must be checked after reassembly, then break the same assembly down with numbered parts keyed to the disassembly sequence — reassembly being the reverse order. Tightening torque and lubrication points are marked directly on the illustrations, and star symbols flag the operations that carry specific precautions or special tool requirements in the text.

Who This Manual Suits

It suits the workshop technician performing scheduled maintenance, the diesel mechanic diagnosing a running fault, and the rebuilder undertaking a full engine overhaul on a PF6, PF6T, PF6TA or PF6TB. It also suits the fleet operator who needs the correct torque figure, clearance or adjustment value on hand rather than estimated. Owners running these engines in trucks and industrial applications will find the maintenance schedules and periodic parts replacement intervals useful for planning service work.

Work This Manual Supports

Valve clearance adjustment, cylinder compression testing, crank damper inspection, injection timing setting, idle speed adjustment, nozzle cleaning and opening pressure adjustment, fuel filter and primary fuel filter element replacement, air cleaner element servicing, V-belt deflection adjustment, coolant flushing, fan clutch testing and turbocharger cleaning are all covered as routine work. Beyond that, the manual supports cylinder head removal and reconditioning, valve and valve insert replacement and lapping, valve guide and rocker bushing replacement, cylinder liner replacement, camshaft bushing replacement, crankshaft grinding to undersize and journal correction, piston and connecting rod overhaul, main and connecting rod bearing selection, gear train backlash measurement, flywheel correction, oil pump and oil cooler service, water pump and thermostat work, injection pump and governor overhaul, and starting motor and alternator testing.

Why the Correct Figures Matter

These engines rely on tight tolerances. Cylinder head bolts are tightened by angle after a snug torque rather than by torque alone, connecting rod cap nuts differ between Type I and Type II, and crankshaft and crank pin clearances are specified to hundredths of a millimetre. Guessing at a value or substituting a general diesel figure risks a failed joint, uneven bearing wear or a repeat strip-down. Having the printed maintenance standard and service limit in front of you is what separates a repair that holds from one that comes back.
