Normet Alpha 30 VC Spare Parts Manual 100165655 EQ205 Illustrated Parts Catalog PDF

Description

Normet Alpha 30 VC Spare Parts Manual 100165655 EQ205

This is the complete illustrated spare parts catalog for the Normet Alpha 30 VC, document number 100165655, machine identifier EQ205. Whether you are maintaining a fleet of Alpha 30 VC concrete sprayers, sourcing a replacement component after a breakdown, or building a parts inventory for scheduled service, this manual gives you the exact part numbers, exploded-view illustrations, and quantities needed to order correctly the first time.

File Details

• Manual Type: Spare Parts Manual
• Brand: Normet
• Model: Alpha 30 VC
• Document Number: 100165655
• Machine Identifier: EQ205
• Language: English
• Page Count: 618
• File Format: PDF

Chapters Covered

The manual is organised into the following major sections, each covering a specific system or assembly on the Alpha 30 VC:

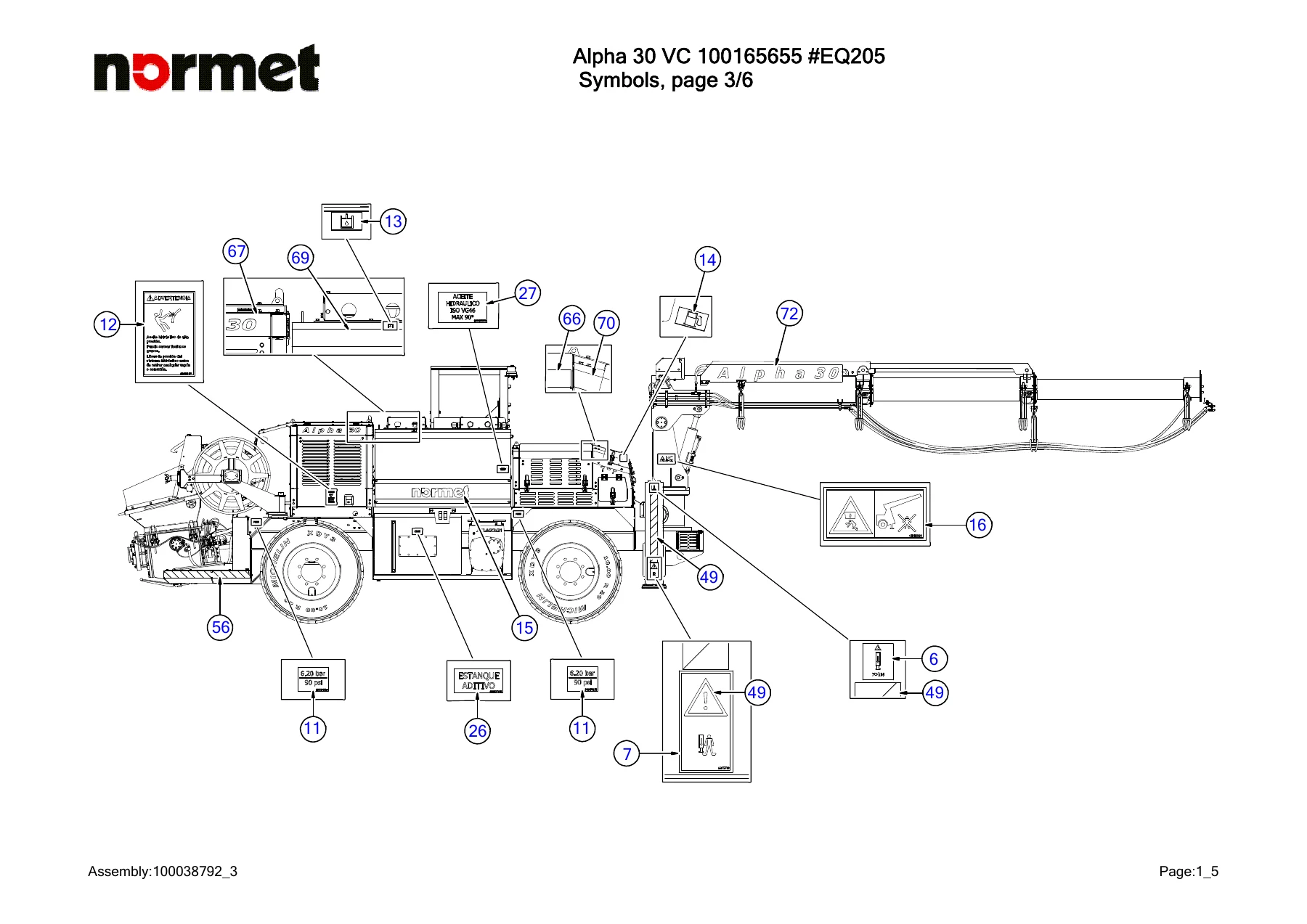

• Service Parts / Safety Symbols
• Standard Parts
• Spraying Boom
• Concrete Pump
• Spraying Equipment
• Accelerator System
• Transmission
• High Voltage Module
• Electrics
• Grease System
• Remote / Radio Control System
• Engine Installation Kit
• Exhaust Line Kit
• Engine Hood
• Cabin Kit
• Reverse Camera System
• Air Compressor

Within each of these top-level sections, the manual drills down into sub-assemblies and component groups. For example, the Spraying Boom chapter covers the boom base, main beam, middle beam telescopic boom, front beam telescopic boom, inner and outer extension cylinders, lifting cylinder, spraying head, turn table, and turning unit. The Concrete Pump section breaks down the pump mechanical assembly, hopper assembly, S-tube valve, outlet part, vibrator assembly, water manifold, and water hose. The Transmission chapter covers the front axle (central housing, differential, hub reduction, brakes, steering, trunnion), rear axle, central drive shaft, and drive shafts. The Electrics section includes terminal boxes TB1 through TB7, the emergency push button kit, EMR control box, cable reel control box, and battery installation.

What You Can Do With This Parts Manual

The Normet Alpha 30 VC is a specialised concrete spraying machine used in underground mining and tunnelling. When a component fails, you need to identify the exact replacement part quickly. This spare parts manual is built for that task. Every illustration is keyed to a parts list that gives you the item number, Normet part number, description, standard designation where applicable, and quantity required.

You can use this manual to:

• Identify replacement parts for the spraying boom, concrete pump, accelerator system, transmission, and all other major systems
• Verify part numbers before placing an order with your Normet dealer or parts supplier
• Understand how assemblies fit together through detailed exploded views
• Plan maintenance and rebuild jobs by seeing every seal, bearing, fastener, and component in a given assembly
• Build a stocked parts inventory based on the quantities shown for each item
• Reference standard parts such as hex screws, lock washers, hex nuts, and fittings by their DIN or ISO designation

The manual includes both machine-specific Normet part numbers and standard hardware references, making it straightforward to source common fasteners locally while ordering proprietary components through the correct channels.

Systems and Components Covered in Detail

The breadth of this catalog is substantial. The Frame installation section covers the frame, footstep, door, support plates, joints, groove plates, fastening plates, battery rack, hydraulic pipes, and associated hardware. The Wheel and Support Leg sections detail tyres, tubes, rims, wheel chocks, and support leg assemblies. The Tanks Cover section covers shelter plates, doors, gas springs, lever locks, and mounting hardware for the hydraulic oil and fuel tank enclosures. The Hydraulic Oil Tank assembly includes the tank itself, reinforcement plate, filter cartridge, gasket, lids, level indicator, return pipe, breather, filling cap, and hydraulic return filter assembly.

The Fuel Tank assembly covers the tank, filling filter assembly, hose clamps, and mounting hardware. The Spot Lights section lists all work lights, rear lights, triple spotlights, engine hood spotlights, reverse alarm, horn, and their fastening plates. The Fire Extinguisher kit includes the 6kg powder extinguisher, fastening clamp, support plate, and mounting hardware.

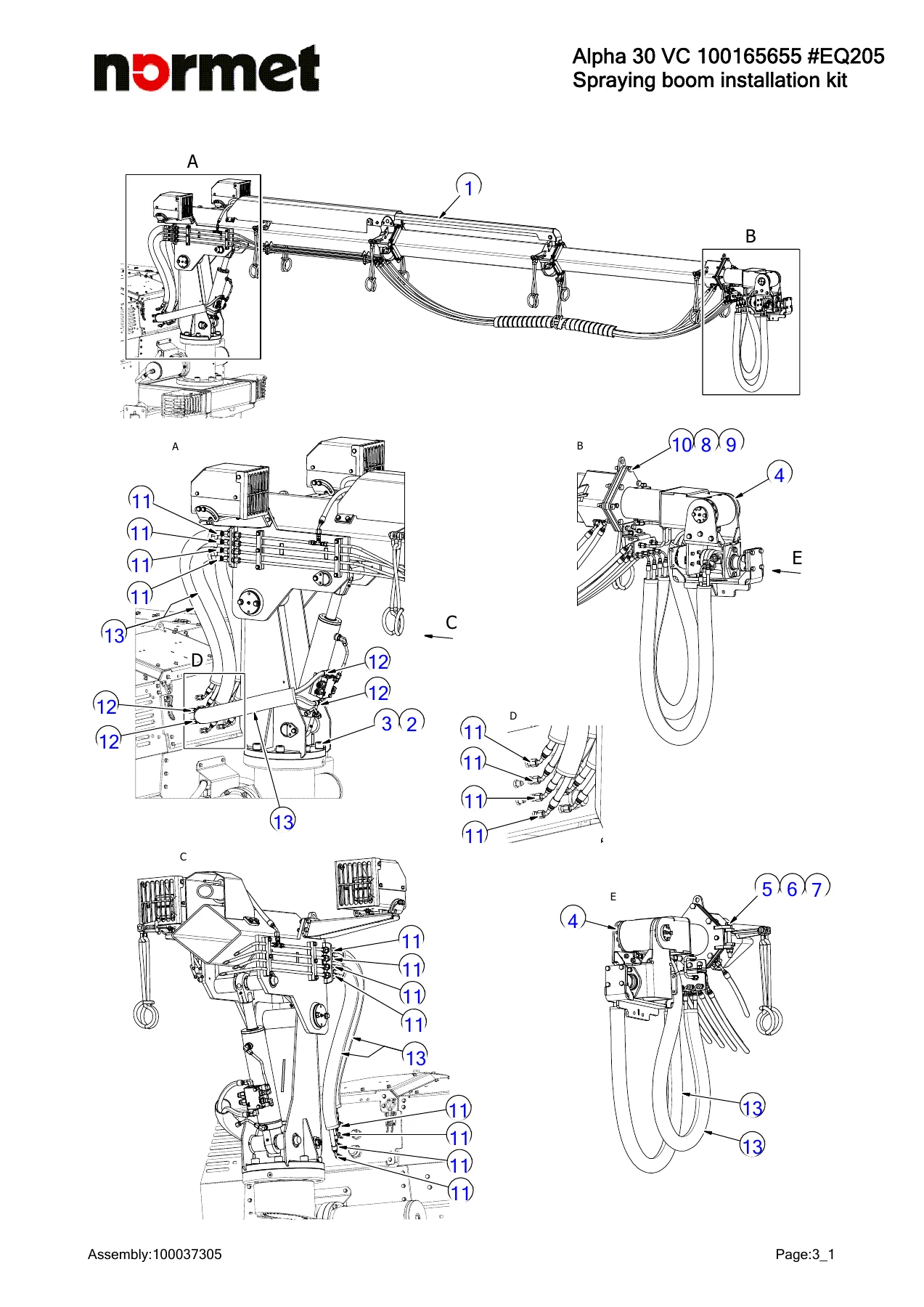

In the Spraying Boom chapter, you will find the boom base, main beam, middle beam telescopic boom, front beam telescopic boom, inner extension cylinder, outer extension cylinder, lifting cylinder, sling and lifting eye, flat sling, brackets, joint pins, hydraulic piping, protection covers, pins, straight couplings, and all associated fasteners and washers. The cylinder assemblies include installation plates, piston rods, hex nuts, joint pins, circlips, angle couplings, ball bearings, and seal kits.

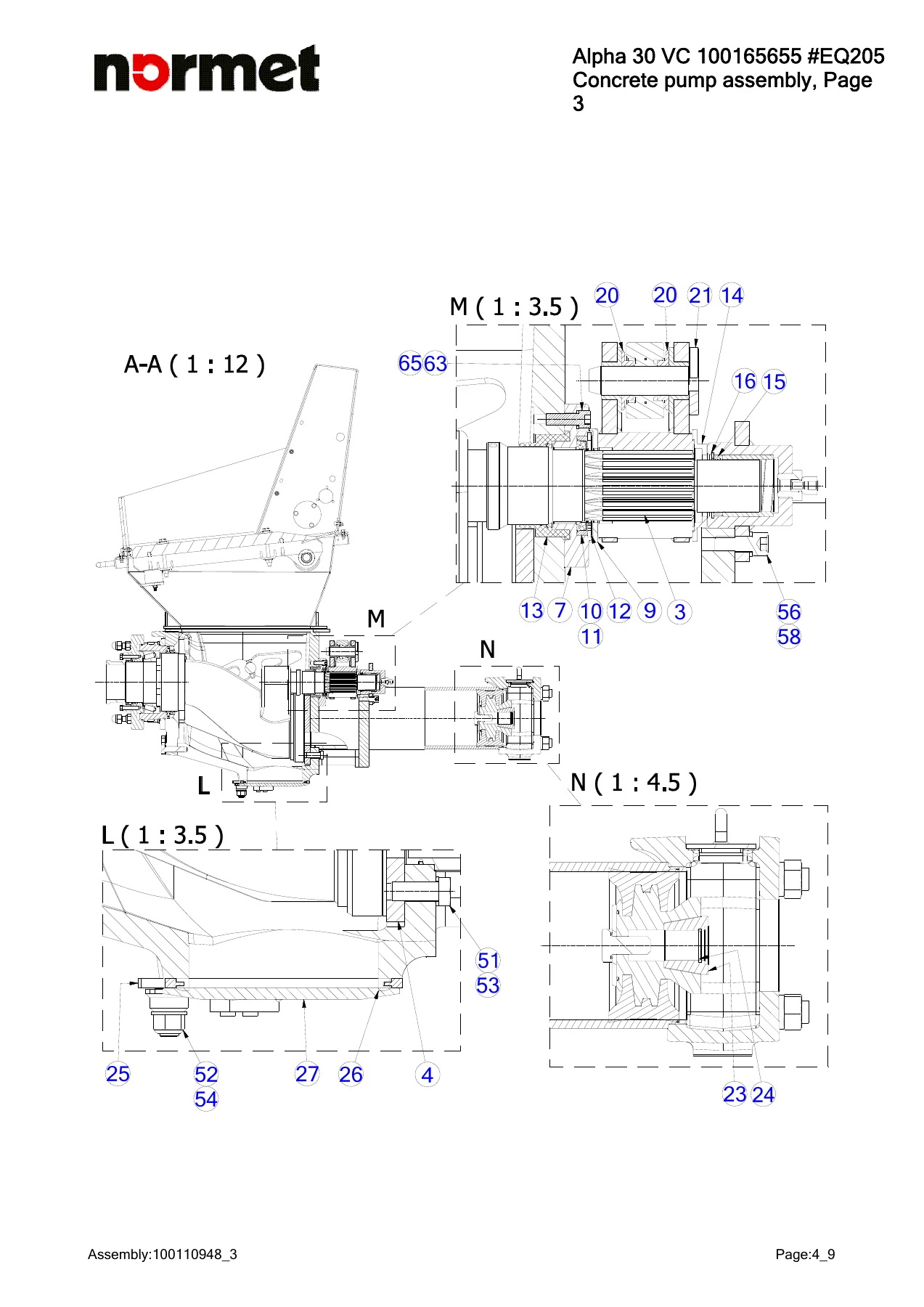

The Concrete Pump chapter is equally comprehensive, covering the concrete pump frame, beam plates, installation plates, mounting plates, water hoses, hydraulic hoses, exhaust manifold, shelter plate, hopper assembly, S-tube valve, outlet part, vibrator assembly, water manifold, and water hose. The Hopper assembly includes the hopper itself, rear plate, fastening flanges, flanges, pins, hopper grills, grid plate, fastening plates, retainer, lids, waist plate, angle plates, vibration dampers, edge rubber, and all fasteners. The Outlet part assembly covers the outlet part, limiter flange, outlet pipe, tapered roller bearing, seal rings, O-rings, guide pins, stop screws, extension coupling, tighteners, lock nuts, cap nuts, lock washers, hex screws, and more.

The Transmission chapter provides parts breakdowns for the front axle mechanical assembly (including the axle complete, straight thread connectors, hydraulic hoses, T-fittings, installation plates, oscillation stoppers, lock washers, and hex screws), the front axle central housing, differential, hub reduction, brakes, steering, and trunnion, the rear axle mechanical assembly, the central drive shaft (with axle, washer, axle nut, axle key, flange, bearing unit, intermediate tube, lock washer, hex nut, and hex screw), and the drive shaft.

The High Voltage Module chapter covers the rack for the electric box, cable reel support installation kit, high voltage control box, electric motor installation kit, compressor control box, cable reel slipring kit, cable reel limit switch kit, cable reel torque unit, halogen lights, transmission cable reel control box, electric reel directional valve, high voltage electric schemas, and wiring harnesses for compressor cables and supply cables. The Electrics chapter includes the electric boxes installation kit, terminal boxes TB1 through TB7, emergency push button kit, EMR control box installation kit, cable reel control box, and battery installation kit, with detailed circuit diagrams for each terminal box.

How to Order Parts Correctly

Ordering the wrong part on a machine like the Alpha 30 VC costs time and money. This manual eliminates guesswork. Each exploded view shows you exactly where a component sits in the assembly, and the accompanying parts list gives you the Normet part number you need to quote when ordering. The standard designation column tells you when a part is a standard DIN or ISO item – such as a hex screw with a specific thread and length – so you can source it through industrial fastener suppliers if you prefer.

For hydraulic components, the manual specifies straight thread connectors, angle couplings, T-fittings, reduction fittings, plugs, and hose assemblies with their part numbers, making it possible to rebuild entire hydraulic circuits correctly. For electrical components, the wiring harness and cable assemblies are listed with their part numbers, and the circuit diagrams for the terminal boxes provide the routing information needed to trace and repair electrical faults.

Your Complete Alpha 30 VC Parts Reference

This Normet Alpha 30 VC Spare Parts Manual 100165655 EQ205 gives you the complete parts identification resource for one of the most widely used concrete sprayers in underground mining and tunnelling. With 618 pages of exploded views, part numbers, descriptions, and quantities across every major system – spraying boom, concrete pump, accelerator system, transmission, high voltage module, electrics, grease system, remote control, engine installation, exhaust, engine hood, cabin, reverse camera, and air compressor – you have everything you need to keep your machine running.
