Oldenburg DPIS-1-HED Drill Parts Manual – 2008 Edition, Unit Serial 202770

The Oldenburg DPIS-1-HED Drill Parts Manual 2008 is the illustrated parts breakdown for the DPIS-1-HED drilling unit bearing serial number 202770, issued in 2008 under document number 1346 at Revision 0. Rather than describing how to repair the machine, this book identifies what the machine is built from. Every assembly on the rig is broken down into its individual components, and each component is listed by index number, part number, nomenclature, quantity required and unit of measure.

At the front of the manual is a component registry that ties the finished machine to the major bought-in units bolted onto it. That registry is the fastest way to confirm you are reading the right pages before you order anything, because it lists the manufacturer, model number and serial number of the rotary actuator, drill, front and rear tires, front and rear drive axles, drop box, drive pump, tram pump, tram motor, diesel engine, radiator, electric motor and air compressor as fitted to serial 202770.

File Details

• Manual type: Illustrated parts manual / parts catalog
• Brand: Oldenburg Group Incorporated (Cannon drilling equipment)
• Machine: Oldenburg DPIS-1-HED drill
• Unit serial number: 202770
• Document number: 1346
• Revision: Rev 0
• Publication year: 2008
• Language: English
• Page count: 358 pages
• File format: PDF

Chapters Covered

The contents are organised as groups, and each group opens with its own index of sub-assemblies:

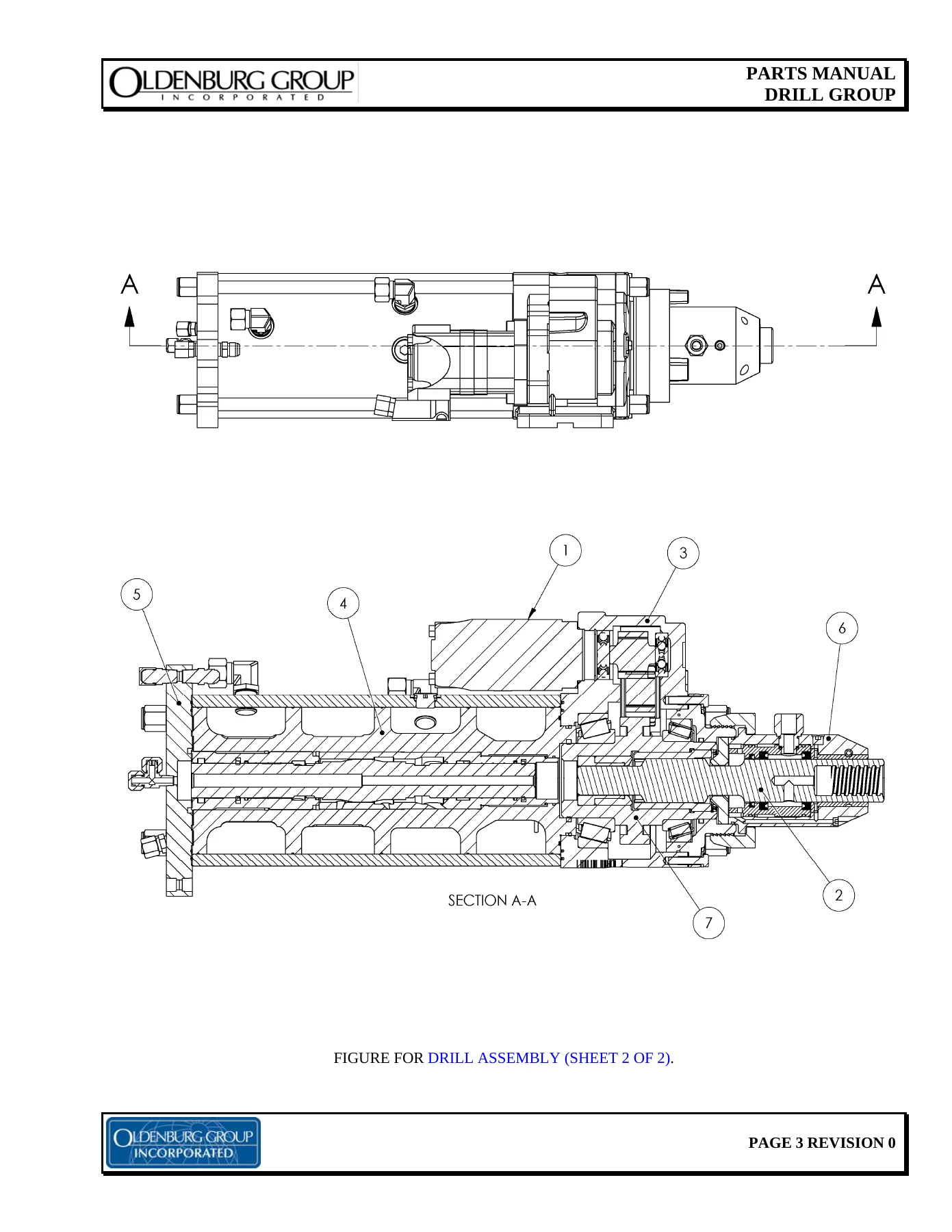

• Drill Group (50 129 021) – drill assembly, transmission and parts, chuck gear assembly, front end parts, flushing head assembly, housing assembly, parts common, percussion group, motor assembly

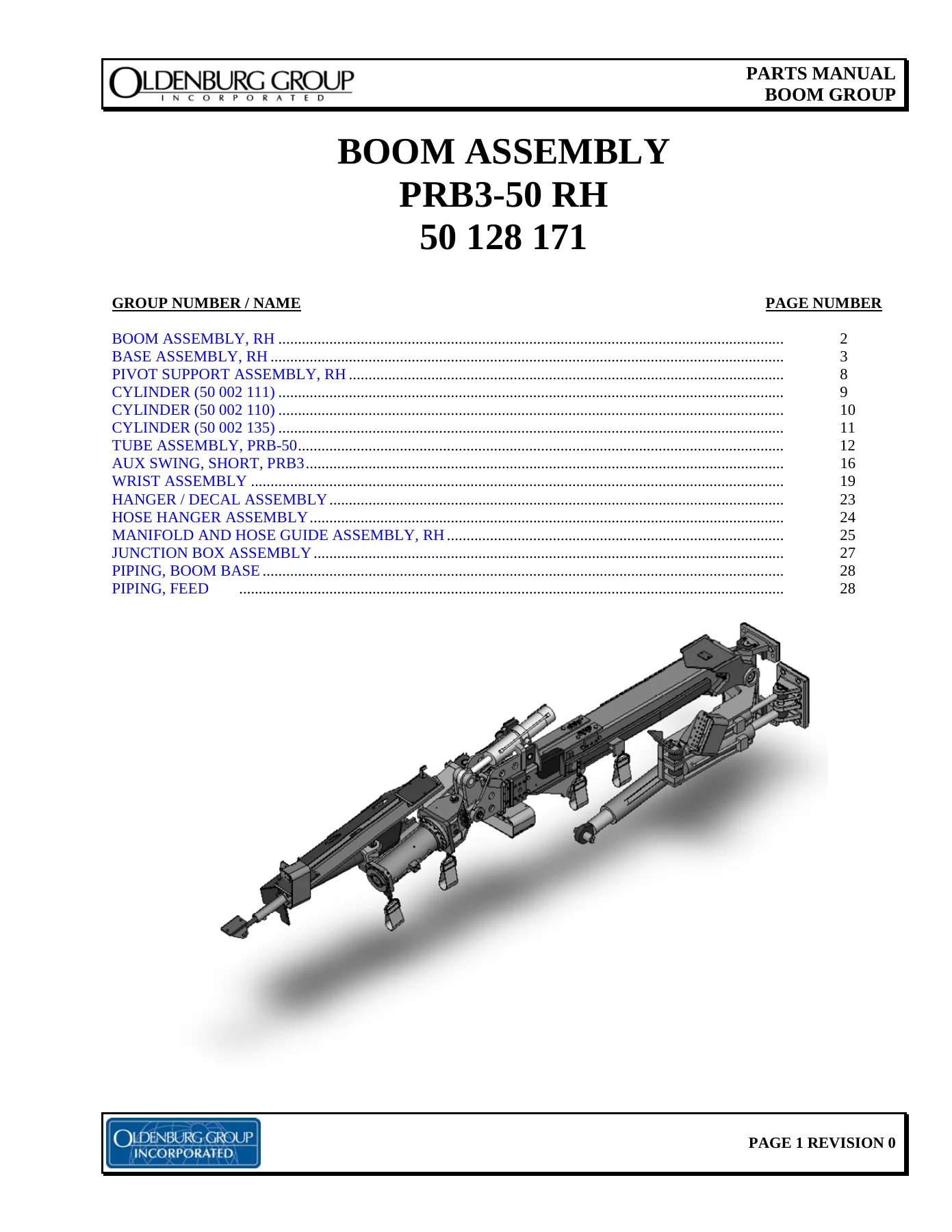

• Boom Assembly PRB3-50 RH (50 128 171) – base assembly RH, pivot support assembly RH, cylinders, tube assembly PRB-50, aux swing short PRB3, wrist assembly, hanger / decal assembly, hose hanger assembly, manifold and hose guide assembly RH, junction box assembly, piping boom base, piping feed
• Boom Assembly PRB-220 LH – boom assembly RH, base assembly LH, boom tube assembly, wrist assembly LH, accumulator assembly, bulkhead assembly LH, boom end bulkhead assembly, swing base bulkhead assembly, feed table bulkhead assembly, misc parts for assembly
• PRB Control Group (70 406 083) – PRB control group, 4 way 8 section valve, feed ext valve assembly, PRB lift IC block, PRB swing IC block
• Feed Group HCF-16 (50 080 015) – feed assembly, hose reel assembly, sheave assemblies, cradle assembly, centralizer assemblies (midpoint and front), hydraulic cylinder, pelletizing parts, centralizer parts, valve plunger assembly

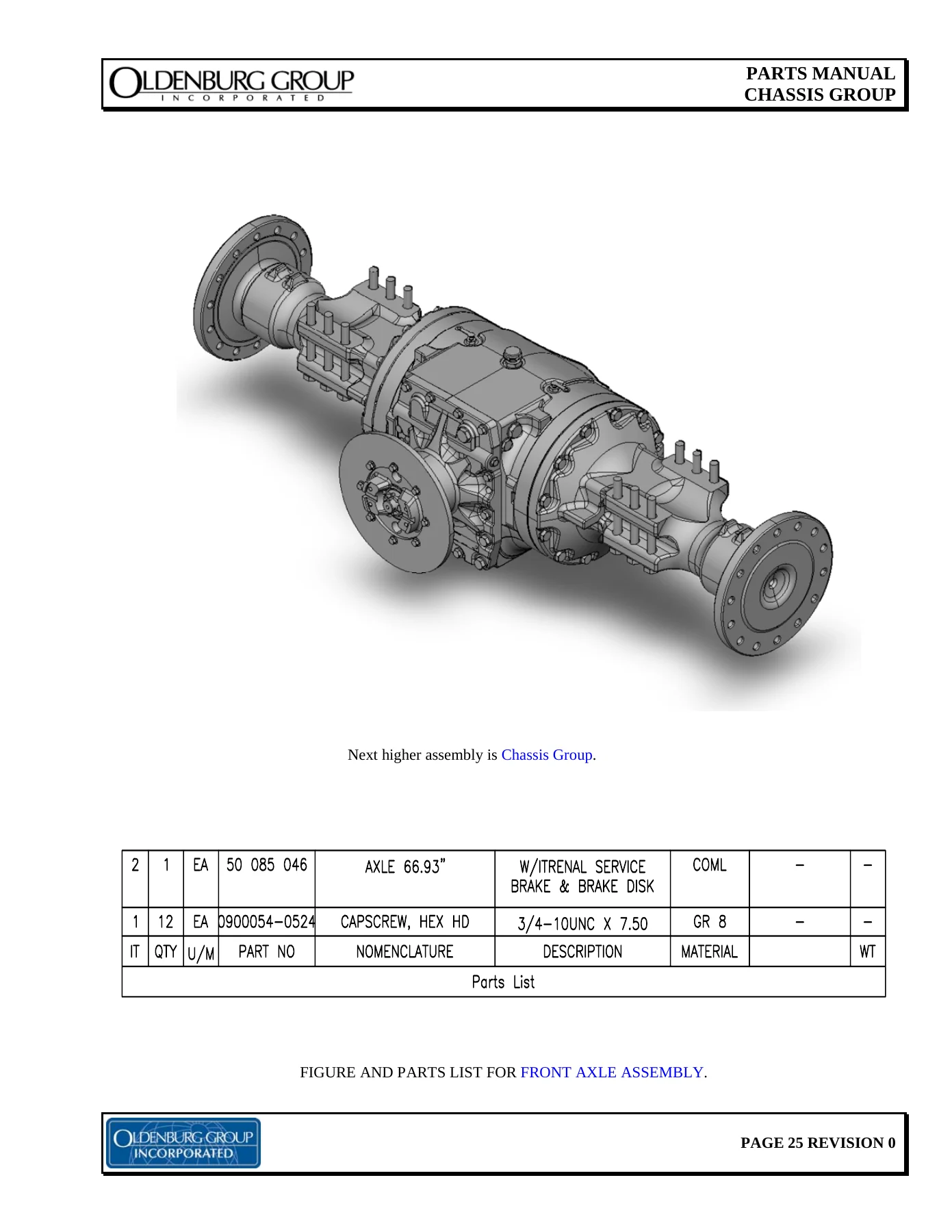

• Chassis Group (83 000 001) – articulation joint assembly, grease manifold, drive shafts and parts, drive shaft assemblies, drop box and parts, tram filter assembly, tram motor and parts, hyd motor, tram lights, steering cylinder and parts, rear axle assembly, front axle assembly, piping tram, brake intensifier assembly, dual brake assembly, piping steering, piping brakes, fender and parts, battery box, cab step assembly, battery assembly with switch, battery switch box assembly, pressure filter, transfer pump assembly, fuel tank assembly, wheel and mounting parts, tire tube and rim
• Deck Assembly Group (83 003 001) – rear deck frame and parts, air compressor and parts, air compressor assembly, compressor, relief valve assemblies, air filter assembly, piping air compressor, water pump and parts, water pump assembly, cable reel and parts, cable reel assembly, bearing assembly, valve assembly, cable guide assembly, water inlet assembly
• Cab Assembly Group (83 004 001) – cab parts, canopy and parts, seat assembly, water / air valve assembly, lubricator assembly, IC feed block assembly, IC feed block, rotation and hammer valve assembly, rotation valve assembly, hammer valve assembly, hydraulic valve cable assembly, boom circuit valves, drill circuit valves, piping runs, controls and parts for jacks, 4 way valve assembly, steering and brake control assembly, wiring and parts, controls and parts for wet brake
• Stabilizer Group (83 005 001) – stabilizer group, stabilizer assembly rear (vert), stabilizer assembly 6 cyl butterfly, cylinder stabjack
• Hydraulic Tank Group (83 006 001) – hydraulic tank group, hydraulic tank assembly, return filter assembly, manifold assembly drains, manifold assembly return
• Drill Light Group (83 007 001) – 24 VDC and 120 VAC light assemblies
• AC Motor Group (83 008 001) – AC motor group, pump assembly 3 section, coupling assembly
• Engine and Pump Group (83 002 003) – engine cover assembly, exhaust assembly, pump drive assembly and pump drive, air cleaner assembly, plumbing assembly, engine assembly, engine skid assembly, cooler assembly, tram pump assembly, piston pump, 3 sec pump assembly
• AC Electrical Group (80 108 009) – hydraulic pump motor switch assembly, emergency shutdown assembly, control cabinet assembly
• DC Electrical Group (80 107 014) – front frame electrical group, tram console external cabling, tram console internal wiring, tram console assembly, miscellaneous cabling, drill console external cabling, drill console assembly, battery switch box assembly, battery and parts, brake control console, rear frame electrical group, rear deck electrical group, rear deck junction box assembly
• Final Assembly Group (80 110 009) – filter change kit, nameplates and labels, miscellaneous tools
• Option Groups – hyd cooler assembly, ANSUL fire suppression, ADS 300 angle indicator, grease system, brake console, receiver and parts, water oil cooler and parts, 10 pound fire extinguisher, dome light kit, anti-stick controls and parts, rotary limit switch kit, ground fault kit

Read end to end, the Oldenburg DPIS-1-HED parts manual is a complete map of the machine. Each group begins with a group index that tells you which page holds which sub-assembly, then each sub-assembly gets its own illustration with numbered balloons matched to a parts listing. Where a component has its own internal repair parts, the listing points you to the next figure rather than leaving you guessing. The result is a document that lets a parts counter or a workshop identify a single O-ring, pin, bushing, cartridge, hose end or weldment by its correct number instead of by description alone.

How the Parts Listings Are Laid Out

Every listing follows the same structure, which makes the manual quick to work with once you know the pattern. The illustration shows the assembly with ballooned index numbers. The corresponding table repeats those index numbers in the ITEM NO. column and adds the quantity required for that assembly, the unit of measure, the part number, the nomenclature and a description. Page footers carry the page number and revision level, so you can confirm you are working from Revision 0 pages throughout.

The manual also uses hypertext links between figures and parts lists in the digital edition, so selecting the blue text in a figure title jumps to the matching parts list and vice versa. Cross references such as For Item 1, see Motor Assembly for Repair Parts appear directly beneath the listings and tell you where a sub-component is broken down further.

Machine Component Reference

For anyone ordering against this manual, the front-of-book registry is worth noting because it fixes the exact build of serial 202770:

• Rotary actuator – Helac 04408104-1649-006
• Drill – Oldenburg Group Incorporated CH38, serial 202709
• Tires, front and rear – Goodyear CY8DW3H90608
• Drive axle, front – John Deere YZ19421 PEAG250243797
• Drive axle, rear – John Deere YZ17331 PEAG250243800
• Drop box – Dana / Spicer 1021388 I-ITA-807593
• Drive pump – Funk YZ280186 RGH9067
• Tram pump – Sauer Danfoss 9422407 A073005906
• Tram motor – Sauer Danfoss 51V080 RSINN074611712
• Diesel engine – Mercedes Benz OM 904 LA, 904.971-00-716945
• Radiator – Indiana Heat Transfer 55047024
• Electric motor – Monarch Hyd. Inc. 902426008
• Air compressor – Sullair Series ES-6, 200801230091

Having those numbers in one place means a component sourced through the original manufacturer can be matched back to the Oldenburg assembly listing, and vice versa.

Practical Use in the Workshop

Parts manuals earn their keep at the bench and at the counter. This one supports the full range of identification work on a DPIS-1-HED: pulling the correct seal kit for a cylinder, matching a bearing or bushing by size rather than by eye, confirming the right capscrew grade and length for a structural joint, identifying a hydraulic cartridge, hose end or adapter by its part number before a hose is made up, and checking the quantity of a fastener required before a joint is reassembled.

It is equally useful during teardown. Because the exploded views show how an assembly comes apart and in what order, they act as a visual reference while components are being cleaned, inspected and laid out. The assembly instructions printed alongside several of the larger figures, including tapered bushing installation and torque sequences for the base assembly, wrist assembly and articulation joint, give the fitter the tightening values and procedure that belong with the hardware being replaced.

For a machine like this, ordering the wrong part is expensive in downtime. A torque figure guessed at, an under-rated capscrew, a seal of the wrong compound, or a hydraulic fitting with the wrong thread all turn a short repair into a repeat failure. Working from the correct part numbers and the correct assemblies removes that risk.

Get Instant Access to the Oldenburg DPIS-1-HED Parts Manual

IMAGES PREVIEW

This Oldenburg DPIS-1-HED Drill Parts Manual 2008 is delivered as an instant PDF download, with no shipping and nothing to wait for. Once payment is complete you can open it straight away on a laptop, tablet or phone in the workshop, or send it to a printer if you prefer a paper copy to work from at the machine. Because the file stays with you, the same serial 202770 reference material is on hand every time a part has to be identified, ordered or checked. Buy the Oldenburg DPIS-1-HED parts manual today and give yourself the illustrated breakdown that matches your machine.
