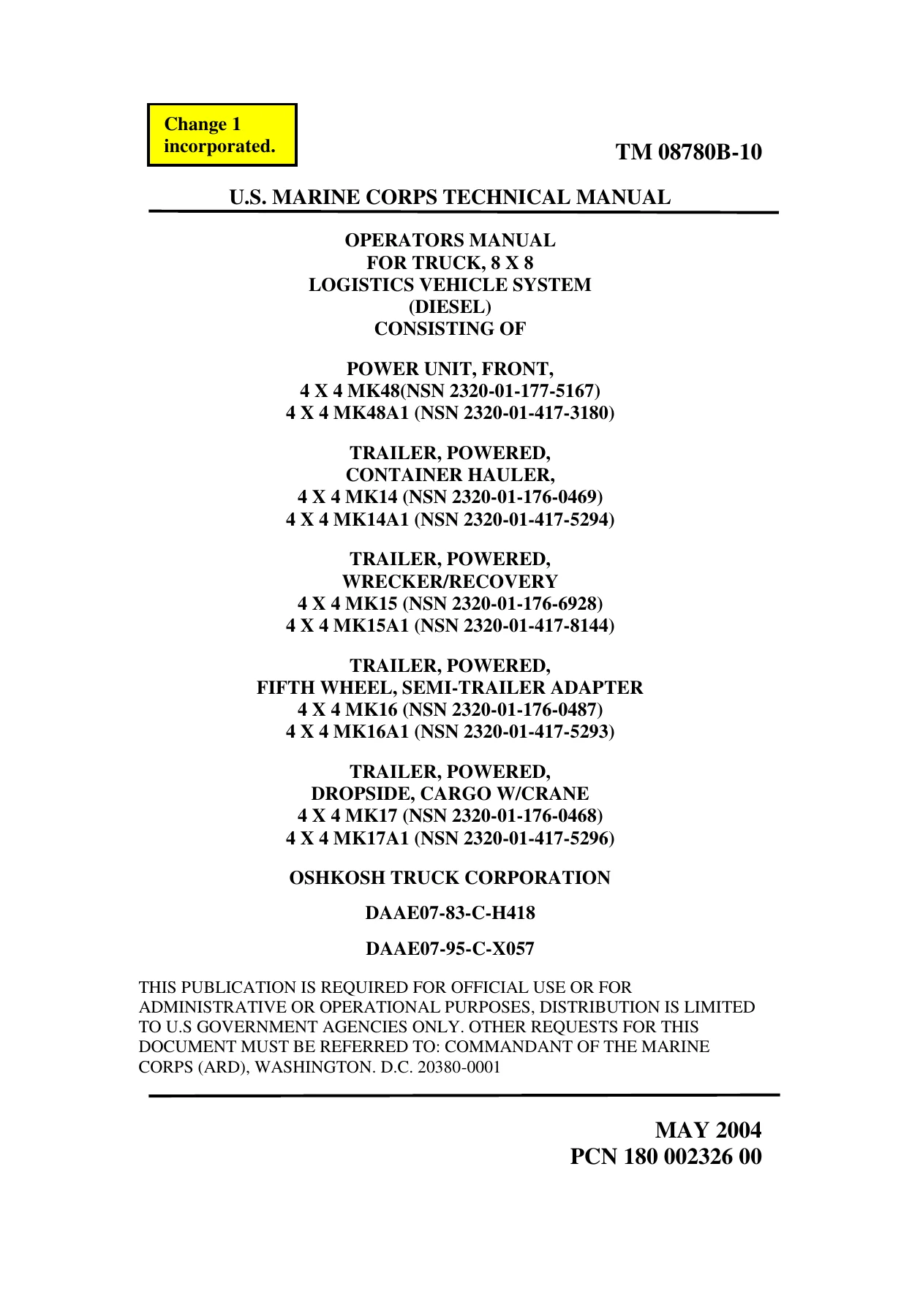

Oshkosh MK48 MK48A1 LVS 8×8 Diesel Operator Manual TM 08780B-10

Operators Manual for Truck, 8×8 Logistics Vehicle System (Diesel)

This is the complete Operators Manual for the Truck, 8×8 Logistics Vehicle System (Diesel) — the Oshkosh LVS series — published as Technical Manual TM 08780B-10. The manual covers the MK48 and MK48A1 Front Power Unit together with all four powered trailers that make up the LVS family: the MK14/MK14A1 Container Hauler, MK15/MK15A1 Wrecker/Recovery, MK16/MK16A1 Fifth Wheel Semi-Trailer Adapter, and MK17/MK17A1 Dropside Cargo with Crane. Every configuration in the series is addressed, and the A1 variants are called out wherever procedures, controls or components differ.

File Details

• Manual type: Operators Manual (operation and operator-level maintenance)
• Equipment: Truck, 8×8 Logistics Vehicle System (Diesel)
• Brand / manufacturer: Oshkosh Truck Corporation
• Document number: TM 08780B-10
• Original date of issue: 31 May 2004
• Change issued: 30 September 2010
• Contract numbers: DAAE07-83-C-H418 and DAAE07-95-C-X057
• Language: English
• Page count: 912 pages
• File format: PDF

Chapters Covered

• Chapter 1 — Introduction
  • Section I — General Information: scope, maintenance forms and records, Report of Maintenance and Unsatisfactory Equipment, warranty information, reference information, nomenclature cross-reference, abbreviations
  • Section II — Equipment Description: general description; MK48/48A1//14/14A1 Container Hauler; MK48/48A1//15/15A1 Wrecker/Recovery; MK48/48A1//16/16A1 Fifth Wheel Semi-Trailer Adapter; MK48/48A1//17/17A1 Dropside Cargo w/Crane; differences between models; equipment data
  • Section III — Technical Principles of Operation: air system, electrical system, hydraulic system, steering system, drive line system
• Chapter 2 — Operation Instructions
  • Section I — Controls and Indicators: for the MK48/48A1 front power unit, MK14/14A1, MK15/15A1, MK16/16A1, MK17/17A1, and the special purpose kits
  • Section II — Preventive Maintenance Checks and Services (PMCS): tables for all vehicles, MK15, MK15A1, MK16, MK17, MK17A1 and special purpose kits
  • Section III — Operation Under Normal Conditions: MK48 operation; operation of vehicle lights; power unit and trailer separation; MK15 crane operation; MK15A1 Material Handling Crane (MHC) operation; MK15/15A1 A-frame lift and tow operations; lift towing the 7-ton truck and the LVSR; MK15/MK15A1 winch operation; MK15 auxiliary hydraulics for tool usage and additional crane usage; MK16/MK16A1 fifth wheel operation; MK16 winch operation; MK17 crane operation; MK17A1 MHC crane operation; cargo side panel and cargo cover kit; ISO/ANSI container loading; cargo tie down rings and ratchet straps; run flat and sand tire kits; rear body tow unit; extended and standard pintle operation; machine gun platform and hatch; M870/M870A1 trailer kit
  • Section IV — Operation Under Unusual Conditions: extreme cold weather; hot weather; rough or unusual terrain; fording operations; emergency operating procedures; front flat towing; flat towing the 7-ton truck

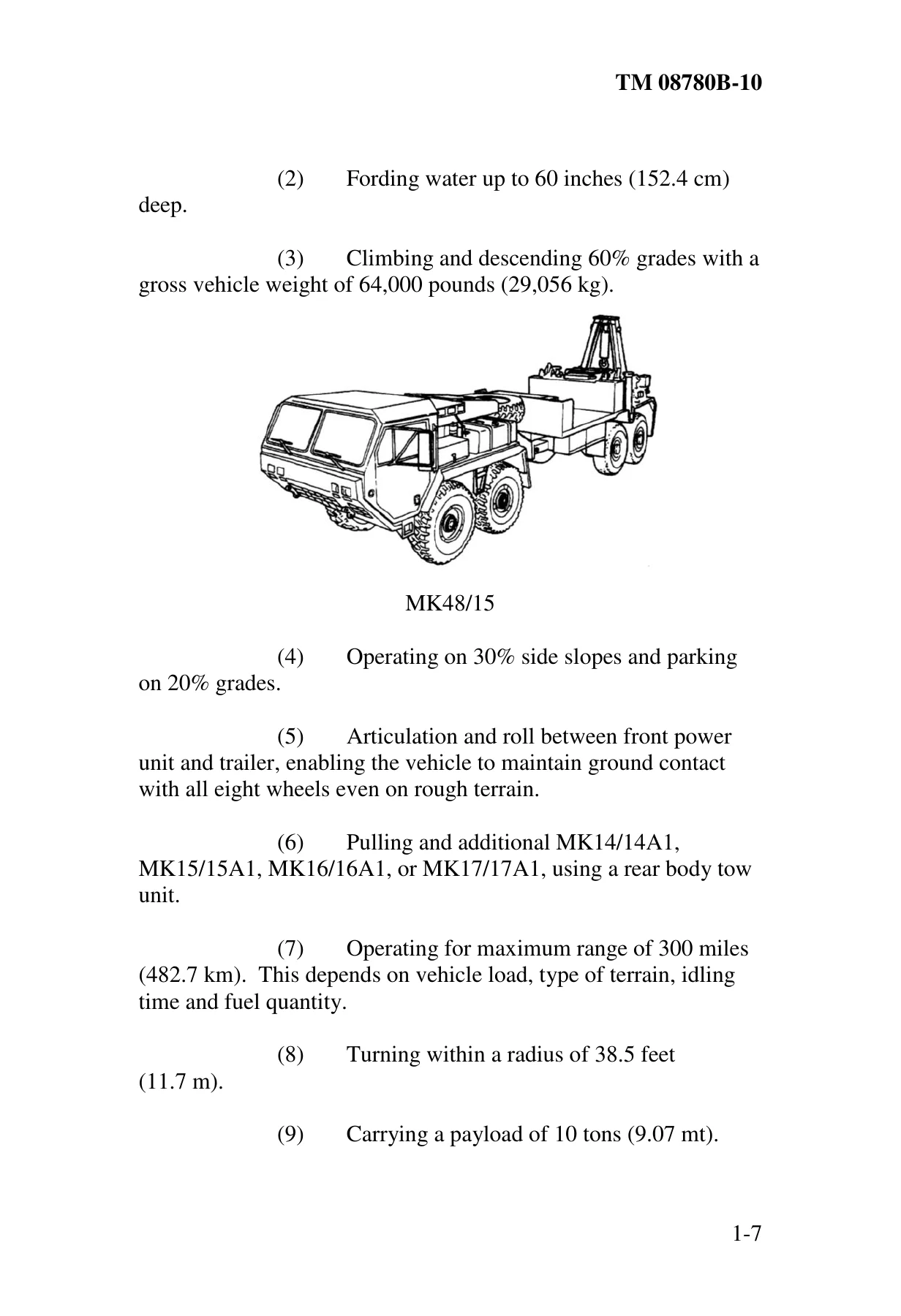

  IMAGES PREVIEW







• Chapter 3 — Maintenance Instructions
  • Section I — Lubrication Instructions
  • Section II — Troubleshooting Procedures (with Symptom Index)
  • Section III — Maintenance Procedures: tire inflation; draining air reservoirs; cleaning the vehicle; purging air from the hydraulic jack; changing wheel and tire assembly; fuel tank strainer service; battery service; fifth wheel and fifth wheel ramp service
• Appendices
  • Appendix A — References
  • Appendix B — Components of End Item and Basic Issue Items Lists
  • Appendix C — Additional Authorization List
  • Appendix D — Expendable/Durable Supplies List
  • Appendix E — Stowage and Sign Guide
  • Index

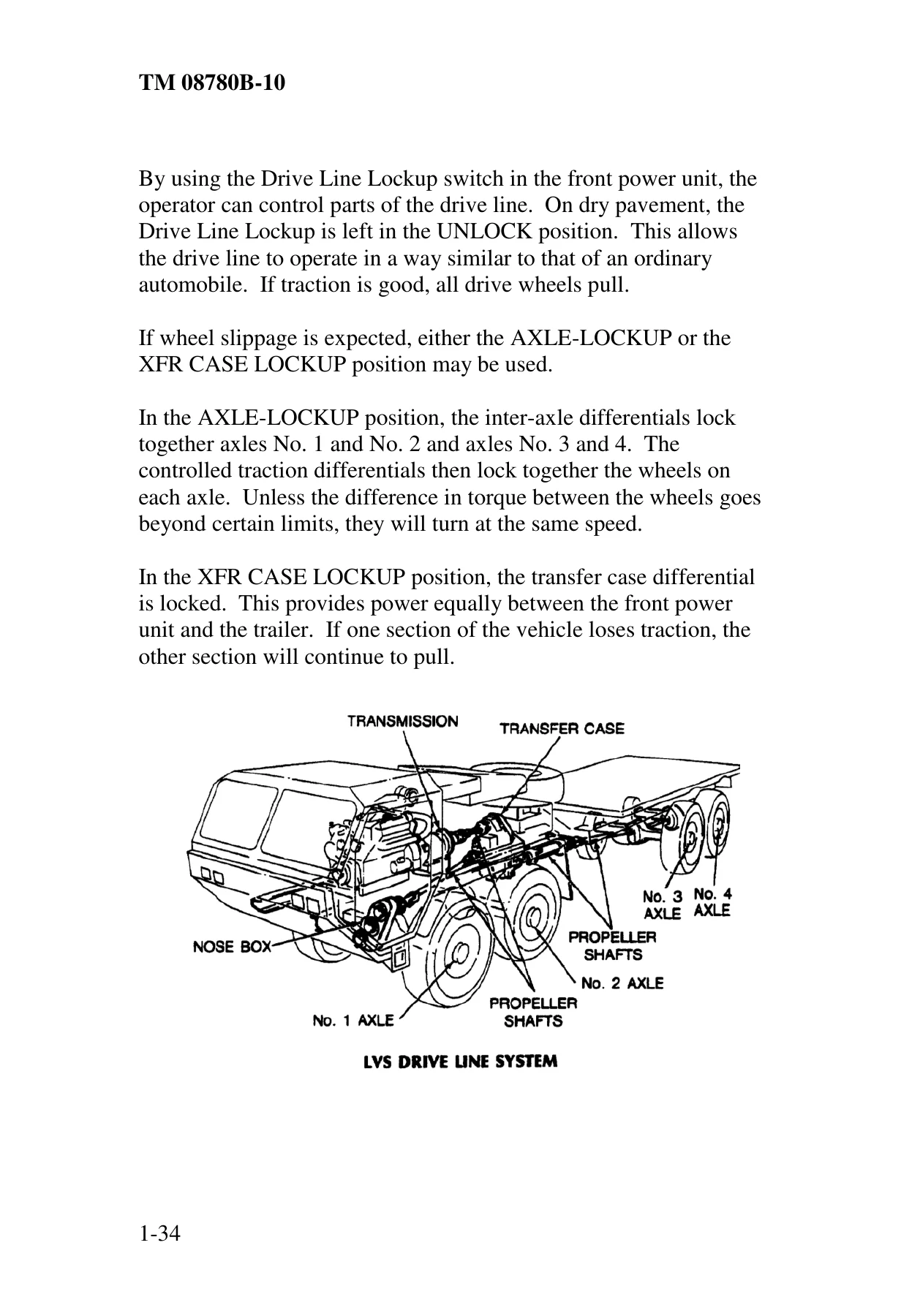

The real value of TM 08780B-10 is that it treats the LVS as a system, not a collection of unrelated parts. Chapter 1’s Technical Principles of Operation builds the context behind every procedure that follows — how the air system splits into a front cab section and a rear trailer section and what the low-air buzzer actually signals, how the 24-volt negative-ground electrical system is arranged across four 12-volt batteries in series-parallel, how the engine-driven tandem hydraulic pump feeds front-axle steering, the yaw cylinders, the fan motor and the auxiliary equipment through a two-position selector valve, and how the transfer case sends power to both the No. 1 axle of the power unit and the No. 3 axle of the trailer. With that groundwork in place, the operating chapters read as real procedure rather than guesswork.

The PMCS tables are where the manual earns its keep day to day. Table 2-1 runs the walk-around checks common to every LVS, then Tables 2-2 through 2-7 add the model-specific items — the MK15 wrecker’s A-frame and recovery winch, the MK15A1 material handling crane, the MK16 fifth wheel and 60,000 lb winch, the MK17 and MK17A1 crane and dropside cargo body, and every special purpose kit that may be fitted (machine gun mount, extended pintle, rear body tow unit). The interval codes — Before, During, After, Weekly, Monthly — make it straightforward to build a maintenance routine that matches the vehicle as it is actually equipped.

What This Operator Manual Enables You To Do

Start, drive and shut down the MK48 correctly, including cold-weather starting with the ether quick-start system and priming the fuel system after it runs dry. Use the Drive Line Lockup control properly — UNLOCK for normal driving, AXLE LOCKUP or XFR CASE LOCKUP for slippery ground — and understand when each setting is appropriate. Operate the vehicle lights across all five positions of the main lighting switch. Separate the front power unit from its trailer safely and recouple it again, with the correct installation and removal of the suspension lockout struts. Run the MK15 recovery winch with the side-pull relief valve set for straight or angled pulls. Deploy and stow the MK15 wrecker’s A-frame, stabilizers, outriggers and folding boom. Operate the MK15A1 and MK17A1 Material Handling Cranes from either the manual control panel or the remote unit, and use the range and load charts to keep within rated capacities. Operate the MK16 fifth wheel in fully locked, fully oscillating or half-oscillation mode and know which mode each terrain calls for. Fold down and remove MK17 side panels, install the cargo cover kit, and lock ISO/ANSI containers down using the fixed cargo bed locks, portable lock assemblies and pallet stacking locks. Rig the rear body tow unit, extended pintle and M870/M870A1 trailer kit. Prepare the vehicle for fording, operate in mud, sand, snow and extreme heat, and cage the spring brake chambers if the air system fails. Diagnose common faults using the troubleshooting symptom index, and carry out operator-level maintenance including tire pressure work, wheel and tire changing with the spare tire hoist, hydraulic jack operation, fuel tank strainer cleaning and both battery service procedures.

Safety and Warning Content

The manual opens with a consolidated warning summary and repeats specific cautions at the point of use throughout. Topics covered include carbon monoxide, articulation joint movement with the engine running, parking brake and service brake use, winch cable handling, crane operation near power lines, outrigger and stabilizer crush hazards, tire trajectory and lock-ring safety, battery acid, fuel handling, hot exhaust and cooling system burns, and the reduced steering effect if hydraulic pressure is lost. These are not decorative notices — they are the practical guardrails for operating an articulated 8×8 vehicle with cranes and winches aboard.

Why Operators Keep This Manual On Hand

The LVS is an articulated, eight-wheel-drive vehicle with a material handling crane, recovery winch, hydraulic A-frame, air-over-hydraulic brakes and a yaw steering system that turns the front power unit independently of the trailer. Getting any one of those wrong — lockup selection, articulation lockout struts, trailer air supply valve, outrigger deployment, spring brake caging — carries real consequences for the vehicle and the crew. TM 08780B-10 gives the operator the correct sequence, the correct readings and the correct limits in one place, exactly as Oshkosh Truck Corporation and the issuing authority intended them to be used. For anyone running, recovering or maintaining an MK48-series LVS, this is the reference the vehicle was built around.

Get Instant Access

The Operators Manual for the Oshkosh MK48/MK48A1 Logistics Vehicle System (Diesel), TM 08780B-10, is delivered as a PDF download immediately after purchase — no shipping, no waiting. Read it on a laptop, tablet or phone, search the section you need, and print whichever PMCS table, load chart or procedure page you want to keep in the cab. Whether you are preparing a vehicle for a mission, recovering a disabled LVS, running the MK17 crane on a supply run or simply keeping the daily PMCS up to date, this operator manual puts the manufacturer’s own instructions in your hands.
