Philips Practix Convenio Mobile X-Ray System Service Manual (2005)

Description

Philips Practix Convenio Mobile X-Ray System Service Manual (2005)

This Philips Practix Convenio mobile X-ray system service manual is a 243-page technical reference built for biomedical engineers and field technicians who install, adjust, troubleshoot, and repair this battery-powered mobile radiography unit. Identified internally as PMS 12NC 4512-988-00631 REV AA, the document was issued on September 30, 2005 and compiles the full nine-part service structure Philips built the machine’s support documentation around, from first unpacking to component-level repair.

File Details

• Manual type: Service Manual
• Brand / Model: Philips Practix Convenio
• Document number: PMS 12NC 4512-988-00631, Rev AA
• Revision date: September 30, 2005
• Language: English
• Page count: 243 pages
• File format: PDF, instant digital download

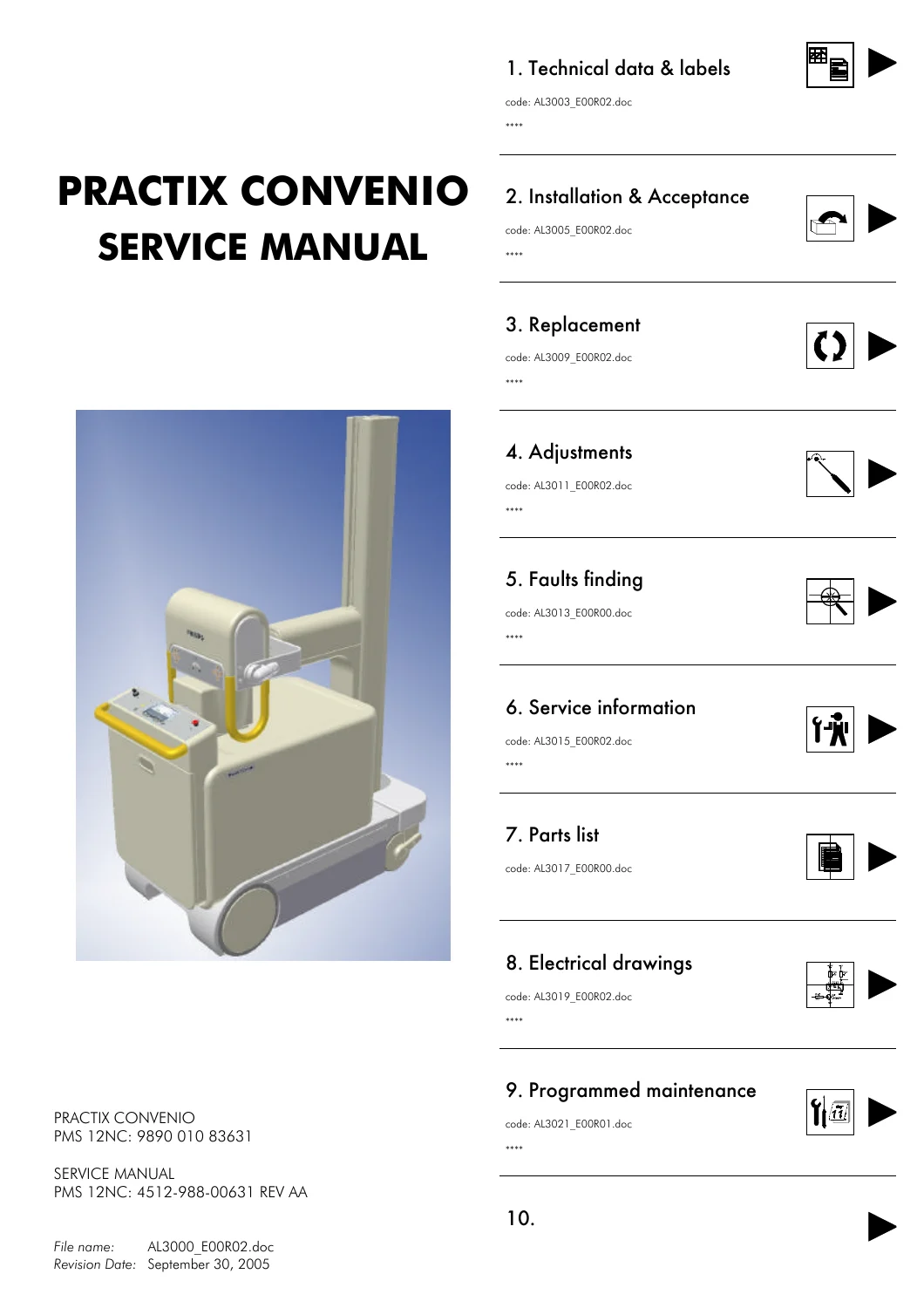

Chapters Covered

• Technical Data & Labels – Description, applications, versions/configurations, environmental data for shipment and standard use, electrical, functioning and radiological data, tube-housing group, collimator, monobloc-collimator assembly, mechanical data, transport handle, bumper, unit sizes, batteries and battery charger, accessories and options, compliance with directives, labels and symbols
• Installation & Acceptance – Installation, preparation to operate, electrical functionality tests (no x-rays), tube preparation, unit configuration
• Replacement – Introduction, removal of the covers, replacements of the electrical parts, replacements of the mechanical parts
• Adjustments – Unit configuration, electrical adjustments, mechanical adjustments
• Faults Finding – Identification/layout of components, guidance to the faults removal, topographics, components description
• Service Information – Service information checklist, service tools, user’s interface, switching-on & start up, functioning, driving & charging mode, application mode, utility & service mode, communication with the unit, software updating, emergency release of the motor brake, accessories & optionals
• Parts List
• Electrical Drawings – Drawings list, mnemonic initials of components, assembly view
• Programmed Maintenance – Notes, planned maintenance sheet

Taken together, this Practix Convenio service manual gives a technician everything needed to bring the unit from unpacking through full operational acceptance, then keep it running long-term: electrical and radiological test data to verify generator performance, cover-removal and parts-replacement procedures down to individual electrical and mechanical assemblies, adjustment routines for both electrical circuits and mechanical linkages, a structured fault-finding path built around component topographics, wiring references for tracing control and power circuits, and a planned-maintenance sheet for scheduling recurring service visits.

Technical Depth

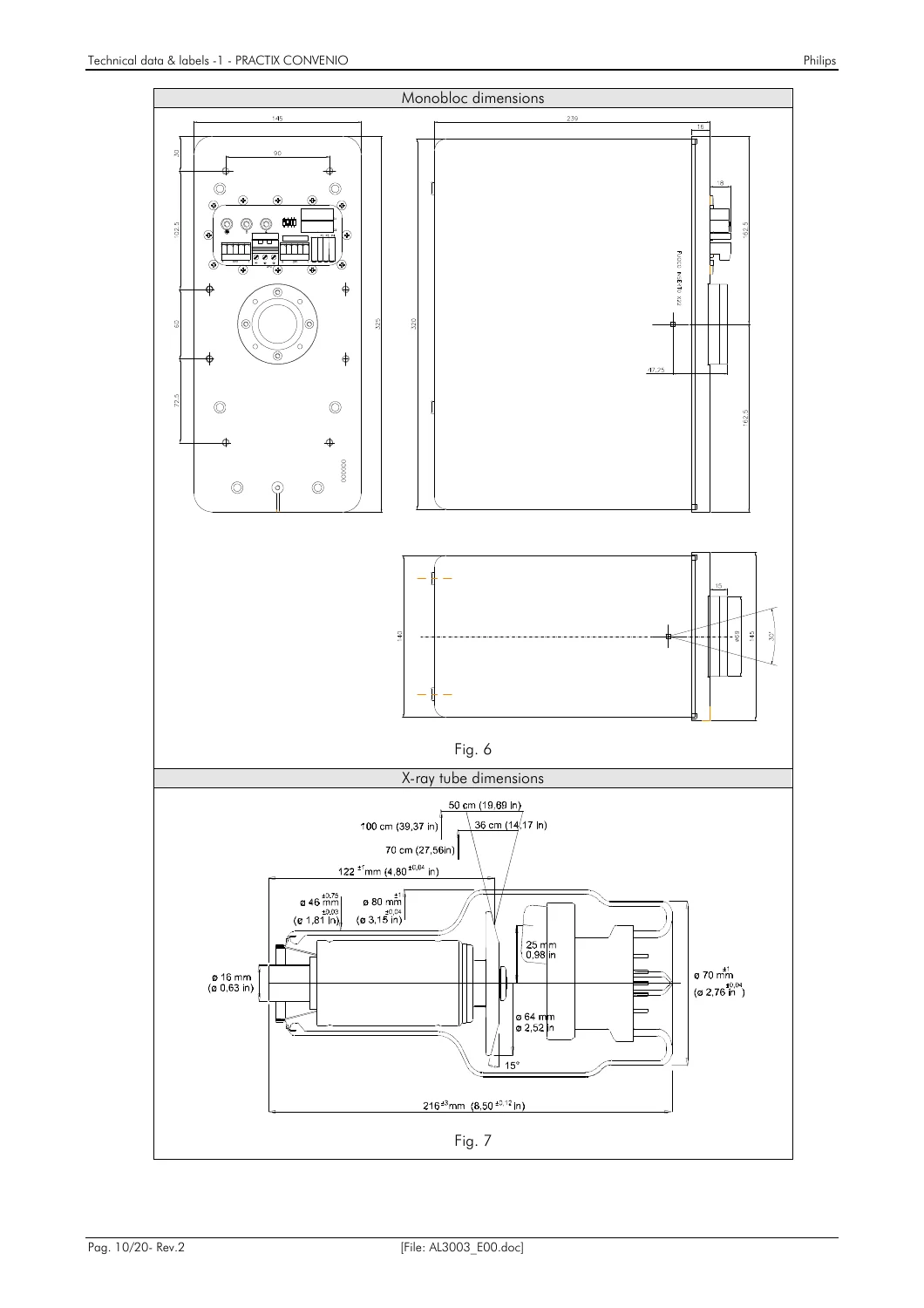

The Philips Practix Convenio is a self-contained mobile motorized x-ray system, independent of the mains, aimed at operating theater, sports medicine, plaster room, first aid, pediatric, and orthopaedic applications. It runs on a high-frequency generator rated at 20kW continuous DC (200mA at 100kV for 0.1s) with a 30kW peak (300mA at 100kV for 25ms), covering a kV range of 40 to 125kV in 1kV steps and an mAs range of 0.1 to 320mAs. The Philips Practix Convenio service manual documents the PSM HF1/R7 monobloc housing an IAE X22 0.8 x 1.3 focus x-ray tube (125kV max, 300mA max, 600kJ thermal capacity), the Ralco R232 manual collimator with a 43x43cm field covering at 1m DFF, and the 144V/30Ah Sonnenschein VRLA battery pack (12 elements in series) that powers the unit’s motorized trolley and generator.

IMAGES PREVIEW

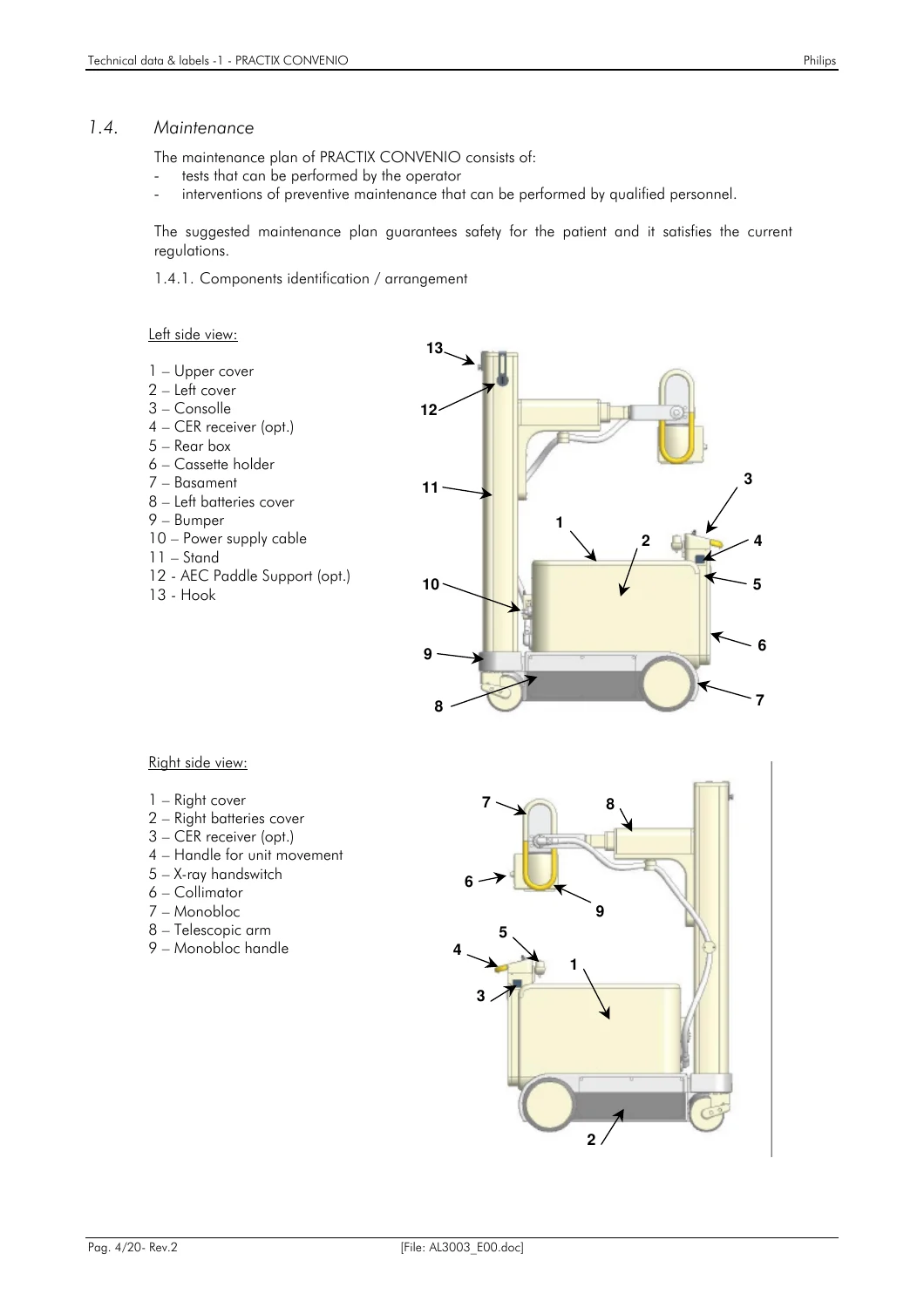

Mechanical data in this Practix Convenio manual covers the trolley’s ±180° arm rotation, ±315° column rotation, 350mm telescopic arm travel, motorized drive speeds up to 5km/h, and an 8-cassette holder for 35x43cm cassettes. The manual’s adjustment chapter separates electrical adjustments from mechanical adjustments, while the faults-finding chapter organizes troubleshooting around unit topographics and detailed component descriptions rather than a generic symptom list — useful when isolating a fault to a specific board or subassembly on the actual machine in front of you.

Why This Service Manual Matters

Working from documented values instead of guesswork matters on equipment like the Practix Convenio: tube seasoning procedures after idle periods of three months or more, thermal safety thresholds (57°C ±3°C thermal switch on the monobloc), battery discharge limits (max 40% for traction use, max 50% for impulsive loads), and generator calibration tolerances are all specific to this monobloc and chassis combination. This Philips Practix Convenio service manual puts those exact figures, test sequences, and replacement steps in one place, whether the job is a scheduled preventive maintenance visit under the programmed maintenance chapter, a fault-finding call using the topographics and component description sections, or a full electrical or mechanical parts swap following the replacement chapter’s step-by-step procedures.

This is a digital PDF download of the Philips Practix Convenio mobile X-ray system service manual — there is no physical item shipped. After purchase, the file is available for instant download and can be viewed, searched, or printed from any computer, tablet, or phone, giving your service team immediate access to the full Practix Convenio documentation on the shop floor or at the point of care.
