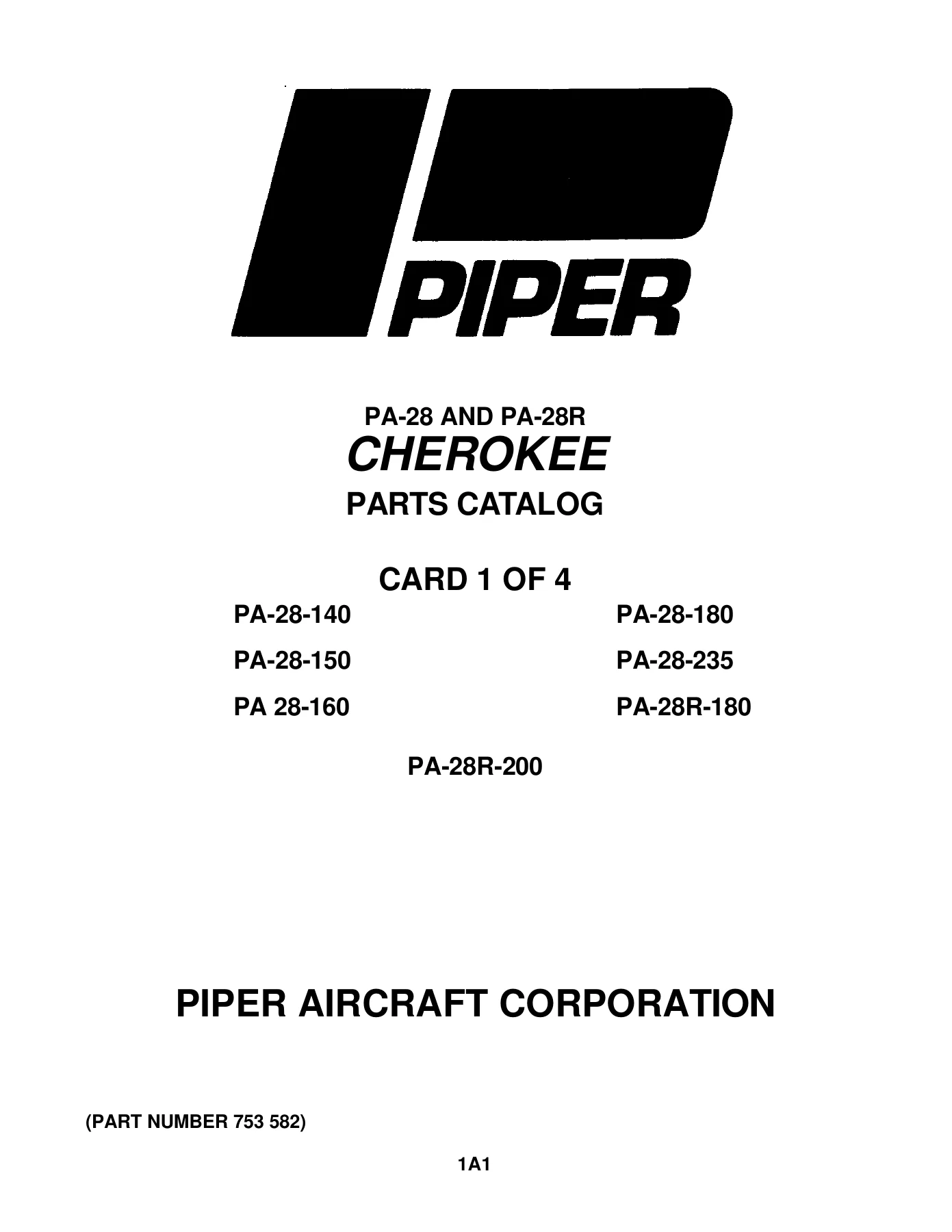

Piper PA-28 & PA-28R Cherokee Series Aircraft Parts Catalog (P/N 753 582)

Description

Piper PA-28 & PA-28R Cherokee Series Aircraft Parts Catalog (P/N 753 582)

The Piper PA-28 & PA-28R Cherokee Series Aircraft Parts Catalog (P/N 753 582) is the essential illustrated reference guide produced by Piper Aircraft Corporation for the positive identification and ordering of replacement airframe, chassis, control, cabin, and system components. Whether you are maintaining a flight-training PA-28-140 Cherokee, an cross-country PA-28-180 Cherokee Archer predecessor, a heavy-hauling PA-28-235, or a retractable-gear PA-28R-180 or PA-28R-200 Cherokee Arrow, this parts manual delivers clear exploded-view diagrams paired with exhaustive alphanumeric part listings, production quantities, and serial-number applicability splits.

File Details

• Manual Type: Illustrated Parts Catalog (IPC)
• Brand: Piper Aircraft Corporation
• Applicable Models: PA-28-140, PA-28-150, PA-28-160, PA-28-180, PA-28-235, PA-28R-180, and PA-28R-200 Cherokee Series
• Publication Part Number: 753 582 (Card 1 of 4, Aerofiche Format)
• Original Issue Date: August 16, 1973
• Revision Status: Includes Revisions through May 1980 and Interim Revision dated February 1995
• Language: English
• Page Count: 830 pages
• File Format: PDF Download

Comprehensive Model & Serial Number Coverage

This volume provides exact engineering serial breakdowns across decades of Cherokee production, detailing precise sub-assembly changes and airframe modifications across the following series:

• PA-28-140 Cherokee: Serial numbers 28-20002 through 28-24999; Cherokee ‘B’ 28-25000 to 28-26400; Cherokee ‘C’ 28-26401 to 28-26956; Cherokee ‘D’ 28-7125001 to 28-7125651; Cherokee ‘E’ 28-7225001 to 28-7225612; 1973 models 28-7325001 to 28-7325684; 1974 models 28-7425001 to 28-7425454; 1975 models 28-7525001 to 28-7525350; 1976 models 28-7625001 to 28-7625234; and 1977 models 28-7725001 to 28-7725290 (including Flite Liner trainers).
• PA-28-150 & PA-28-160 Cherokee: 1961 models 28-1 to 28-84; 1962 models 28-85 to 28-670; Cherokee ‘B’ models 28-725 to 28-1760; Cherokee ‘C’ models 28-1761 to 28-4377.
• PA-28-180 Cherokee: Cherokee ‘B’ 28-671 to 28-1760; Cherokee ‘C’ 28-1761 to 28-4377; Cherokee ‘D’ 28-4378 to 28-5600; Cherokee ‘E’ 28-5601 to 28-5869; Cherokee ‘F’ 28-7105001 to 28-7105244; Cherokee ‘G’ 28-7205001 to 28-7205328; 1973 models 28-7305001 to 28-7305611 (and special serial 28-E13); 1974 models 28-7405001 to 28-7405290; and 1975 models 28-7505001 to 28-7505261 (including float-equipped PA-28S-180).
• PA-28-235 Cherokee: Straight models 28-10003 to 28-10719; Cherokee ‘B’ 28-10720 to 28-11039; Cherokee ‘C’ 28-11040 to 28-11300; Cherokee ‘D’ 28-11301 to 28-11393; Cherokee ‘E’ 28-7110001 to 28-7110042; Cherokee ‘F’ 28-7210001 to 28-7210033; 1973 models 28-7310001 to 28-7310187 (and 28-E11); 1974 models 28-7410001 to 28-7410120; 1975 models 28-7510001 to 28-7510145; 1976 models 28-7610001 to 28-7610206; and 1977 models 28-7710001 to 28-7710089.
• PA-28R-180 & PA-28R-200 Cherokee Arrow: PA-28R-180 serials 28R-30005 to 28R-30481, 28R-30483 to 28R-31279; PA-28R-180 Cherokee ‘B’ 28R-7130001 to 28R-7130019; PA-28R-200 serials 28R-30482, 28R-35001 to 28R-35830; PA-28R-200 Cherokee ‘B’ 28R-7135001 to 28R-7135238; and PA-28R-200 Cherokee Arrow II serials 28R-7235001 through 28R-7635545.

Catalog Organization & Parts Breakdown Structure

Every sub-assembly in the Piper PA-28 and PA-28R Parts Catalog is mapped using high-clarity engineering line drawings cross-referenced against standardized parts tables. Entries are organized using the standard Piper column layout:

IMAGES PREVIEW

• Figure and Index Number: Direct callout indexing every nut, bolt, skin, spar, rib, bracket, and line from drawing to table.
• Part Number: Exact factory identifying numbers required for official part sourcing, orders, and logs.
• Code: Identifies procurement source (‘W’ items originating from Lock Haven, non-coded items from Vero Beach) as well as model-specific applicability notes.
• Nomenclature: Clear part names arranged in strict indentation hierarchy (showing assembly, sub-assembly, and detail component relationships).
• No. Req.: Total quantity needed per assembly or per aircraft installation.
• Serial Numbers Affected: Pinpoint applicability by aircraft serial number to prevent misordering across model years and design updates.
• Attaching Parts: Full AN and MS commercial standard hardware listings (screws, bolts, washers, elastic stop nuts) displayed immediately beneath the assemblies they secure.

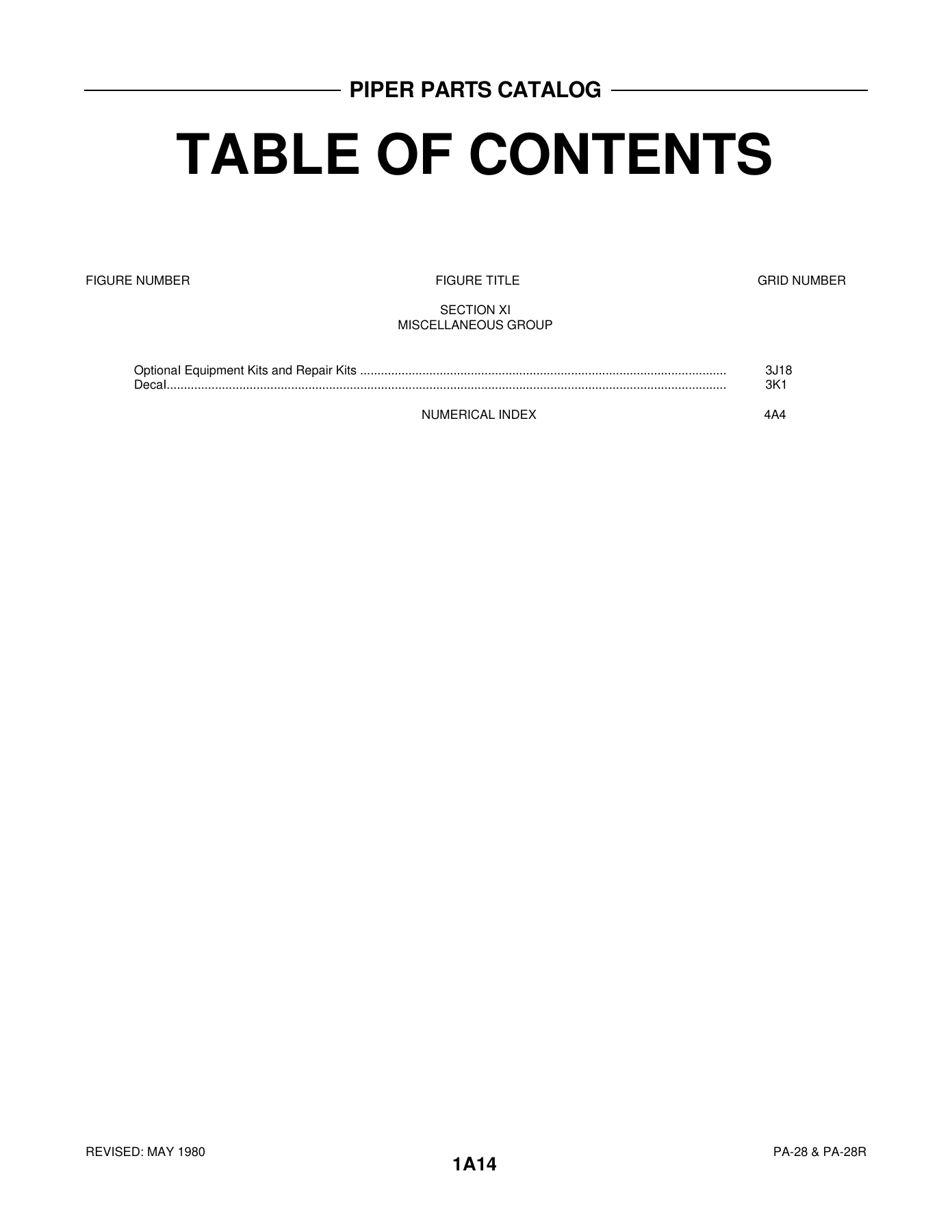

Chapters Covered

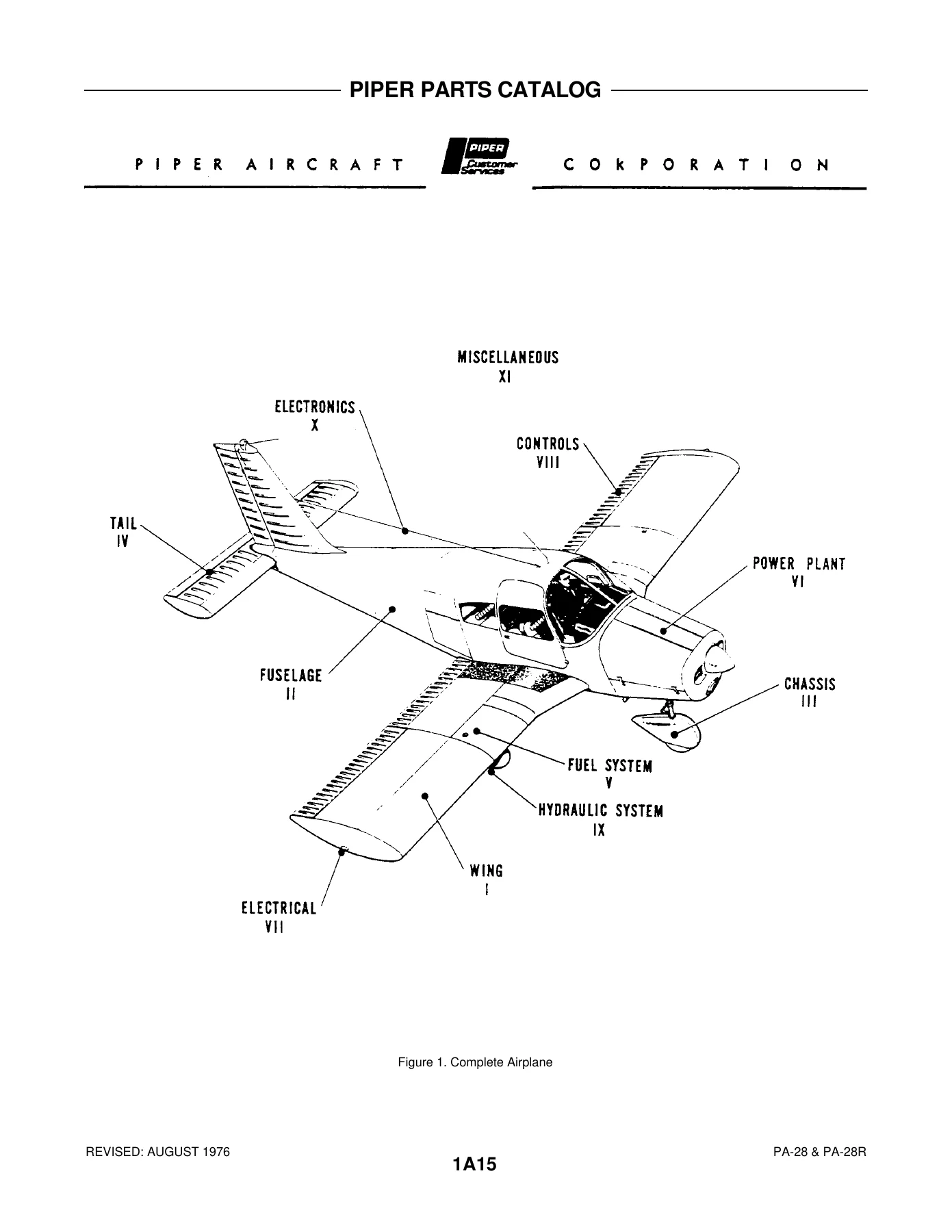

The catalog structure encompasses the entire aircraft across eleven defined sections, featuring illustrated breakdowns and parts lists across the primary airframe and systems groups:

• Section I — Wing Group: Wing Installation (PA-28-140/150/160/180/235 & PA-28R-180/200), Wing Leading Edge Assembly, Wing Trailing Edge Assembly (Fixed Gear), Wing Trailing Edge Assembly (Retractable Gear Arrow), Aileron Assembly, Flap Assembly.
• Section II — Fuselage Group: Complete Fuselage Assembly (Early serials 28-1 to 28-4377, 28-10003 to 28-11039, 28-20002 and up), Complete Fuselage Assembly (Later serials 28-4378 to 28-7505261, 28-11040 and up, 28R Series), Upper Forward Cockpit Assembly (Fixed Gear), Upper Forward Cockpit Assembly (Arrow Series), Upper Center Cockpit Assembly, Lower Forward Cockpit Assembly, Lower Aft Cockpit Assembly, Fuselage Aft Section, Instrument Panel Installation (Early Models), Instrument Panel Installation (Later Center-Stack Models), Vacuum System Installation (Early & Late Variations), Pitot-Static System Installation, Cabin and Baggage Doors, Cockpit Finishing & Enclosures, Seats & Vertically Adjustable Front Seats, Cabin Heat, Defroster, Fresh Air Ventilation, and Environmental Systems (including Air Conditioning Compressor, Lines, Evaporator, and Condenser installations).
• Section III — Chassis Group: Fixed Nose Gear Installation & Strut Assembly, Retractable Nose Gear Installation & Assembly (PA-28R), Cleveland and McCauley Nose Wheel Assemblies, Main Gear Installation (Fixed & Retractable), Main Wheel & Brake Assemblies, Landing Gear Doors & Actuation Brackets, Wheel Fairings (Speed Fairings), Strut Fairings, Hand Brake & Toe Brake Master Cylinder Installations, and PA-28S-180 EDO Float Installation.
• Section IV — Tail Surfaces Group: Tail Surfaces Installation, Vertical Fin Assembly, Rudder Assembly, and Stabilator Assemblies (both balanced early models and later wide-chord configurations).
• Section V — Fuel System Group: Fuel System Installations, Plumbing, Strainers, and Tank Assemblies for PA-28-140, PA-28-150/160/180, PA-28R Arrow, and PA-28-235 (including main and auxiliary wing tip tanks).
• Section VI — Power Plant Group: Engine Mounts and Power Plant Installations, Throttle/Mixture/Carb Heat Engine Controls, Exhaust Systems, Engine Baffling, Engine Cowlings, and Propeller Installations (Fixed Pitch, McCauley, and Hartzell Constant Speed).
• Section VII — Electrical System Group: Main Electrical Installations, Air Conditioning Harnesses, Instrument Panel Wiring, Chrysler and Prestolite Alternator Assemblies, External Power Receptacles, Battery Installations, and Strobe Lights.
• Section VIII — Control System Group: Primary Flight Controls, Flap Controls, Overhead & Console Stabilator Trim, Rudder Trim, Control Wheels, Control Columns, and Rudder Pedal Linkages.
• Section IX — Hydraulic System Group: Hydraulic Power Pack, Reversing Pump, Actuating Cylinders, Emergency Extension Valves, and High-Pressure Lines (PA-28R-180/200).
• Section X — Electronics Group: Autopilot System Installations (AutoFlite, AutoFlite II, AutoControl I, II, III, and IIIB), Piper PRC-4 AutoNav, PTR-1 Radios, Narco Avionics, Encoding Altimeters, Marker Beacons, ELT Locator Installations, and Radio Junction Boxes.
• Section XI — Miscellaneous Group: Optional Equipment Kits, Factory Repair Kits, Decals, and Special Maintenance Service Tools.

Together, these sections give A&P technicians, IA inspectors, aircraft restorers, and Piper Cherokee owners an authoritative, factory-accurate parts reference that eliminates guesswork when identifying structural components, tracing flight control pulleys, verifying instrument placards, or replacing damaged landing gear hardware.

Exterior Paint Formulation Reference

For authentic period restorations and matching touch-ups, this catalog incorporates the original factory standard paint chart covering both exterior enamels and acrylic lacquers. It provides official Piper quart and gallon part numbers for classic Cherokee schemes including Daytona White, Bahama Blue, Phoenix, Portland Green, Pontiac Red, El Paso Brown Metallic, Tampa Green Metallic, Newport Blue Metallic, Monterey Maroon, Juneau White, Lakeland Blue, Orlando Green, Mocha Tan, Denver Brown, Madrid Red, Dakota Black, Bimini Turquoise, Reno Gold, Las Vegas Gold, and Avocado.

Why This Parts Manual Matters for Your Piper Cherokee

Maintaining airworthiness and expediting aircraft annual inspections depends on installing the exact components specified in the type certificate data sheet and factory catalog. Using this Piper PA-28 & PA-28R Cherokee Series Parts Catalog guarantees you can cross-reference superseded part numbers, locate proper AN/MS attaching hardware, and verify airframe changes across serial number splits before ordering expensive aviation spares.

This manual is provided as an instant PDF download, eliminating shipping delays so you can begin sourcing parts immediately. Fully viewable on iPads, tablets, desktop computers, or workshop laptops, you can zoom into fine mechanical schematics or print high-contrast reference sheets directly at your hangar bench.
