Piper PA-44-180 Seminole & PA-44-180T Turbo Seminole Maintenance Manual (P/N 761-664)

Description

Piper PA-44-180 Seminole & PA-44-180T Turbo Seminole Maintenance Manual (P/N 761-664)

This technical publication serves as the official Instructions for Continued Airworthiness (ICA) prepared in accordance with Federal Aviation Regulations (FAR) Part 23, Appendix G, and General Aviation Manufacturers Association (GAMA) Specification No. 2. The Piper PA-44-180 Seminole & PA-44-180T Turbo Seminole Maintenance Manual (P/N 761-664) delivers an authoritative, comprehensive technical resource engineered specifically for licensed aircraft maintenance technicians, repair stations, and twin-engine aircraft operators managing the inspection, servicing, and airframe maintenance of naturally aspirated and turbocharged Piper Seminole models.

File Details

• Manual Type: Airplane Maintenance Manual (Instructions for Continued Airworthiness)
• Brand & Model: Piper Aircraft Corporation / Piper Aircraft, Inc. PA-44-180 Seminole & PA-44-180T Turbo Seminole
• Part Number: 761-664 (P/N 761 664)
• Revision Status / Publication Date: Revision PR120415, Dated April 15, 2012
• Language: English
• Page Count: 923 pages
• File Format: Portable Document Format (PDF)

Airframe Limitations & Periodic Inspection Programs

Airworthiness compliance begins with Chapter 4 (Airworthiness Limitations), outlining mandatory FAA-approved replacement times and structural fatigue limits under FAR §§ 43.16 and 91.403. This includes the mandatory 14,663 flight hour life limit established for the wing, wing carry-through, spar box assembly (P/N 86286-002), left/right nacelle assemblies, and associated attachment hardware. In Chapter 5, the manual establishes thorough recurring maintenance schedules covering 50-hour and 100-hour / annual inspection cycles across all aircraft systems, including propeller groups, counter-rotating Lycoming powerplants, cabin furnishings, flight controls, fuselage structures, wings, and landing gear assemblies.

Special inspection programs provide precise intervals for critical hardware: wing flap dissimilar metal corrosion checks at 200 hours (for surfaces in service 10 years or more); engine rocker arm freedom at 400 hours; propeller crankshaft sludge removal, oil radiator flushing, and trim drum lubrication at 500 hours; Slick 4200 magneto rotor shaft bearing replacement and engine flexible fluid hose replacement at 1,000 hours or 8 years; engine overhauls at 1,800 hours (PA-44-180T) and 2,000 hours (PA-44-180); and structural cabin inspections at 2,000 hours or 7 years. Additionally, unscheduled maintenance checks provide clear inspection criteria following hard or overweight landings, severe turbulence, engine sudden stoppage, and lightning strikes.

Servicing, Ground Handling & Lubrication Specifications

Every phase of routine servicing and aircraft handling is detailed with exact tolerances and procedures. Chapter 6 details principal dimensions, station reference lines (fuselage station, buttock line, waterline coordinates), and access plate mapping across the nose, cabin, empennage, and wings. Chapters 7 through 10 instruct ground crews on three-point jacking with wing spar jack pads and required 600-pound tail ballast, longitudinal and lateral spirit leveling, scale weighing, tow bar handling limits, taxiing checks, and mooring tie-down procedures.

Chapter 12 provides thorough servicing requirements for aviation fuels (100LL / 100/130 grade), complete water contamination and drainage checks, engine oil replenishment (6-quart or 8-quart sumps depending on serial number), suction screen cleaning, and full-flow cartridge filter changes. Landing gear maintenance covers air-oil oleo strut servicing using MIL-H-5606 fluid with precise exposed piston heights under static load (2.70 ± 0.25 inches on the nose gear; 2.60 ± 0.25 inches on the main gear). Detailed lubrication charts provide itemized lubrication points, lubricant specifications (MIL-G-23827, MIL-L-7870, MIL-G-7711, Lubriplate No. 907), and recurring lubrication intervals across landing gear linkages, flight control pulleys, bellcranks, hinges, trim screws, and cabin door mechanisms.

IMAGES PREVIEW

Airframe Standard Practices & Environmental Systems

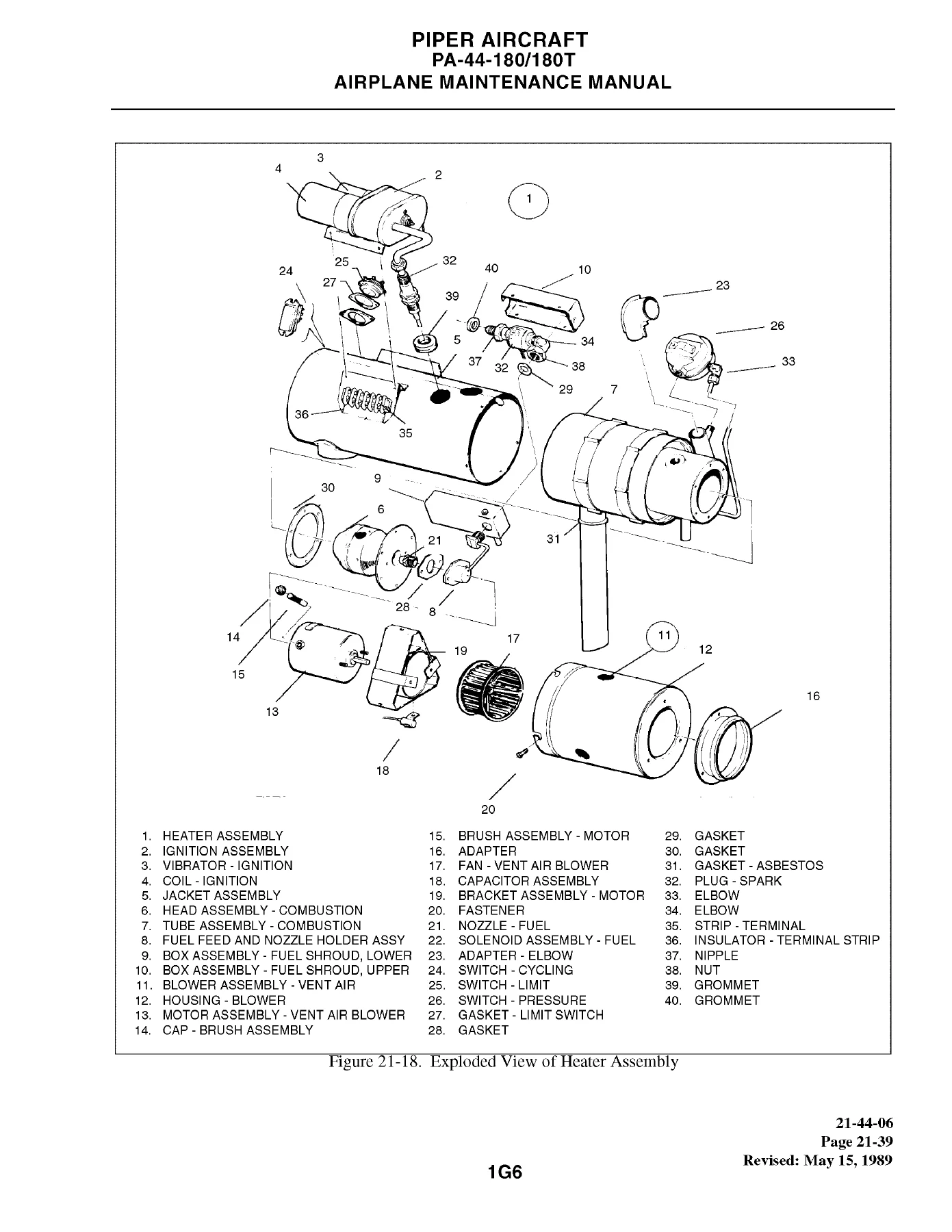

Standard practices in Chapter 20 equip maintenance crews with torque wrench extension formulas, proper spherical rod end bearing installation techniques to prevent locked balls, Cherrylock blind rivet extraction procedures, fluid line color coding and marking tape standards, and finish care guidelines. Chapter 21 provides extensive coverage of the cabin environmental system, including the overhead fresh air ventilation blower and the 45,000 BTU Janitrol combustion heater. Technicians receive exhaustive troubleshooting charts, functional wiring circuits, fuel pressure regulator calibration (6.5 to 7.5 psi), spark plug gap adjustments (0.156 to 0.188 inches), ignition vibrator checks, pressure decay testing, and full teardown, overhaul, and bench testing procedures. For turbocharged models, the chapter details the independent R-12 air conditioning system, compressor servicing, belt tensioning, and manifold gauge diagnostics.

Chapters Covered

• Introduction: Instructions for Continued Airworthiness (ICA), General Aviation Manufacturers Association (GAMA) arrangement, serial number explanation, effectivity across 1979–1993 model years, supplementary publications, system/chapter index guide, list of illustrations, and list of charts.
• Chapter 4 — Airworthiness Limitations: FAA-approved mandatory replacement times, Chart 401 structural life limits (14,663 flight hours on wing and spar box structure), and propeller blade safe life limit (unlimited).
• Chapter 5 — Time Limits / Maintenance Checks: Recommended inspection programs, 50-hour and 100-hour / annual inspection checklists (propeller, engine, turbocharger, cabin, fuselage, empennage, wing, landing gear, operational run-up, general), special inspections by flight hours and calendar years, environmental operation guidelines (dust, salt, humidity, extreme cold, soft terrain), and unscheduled inspection checks.

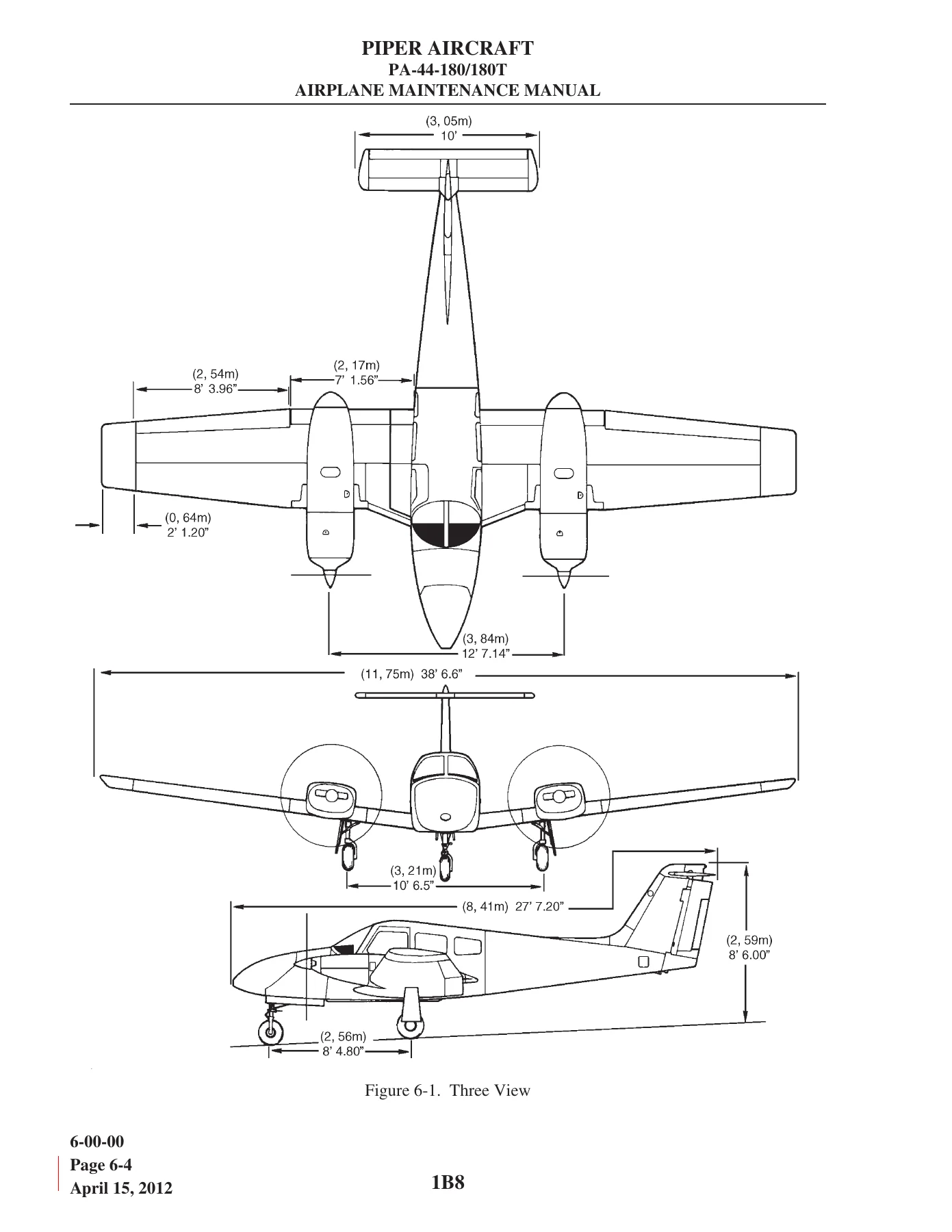

• Chapter 6 — Dimensions and Areas: Chart 601 leading particulars and principal dimensions, engine and propeller models, three-view engineering drawings, fuselage/wing station references, serial number plate location, and comprehensive access plate and panel locations.
• Chapter 7 — Lifting and Shoring: Wing front spar jacking points, tail skid attachment, ballast safety requirements, and hydraulic servicing precautions.
• Chapter 8 — Leveling and Weighing: Longitudinal leveling with side window screws, lateral leveling across main spar box, and scale weighing routines.
• Chapter 9 — Towing and Taxiing: Nose wheel tow bar operation, steering limits, towing lines, and ground taxi safety procedures.
• Chapter 10 — Parking and Mooring: Parking brake operation, control surface locks, tie-down angles, and cabin door locking mechanisms.
• Chapter 11 — Required Placards: Complete inventory and physical layout of cockpit placards, instrument panel arrangements, switch callouts, and circuit breaker markings.
• Chapter 12 — Servicing: Fuel system draining and contamination detection, oil sump draining, suction screens, full-flow filter inspection, oleo strut oil and air filling, steering bungee servicing, hydraulic brake bleeding, tire balancing, hydraulic reservoir replenishing, induction air filter maintenance, aircraft cleaning, and complete lubrication charts for landing gear, control surfaces, doors, powerplant, and propellers.
• Chapter 20 — Standard Practices — Airframe: Torque wrench adapter formulas, rod end bearing alignment, Cherrylock rivet removal, fluid tubing support spacing, line identification markings, and airframe finish care.
• Chapter 21 — Environmental System: Cabin air distribution, overhead vent blower removal and rebuilding, Janitrol 45,000 BTU combustion heater operation, electrical system schematics, spark-spray ignition maintenance, vibrator and ignition coil testing, fuel regulator adjustments, limit and cycling switches, combustion air pressure switch calibration, fuel pump overhaul, combustion tube pressure decay testing, heater bench test setups, and PA-44-180T air conditioning system servicing.

Together, these technical chapters provide an end-to-end operational and maintenance manual for the Piper Seminole airframe, giving shop personnel exact factory clearances, wiring diagrams, torque figures, and step-by-step disassembly and reassembly methods required to keep the aircraft fully compliant and airworthy.

Professional Capability, Compliance & Immediate Delivery

Operating and maintaining a multi-engine aircraft requires uncompromising accuracy. The Piper PA-44-180 Seminole & PA-44-180T Turbo Seminole Maintenance Manual (P/N 761-664) gives aircraft maintenance technicians, A&P mechanics, and flight schools the exact factory data required to perform routine inspections, complete scheduled 50-hour and 100-hour checks, troubleshoot complex fuel and combustion heating systems, and ensure total compliance with FAR airworthiness standards. Utilizing genuine factory tolerances, lubrication specifications, and rigging procedures preserves equipment value and guarantees that maintenance operations are performed safely and correctly.

This manual is provided as an instant PDF download immediately upon checkout. With no waiting for physical media or shipping delays, you can load the complete manual onto your laptop, hangar tablet, iPad, or desktop computer for instant searching, rapid reference on the ramp, or clean page-by-page printing directly in your shop.
