Piper PA-46-310P Malibu PA-46-350P Mirage 1984-1995 Airplane Maintenance Manual

Description

Piper PA-46-310P Malibu PA-46-350P Mirage 1984-1995 Airplane Maintenance Manual

This comprehensive Piper airplane maintenance publication covers the PA-46-310P Malibu and PA-46-350P Malibu Mirage within the serial-number effectivity stated in the manual. The publication is organized around the GAMA chapter-numbering system and serves as the Instructions for Continued Airworthiness for the covered airplanes, bringing together scheduled inspection requirements, servicing data, system descriptions, troubleshooting, adjustment, rigging, removal and installation procedures, structural information, and charts and wiring diagrams. For technicians maintaining these aircraft, the Piper PA-46-310P Malibu PA-46-350P Mirage 1984-1995 Airplane Maintenance Manual provides a single structured reference for work ranging from routine servicing and 50/100-hour inspection tasks to landing-gear, flight-control, electrical, fuel, pressurization, ice-protection, engine-support and structural procedures.

File Details

• Manual type: Airplane Maintenance Manual
• Brand: Piper Aircraft
• Models: PA-46-310P Malibu and PA-46-350P Malibu Mirage
• Language: English
• Page count: 1335 pages
• File format: PDF
• Part number: 761-783
• Revision: PR210405
• Revision date: April 5, 2021

Aircraft Effectivity and Model Coverage

The effectivity section identifies the PA-46-310P Malibu as covering serial numbers 46-8408001 thru 46-8608067 and 4608001 thru 4608140. For the PA-46-350P Malibu Mirage, the stated range is 4622001 thru 4622200. The model-year reference in the introduction spans PA-46-310P aircraft from 1984 through 1988 and PA-46-350P aircraft from 1989 through 1995, with individual serial-number exceptions and allocations shown in the manual. The engine data sections identify the Teledyne Continental Motors TSIO-520-BE for the PA-46-310P and the Textron Lycoming TIO-540-AE2A for the PA-46-350P. Because the two variants use different engines and have model-specific systems and procedures in a number of sections, the manual marks applicability where the work differs.

The introduction also notes an important effectivity limitation: Instructions for Continued Airworthiness for non-Piper approved STC installations are not included. If an aircraft has such an installation, the portions affected by that modification must be maintained and inspected using the applicable ICA supplied for the STC.

Inspection, Maintenance, and Repair Scope

Chapter 5 is a substantial maintenance-planning section. It includes airworthiness-related time limits, a recurring Annual / 100 Hour Inspection program, special inspections, and unscheduled checks. The scheduled program breaks the airplane into propeller, engine, turbocharger, cabin and cockpit, fuselage and empennage, wing, landing gear, special inspection, operational inspection, and general groups. Tasks include condition and security inspections, lubrication and servicing, operational and functional checks, fluid and filter work, control and system checks, and inspections tied to flight hours or calendar time.

IMAGES PREVIEW

Special inspection material addresses operation in high dust or industrial pollution, high salt or high humidity, extreme cold, and soft or unusual terrain. Unscheduled maintenance guidance covers events such as lightning strike, engine overspeed or overtemperature, loss of oil or sudden stoppage, severe turbulence, hard or overweight landing, operation with flaps above the maximum flap extension speed, and flood damage or immersion in water. These sections are useful when the maintenance question is not simply a routine interval but a specific operating event requiring targeted inspection before further flight.

Beyond the inspection program, the manual follows individual aircraft systems in depth. Environmental-system coverage includes distribution, pressurization, heating, cooling and temperature control. Electrical chapters address DC generation, external power, load distribution and system troubleshooting. Flight-control chapters cover aileron, rudder, elevator and flap systems with control-cable inspection, rigging, adjustment and component work. Fuel chapters include storage, distribution, indicating, leakage checks, selector components, pumps and quantity-system work. Hydraulic and landing-gear chapters include troubleshooting, system bleeding and testing, pumps and reservoirs, actuator work, extension and retraction, steering, wheels, brakes, gear doors, limit switches and warning systems.

Airframe and structural material includes dimensions, station references, access and inspection provisions, corrosion-control information, fiberglass and thermoplastic repair material, doors, windows, stabilizers, wings and flight surfaces. Engine-related chapters provide power-plant removal and installation information for the covered models, engine mounts and drains, fuel-system maintenance, ignition-system work, engine controls, engine indicating, oil, starting and turbo-supercharger coverage. The TSIO-520-BE and TIO-540-AE2A are treated separately where model-specific data or procedures apply. The manual also includes propeller assembly and governor information, vacuum and oxygen systems, ice and rain protection, lighting, instruments, electrical/electronic panels and the final charts and wiring-diagram chapter.

Chapters Covered

• Chapter 4 – Airworthiness Limitations – approved mandatory replacement times, structural life limits, and component life limits.
• Chapter 5 – Time Limits / Maintenance Checks – time limits, scheduled maintenance, special inspections, and unscheduled maintenance checks.
• Chapter 6 – Dimensions and Areas – leading particulars and principal dimensions, station references, access and inspection provisions.
• Chapter 7 – Lifting and Shoring – jacking.
• Chapter 8 – Leveling and Weighing – weighing and leveling.
• Chapter 9 – Towing and Taxiing – general procedures, towing, and taxiing.
• Chapter 10 – Parking and Mooring – parking and mooring.
• Chapter 11 – Required Placards – exterior placards and markings; interior placards and markings.
• Chapter 12 – Servicing – general servicing, replenishing, and scheduled servicing.
• Chapter 20 – Standard Practices – Airframe – general airframe practices.
• Chapter 21 – Environmental Systems – distribution, pressurization control, heating, cooling, and temperature control.
• Chapter 23 – Communications – speech communication and static discharging.
• Chapter 24 – Electrical Power – DC generation, external power, and electrical load distribution.
• Chapter 25 – Equipment / Furnishings – flight compartment, passenger compartment, cargo compartments, and emergency equipment.
• Chapter 26 – Fire Protection – extinguishing.
• Chapter 27 – Flight Controls – aileron and tab, rudder and tab, elevator and tab, and flaps.
• Chapter 28 – Fuel – general, storage, distribution, and indicating.
• Chapter 29 – Hydraulic Power – general and main hydraulic system.
• Chapter 30 – Ice and Rain Protection – airfoil, windows/windshields/doors, and propellers.
• Chapter 31 – Indicating / Recording Systems – central warning systems.
• Chapter 32 – Landing Gear – main gear and doors, nose gear and doors, extension/retraction, wheels and brakes, steering, position and warning.
• Chapter 33 – Lights – flight compartment, passenger compartment, cargo compartment, and exterior lights.
• Chapter 34 – Navigation and Pitot / Static – flight environment data and attitude/direction.
• Chapter 35 – Oxygen – crew/passenger oxygen.
• Chapter 37 – Vacuum – distribution and indicating.
• Chapter 39 – Electrical / Electronic Panels – instrument and control panels; electrical and electronic equipment racks.
• Chapter 51 – Structures – general structural practices and repairs.
• Chapter 52 – Doors – passenger/crew, emergency exit, cargo, and door warning.
• Chapter 55 – Stabilizers – horizontal stabilizers, elevator, vertical stabilizer, and rudder.
• Chapter 56 – Windows – general, flight compartment, cabin, and door windows.
• Chapter 57 – Wings – attach fittings and flight surfaces.
• Chapter 61 – Propellers – propeller assembly and controlling.
• Chapter 70 – Standard Practices – Engine – general engine standard practices.
• Chapter 71 – Power Plant – general, cowling, mounts, and engine drains.
• Chapter 73 – Engine Fuel Systems – distribution and indicating.
• Chapter 74 – Ignition – electrical power supply, distribution, and switching.
• Chapter 76 – Engine Controls – power control.
• Chapter 77 – Engine Indicating – power and temperature.
• Chapter 79 – Oil – distribution and indicating.
• Chapter 80 – Starting – cranking.
• Chapter 81 – Turbines – turbo-supercharger.
• Chapter 91 – Charts & Wiring Diagrams – charts and wiring diagrams.

Taken as a whole, these chapters give the technician a system-by-system path from inspection and access through fault isolation, adjustment, component removal and installation, servicing, rigging and verification. The dimensional drawings, station references, access-panel diagrams and aircraft three-view illustrations help locate service points and understand physical relationships, while the system chapters connect those locations to the appropriate maintenance tasks. Where the manual calls for a vendor publication for installed equipment, that requirement is stated in the text so component-specific servicing can be coordinated with the aircraft-level procedure.

Useful Technical Reference Data

The leading-particulars section provides model-specific reference data for the engines and shared aircraft systems. The PA-46-310P is shown with the TSIO-520-BE rated at 310 horsepower at 2,600 RPM, while the PA-46-350P uses the TIO-540-AE2A rated at 350 horsepower at 2,500 RPM. The same section records propeller configuration, fuel-system capacity, landing-gear type, wheel and brake information, tire pressures, dimensions and turning radius. Elsewhere, maintenance sections provide adjustment values, inspection intervals, clearances, torque requirements, service limits and troubleshooting charts where applicable. That combination makes this Piper PA-46 maintenance manual useful both for planned work and for checking the exact values attached to a specific maintenance operation.

Charts, Illustrations, and Wiring Information

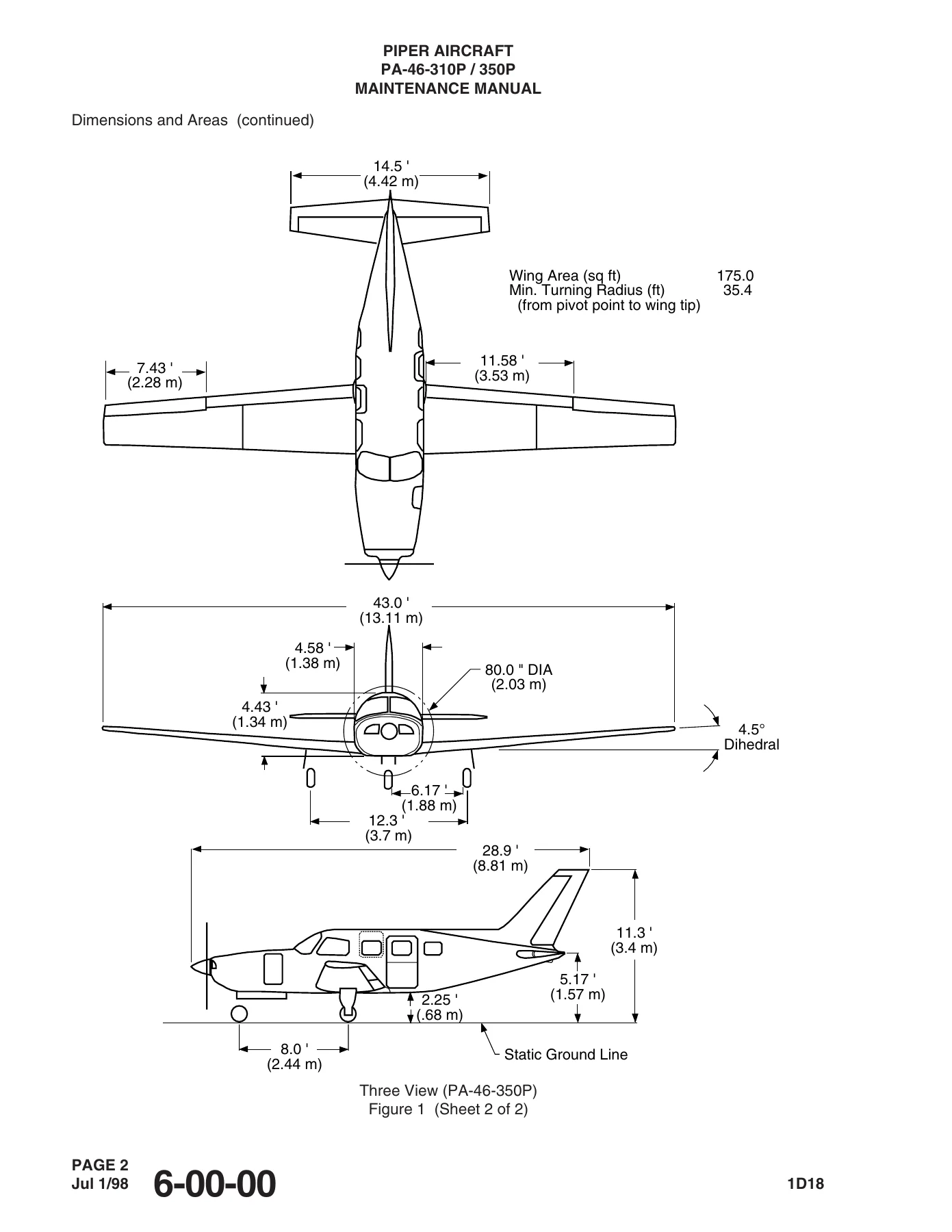

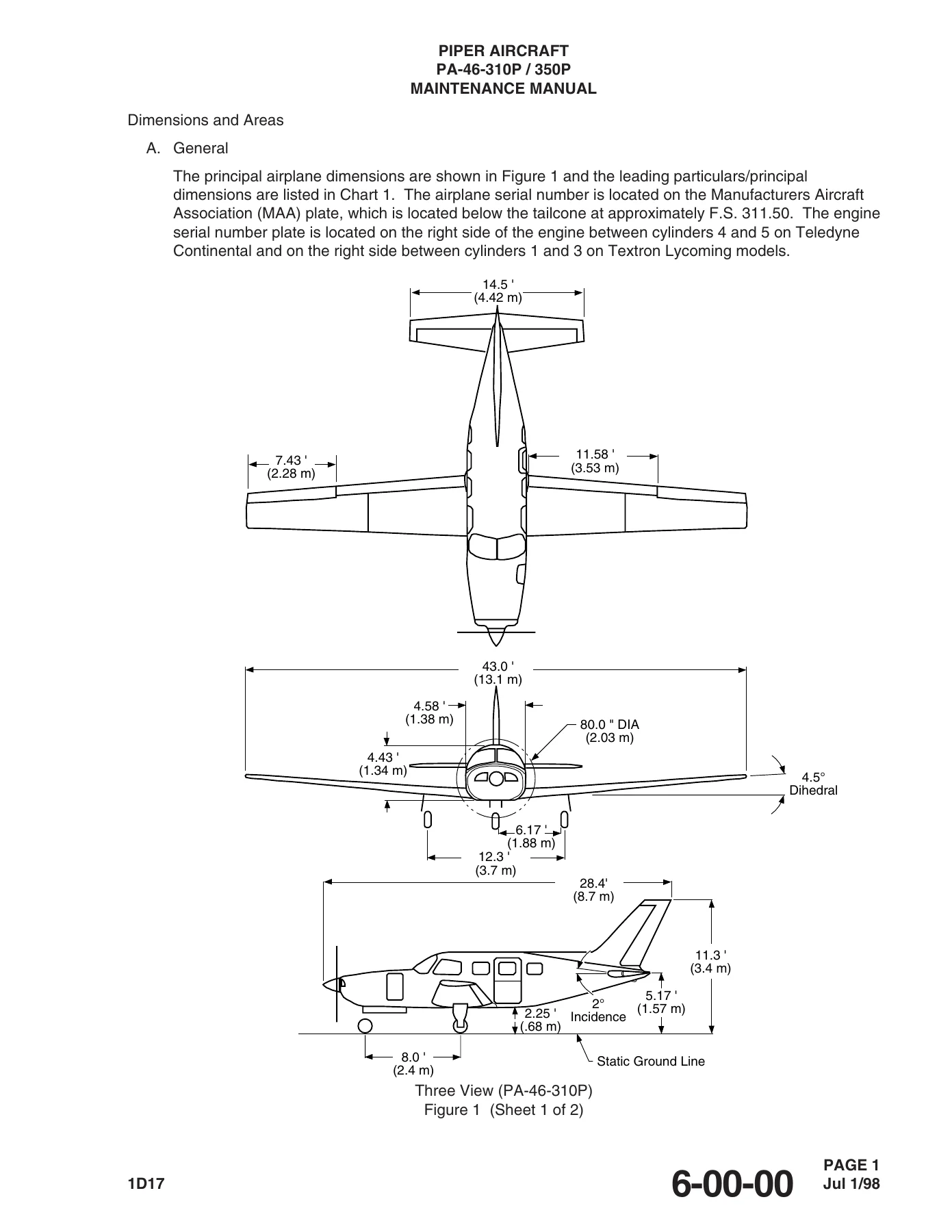

Illustrations are integrated throughout the publication rather than confined to one area. Early chapters include aircraft three-views, station-reference drawings and access-panel diagrams; later chapters use component drawings, installation views, system schematics and maintenance figures to support procedures. Chapter 91 brings together charts and wiring diagrams, along with reference material such as electrical symbols, wire codes, torque and conversion information. When tracing an electrical problem or confirming how a system is routed, the diagram coverage complements the descriptive and troubleshooting material in the individual system chapters.

Work With the Correct Procedures at Hand

The Piper PA-46-310P Malibu PA-46-350P Mirage 1984-1995 Airplane Maintenance Manual is built for maintenance work on the covered PA-46-310P Malibu and PA-46-350P Malibu Mirage aircraft. It supports routine inspections, servicing, troubleshooting, rigging, adjustments, component removal and installation, structural checks, landing-gear work, electrical diagnosis, engine-support tasks and many other procedures documented for these models. Using the correct model effectivity, cautions, limits, inspection intervals and procedure steps matters when the work can affect aircraft condition and airworthiness.

Purchase provides an instant PDF download with no physical shipping. Keep the manual available on any PDF-capable computer, tablet or phone, and print the pages you need for the job. This gives you a practical maintenance reference ready for the hangar, workshop or field whenever you need to check the documented Piper PA-46 procedure or specification.
