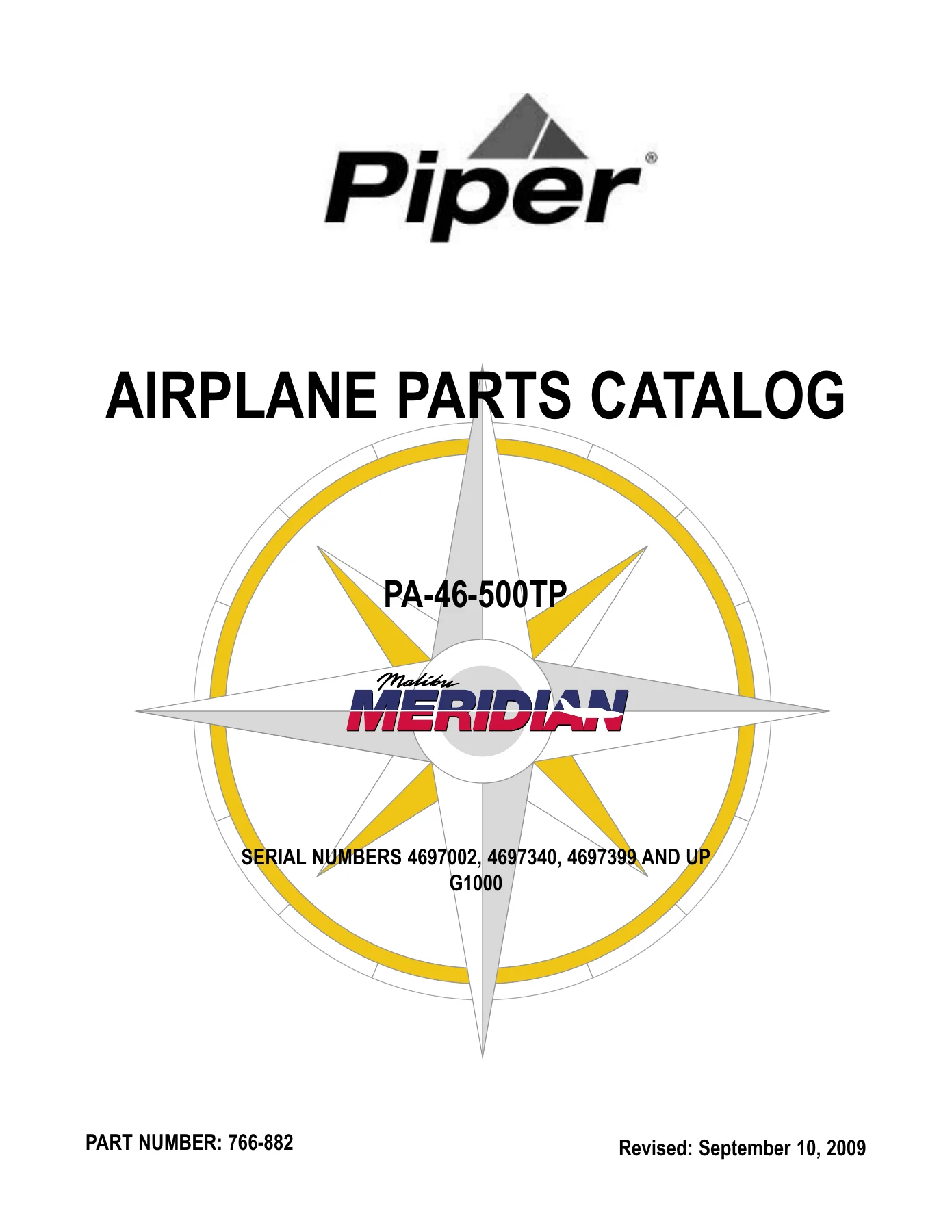

Piper PA-46-500TP Malibu Meridian G1000 Airplane Parts Catalog (P/N 766-882)

Description

File Details

• Document Type: Airplane Parts Catalog / Illustrated Parts Catalog (IPC)
• Manufacturer: Piper Aircraft, Inc.
• Model Coverage: PA-46-500TP Malibu Meridian G1000
• Part Number: 766-882
• Publication Date: Issued April 3, 2009 (Revised September 10, 2009)
• Applicable Serial Numbers: 4697002, 4697340, 4697399 and Up (2009 Model Year)
• Format: Digital PDF
• Language: English
• Page Count: 777

Comprehensive Airframe & Systems Parts Breakdown

The Piper PA-46-500TP Malibu Meridian G1000 Airplane Parts Catalog (P/N 766-882) provides an authoritative, illustrated technical breakdown of every factory-installed component and assembly for 2009 model year aircraft. Prepared in accordance with Air Transport Association of America (ATA) Specification No. 100, this catalog provides aircraft maintenance technicians, parts procurement specialists, and Meridian owners with exact parts identification, exploded diagrams, assembly hierarchies, and serial-number-specific effectivity tracking.

Garmin G1000 Integrated Avionics & Electrical Distribution (ATA 22, 24, 34, 39)

This parts catalog details the full factory avionics and electrical installations engineered specifically for the Garmin G1000-equipped PA-46-500TP Malibu Meridian. Coverage includes the primary flight display (PFD) and multi-function display (MFD) installations, integrated avionics units (P/N 602-323), dual air data computers (P/N 602-328), attitude and heading reference systems (AHRS GRS 77 install kit P/N 652-513, ADAHRS units P/N 600-519), Mode S and diversity transponders (P/N 602-319, 602-424), audio panels (P/N 602-325), remote FMS controller (P/N 602-422), and engine/airframe interface units (P/N 602-324). It illustrates the overhead switch panel assembly (P/N 602-538) with Honeywell AML22 and AML26 switches, the forward and aft pilot circuit breaker panels (P/N 105506-002, 105506-003), co-pilot circuit breaker assemblies (P/N 105506-004, 105506-005), master electrical relay enclosures (P/N 102257-010), generator control units (P/N PS60047-1), Concorde RG-41 battery installation (P/N 601-910), and external power receptacle assemblies (P/N 484-125). In addition, complete autoflight servo installations (ATA 22-10) are itemized for roll, pitch, pitch trim, and yaw axes (servos P/N 602-433, 602-434), including bridle cable assemblies, mounting brackets, turnbuckles, and safety hardware.

Cabin Pressurization & Environmental Systems (ATA 21)

Full component illustrations and part callouts cover the turbine bleed air conditioning, heating, and cabin pressurization architecture. Major assemblies include the engine compressor bleed air precooler installation (Drawing 101448), bleed air shut-off valves (P/N 592-639), mass flow control valves (P/N 592-710), mass flow controller (P/N 686-223), cabin temperature controllers (P/N 602-240), ducting temperature sensors, and primary heat exchangers (P/N 102508-002, 102505-002, 101457-002). The catalog details the digital pressurization control group (Drawing 102565) featuring the primary outflow valve (P/N 491-814), safety valve (P/N 491-815), cabin pressure regulator (P/N 484-106), auxiliary volume tank (P/N 488-076), and solenoid valves. The Freon air conditioning system is fully itemized across its compressor (P/N 557-802), receiver-dehydrator (P/N 601-218), distribution manifold (P/N 602-100), dual evaporator assemblies (P/N 552-203, 552-204) with thermal expansion valves (P/N 765-216), and condenser assembly (P/N 83956-003) with motor and fan assemblies.

Flight Controls, Cable Rigging & Flap Drive Actuation (ATA 27)

Every mechanical linkage, pulley cluster, cable run, and bracket across the primary and secondary flight control systems is documented. The aileron control group details drive and balance cable assemblies (P/N 82815 series), aileron sectors, quadrants (P/N 82857), and pressure vessel pass-through seals. The cockpit control column installation (Drawing 89920) illustrates dual control wheels (P/N 100572-005), elevator torque tubes (P/N 82814-007), universal joints, bearing supports, and integrated trim/push-to-talk harness installations. The rudder system lists directional drive cables, rudder sector (P/N 82847-002), pedal return mechanisms, and the dedicated aileron-rudder interconnect spring assembly (Drawing 83305). Elevator control includes forward and aft cable runs, downspring assemblies, and the mechanical elevator trim actuator (P/N 82945-009) with internal jackscrew (P/N 82943-002) and trim drum (P/N 82944-002). Comprehensive coverage of the flap system outlines both the electrical actuator assembly (P/N 84648-002) with microswitches and position potentiometers, and the mechanical flap drive linkages, including bellcranks, idler arms, pushrods (P/N 85077, 82912, 82913), and flexible rubber bellows.

Hydraulic Power & Retractable Landing Gear (ATA 29 & 32)

The catalog provides thorough exploded schematics for the hydraulic power and gear retraction networks. Hydraulic listings encompass the electric hydraulic power pack pump assembly (P/N 102559-004), dual pressure switches (P/N 767-238), hydraulic sequence valve (P/N 102557-003), emergency free-fall release valve (P/N 102555-003), distribution manifold (P/N 85074-002), and hard lines. The landing gear chapters document the complete main landing gear assemblies (P/N 102586-002/003) and nose gear assembly (P/N 89786-004), detailing trunnions, upper and lower air-oil oleo struts, metering pins, orifice plates, internal compression rings, scraper seals, torque links (P/N 105041-002, 106680-002), squat switch mounts, locking actuators (P/N 89075 series), gear doors, mechanical door operating linkages, Cleveland wheel assemblies (P/N 599-612), heavy-duty brake calipers (P/N 599-611), master cylinders, and parking brake plumbing.

Fuel System, Ice Protection & Cabin Furnishings (ATA 28, 30, 25, 26)

Fuel system listings detail wing tanks, header tanks, fuel quantity processor units (P/N 601-607), five capacitance fuel probe locations per wing (WS 42.00 through WS 206.90), emergency fuel shut-off valves (P/N 562-661), and solenoid valves. Ice protection encompasses pneumatic de-ice boot installations for inboard/outboard wings (P/N 690-924/925, 690-926/927), horizontal stabilizer, and vertical fin, alongside three-way de-ice control valves (P/N 102603-002) and pressure regulators, plus electrothermal propeller de-ice components (slip rings P/N 485-314, brush blocks P/N 452-112, and harness assemblies). Cockpit and cabin furnishings detail crew seats (P/N 102938 series), aft-facing passenger seats, aft bench seating, executive writing tables, pyramid refreshment cabinets, window shades, cabin paneling, and emergency equipment including the Artex ME 406 ELT kit (P/N 601-254) and continuous-loop engine fire detection sensors (P/N 653-676, 653-677).

Chapters Covered

• Chapter 6: Complete Airplane – General arrangement and major drawing index (Drawing 102000)
• Chapter 10: Parking and Mooring – Ground protection equipment, propeller muffs, exhaust covers, and engine inlet plugs (10-20)
• Chapter 11: Placards and Markings – Exterior servicing markings, emergency placards, and cockpit instrument panel decals (11-00)
• Chapter 21: Environmental Systems – Cabin air distribution (21-20), avionics cooling fans (21-20), cabin pressurization control system (21-30), bleed air conditioning and heating ducting (21-40), and air conditioning compressor, lines, evaporator, and condenser installations (21-50)
• Chapter 22: Autoflight – Garmin G1000 autopilot roll, pitch, pitch trim, and yaw servo actuators, mounts, and bridle assemblies (22-10)
• Chapter 24: Electrical Power – DC generation, forward, fuselage, wing, center, and aft electrical harnesses, instrument panel wiring, overhead switch panel, pilot/co-pilot circuit breaker panels, battery installation, and external power receptacle (24-30, 24-40)
• Chapter 25: Equipment/Furnishings – Cockpit finishing, sidewall and armrest panels, window frames and shades, cabin carpeting, seats installation, cockpit sunvisors, crew seats with lumbar support, relief tube installation, aft-facing seats, aft bench seat, and emergency locator transmitter (ELT ME 406) (25-00, 25-10, 25-20, 25-60)
• Chapter 26: Fire Protection – Engine fire detection system sensing loops, clips, and mounting brackets (26-10)
• Chapter 27: Flight Controls – Aileron control installation (27-10), dual control wheels and columns (27-10), rudder control cables and pedal linkages (27-20), aileron and rudder interconnect mechanism (27-20), elevator control runs and downsprings (27-30), elevator trim actuator and trim drum (27-30), and flap drive electrical controls and mechanical linkages (27-50)
• Chapter 28: Fuel – Fuel storage, delivery lines, check valves, shut-off valves, fuel quantity processor, and multi-probe capacitance fuel indicating system (28-00, 28-40)
• Chapter 29: Hydraulic Power – Main hydraulic system forward, center, and aft installations, hydraulic power pack, sequence valves, emergency gear extension valve, and distribution lines (29-10)
• Chapter 30: Ice and Rain Protection – Pneumatic surface de-ice boots, manifolds, and de-ice valves (30-10), and electrothermal propeller de-ice boots, slip ring, and brush block assemblies (30-60)

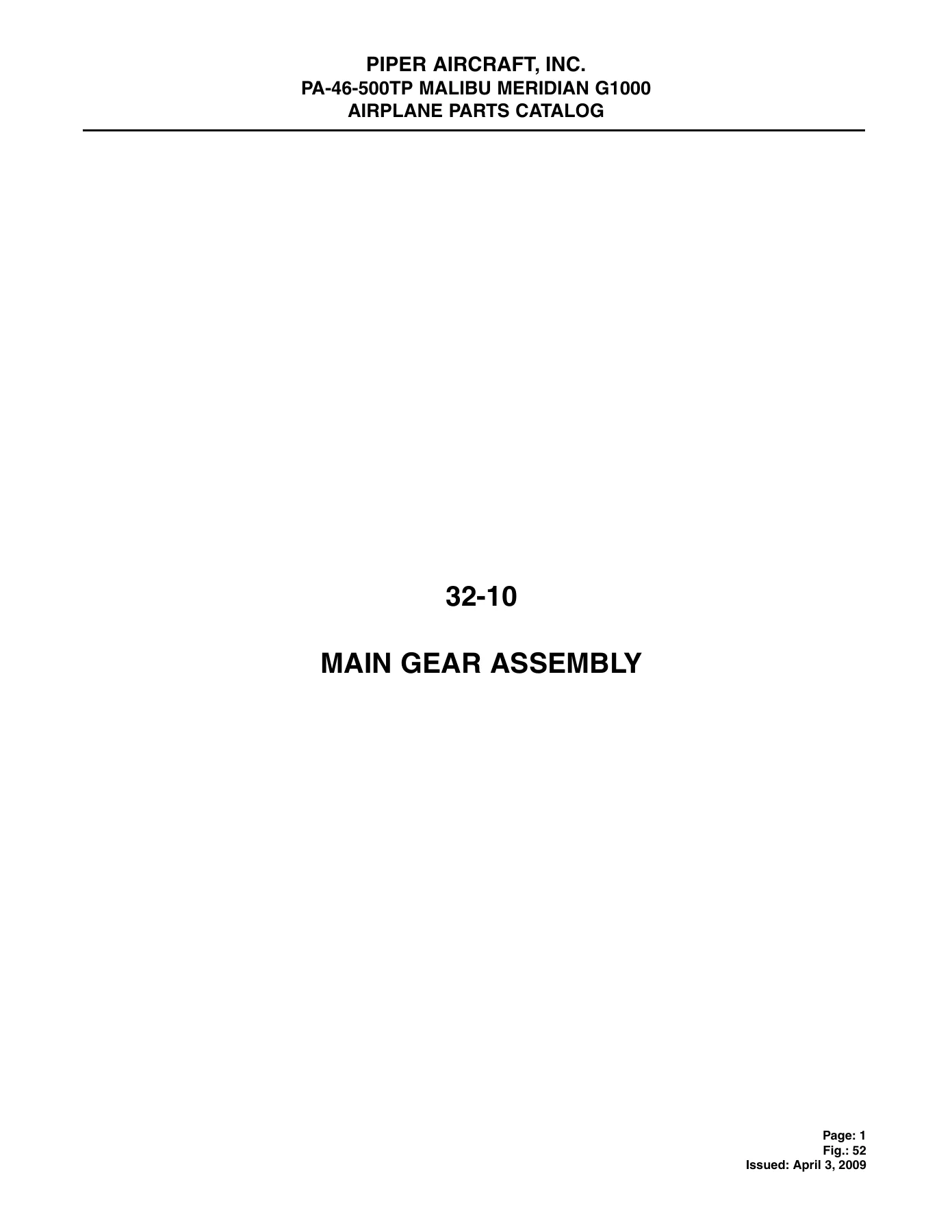

• Chapter 32: Landing Gear – Main gear trunnions, struts, torque links, and fairings (32-10), main gear door actuation (32-10), nose gear assembly, trunnion, and steering linkages (32-20), nose gear doors and emergency extension mechanisms (32-20), nose gear locking actuators (32-30), Cleveland main/nose wheels, and heavy-duty disc brake assemblies (32-40)

IMAGES PREVIEW

By compiling every structural, mechanical, and electrical component into standardized ATA 100 chapters, this catalog enables aviation professionals to trace complete part assemblies down to individual bushings, O-rings, AN/MS standard hardware, and attaching fasteners. The indentured nomenclature visually signifies the exact relationship between parent assemblies and sub-components, making parts ordering straightforward and accurate.

Standard Paint Charts, Interior Trims & Service Directives

In addition to airframe system diagrams, this manual includes the factory Dupont Imron Polyurethane Enamel standard exterior paint formulation codes (such as Juneau White, Madrid Red, Bahama Blue, and Dakota Black) and polyurethane wash primers. It catalogs the official 2000-through-2009 interior color palettes, specifying headliners, window panels, leather seating, armrest fabrics, and carpeting options (including Cuddy Gazelle, Sand, Rich Walnut, Windrift Tan, Mineral Gray, and Aero Blue). Dedicated reference schedules incorporate active Service Bulletins (such as SB 1190 for aileron quadrants, SB 1192 for stall warning heat control, SB 1195 for comm antennas, and SB 1202 for beta/reverse lockout levers) and Service Letters (including SL 1056 for cooling inlet drains, SL 1085 for ADAHRS harnesses, SL 1109 for generator control, and SL 1133 for crew seat structures), ensuring that all superseded or updated replacement parts comply with Piper engineering standards.

Essential Workshop Reference & Procurement Confidence

Maintaining airworthiness and regulatory compliance requires ordering the exact factory-approved part numbers specified for your airframe serial number. The Piper PA-46-500TP Malibu Meridian G1000 Airplane Parts Catalog (P/N 766-882) eliminates guesswork when sourcing critical replacement components, rebuilding landing gear oleo struts, servicing environmental valves, or inspecting flight control cable runs. Delivered as an instant high-resolution PDF download, this digital reference manual requires no shipping downtime and can be viewed immediately on your tablet, laptop, or shop computer, or printed out for direct bench-side reference during aircraft inspections and maintenance operations.
