Pratt & Whitney JT12A-6/-6A/-8 & JFTD12A-4A/-5A Overhaul Manual PN 435108

Description

Pratt & Whitney JT12A-6, -6A, -8 and JFTD12A-4A, -5A Overhaul Manual (PN 435108)

This is the full Pratt & Whitney JT12A-6, -6A, -8 and JFTD12A-4A, -5A Overhaul Manual, Part No. 435108, Volume 1 of 2, published by Aircraft Technical Publishers (ATP) with revisions current through May 1, 2008. It is the primary overhaul reference for the JT12A series turbojet engines and their free-turbine derivatives, the JFTD12A-4A and -5A, and it walks a technician through the engine from initial teardown to final test cell run.

File Details

• Manual type: Engine Overhaul Manual
• Brand/Manufacturer: Pratt & Whitney (United Technologies Corporation)
• Covered models: JT12A-6, JT12A-6A(L), JT12A-6A(N), JT12A-8(L), JT12A-8(N) turbojet engines; JFTD12A-4A, JFTD12A-5A free-turbine engines
• Document/Part No.: 435108 (Volume 1 of 2)
• Publisher: Aircraft Technical Publishers (ATP)
• Revision: Rev. 75, effective May 1/08 (ATP insertion date 7/3/08)
• Language: English
• Page count: 2,175 pages
• File format: PDF

Chapters Covered

• General Information — Manufacturer’s Introduction, Record of Revisions, Record of Temporary Revisions, Letter of Transmittal, List of Effective Sections, How To Use
• 05-00-00 Time Limits/Maintenance Checks — Instructions for Continued Airworthiness, Airworthiness Limitations
• 72-00-00 Engines — General Description, Overhaul Tools, Dismantling/Disassembly, Cleaning, Inspection/Repair/Replacement, Assembly of Subassemblies, Final Assembly, Testing, Table of Limits
• 72-20-00 Engine Inlet — Inspection, Repair, and Replacement
• 72-30-00 Engine Compressor — Inspection, Repair, and Replacement (multiple revision sets)
• 72-40-00 Engine Combustion — Inspection, Repair, and Replacement
• 72-50-00 Engine Turbine — Inspection, Repair, and Replacement (multiple revision sets)
• 72-60-00 Engine Gearbox — Power Lever Cross Shaft, Main Oil Pump, Accessory and Component Drive Gearshafts, Accessory Drive Gearbox Housing, Fuel Control Drive Boss Assembly, and related gearbox hardware
• 73-00-00 Engine Fuel and Control — Fuel Components, Differential Fluid Pressure Switch, Deicing Heater, Deicing Shutoff Valve and Actuator, Fuel Manifolds, Fuel Nozzles, Pressurizing and Dump Valve
• 74-00-00 Ignition — General
• 75-00-00 Air — Accessories
• 77-00-00 Engine Indicating — Thermocouples, Thermocouple Cable, Free Turbine Pressure Sensing Manifolds, Pt2 Compressor Inlet Total Pressure Probe
• 79-00-00 Oil — Fuel Coolant Oil Cooler, Oil Tank, Oil Tank Bracket, Oil Cooler Fuel Outlet Elbow

Taken together, this Pratt & Whitney JT12A-6, -6A, -8 and JFTD12A-4A, -5A Overhaul Manual gives an engine shop everything needed to take one of these turbojet or free-turbine powerplants from receiving inspection through a complete teardown, section-by-section repair, rebuild, and acceptance test — including the dimensional Table of Limits used to accept or reject every critical part.

IMAGES PREVIEW

Engine Specifications Included

The manual documents the JT12A turbojet as a nine-stage axial-flow, single-spool compressor with a two-stage reaction turbine, eight can-annular straight-flow combustion chambers, and dry weights of approximately 448 lb for the JT12A-6/-6A and 468 lb for the JT12A-8. The JFTD12A-4A and -5A free-turbine variants add a two-stage counter-rotating free turbine and are listed at approximately 920 lb and 935 lb dry, respectively, with fuel and lubrication specifications (PWA-522, PWA-521B Type II) also provided.

Why Technicians Rely on This JT12A Overhaul Manual

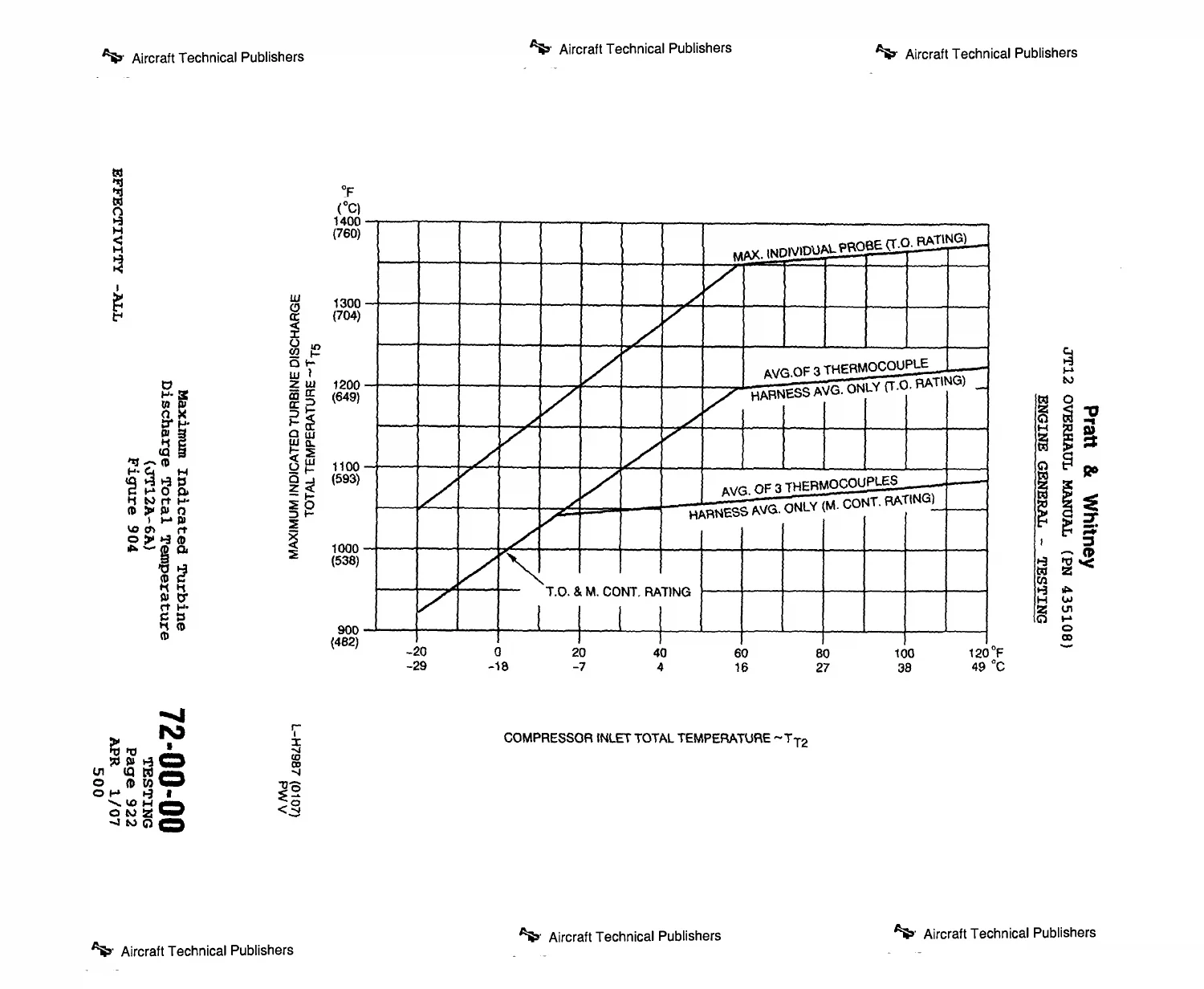

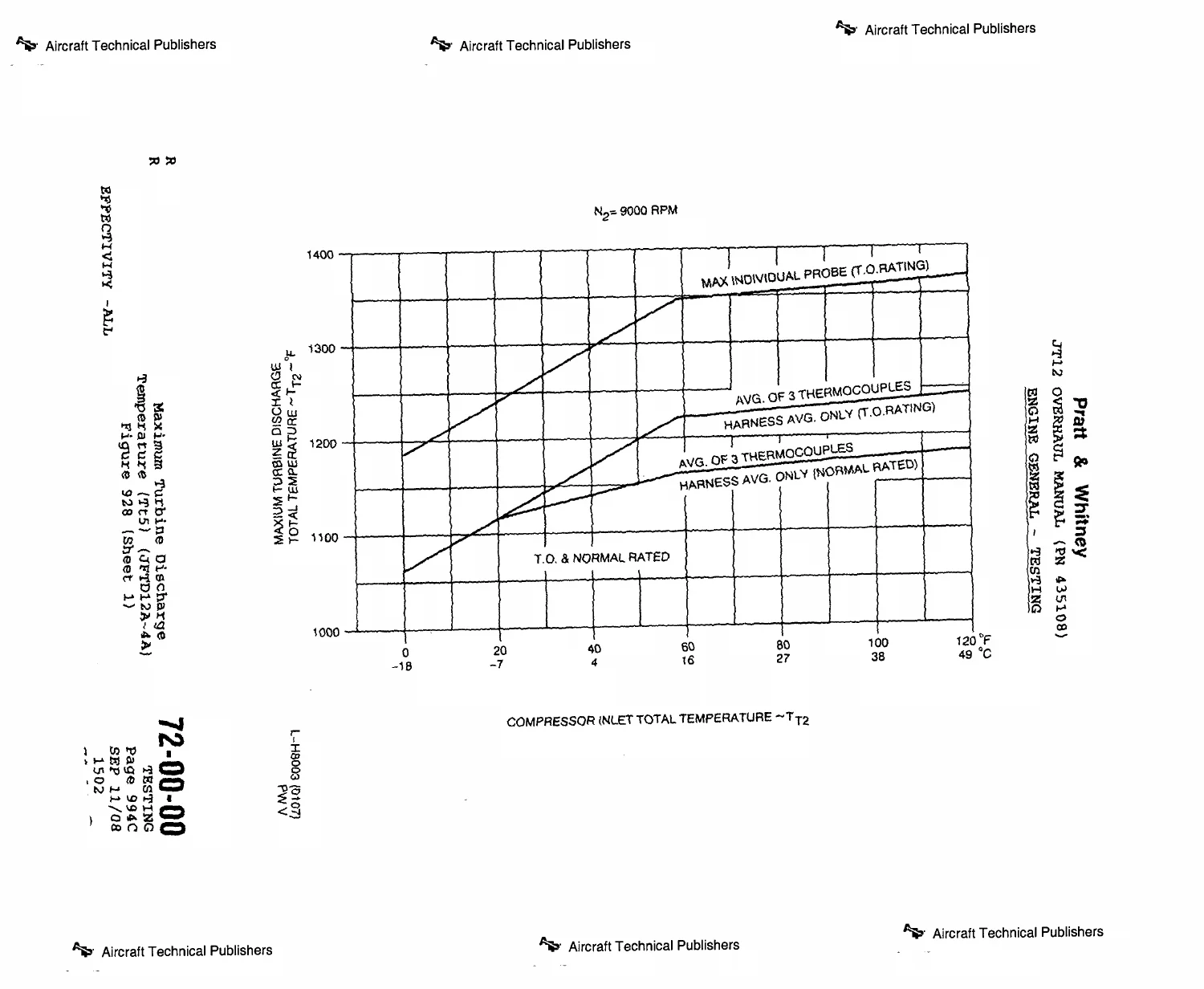

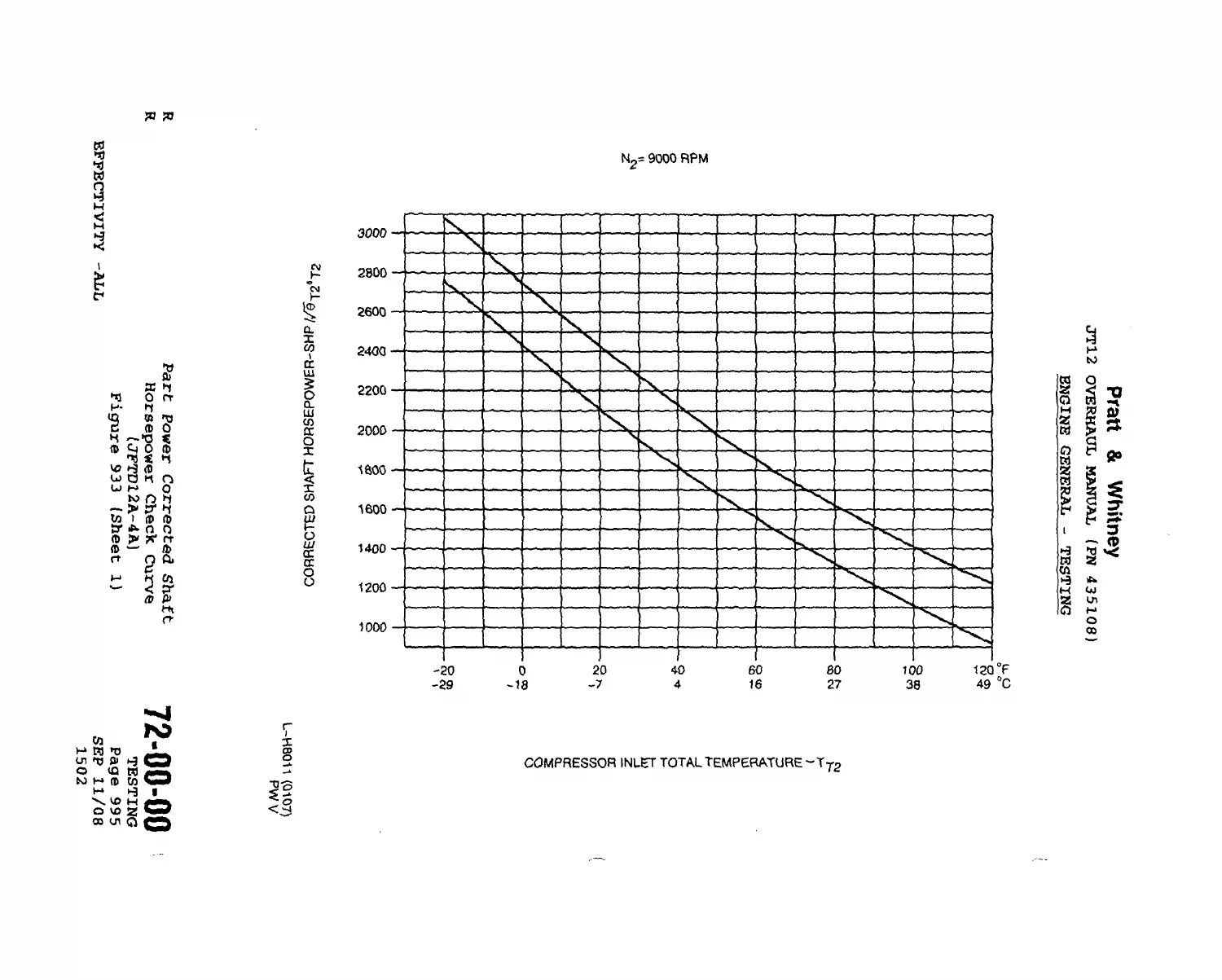

The Table of Limits sections spell out exact minimum and maximum dimensions, allowable clearances, and replace-if-over criteria for compressor cases, combustion chamber flanges, turbine seals, bearing supports, and gearbox components — the kind of precise, part-specific data that keeps a rebuilt JT12A or JFTD12A engine within factory tolerances. Performance sections also include acceptance-test curves such as maximum turbine discharge temperature versus compressor inlet temperature and corrected shaft horsepower charts, letting a shop verify an overhauled engine against Pratt & Whitney’s own test-cell criteria before it’s returned to service.

This JT12A-6/-6A/-8 and JFTD12A-4A/-5A Overhaul Manual (PN 435108) is delivered as an instant PDF download immediately after purchase — no shipping, no waiting. Use it on a laptop, tablet, or phone in the shop, or print any section you need at the bench.
