QJMOTOR SRK 600 RC QJ600GS-3D Motorcycle Maintenance Manual – PDF Download

Description

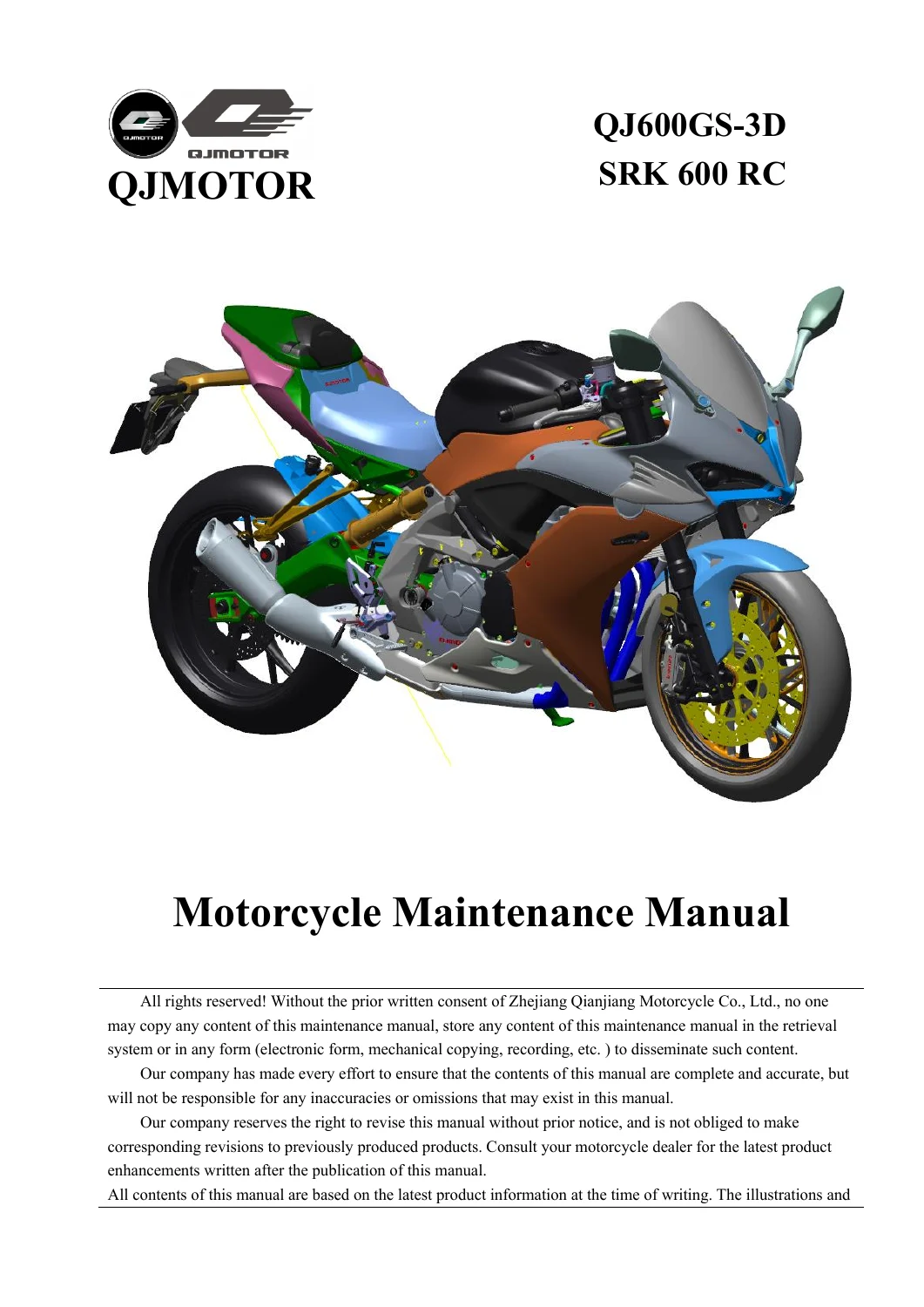

The QJMOTOR SRK 600 RC QJ600GS-3D Motorcycle Maintenance Manual is the complete workshop reference for the 600 cc four-cylinder sport bike sold as the QJ600GS-3D. Across 759 pages it walks through every major system on the machine – from valve clearance adjustment and camshaft timing to the Delphi MT05 fuel injection system, the cooling circuit, the six-speed transmission and the anti-lock braking system – using the same step-by-step procedures, exploded views and torque values a workshop technician works from.

File Details

• Manual type: Motorcycle maintenance / service manual
• Brand: QJMOTOR (Zhejiang Qianjiang Motorcycle Co., Ltd.)
• Model: QJ600GS-3D / SRK 600 RC
• Engine: QJ465MS-2D
• Language: English
• Pages: 759
• File format: PDF

Chapters Covered

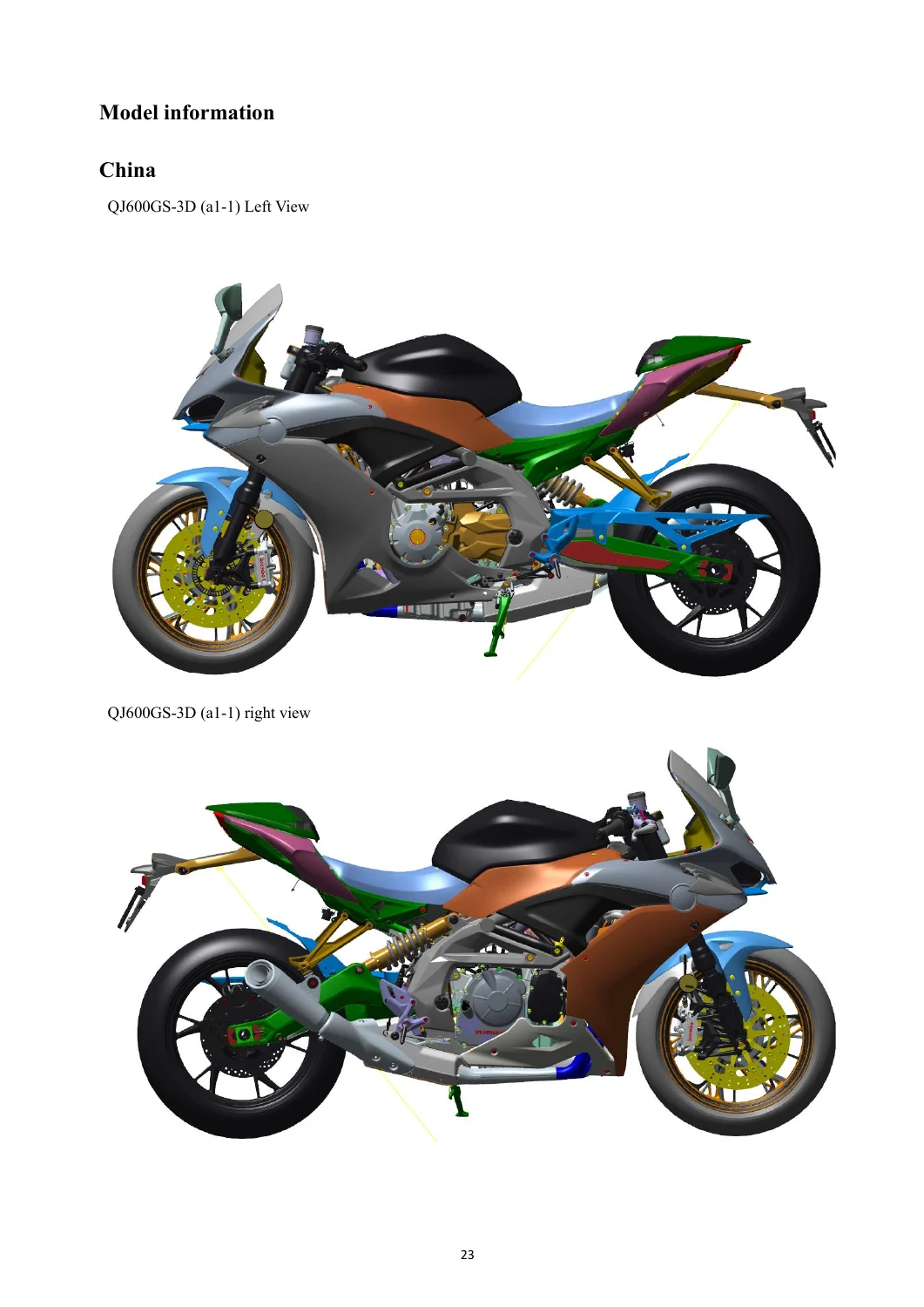

• Chapter I – Basic Information: pre-maintenance notices, battery installation, sharp-edge handling, solvents, cleaning and storing dismantled parts, assembly and fastening sequences, tightening torque, gaskets and O-rings, sealants, press-fit parts, bearings, oil and grease seals, retaining rings and cotter pins, lubrication, engine rotation direction, wiring and connector inspection, cable routing, tools, model information, basic specifications, general technical parameters, unit conversion tables
• Chapter II – Periodic Maintenance: periodic maintenance schedule, torque and locking agent tables, main tightening torque specifications, oil rail data, nut/bolt/screw tightening torques, technical parameters, fuel injection system checks, cooling system checks, cylinder head and cover, clutch, wheels and tyres, final drive, brakes, suspension, steering, electrical system, replacement parts
• Chapter III – Fuel Injection System (EFI): EFI introduction and layout, ECU connector numbering, EFI parts location, technical parameters, special tools, overhaul precautions, ECU (MT05) removal and installation, fuel pump operation and service, throttle body, fuel injector, water temperature sensor, intake air temperature sensor, intake pressure sensor, oxygen sensor, idle stepper motor, carbon canister solenoid valve, fault diagnosis by fault-light flash code, scan tool and PCHUD diagnostics, fault code table, fuel tank and evaporative recovery system
• Chapter IV – Cooling System: cooling water pipe layout, radiator, water pump, antifreeze flow diagram, technical parameters, antifreeze inspection, drain and refill, pressure testing, flushing, expansion kettle, water pump disassembly and assembly, radiator and fan removal, thermostat, hoses and tubing, water temperature sensor
• Chapter V – Engine: lubrication system, oil flow diagram, oil and oil filters, oil pan, oil relief valve, oil pump, oil cooler, oil pressure measurement and switch, cylinder head cover and cylinder head, valve train, camshaft and timing chain, intake pipe assembly, clutch, crankcase, crankshaft and connecting rods, pistons, starter clutch and electric start idler, transmission gear and shift mechanism
• Chapter VI – Vehicle: wheels and tyres, hub bearings, transmission chain and sprockets, brake system including calipers, pads, master cylinders, discs, brake fluid and hoses, anti-lock braking system, front and rear suspension, rear swing arm, steering and control system, frame, seat, guards, fenders, fairing, air filter, muffler, engine removal and installation
• Chapter VII – Electrical System: charging system and circuit diagram, battery activation and charging, magneto, voltage regulator/rectifier, ignition system, crankshaft position sensor, spark plugs, ECU, starting system and starter motor, starter relay, lighting, turn signals, tail light and licence plate light, meter, electronic lock switch, handle switches, oxygen sensor, oil level sensor, horn, fan, water temperature switch, relays, fuse box

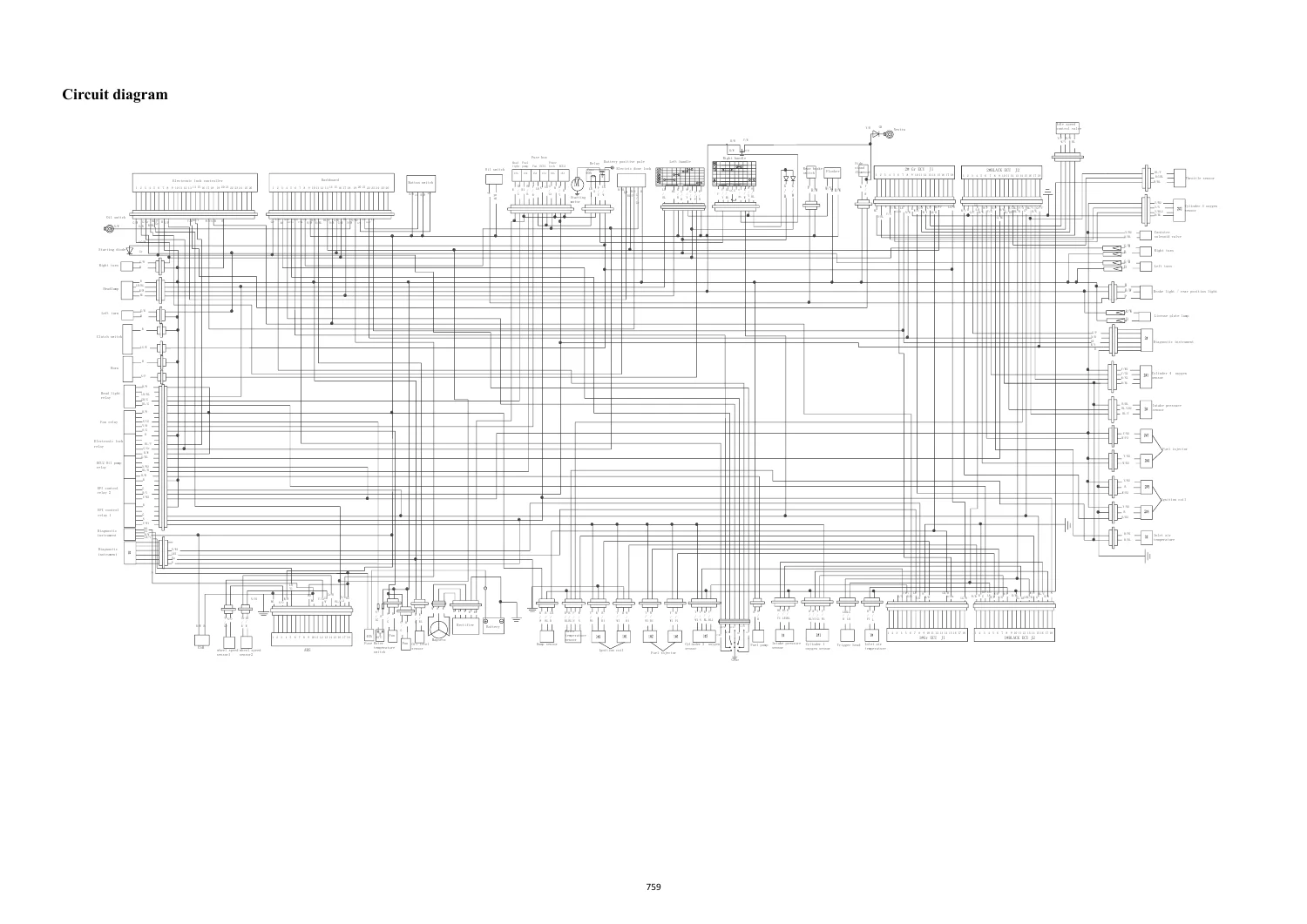

• Chapter VIII – Appendix: troubleshooting guide covering starting faults, low-speed running faults, high-speed faults, overheating, overcooling, clutch and gearshift problems, engine and drive noise, exhaust faults, handling and stability problems, battery faults, plus the full circuit diagram

Also carried at the front of the manual are the emission control sections describing the crankcase blow-by gas filter system, the exhaust emission control system and the fuel evaporation recovery system, along with the legal notices on noise control system modification.

What makes this document genuinely useful is the level it operates at. It is not an owner’s handbook with fluid capacities and bulb numbers – it is the workshop-level text that takes the QJ465MS-2D engine down to the crankcase halves and back, specifying the order in which bolts are cracked and re-tightened, which fasteners carry thread-locking compound, which washers must be renewed, and where a plastic wire gap gauge or a molybdenum disulphide oil solution is required. The engine chapter alone covers valve clearance measurement and shim selection, camshaft removal and re-timing, camshaft radial runout and cam wear limits, cylinder head bolt tightening in three stages, piston ring end gap measurement, connecting rod bolt elongation measurement, and crankcase main bearing selection by colour code. The EFI chapter goes the other way – it teaches you how to read fault light flash codes without a scan tool, how to test an injector with a pair of series bulbs, how to interpret the MT05 fault code table, and how to work through the PCHUD diagnostic software.

Torque values are given throughout in both N m and kgf m, and the manual carries a dedicated tightening torque table listing the oil plug, oil pressure switch, connecting bolt, oil filter, camshaft sprocket bolts, cylinder head bolts, clutch disc hub nut, crankcase bolts, rear axle nut, brake caliper bolts, steering stem nut, engine mounting bolts and dozens more. Where a fastener must follow a sequence, the sequence is stated; where a part is single-use, it is marked as a replacement item.

What This Manual Lets You Do

• Carry out the full periodic maintenance schedule on the QJ600GS-3D, from throttle free play and idle speed through valve clearance, drive chain slack and brake fluid changes
• Diagnose and repair the Delphi MT05 fuel injection system, including reading fault codes directly from the instrument panel
• Rebuild the QJ465MS-2D four-cylinder engine – cylinder head, valve train, camshafts, pistons, crankshaft, connecting rods, clutch and gearbox
• Service the cooling system, water pump, radiator, thermostat and fan
• Overhaul the braking system, from pads and calipers to the master cylinders, brake hoses and the anti-lock braking system
• Strip and rebuild the front forks, rear shock absorber and rear swing arm
• Trace electrical faults using the circuit diagram and the component-by-component switch and sensor tests
• Remove and reinstall the engine with the correct mounting bolt torque and sequence

Getting the correct specification matters more than the procedure itself on a machine like this. Camshaft radial runout, valve clearance, connecting rod bolt stretch, crankcase main bearing colour codes and brake disc runout limits are all given with both a standard value and a service limit, so you know not just what to set a part to but when it has to come out. The same is true of the lubricants and sealants – the manual names the specific thread-locking compounds, silicone fasteners and molybdenum disulphide mixtures to use and where.

IMAGES PREVIEW

The QJMOTOR SRK 600 RC QJ600GS-3D Motorcycle Maintenance Manual is delivered as an instant PDF download – no shipping, no waiting. Open it on a laptop in the workshop, on a tablet next to the bike, or print the pages for the job you are doing and take them to the bench. Every section, table and illustration is available the moment your order is confirmed.
