Raisbeck Beechcraft King Air & Super King Air Systems Illustrated Parts Catalog 85-119

Description

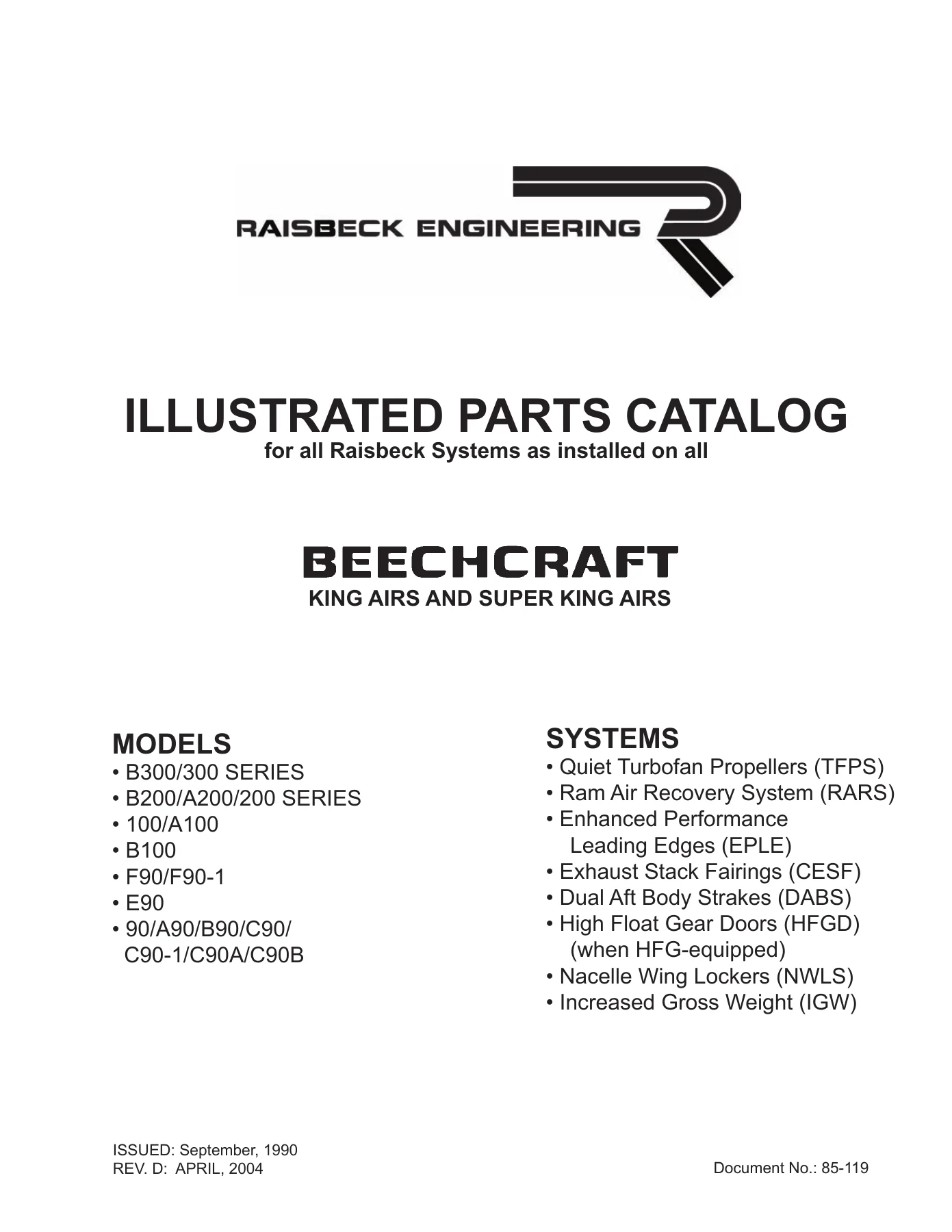

The Raisbeck Beechcraft King Air & Super King Air Systems Illustrated Parts Catalog 85-119 is the parts-identification reference for every Raisbeck Engineering system fitted to the Beechcraft King Air and Super King Air family. Published by Raisbeck Engineering, Inc. of Seattle, Washington as Document No. 85-119, this catalog is organised first by Raisbeck system and then by the aircraft model that system is installed on, so a technician can move from “which Raisbeck system is on this airframe” to the exact part number without guesswork. It is a dedicated spare-parts catalog — not a maintenance manual and not a reassembly guide — built so that replacement parts for Raisbeck Systems on King Airs and Super King Airs can be identified and ordered correctly.

What separates the Raisbeck King Air and Super King Air Illustrated Parts Catalog from a generic airframe parts book is its structure. Every figure, item number, part number, description and usable-on code in the Raisbeck Systems parts catalog is tied to a specific system and a specific aircraft serial-number range. That matters when a quiet turbofan propeller component, a wing locker latch, a high-float gear door linkage, an exhaust stack fairing or a leading-edge de-ice boot has to be replaced, because the wrong dash number or the wrong serial applicability will not fit.

File Details

• Manual type: Illustrated Parts Catalog (IPC)
• Document number: 85-119
• Publisher: Raisbeck Engineering, Inc., Seattle, WA
• Airframe brand: Beechcraft
• Airframe family: King Air and Super King Air
• Systems covered: All Raisbeck Systems
• Language: English
• File format: PDF
• Page count: 562 pages
• Page revision dates appearing in the document: April 1992, May 1995, January 1998, March 2004, April 2004
• Ordering contact printed in the catalog: Raisbeck Engineering, Inc., Parts and Service Operations, 4411 South Ryan Way, Seattle, WA 98178

Raisbeck Systems Documented in This Catalog

The Raisbeck King Air parts catalog covers eight product lines. Each is broken out by aircraft model, and each model section is further divided into the parts that make up the system on that airframe.

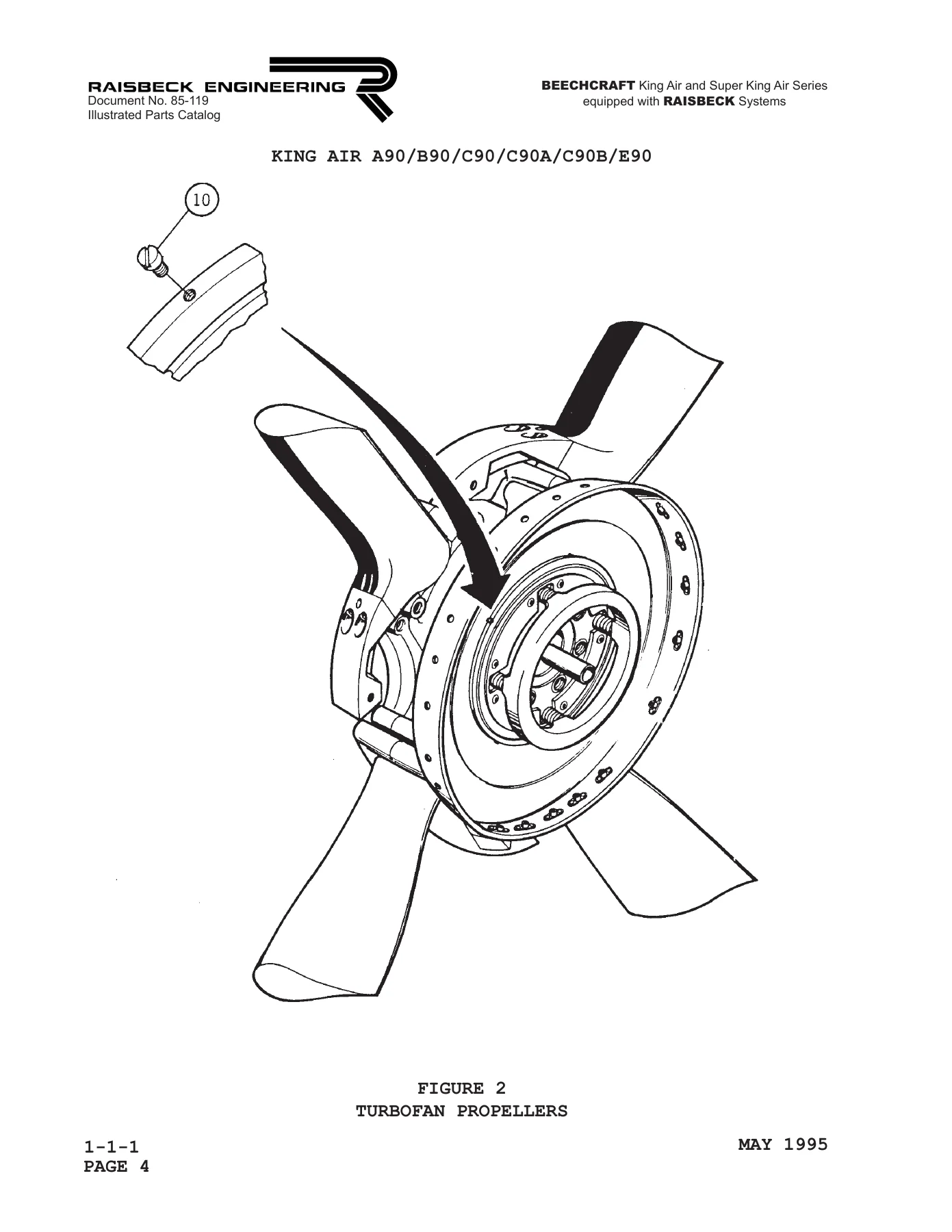

• Quiet Turbofan Propellers (TFPS) — propeller, de-ice boot, blades, hub assembly, backing plate, de-ice harness, spinner dome and attaching parts, propeller stopper, carbon block assembly
• Ram Air Recovery System (RARS) — particle separator assembly, linkage assembly, air intake anti-ice, engine baffle seals, seal retainers

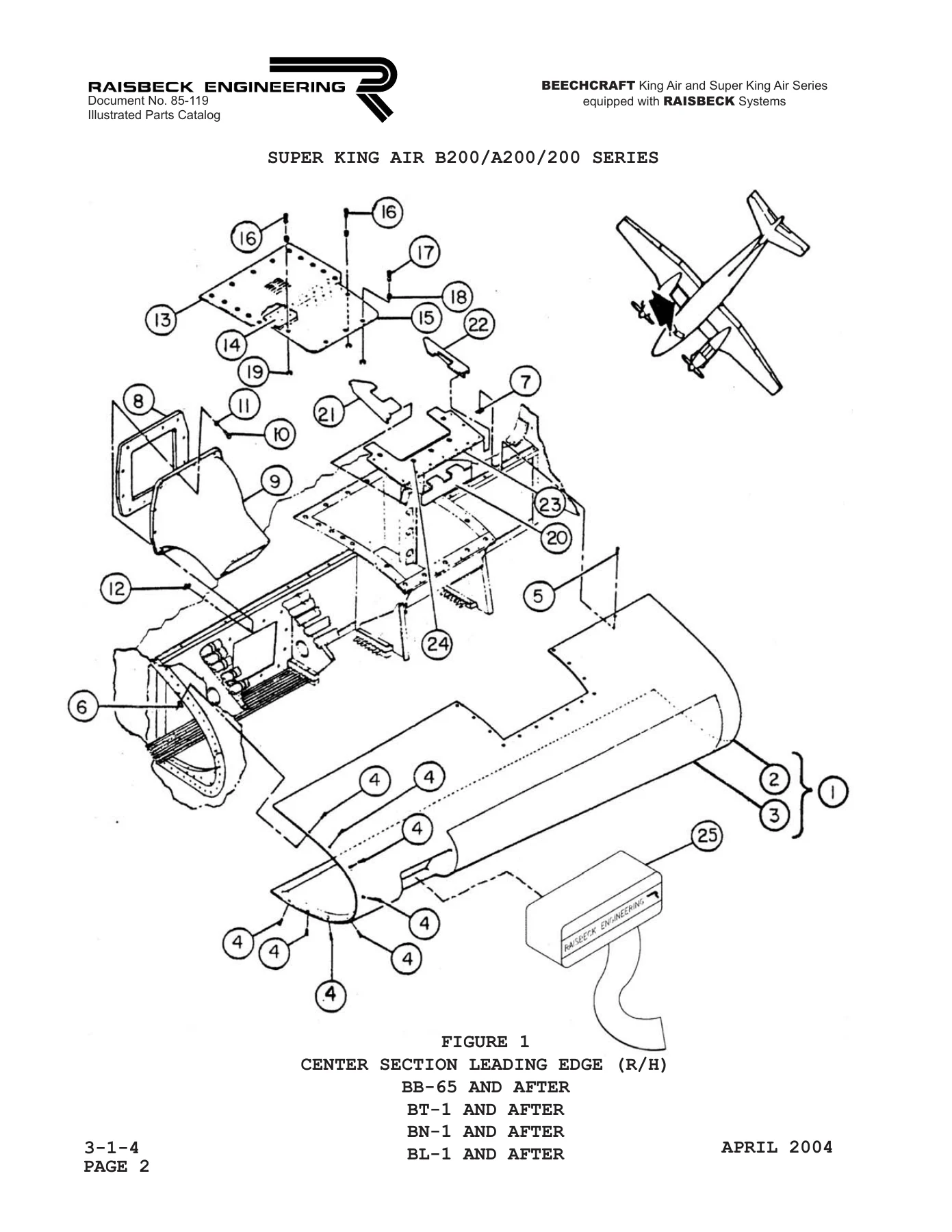

• Enhanced Performance Leading Edges (EPLE) — centre section leading edges (left and right hand), nacelle support brackets, wing-to-body fairings, de-ice boots, inlet plugs
• Exhaust Stack Fairings (CESF) — forward fairing assemblies (left and right hand), gaskets, stud assemblies, grommets, retaining rings, receptacles
• Dual Aft Body Strakes (DABS) — aft body strake assemblies and attaching hardware, plugs
• High Float Gear Doors (HFGD) — main gear door assemblies, hinge assemblies and hinge pins, actuator assemblies, linkage assemblies, rollers, bushings, springs, cam assemblies
• Nacelle Wing Lockers (NWLS) — locker installations, locker assemblies, doors, hinges, latches and latch receivers, gas springs, seals, carpet, placards, lower nacelle fairings, top plates, doublers, radius fillers, nut plates
• Increased Gross Weight (IGW) — optional airspeed indicators, jacking limitation placards, wing ballast installations

Chapters Covered

The catalog’s contents are arranged by system section number, with each section carrying its own figures and parts lists.

• Section 1 — Quiet Turbofan Propellers
• 1-1 — King Air A90/B90/C90/C90A/C90B/E90: turbofan propellers, cockpit and electrical, engine components
• 1-2 — King Air 100/A100: turbofan propellers, cockpit and electrical, engine components
• 1-3 — Super King Air B200/A200/200 Series: turbofan propellers (Hartzell three-blade and McCauley four-blade), cockpit and electrical, engine components
• 1-4 — Super King Air F90/F90-1: turbofan propellers, cockpit and electrical, engine components
• Section 2 — Ram Air Recovery System (Super King Air B200/A200/200 Series), including fixed turning vane, air intake anti-ice and engine baffle seals
• Section 3 — Enhanced Performance Leading Edges: centre section leading edge L/H and R/H, nacelle support brackets L/H and R/H, wing-to-body fairings L/H and R/H
• Section 4 — Exhaust Stack Fairings: 90/A90/B90/C90/E90/100/A100 and F90 (excluding LA-202, LA-205 and after); C90A/C90B (LJ-1063 and after) and F90-1 (LA-202, LA-205 and after) with pitot inlet; B200/A200/200 Series; B300/300 Series flat stack; B300 Series round stacks
• Section 5 — Dual Aft Body Strakes: 90 Series, 100/A100/B100, F90/F90-1, 200 Series/B200 Series, 300 Series/B300 Series
• Section 6 — High Float Gear Doors: 90/A90/B90/C90/C90A/C90B/E90; F90/F90-1 (gear doors, actuator assembly, linkage assembly, left and right hand); B200/A200/200 Series; 100/A100/B100
• Section 7 — Nacelle Wing Lockers: 90/A90/B90/C90/C90A/E90; F90/F90-1; 100/A100/B100; B200/A200/200 Series; B300/300 Series — each with locker installation L/H and R/H, locker assembly L/H and R/H, and lower nacelle fairing L/H and R/H
• Section 8 — Increased Gross Weight: C90/C90A (optional airspeed indicator), E90 (jacking limitations placard), 100/A100 (jacking limitations placard, ballast installation)

Read together, the sections give a parts counter or maintenance shop a complete Raisbeck parts breakdown for an individual airframe. Wing locker sections, for example, split into locker installation drawings, the locker assembly itself with doors, hinges, latches, gas springs and carpet, and the lower nacelle fairings, each with its own attaching hardware list and its own kit-serial applicability. Gear door sections go deeper still, breaking the door installation, the actuator assembly and the outboard and inboard linkage assemblies into separate figures so that individual springs, cams, bushings, bolt spacers and cotter pins can be ordered rather than a whole assembly.

Model Coverage and Serial Number Applicability

The catalog opens with a model applicability table keyed to aircraft serial numbers, and the individual parts lists carry usable-on codes that tie each item back to those ranges. Models addressed include:

• 90, A90, B90, C90, C90-1, C90A, C90B — LJ-1 through LJ-113 except LJ-76; LJ-76 and LJ-114 through LJ-317; LJ-318 through LJ-501; LJ-502 through LJ-1062; LJ-1063 through LJ-1287, LJ-1289 through LJ-1294, LJ-1296 through LJ-1299 and after; LJ-1288, LJ-1295, LJ-1300 and after
• E90 — LW-1 and after
• F90, F90-1 — LA-2 through LA-204 except LA-202; LA-202, LA-205 and after
• B100 — B-2 through B-89 and B-93
• A100 — B-1, B-90 and after, except B-93
• B100 — BE-2 and after
• 200 Series — BB-2 through BB-733, BB-735 through BB-792, BB-794 through BB-828, BB-830 through BB-853, BB-871 through BB-873, BB-892, BB-893, BB-895, BB-912; BL-1 through BL-36; BT-1 through BT-22; BN-1
• B200 Series — BB-734, BB-793, BB-829, BB-854 through BB-870, BB-874 through BB-891, BB-894, BB-896 through BB-911, BB-913 and after; BL-37 and after; BT-23 and after
• 300 — BN-2 and after; 300LW — FA-1 and after
• B300 — FF-1 and after; FL-1 and after (also known as 350); FM-1 and after

Because the Raisbeck King Air parts catalog keeps those serial breakpoints visible next to the item numbers, a buyer can confirm applicability before ordering. Where a part number carries an asterisk, the catalog notes that the part may be obtained through Hartzell or Beechcraft dealerships — or any other suitable source — and vendor names such as Hartzell, B.F. Goodrich, Beechcraft, Rexnord, Kaynar, Kirkhill, Tinnerman, Seastrom, Chicago Lock, Austin Hardware Supply and Klixon appear alongside the qualifying part numbers.

How to Use This Catalog

• Identify which Raisbeck System is installed on the airframe, then turn to that system’s section number.
• Within the system, locate the applicable aircraft model.
• Match the airframe serial number against the usable-on code shown in the parts list.
• Read the item number off the illustration and take the corresponding full manufacturer’s part number from the parts list.
• Quote the complete manufacturer’s part number, and include the airplane serial number with the order.

The catalog also carries a warning worth repeating: its illustrations exist to aid part identification. They are not a maintenance reference and must not be used for reassembly.

Who This Raisbeck King Air Parts Catalog Is For

Owners, operators, maintenance shops, parts departments and repair stations working on Raisbeck-equipped Beechcraft King Airs and Super King Airs will find this the most direct route to a correct part number. Because Raisbeck systems are STC installations rather than factory-standard equipment, generic King Air parts catalogs rarely carry the components — spinner domes, target brackets, counterweights, carbon block assemblies, fairing gaskets, latch receivers, cam assemblies, seal retainers — that these installations use. This catalog does.

Get the Correct Part the First Time

The Raisbeck Beechcraft King Air & Super King Air Systems Illustrated Parts Catalog 85-119 gives you the ability to identify and order spare parts for every Raisbeck System across the King Air and Super King Air line. Whether you are replacing a de-ice harness on a Quiet Turbofan Propeller installation, ordering a particle separator linkage for a Ram Air Recovery System, sourcing a gas spring for a nacelle wing locker, chasing the right hinge pin for a high float gear door, or confirming which exhaust stack fairing gasket suits a B300 with round stacks, the answer is in the figure and parts list — matched to your model and serial number.

Using the correct part number matters. Raisbeck installations evolved across model runs, kit serial numbers and serial-number breakpoints, and a component that fits one airframe will not fit the next. Working from this catalog keeps you on the correct dash number, the correct attaching hardware and the correct usable-on code, which means fewer wrong parts, less downtime and a maintenance record that holds up.
