Raymond 5400 5500 5600 ACR Orderpicker Maintenance Manual – PDF

Description

Raymond 5400 5500 5600 ACR Orderpicker Maintenance Manual – Publication 1031794B

This Raymond 5400 5500 5600 ACR Orderpicker Maintenance Manual is the complete service and repair reference for the high-level orderpicker lift truck equipped with The ACR System. Published by The Raymond Corporation under document number 1031794B, it applies to Models 5400, 5500, and 5600 from serial number 00100 and up. Inside you will find the same scheduled maintenance tables, diagnostic fault codes, electrical and hydraulic tests, and component overhaul procedures a Raymond dealer technician relies on when servicing these narrow-aisle machines. Whether you are chasing an intermittent traction fault, resetting the Maintenance Minder, adjusting the high pressure relief valve, or rebuilding a drive unit, this manual walks through the process step by step.

File Details

• Manual type: Maintenance Manual
• Brand: Raymond
• Models covered: 5400, 5500, 5600 High-Level Orderpicker with The ACR System
• Serial number range: 00100 and up
• Publication number: 1031794B
• Original issue date: 1/27/06
• Revision date: Re-Issued 7/14/06
• Language: English
• File format: PDF

Chapters Covered

• Section 1 – How to Use This Manual: manual format, map of the manual, manual design, abbreviations and symbols
• Section 2 – Safety: warning and caution definitions, general safety, battery safety, electrostatic discharge precautions, jacking, tie-down for transport, towing, welding safety, emergency lower valve
• Section 3 – Systems Overview: general system data, lift truck specifications, installation, modes of operation, FlashWare program, wire guidance, cold storage, configuration codes, storage, special tools
• Section 4 – Scheduled Maintenance: maintenance guidelines, Maintenance Minder tool, initial 90 day/250 deadman hours service, every 180 days or 500 HD, every 360 days or 2000 HD, chain maintenance
• Section 5 – Troubleshooting: electrical troubleshooting, battery state-of-charge, electrostatic discharge, fuses, DC motor troubleshooting, AC motor troubleshooting, shorts to frame test, wiring, electrical connector locations, drive unit troubleshooting, communication error code troubleshooting, symptom tables for hydraulic, travel, and electrical functions
• Section 6 – Messages, Codes and Tests: operator display messages, messages and codes summary list, analog input tests (A04 through A56), input tests (I00 through I76), output tests (O00 through O43)
• Section 7 – Component Procedures: component locator photos, steering and controls, steer motor/gearbox, control handle, deadman pedal, emergency power off switch, drive and brake, drive motor, drive unit (standard and heavy duty), brake, drive wheel, electrical components, battery procedures, motors, AC motor service, power amplifiers, carriage control card replacement, EPROM/microprocessor removal, hydraulic components, flow sensor service, high pressure relief valve adjustment, lift/lower and load holding valves, bleeding lift cylinders, lift pump and motor, pressure switch adjustment, side lift cylinder, center lift cylinder, carriage, forks, mast bearing shimming, upper mast bearing replacement
• Section 8 – Theory of Operation: system architecture, traction system, steering system, lift/lower system, wire guidance system, pin-out matrix
• Appendix: lubrication specification chart, thread adhesives/sealants/lubricants, component specific torque chart, standard (ferrous) torque chart, metric torque chart, standard (brass) torque chart, decimal equivalent chart, standard/metric conversions, electrical and hydraulic schematics
• Index

The manual opens with a systems overview that explains how the Vehicle Manager, Carriage Control Card, Traction Power Amplifier, Lift Power Amplifier, and optional Guidance Manager communicate over the CAN bus. From there it moves into scheduled maintenance intervals based on deadman hours, then into a deep troubleshooting section that includes symptom tables for slow lift, no lift, load drifting, slow travel, motor overheating, and operator display faults. The messages and codes section lists every fault code the truck can display, what causes it, which test to run, and what to do to correct it. Component procedures give step-by-step removal, installation, and adjustment instructions with torque values, thread-locking compounds, and shim calculations. The theory of operation section explains signal flow and includes a detailed pin-out matrix for testing and troubleshooting. The appendix collects lubrication specs, torque charts, decimal equivalents, standard/metric conversions, and electrical and hydraulic schematics in one place.

What This Raymond Orderpicker Manual Helps You Do

This Raymond 5400 5500 5600 ACR Orderpicker Maintenance Manual supports the full range of service work on these machines. You can perform the initial 90-day/250-hour service, the every-180-day/500-HD inspection, and the every-360-day/2000-HD maintenance tasks. You can diagnose a truck that will not travel, will not lift, will not steer, or will not release the brake. You can interpret every operator display message and fault code, from Code 1H and Code 2A through Code X5. You can test the traction motor, lift motor, steer motor, encoders, temperature sensors, and power amplifiers. You can service the hydraulic system, including the flow sensor, high pressure relief valve, lift/lower and load holding valves, side lift cylinders, center lift cylinder, and lift pump. You can remove and rebuild the standard or heavy duty drive unit, adjust the brake, replace the drive wheel, and replace the carriage control card or EPROM. You can shim the mast bearings, replace the upper mast bearing, remove and install the carriage and forks, and work through the mast disassembly and shimming procedure. If you maintain a fleet of Raymond orderpickers, this manual gives you the diagnostic logic and specification data to keep them running.

Fault Codes and Diagnostics

The messages and codes section is organized for fast lookup. Each entry gives the display message, the code title and reason, the tests to run, and the corrective action. For example, Code 2A (traction motor approaching overtemperature) points you to Test A08 and explains that travel speed is linearly derated starting at 266°F (130°C) and limited to 1 mph at 300°F (149°C). Code 6F (lift motor overheated, AC lift only) points to Test A09 and notes that lift is disabled until the motor cools. Code 80 (throttle potentiometer VR1 out of range) points to Test A04 and disables travel until the key switch is cycled. Codes G0 through GE cover steering encoder faults and auto steer center failures. Codes X3, X4, and X5 cover limit switch mismatches. The manual also documents the audible alarm tones and patterns used in Run Mode, including the single tone for up/down button presses, the two-tone signal for disabled contactors, the three-tone signal for performance limitations or system shutdowns, and the continuous tone that indicates the truck is over the guide wire.

Hydraulic and Drive Unit Service

On the hydraulic side, the manual covers bleeding the side lift cylinders and center cylinder, adjusting the high pressure relief valve with a calibrated pressure gauge, servicing the flow sensor turbine and O-rings, removing and installing the lift/lower and load holding valves, replacing the lift pump and motor, adjusting the pressure switch on 24V Hi-Pro trucks, and servicing the side and center lift cylinders including cushion and seal replacement. The drive unit procedures are split between the standard and heavy duty units. Both sections cover pivot ring inspection, drive unit removal, pivot ring disassembly, radial ring removal, axle shaft and bevel gear removal, spiral gear and helical gear removal, bearing cup and shim removal, housing cleaning and inspection, and full assembly with shim calculations for the spiral pinion gear and bevel gear. Backlash measurement is covered in detail, with a tolerance of 0.004 to 0.006 in. on both drive units. The heavy duty section adds main cover and output shaft disassembly, spiral pinion disassembly, and its own shim formulas and backlash procedure.

Why a Proper Maintenance Manual Matters

Raymond orderpickers are built for very narrow aisle work, and the ACR System ties together traction, steering, lift, and guidance functions through a CAN bus network. Guessing at a fault code or skipping a torque value can lead to repeat failures, damaged components, or unsafe operation. This manual gives you the correct test sequence, the expected voltage or resistance reading, the torque specification, and the thread-locking compound to use. It also documents the maintenance intervals that keep the truck working efficiently and reduce costly downtime. If you service these trucks, having the manufacturer’s maintenance manual on hand is the difference between a quick, correct repair and a trial-and-error process.

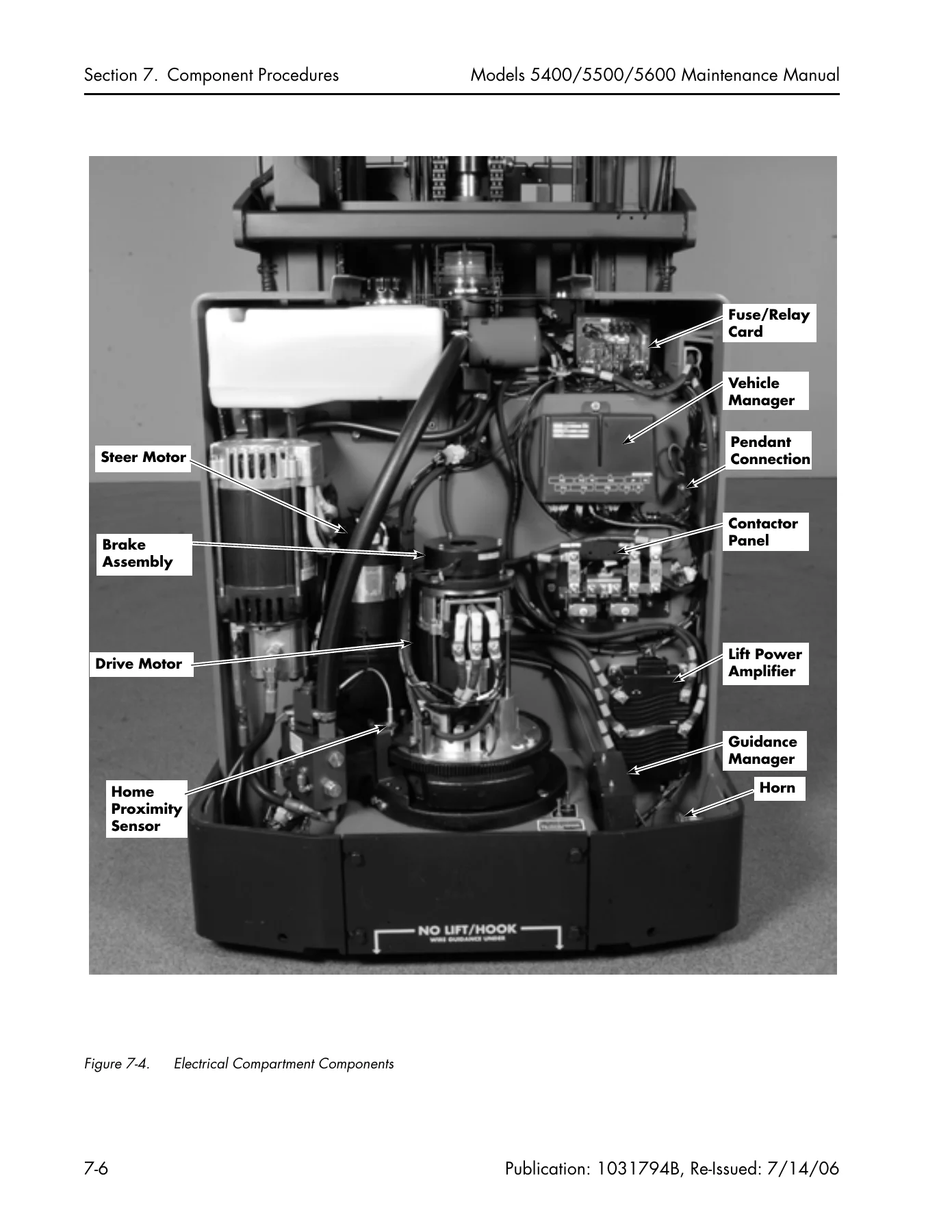

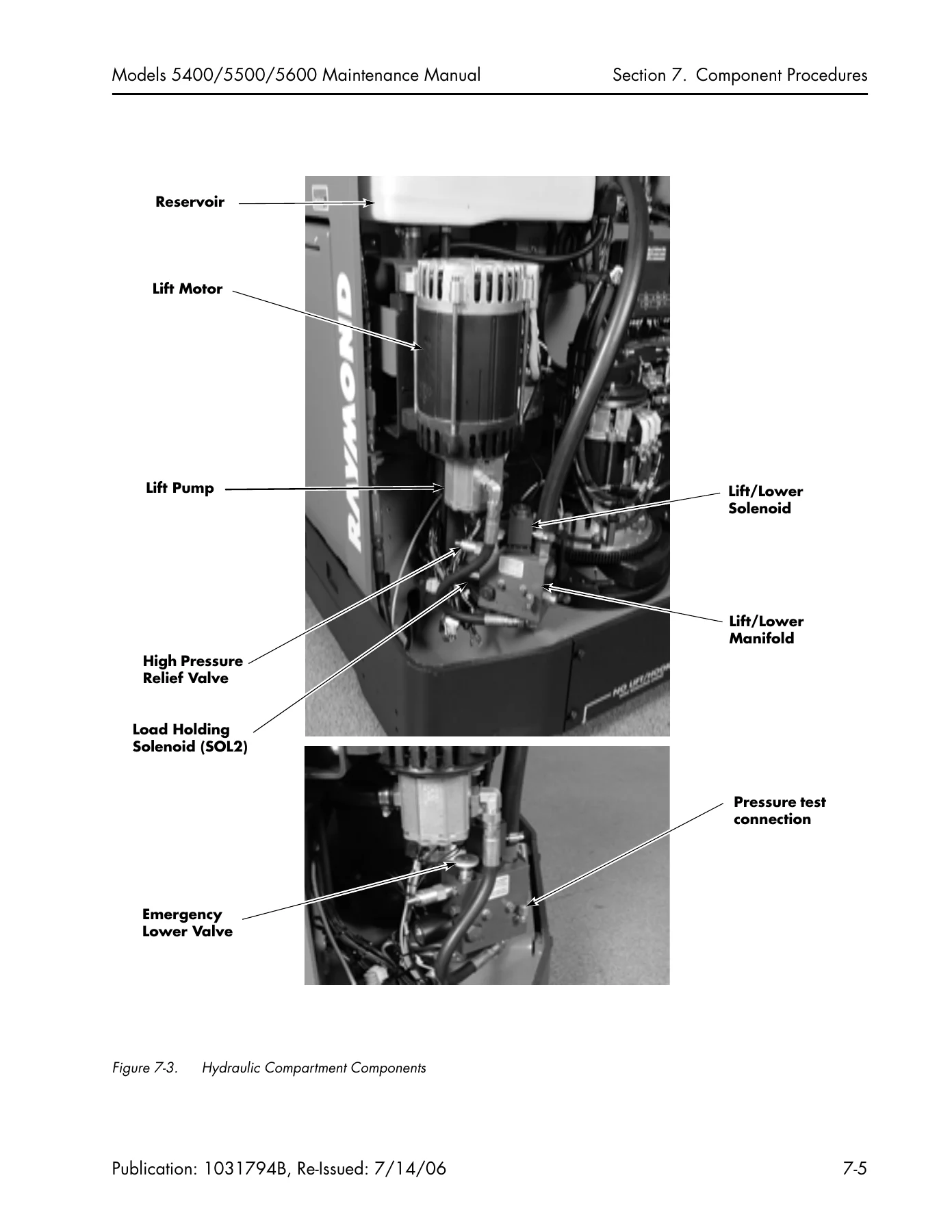

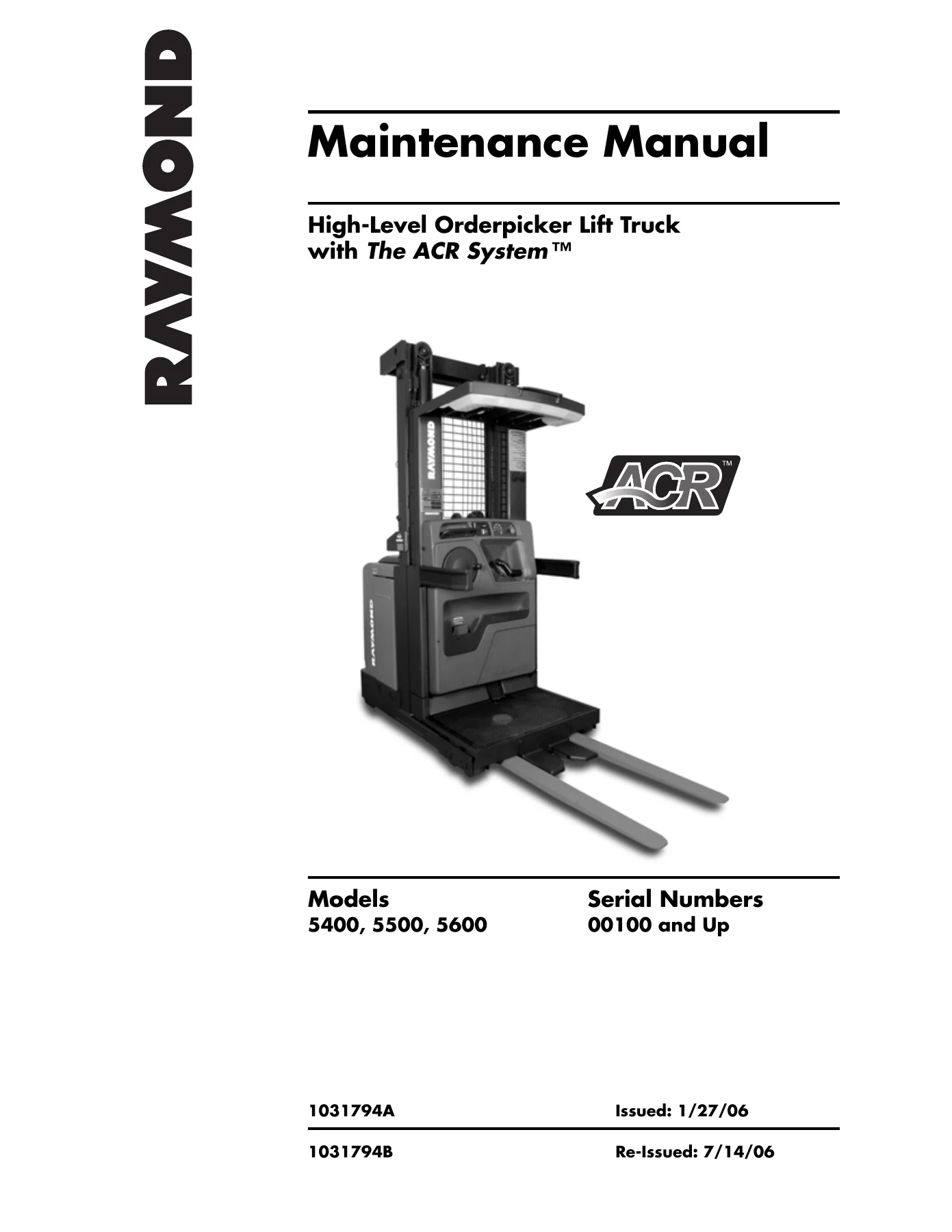

IMAGES PREVIEW

Instant PDF Delivery

The Raymond 5400 5500 5600 ACR Orderpicker Maintenance Manual is delivered as an instant PDF download after purchase. There is no shipping, no waiting, and no physical book to keep track of. You can open it on a laptop, tablet, or smartphone, print the pages you need for the shop, and search the sections you use most. Keep it on your service van, in the maintenance office, or on the shop floor. Whether you are a fleet maintenance technician, an independent repair shop, or a Raymond dealer technician, this PDF gives you the full maintenance manual in a convenient, portable format.
