Raymond 5400 5500 5600 High-Level Orderpicker Maintenance Manual – ACR System (1031794C)

Description

This Raymond 5400 5500 5600 Maintenance Manual is the complete service and repair documentation for the Raymond High-Level Orderpicker lift truck equipped with the ACR System. Published under document number 1031794C and revised 13 July 2015, it covers Serial Numbers 00100 and up across the 5400, 5500 and 5600 models. Whether you are performing scheduled maintenance, diagnosing an intermittent fault code, replacing a drive unit, or rebuilding a mast, this manual walks through the procedure with the specifications and test values you need.

File Details

• Manual type: Maintenance Manual
• Brand: The Raymond Corporation
• Models covered: 5400, 5500, 5600 High-Level Orderpicker Lift Truck
• System: ACR System
• Serial numbers: 00100 and up
• Document number: 1031794C
• Revision: 13 July 2015 (supersedes 1013794B, 14 July 2006; 1013794A, 27 Jan 2006)
• Language: English
• Page count: 457
• File format: PDF

Chapters Covered

• How to Use This Manual – navigational icons, manual design, interactive electronic technical manuals, abbreviations and symbols
• Safety – definitions, general safety, battery safety, static precautions, jacking, emergency lower valve, tie-down for transport, towing, welding safety
• Systems Overview – introduction, lift truck specifications, general information, installation, operator display, modes of operation, FlashWare, wire guidance, cold storage, storage, UL Label “EE”
• Scheduled Maintenance – maintenance guidelines, Maintenance Minder Tool, initial 90 day/250 deadman hours maintenance, every 180 days or 500 deadman hours, every 360 days or 2000 deadman hours, chain maintenance
• Troubleshooting – electrical troubleshooting, drive unit troubleshooting, troubleshooting aisle exit error code J2, symptom tables for hydraulic functions, travel functions and electrical symptoms
• Messages, Codes, and Tests – summary list, messages and codes, analog input tests, input tests, output tests

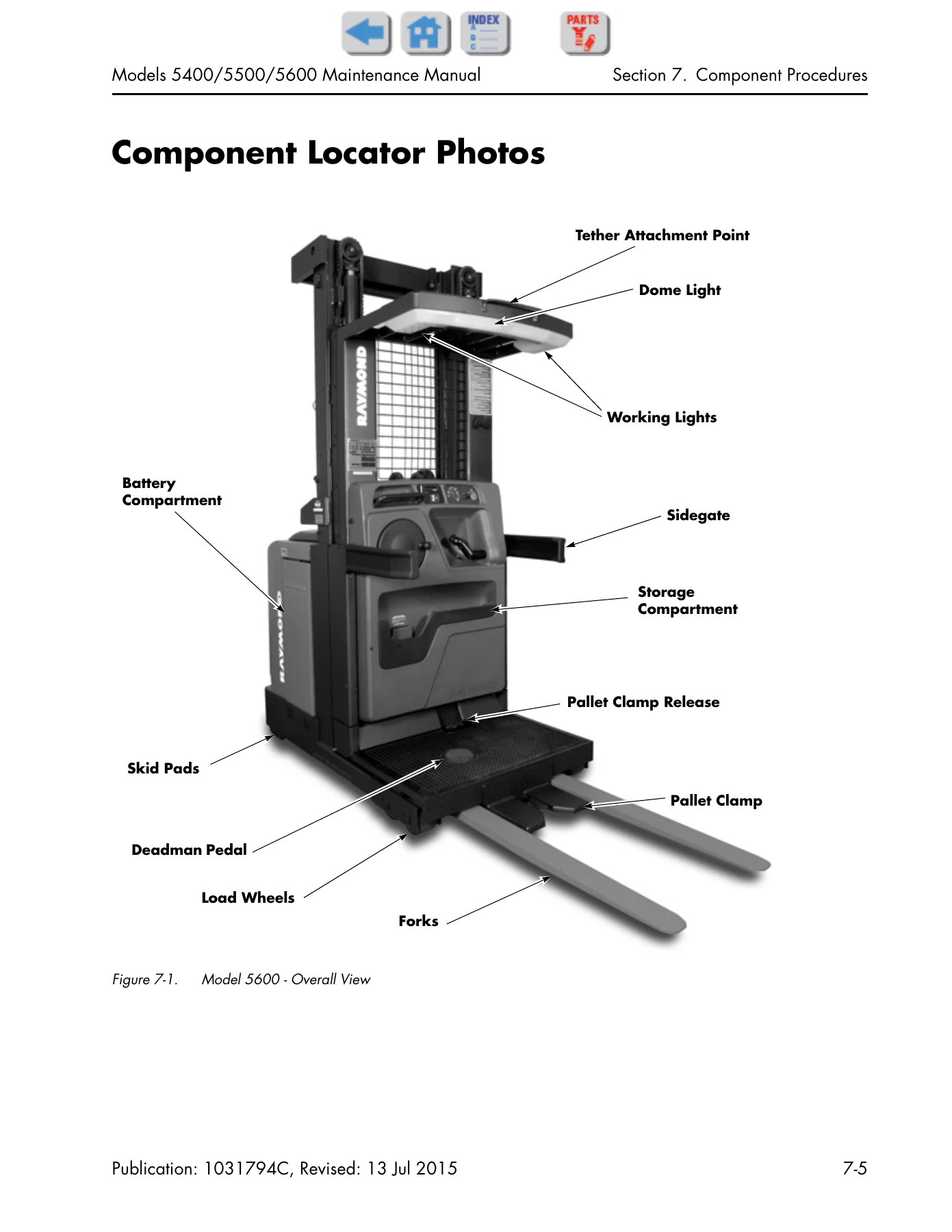

• Component Procedures – component locator photos, special tools and decals, steering and controls, steer motor/gearbox, home proximity sensor adjustment, control handle, deadman pedal, drive and brake, traction motor, drive unit (standard and heavy duty), brake, drive wheel, electrical components, battery procedures, power cables, motors, AC motor service, power amplifiers, horn, carriage control card replacement, EPROM/microprocessor, wiring and harness repair, hydraulic components, flow sensor service notes, high pressure relief valve adjustment, lift/lower and load holding valves, bleeding lift cylinders, lift pump and motor, pressure switch adjustment, side lift cylinder, center lift cylinder, mast section, carriage, mast shimming, upper mast bearing replacement, lift chains (three-stage), center cylinder ride spring chain anchors, forks, pallet clamp, load wheels, skid pads, lift chain
• Theory of Operation – system architecture, traction system, steering system, lift/lower system, wire guidance system, Pin-Out Matrix
• Appendix – lubrication specification chart, thread adhesives/sealants/lubricants, component specific service/torque chart, torque charts for hydraulic fittings, straight thread face seal O-rings, standard (ferrous), metric (ferrous), standard (brass), metric (brass), thread forming screws, decimal equivalent chart, standard/metric conversions

What This Raymond Orderpicker Manual Enables You to Do

This is not a slim operator booklet. It is the full maintenance reference used to keep a Raymond 5400, 5500 or 5600 High-Level Orderpicker running correctly through its service life. The scheduled maintenance chapter lays out exactly what to inspect and when – from the initial 90-day/250-deadman-hour service through the 180-day/500-HD and 360-day/2000-HD intervals – so nothing gets overlooked between major services.

When something fails, the troubleshooting chapter takes you from symptom to failing component. Hydraulic symptom tables cover no lift, slow lift, inability to pick up a load, slow lower, intermittent lower, and load drifting. Travel symptom tables cover slow or sluggish acceleration and slow travel. Electrical symptom tables address motor arcing and overheating. The communications error code troubleshooting section helps isolate intermittent codes that only appear during travel, plugging, or SelfTest.

The Messages, Codes, and Tests chapter is where the manual earns its keep during diagnostics. Every fault code from Code 10 through Code X5 is listed with the reason, the tests to run, and the corrective action – covering traction motor over-temperature, TPA and LPA faults, contactor faults, CAN communication errors, deadman switch mismatches, steer encoder codes, wire guidance codes, and battery state-of-charge messages. Analog tests, input tests, and output tests give you the meter settings, probe points, and expected readings to confirm a failure before you replace a part.

Models, Systems, and Options Documented

The manual covers the 5400 (AC/DC 24V Hi-Pro), 5500 (AC/AC 24V High Performance) and 5600 (AC/AC 36V High Performance), including the heavy-duty drive unit configuration used above 315 in. and on specific customer applications. It also documents the optional systems you are likely to encounter: wire guidance with the Guidance Manager, Filter Card and Antenna Cards; intellispeed flow sensor height and weight tracking; cold storage heater assemblies; rail guidance; end-of-aisle detection; and the auxiliary mast option.

Component procedures are grouped by system and include step-by-step removal, disassembly, assembly and installation instructions for the standard and heavy-duty drive units, brake, drive wheel, traction motor, AC motor temperature sensor and bearing encoder, power amplifiers, carriage control card, hydraulic lift/lower and load holding valves, side and center lift cylinders, mast shimming, three-stage lift chains and forks. Torque values, thread-locking compounds and shim calculation formulas are called out at each step.

Schematics, Torque Charts and Specifications

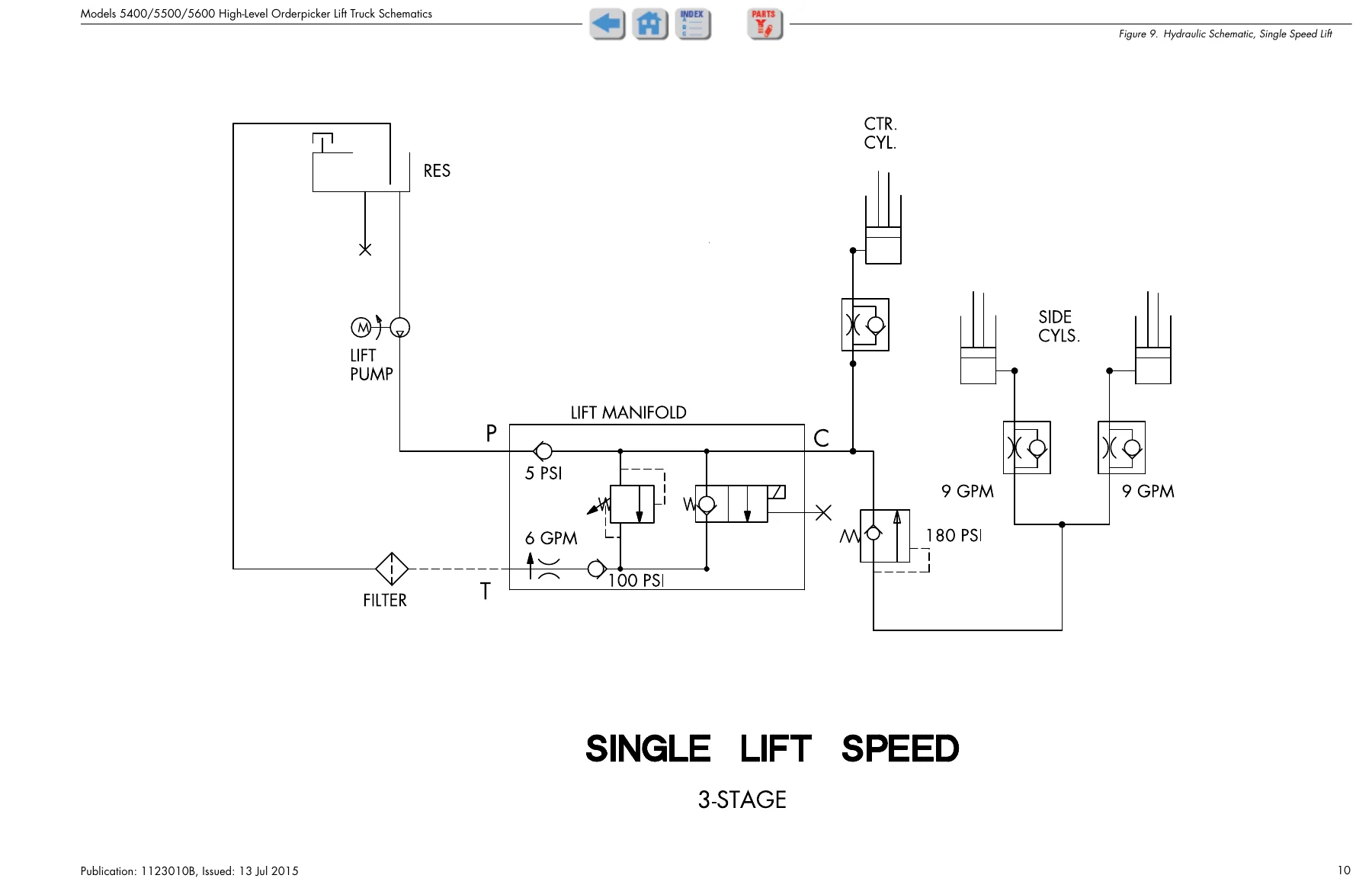

The appendix carries the lubrication specification chart, thread adhesive and sealant reference, component-specific service/torque chart, hydraulic fitting torque charts, face seal O-ring torque charts, standard and metric ferrous and brass torque charts, thread-forming screw torque charts, decimal equivalents and standard/metric conversions. Electrical schematics and hydraulic schematics for single-speed lift, variable-speed lift, and variable-speed lift with auxiliary lift are also included.

Your Complete Raymond 5400/5500/5600 Maintenance Reference

Having the correct Raymond 5400 5500 5600 High-Level Orderpicker Maintenance Manual on hand means you can plan scheduled maintenance properly, diagnose fault codes with the right test values, and complete repairs using the manufacturer’s own procedures rather than guesswork. The difference between a truck that stays in service and one that keeps coming back with the same fault often comes down to whether the technician had the correct torque values, shim calculations, and error code corrective actions at hand.

IMAGES PREVIEW

This manual is delivered as an instant PDF download after payment – no shipping, no waiting for a printed book. Open it on a laptop, tablet or phone in the workshop, print the pages you need for the job, and keep the rest of the 457-page reference on file. It is the same document a Raymond service technician would work from for the 5400, 5500 and 5600 orderpicker.
