Renault Trucks DXi 11 Engine Workshop Manual 2006 – EURO 4 / EURO 3 Export PDF

Description

Renault Trucks DXi 11 Engine Workshop Manual – EURO 4 / EURO 3 Export

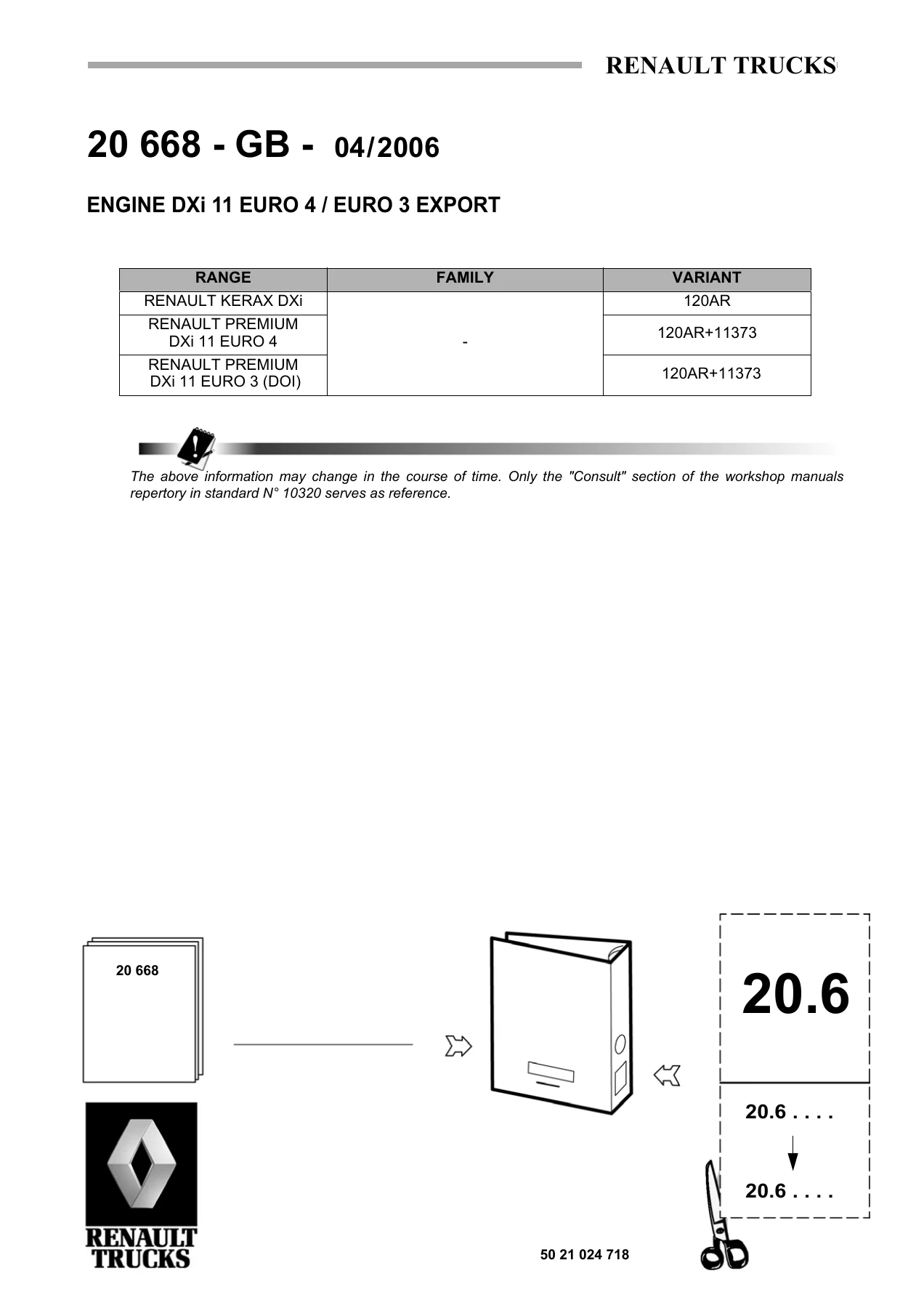

This Renault Trucks DXi 11 Engine Workshop Manual, published under document number 20 668 and dated 04/2006, is the engine-level workshop reference for the DXi 11 six-cylinder diesel in EURO 4 and EURO 3 Export configuration. It applies to the Renault Kerax DXi and the Renault Premium DXi 11, and it deals with the engine itself rather than the chassis around it: stripping and mounting on the stand, cylinder head and valve train, valve timing and timing gears, reciprocating gear, engine cooling, lubrication and turbocharger. Each procedure is backed by the tightening torques, wear limits, repair dimensions and special tool references the job actually needs.

File Details

• Manual type: Engine Workshop Manual
• Brand: Renault Trucks
• Engine family: DXi 11 – EURO 4 / EURO 3 EXPORT
• Document number: 20 668
• Edition / date: 04/2006
• Language: English (GB)
• Pages: 212
• File format: PDF

Chapters Covered

• Generalities – safety and conventional symbols, general instructions, practical advice before work, fuel system cleanliness recommendations
• General data – identification plate, engine horsepower and torque, technical data, engine cooling system, engine lubrication system, standard tightening torques, specific tightening torques, dimensions and tolerances
• Tools – general-purpose tools, special tools, locally manufactured tools
• Consumable products
• Stripping and mounting on stand – handling, drive belt(s), stand 1000, exhaust manifold, oil remover (CCCV), air compressor, steering pump, starter

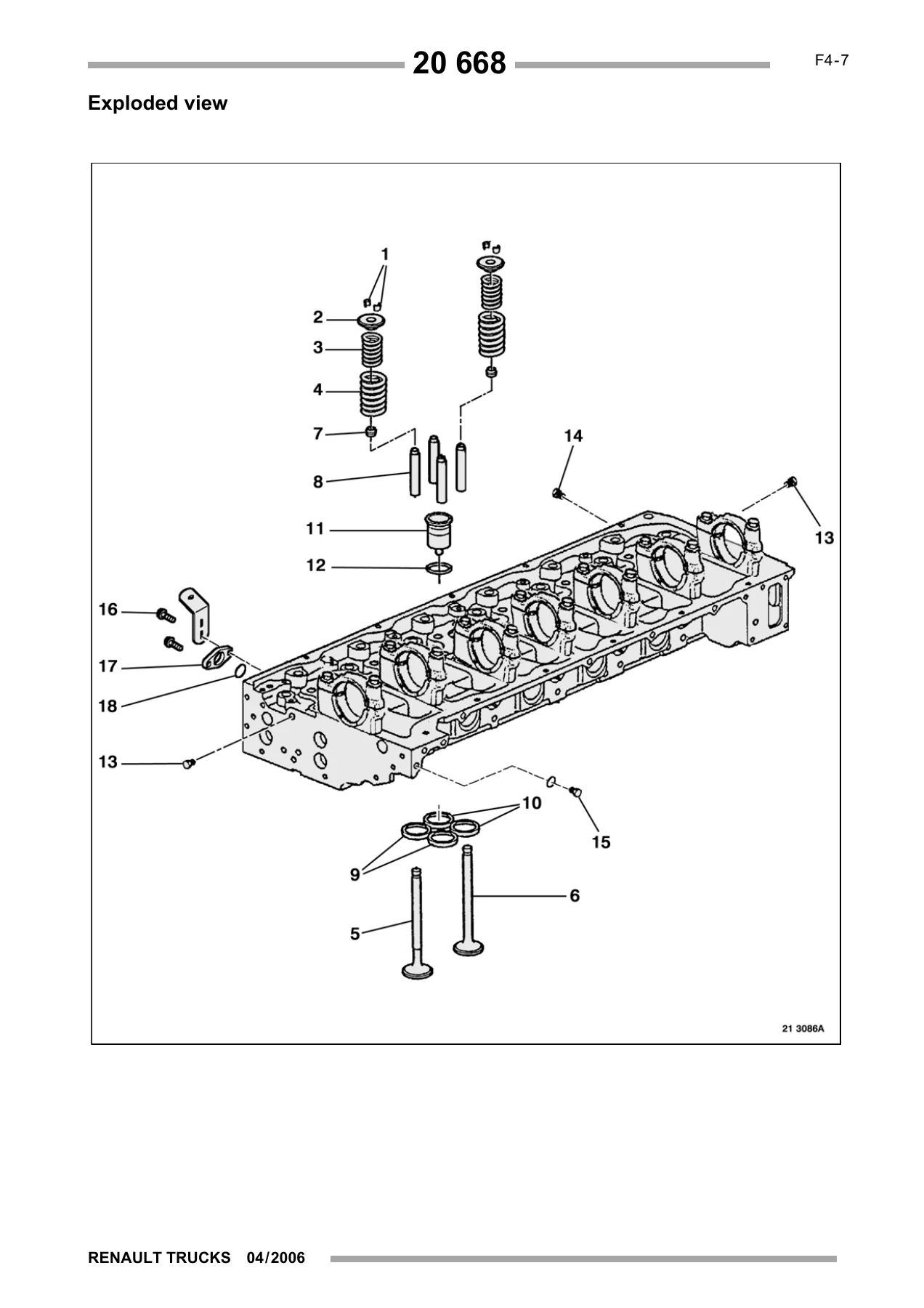

• Cylinder head – camshaft, rocker arms, fuel injectors, cylinder head
• Valve timing

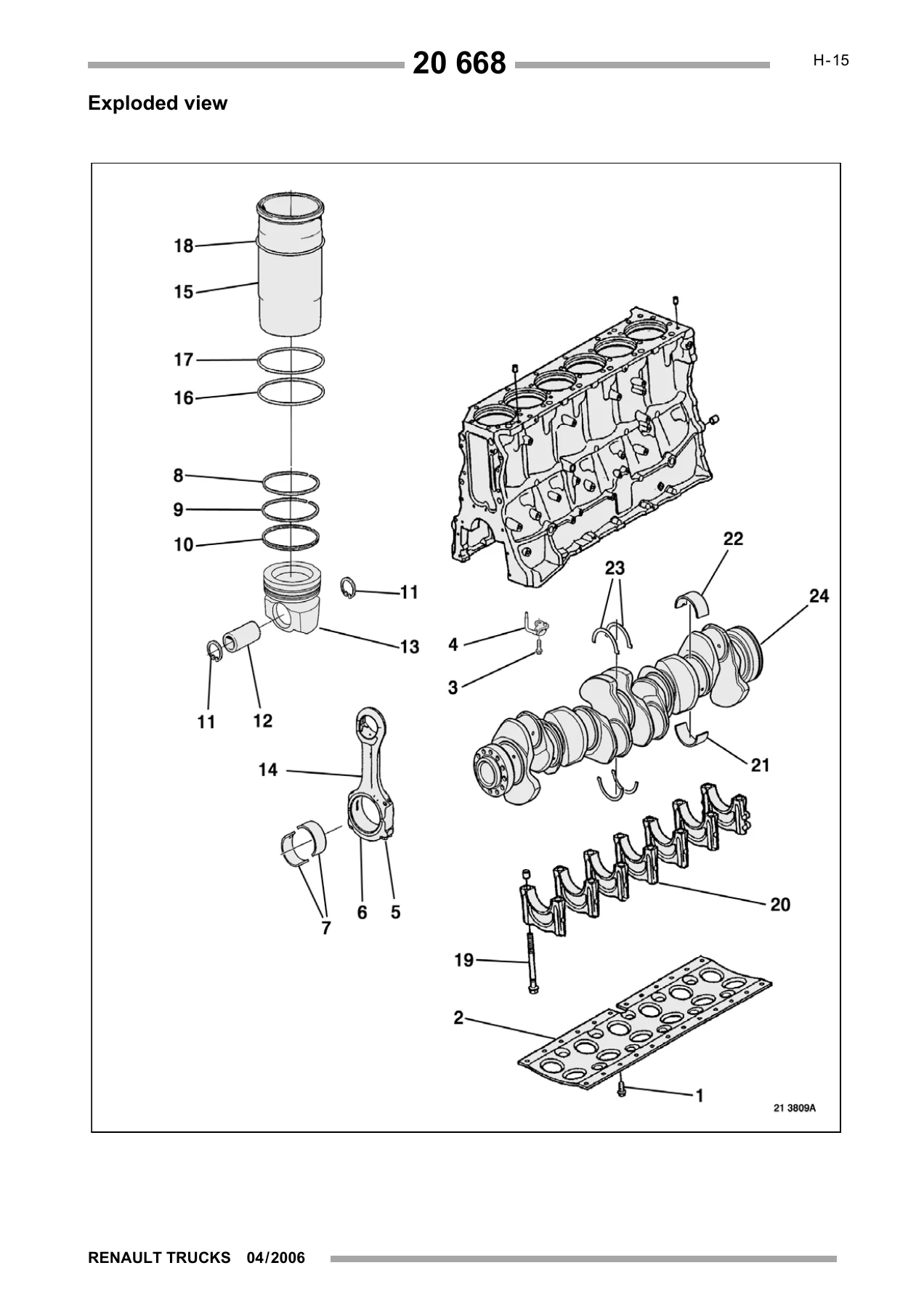

• Reciprocating gear
• Engine cooling
• Lubrication
• Turbocharger

Read end to end, the manual takes a technician from engine identification and general data through to complete strip-down and rebuild. The general data chapter gives the bare engine figures – six cylinders, 123 mm bore, 152 mm stroke, 10836 cm3 displacement, 18.3/1 compression ratio and a 1.5.3.6.2.4 firing order – alongside the rated outputs for the DXi 11 330, DXi 11 370, DXi 11 380, DXi 11 410, DXi 11 440 and DXi 11 450 ratings. The dimensions and tolerances chapter then carries the cylinder head, valve, valve guide, valve seat, crankshaft, crankpin, connecting rod, piston, liner and cylinder block measurements with their repair dimension steps, which is the material you need when a component is out of tolerance rather than simply worn.

Repair Procedures and Special Tooling

The workshop procedures are written around the Renault Trucks special tool numbers rather than generic equivalents, which is what makes this document usable in a real workshop. Cylinder head removal and refitting, camshaft removal with the rocker shaft assembly, injector extraction and injector sleeve replacement, liner extraction and refitting, crankshaft bearing cap removal, front and rear crankshaft seal replacement and flywheel and ring gear work are all covered with the tool references printed alongside each step. The tightening sequences are given as numbered diagrams, and the cylinder head sequence in particular is set out in four stages with a check-tightening stage in between.

Common wear limits and adjustment values are stated directly rather than left to judgement. Valve clearances are given for a cold engine at 0.2 mm inlet and 0.8 mm exhaust, with 1.6 mm for the exhaust valve when an Optibrake retarder is fitted. Camshaft bearing end play, crankshaft end float, connecting rod end play and radial play, and liner protrusion above the block face are all quoted with their tolerance bands. Lubrication coverage includes the oil pressure expected at the main rail and at the rocker shaft at given engine speeds and temperatures, along with the pressure and full flow valve data.

Diagnostics and Fault Finding

The turbocharger chapter opens with operating trouble symptoms rather than parts, covering how a change in the engine’s normal sound signature points to charge air leaks, exhaust gas leaks or drive shaft defects, and how black smoke, blue smoke, excessive oil consumption and oil in the air pipes each map to a list of probable causes. That makes the closing chapter of the manual genuinely useful for diagnosis before any component comes off the engine.

Who This Manual Suits

This is an engine workshop manual, so it is aimed at the technician, workshop or owner running a Renault Kerax DXi or Renault Premium DXi 11 who needs to work on the DXi 11 diesel itself. It is not a chassis, cab or transmission manual, and it does not cover vehicle-level electrical systems beyond the engine sensors and actuators it deals with. Buyers looking for body, brake or driveline procedures for these trucks should look for the relevant separate manual.

IMAGES PREVIEW

Instant PDF Delivery

With this Renault Trucks DXi 11 engine workshop manual on hand you can strip the engine to a bare block and rebuild it, torque every fastener to the published figure in the published order, measure components against the repair dimensions before deciding whether to machine or replace, and diagnose turbocharger and lubrication faults from the symptoms rather than by substitution. Working from the correct procedures and the correct specification values is what separates a repair that lasts from one that comes back. The manual is delivered as an instant PDF download after payment, with no shipping and no waiting, and it can be read on a laptop, tablet or phone in the workshop or printed page by page for the job in front of you.
