Rolls-Royce Viper 535 Engine Change Unit Maintenance Manual PDF

Description

Rolls-Royce Viper 535 Engine Change Unit – Maintenance Manual

This official maintenance manual provides complete technical information for the Rolls-Royce Bristol Viper 535 turbojet engine as installed in aircraft such as the BAC Strikemaster. This document is essential for servicing the engine change unit, troubleshooting systems, removing and installing the power plant, and carrying out approved repairs. The manual is organized according to ATA Specification No. 100 for easy integration into aircraft maintenance programs.

File Details

• Manual Type: Engine Maintenance Manual (Engine Change Unit)
• Brand: Rolls-Royce plc
• Engine Model: Viper 535
• Variants Covered: Viper 535-1A (Saudi Arabia), 535-1B (South Arabia Federation), 535-1C (Muscat and Oman), 535-2D (Singapore), 535-2E (Kuwait)
• Language: English
• Page Count: 505 pages
• File Format: PDF
• Document Reference: V35M383

Chapters Covered

The manual follows the ATA 100 numbering system. Key chapters include:

• 5-00: Life Control and Limitations – Group ‘A’ and Group ‘B’ Parts, flight cycle system, and life limitations for critical components.
• 71-00: Power Plant – General – Removal/Installation, Conversion, Ground Running Tests, Starting/Motoring, Shock Loading, and Acceptance Criteria.
• 72-00: Engine – General – Description of air inlet, compressor, combustion, turbine, exhaust cone, and accessory gearbox. Maintenance practices for exhaust cone removal, inner cone unit, compressor top half-casing, and storage.
• 73-00: Engine Fuel and Control – System description and maintenance.
• 74-00: Ignition – System details.
• 75-00: Air – Bleed valves and control.
• 76-00: Engine Controls – Throttle and fuel shut-off.
• 77-00: Engine Indicating – R.P.M., J.P.T., and oil pressure.
• 78-00: Exhaust – Jet pipe and nozzle.
• 79-00: Oil – System and components.
• 80-00: Starting – Procedures and limitations.

Additionally, the manual includes detailed sections on modification statements (Mod.CMV.8000 series), servicing materials, consumables, jointing compounds, approved fuels and oils, torque tightening schedules, and specialized tooling.

This manual offers comprehensive coverage of maintenance practices, from ground running adjustments to full power plant removal and reinstallation. It includes specific test procedures for starting, acceleration, engine relighting, J.P.T. control, and post-repair performance checks. The document also provides detailed instructions for engine storage, preservation, and packaging for transportation.

Key Capabilities for Technicians

This manual enables you to perform a wide range of maintenance tasks, including:

• Troubleshooting starting failures, high J.P.T., flame-outs, and acceleration issues.
• Removing and installing the power plant as a complete unit.
• Converting the power plant to an engine for servicing.
• Removing and installing major components like the exhaust cone, turbine shield, inner cone unit, accessory gearbox, and compressor top half-casing.
• Conducting ground running tests for power checks, acceleration, and relight functions.
• Performing adjustments to idling speed, maximum governed speed, acceleration rate, and compressor blow-off valve operation.
• Implementing cleaning and inhibiting procedures for the engine compressor.
• Properly storing and preparing the engine for return to base or manufacturer.

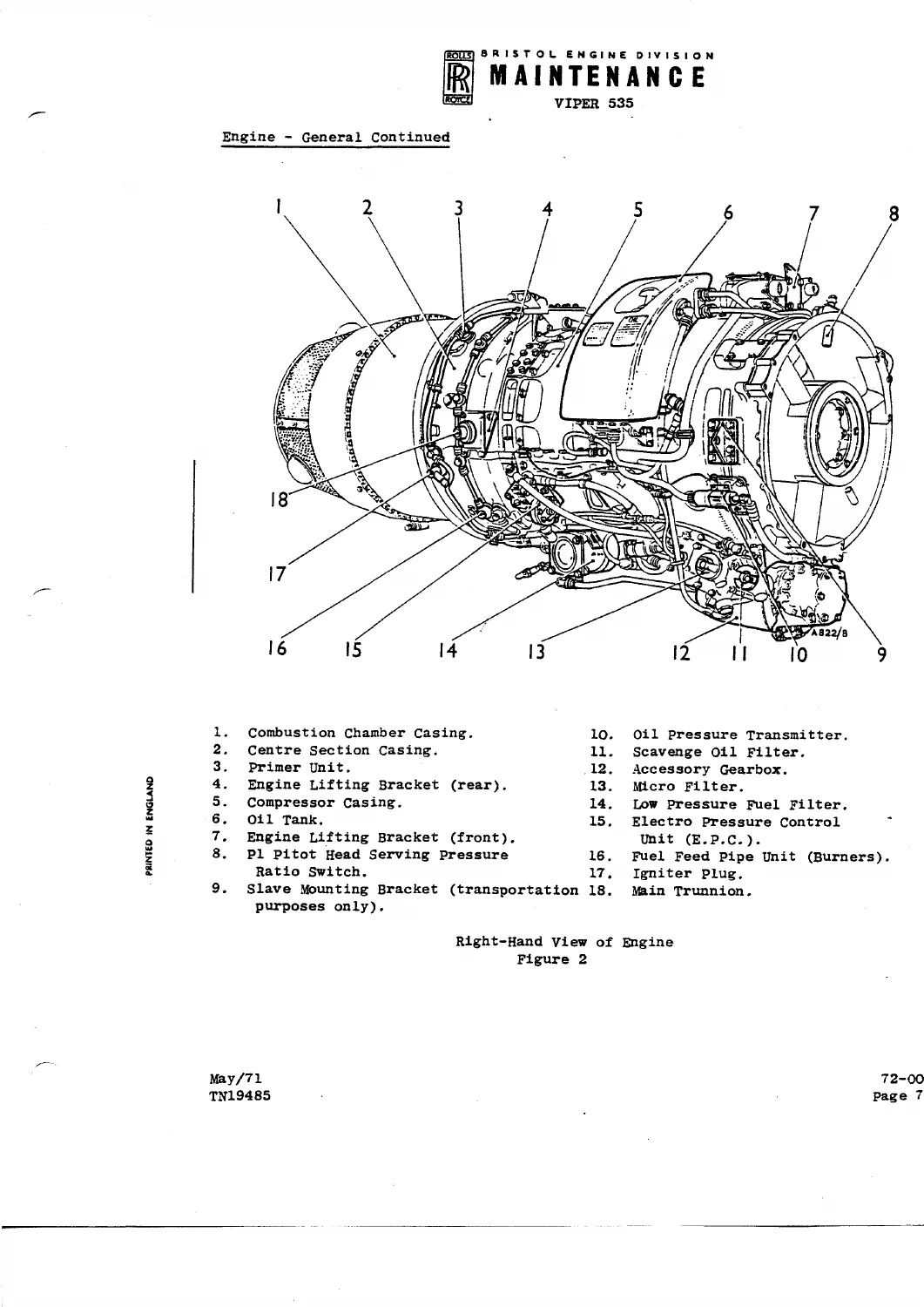

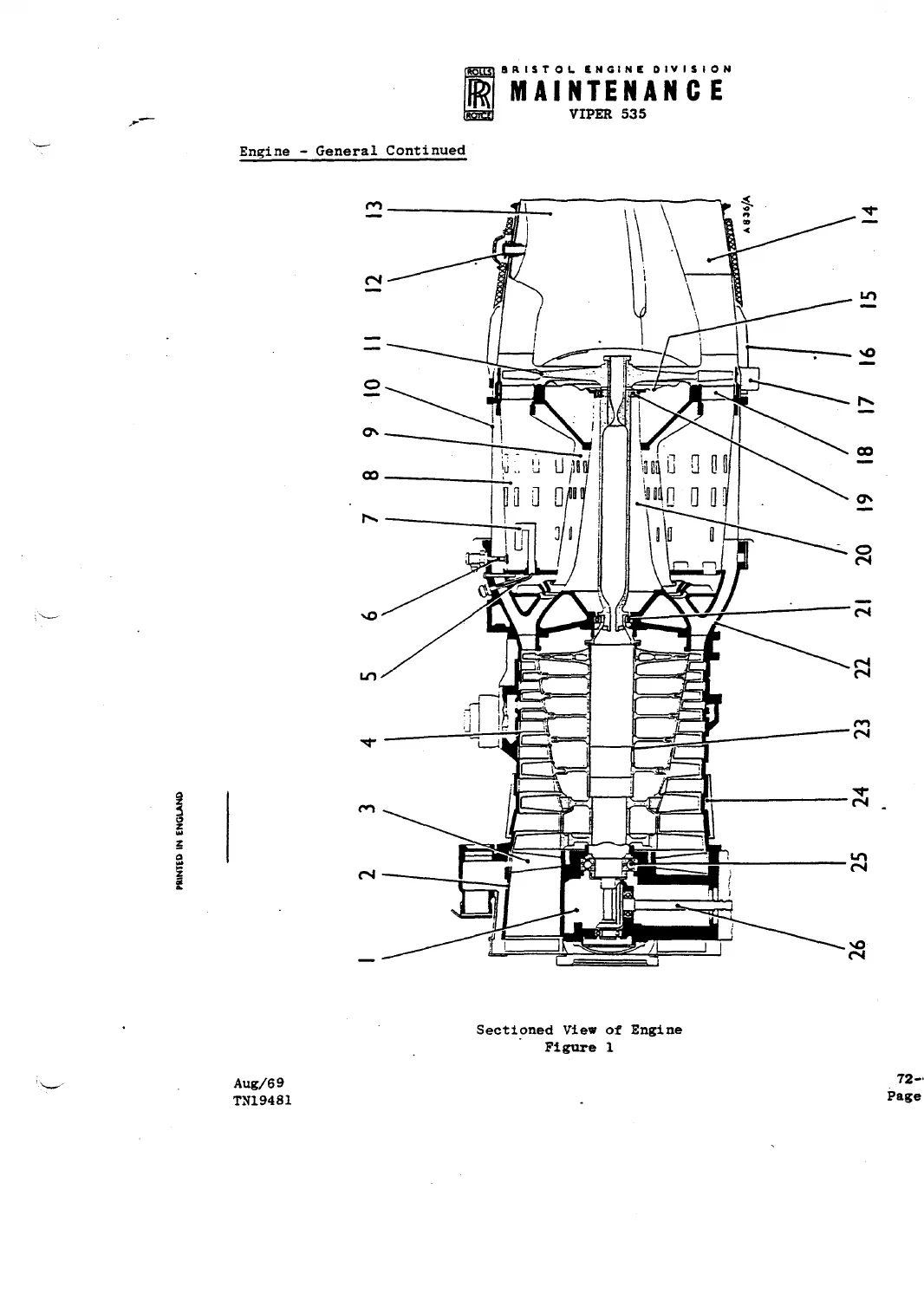

IMAGES PREVIEW

Having the correct procedures, torque values, and specifications is essential for the safe and reliable operation of the Viper 535 engine. This factory-authorized manual ensures you have the data required to maintain the engine to the exact standards of the manufacturer, avoiding guesswork and potential errors.

Instant Access

This is a digital PDF download. Once your payment is processed, you will receive immediate access to the file. It is compatible with all devices and can be printed for use in the workshop. No shipping costs or waiting times.
