SAME Deutz-Fahr 1000.3 WT / WTI & 1000.4 WTI E III Engine Workshop Manual – PDF Download

Description

File Details

• Manual type: Workshop Manual
• Brand: SAME Deutz-Fahr
• Models covered: 1000.3 WT E III, 1000.3 WTI E III, 1000.4 WTI E III
• Language: English
• Document number: 307.W.M300.en.0.02
• Format: PDF

Chapters Covered

• 0 – Introduction
• 10 – Technical Characteristics
• 20 – Method of Intervention

0 – Introduction

The opening chapter sets the working framework for anyone repairing the 1000.3 WT E III, 1000.3 WTI E III or 1000.4 WTI E III engine. It contains safety notes, general safety rules, dedicated precautions for removal and refitting operations, and lifting instructions with rope/sling capacity tables and suspension-angle load charts. It also delivers the full tightening-torque tables for screws, nuts, fittings and plugs, the reference list of threadlockers, adhesives, sealants and lubricants (Loctite 222/242/243/270/510/542/554/572/576/601/638/648/986 AVX, Silastic 738, Dirko Transparent, Betaseal HV3, Molikote, and others), and metric/imperial conversion factors. Engine type and serial-number locations for both Europe and EPA versions are shown photographically, along with the Bosch injection-pump and injector identification tables.

10 – Technical Characteristics

This is where every dimension, wear limit and clearance for the SAME 1000.3 / 1000.4 WTI E III engine is recorded. Engine block data, crankshaft data for the 3-cylinder and 4-cylinder versions (main bearing journals, crankpins, taper, out-of-round, end float, undersize grind options), piston and piston-ring tolerances, gudgeon-pin diameters, connecting-rod data including small-end bush and big-end bush limits and axis parallelism, camshaft data split by static advance (11° for the 1000.3 WT E III and 12° for the WTI versions), timing gear backlash and end-float figures, counter-rotating weight data for the 1000.4 WTI E III, valve and valve-spring dimensions, cylinder head/valve guide/valve seat tolerances, rocker arms, rocker shafts and tappet dimensions, and injector calibration data. A hydraulic-tappet operation diagram closes the chapter.

20 – Method of Intervention

The largest chapter, broken into discrete procedures covering the complete overhaul sequence. Pre-removal operations, engine block checking, crankshaft removal and refit, crankshaft dimensional checks, flywheel checks, renewal of the crankshaft rear oil seal (with the 1st/2nd overhaul offset positions), piston and cylinder liner removal and installation, piston and ring inspection, liner inspection with class A/B selection, connecting rod, gudgeon pin and rod-cap screw checks, camshaft removal and refit, valve timing with the 40° / 17.273 mm TDC reference method, timing gear backlash measurement and the three intermediate-gear sizes (red dot standard, yellow dot 1st oversize, green dot 2nd oversize), counter-rotating weight overhaul on the 1000.4 WTI E III, valve and valve-seat inspection and sealing checks, valve clearance adjustment tables for both 3-cylinder and 4-cylinder engines, valve guide replacement, rocker-arm inspection, cylinder head removal/refit, calculation of cylinder-head gasket thicknesses (red/black/green gasket identification holes), valve-spring checks, heat exchanger removal, lubrication-pump removal and disassembly, oil sump removal and refit, injection-pump / governor / fuel supply service, injection-pump timing with shim pack measurement, injector assembly and protrusion checks, copper bush renewal, injector testing on a test pump, injection-pump control-rod removal and installation, complete mechanical governor overhaul (including L.D.A. variant), electronic governor adjustment, engine coolant pump, thermostatic valve checking, cooling and intake ducts, final engine checks (oil pressure verification, pump synchronisation by exhaust-gas temperature using probe T24) and final refitting operations.

What This SAME 1000.3 / 1000.4 WTI E III Workshop Manual Lets You Do

Everything in this PDF is written for the technician who is going to remove the head, drop the sump, pull the crankshaft, re-time the cam, re-shim an injection pump or set valve clearances on a SAME 1000.3 WT E III, 1000.3 WTI E III or 1000.4 WTI E III engine. The tightening-torque tables alone – covering metric fasteners from M6 through M27 in three strength classes, plus BSP and metric fittings, banjo unions, plugs and 37° cone fittings – give you the correct figures instead of guessed ones. The Technical Characteristics chapter turns a rebuild into a measurement exercise: bearing journal tolerances, undersize grind options, out-of-round and taper limits, liner class selection, piston-ring gaps, valve recess values, valve-guide-to-stem clearance limits and shim sizing are all in front of you.

For the injection side, the manual details the Bosch PFM1A 90S 2505 pump (P/N 0 414 396 006 / 2.4619.280.0), the end-of-Bosch-code 1352 and 2159 injectors (calibration 180–188 bar), the shim-pack method of timing each pump to the crank, the control-rod fitting procedure with centring tool, and the mechanical governor overhaul including the L.D.A. valve. Electronic governor adjustment and pump synchronisation by exhaust-gas temperature are also documented, so post-rebuild fuelling setup is covered end to end.

Because this is a genuine workshop manual rather than a generic repair guide, the same procedures that a service centre would follow are laid out here – tool part numbers, torque stages, angle-tightening values (55° ±1° for main bearings, 90° ±1° for connecting rods, 50° ±3° + 50° ±3° for head bolts), sealant selection (Loctite 510, 542, 601, 648, 986 AVX, Silastic 738, Dirko Transparent, Loxeal 08-07), and the special tools required (T1 through T27 and their P/Ns). The tolerances, clearances and inspection limits are given for both the 3-cylinder and 4-cylinder variants, so the same document works whether you are on a 1000.3 WT E III, a 1000.3 WTI E III or a 1000.4 WTI E III.

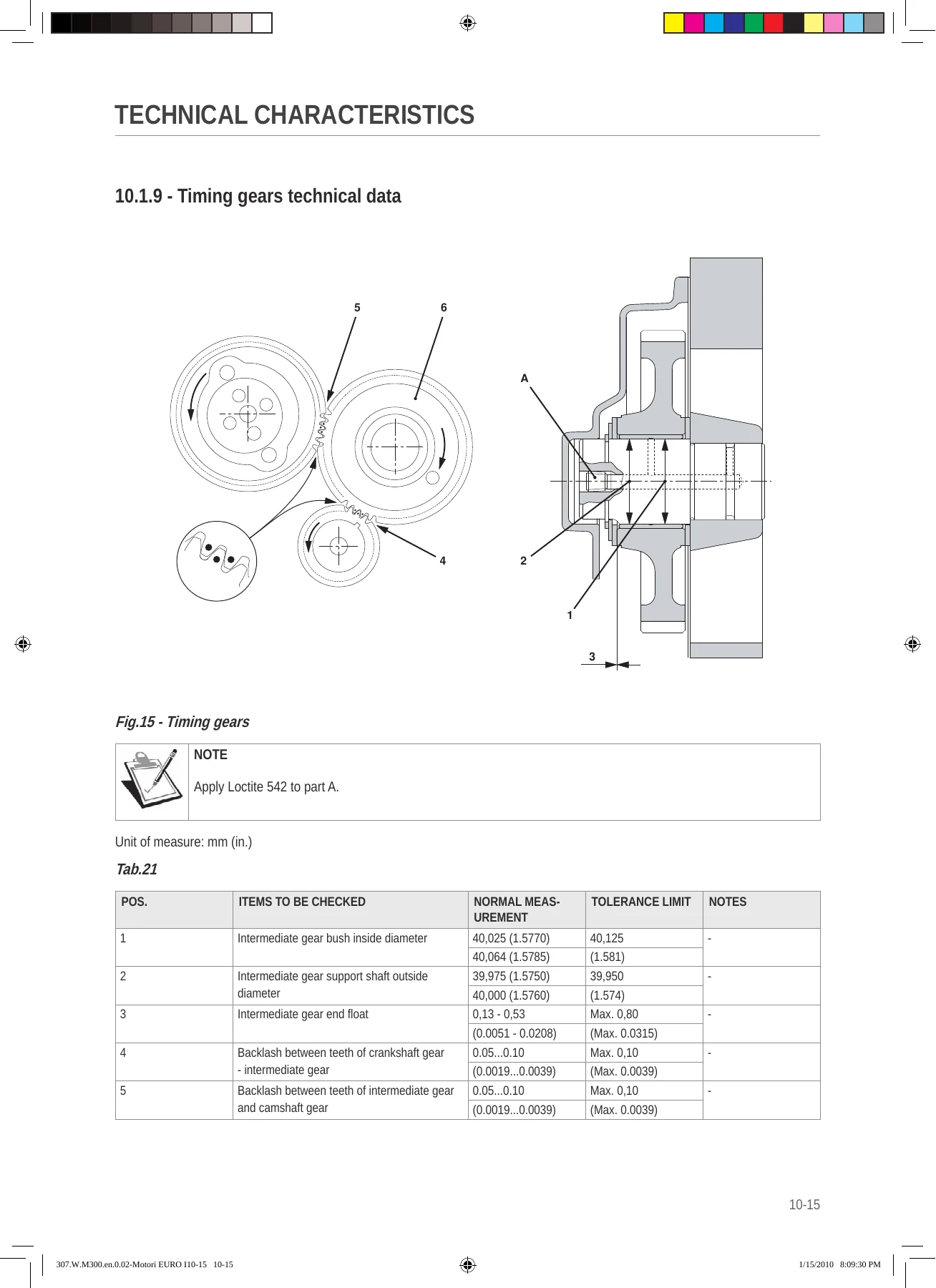

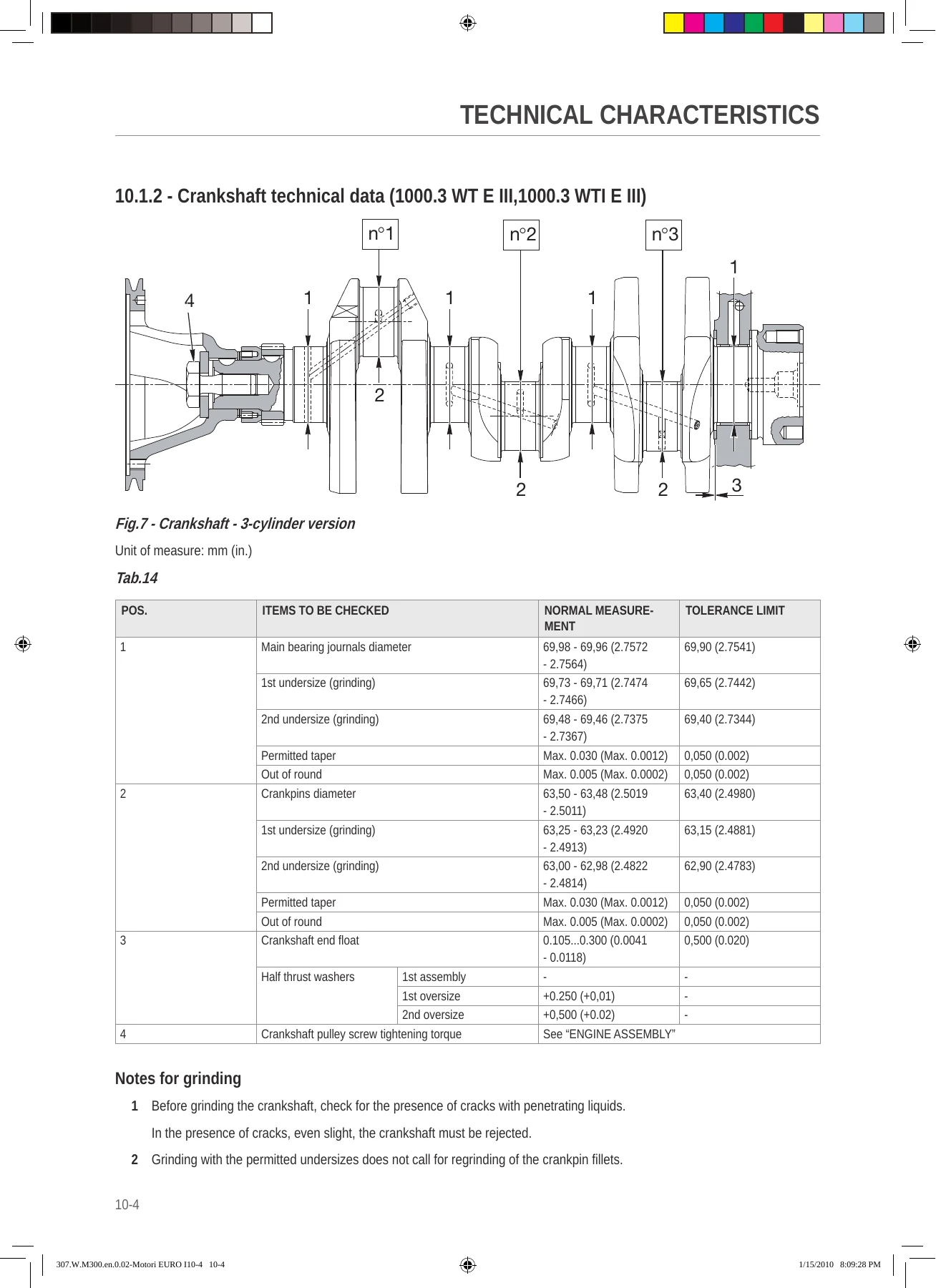

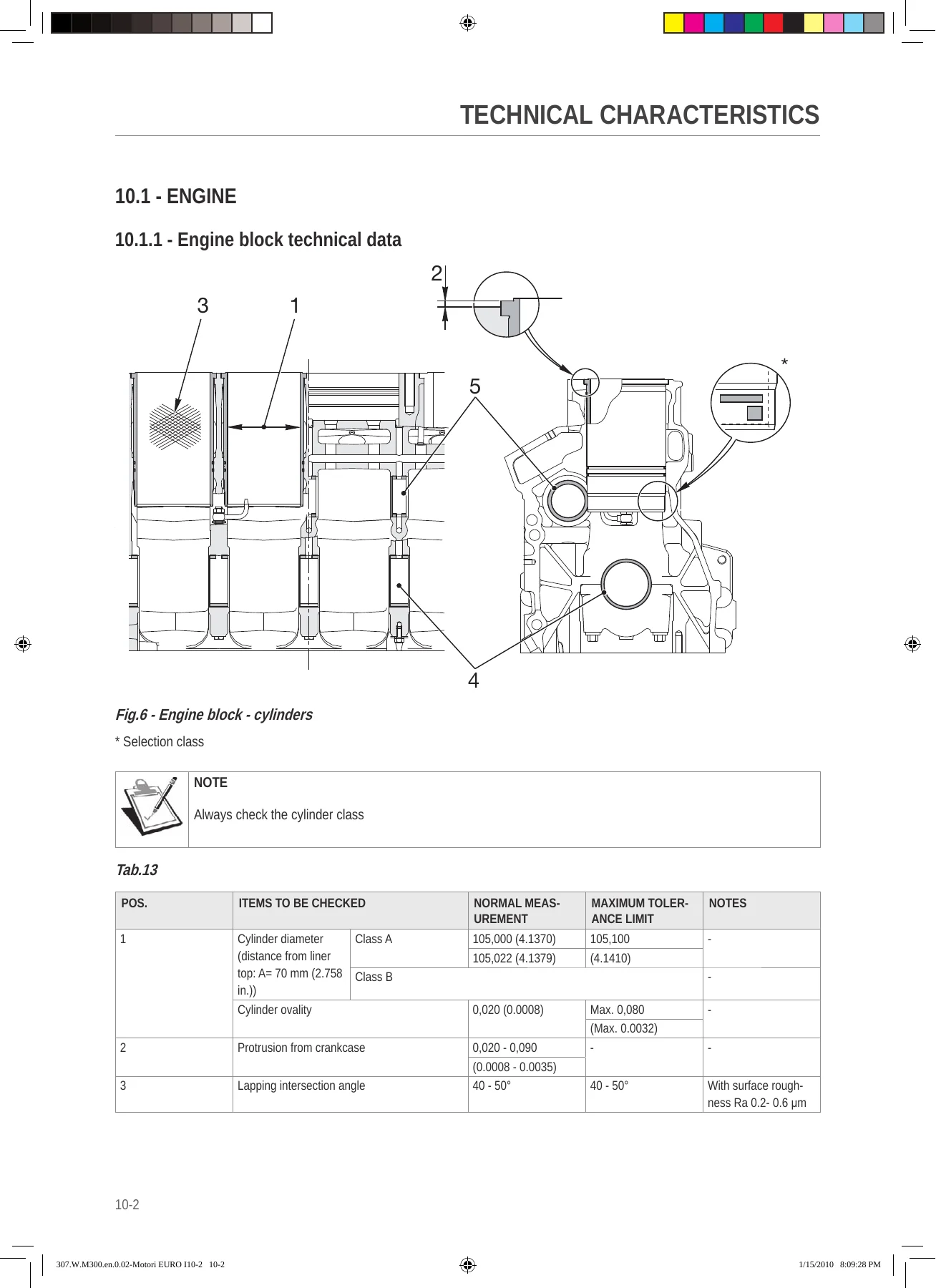

IMAGES PREVIEW

Instant PDF Delivery

The manual is delivered as a downloadable PDF the moment payment clears. No shipping, no waiting, no paper to lose. Open it on a laptop in the workshop, on a tablet next to the engine stand, or print the pages you need and take them under the machine. Every torque table, tolerance list, exploded view, governor diagram and hydraulic-tappet schematic stays searchable and page-through-able on any device you already own. One purchase, one file, everything above – ready to use the same day you buy it.
