Isuzu 6UZ1 Tier 3 Engine Workshop Manual 2016 – 6UZ1X Service & Repair PDF

Description

Isuzu 6UZ1 Tier 3 Engine Workshop Manual – Complete 6UZ1X Service & Repair Guide

This Isuzu 6UZ1 Tier 3 Engine Workshop Manual is a comprehensive service, repair and overhaul guide for the Isuzu 6UZ1X water-cooled 4-cycle in-line 6-cylinder 24-valve OHC direct injection diesel engine. Published in September 2016, this 250-page workshop manual covers every major system on the engine and provides the specifications, tightening torques, clearances, service limits and step-by-step procedures needed to perform professional-level maintenance, diagnostics and repairs on the 6UZ1 Tier 3 diesel.

File Details

• Manual Type: Engine Workshop Manual – Service, Repair & Overhaul
• Brand: Isuzu
• Engine Models Covered: 6UZ1, 6UZ1X (Tier 3)
• Language: English
• Page Count: 250 pages
• File Format: PDF
• Publication Date: September 2016
• Printed In: USA

Chapters Covered

This Isuzu 6UZ1X workshop manual is divided into clearly numbered sections, each opening with a components diagram and followed by removal, disassembly, inspection, assembly, installation and tightening torque lists:

• General Information – Service Precautions, Reading the Model, Liquid Gasket application methods and product tables, Plastigauge measuring procedure, SI unit conversion, Isuzu standard tightening torque tables for bolts, nuts and flare nuts, special tool classifications.

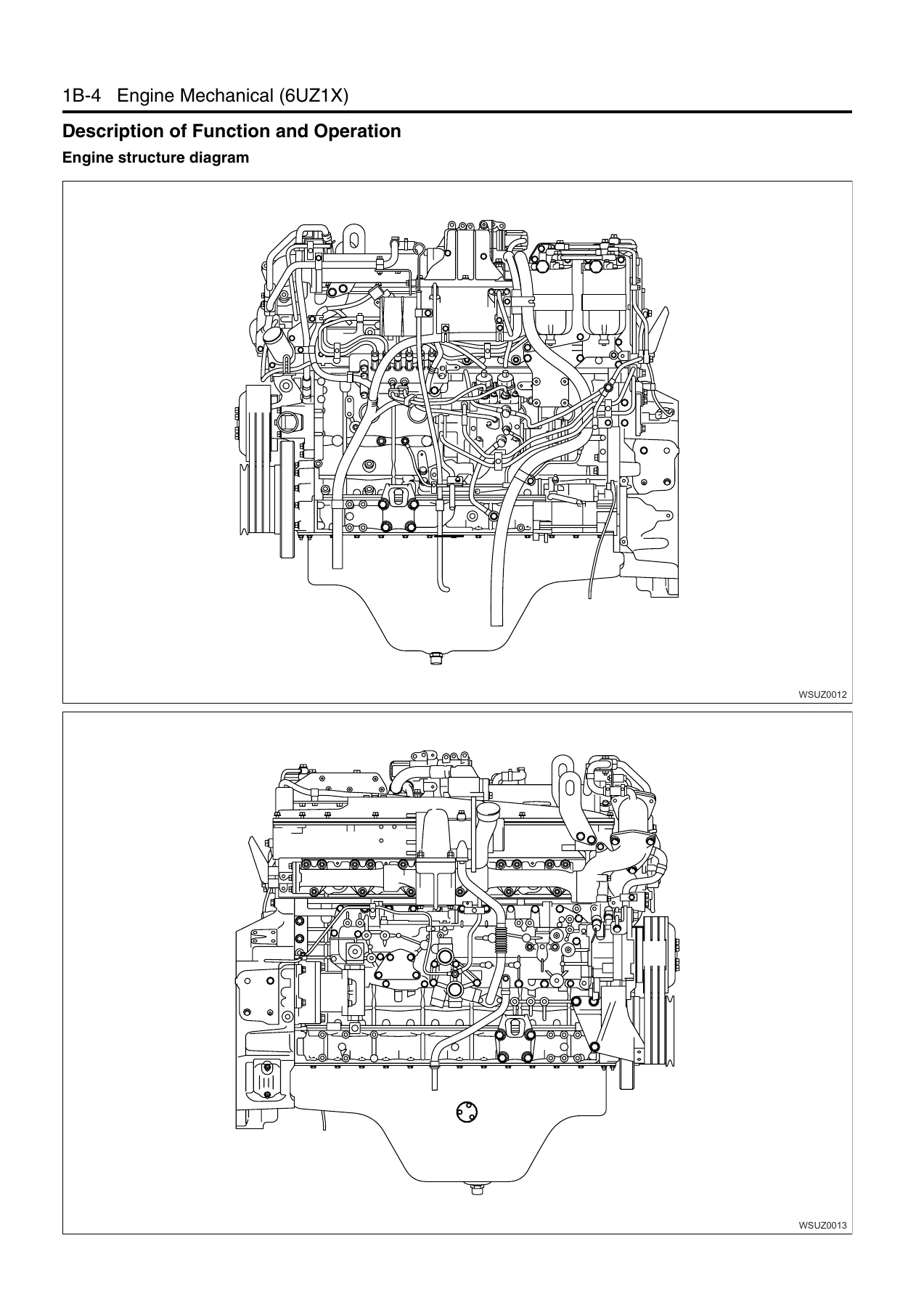

• Engine Mechanical (6UZ1X) – Service precautions, engine structure diagrams, compression pressure measurement, valve clearance adjustment, judgment of time to overhaul, engine accessories (V-belt, generator, starter), engine exterior equipment (EGR cooler, EGR valve, EGR ducts, fuel pipes, common rail, supply pump, bearing case, turbocharger, exhaust manifold, oil cooler, oil port cover, thermostat housing, air breather), cylinder head, rocker arm, camshaft, flywheel, flywheel housing and timing gear (idle gears A/B/C/D, ring gear, PTO), front cover and crankshaft, piston and connecting rod, cylinder block and cylinder liner.
• Cooling System (6UZ1X) – Description of coolant circulation, water pump components and overhaul, thermostat and thermo-sensor removal, inspection and installation, LLC concentration measurement, sub-tank cap pressure test, radiator check, coolant replacement procedure, trouble symptom tables for over-heating and over-cooling.
• Fuel System (6UZ1X) – Fuel system diagram, supply pump and common rail overview, air bleeding procedure for the fuel filter and supply pump, fuel filter disassembly, inspection and assembly including the overflow valve opening pressure specification, fuel injection pump and injector specifications.
• Electrical System (6UZ1X) – Starting system precautions, starter troubleshooting tables, starter specifications, sectional view, output characteristics, starter disassembly, armature/field coil/brush/overrunning clutch/magnetic switch inspection, starter assembly, no-load test, charging system precautions, charging circuit, generator structure, generator disassembly, stator/rotor/coil/rectifier/regulator inspection, generator assembly and bench testing.
• Lubricating System (6UZ1X) – Lubrication system diagram, gear-type oil pump structure, oil filter (sub oil filter) components and assembly, oil cooler disassembly and inspection including oil thermostat and oil relief valve, oil jet removal and installation, oil pump removal, disassembly, inspection, assembly and installation, oil pan removal and installation with liquid gasket application guidance.

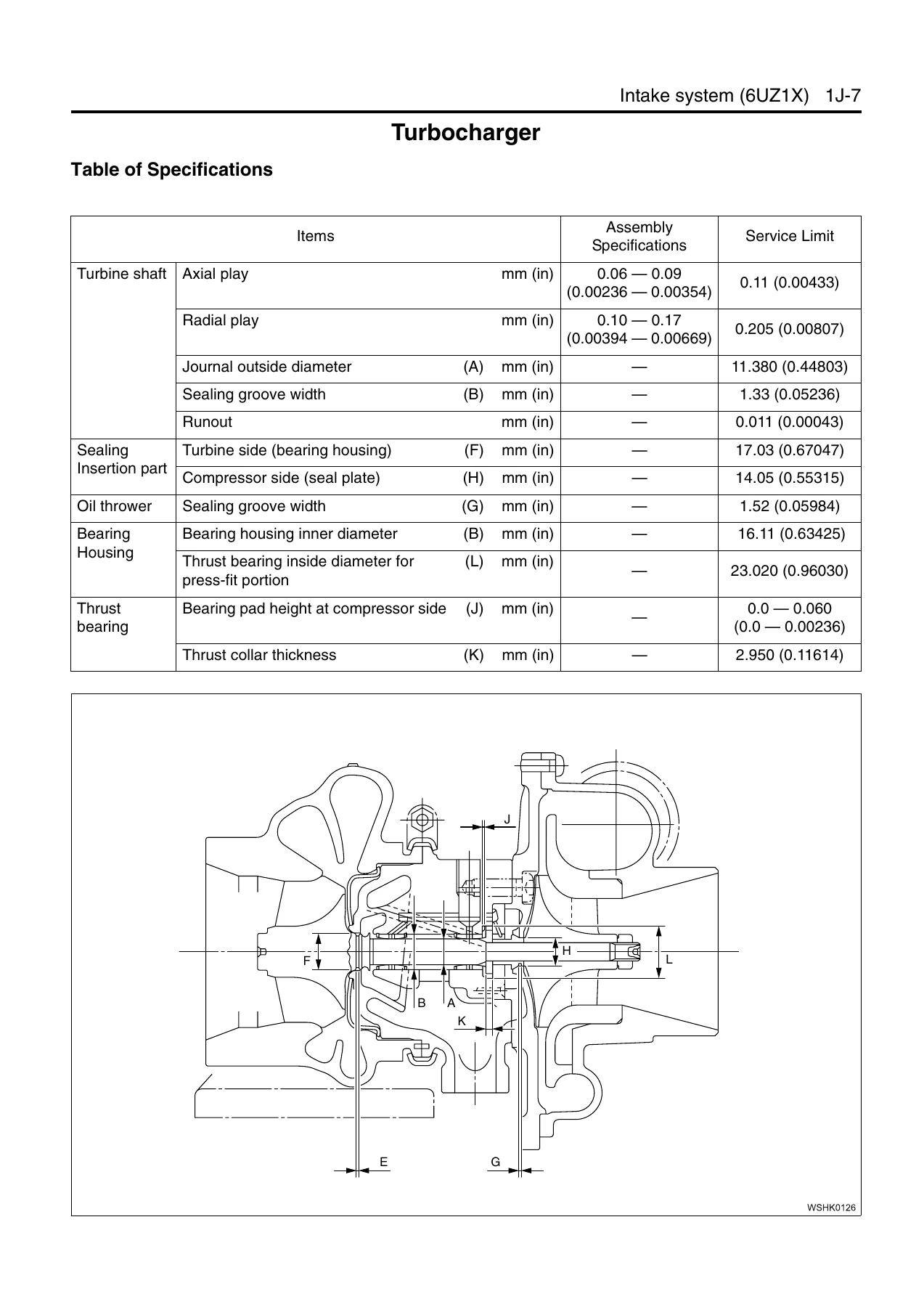

• Intake System (6UZ1X) – Turbocharger system precautions, trouble symptom tables for vibration, output loss and oil infiltration, turbocharger specifications (axial play, radial play, journal OD, seal groove widths, thrust collar thickness, bearing housing dimensions), turbocharger structured diagram, disassembly and inspection of compressor housing, impeller, seal plate, oil thrower, G coupling, turbine housing, turbine shaft, heat protector, thrust bearings, floating metal and snap rings, turbocharger assembly with G coupling hammering procedure.
• Preheating System (6UZ1X) – QOS-II glow system description, function check, glow relay check, thermo-sensor check, glow plug check, trouble symptom tables for indicator lamp, preheating failure and incorrect preheating time, preheating system specifications.

Each section is written as a complete workshop procedure: it tells you which parts to remove first, how to store them so they can be reinstalled in the correct position, how to inspect each component for wear or damage, which measurements to take and against which service limit, and how to apply liquid gasket and tighten each fastener to the correct torque value. The tightening torque lists that close out each major section are drawn together into illustrated diagrams, so the exact bolt, nut or fitting is easy to identify when you are working at the engine. Because the fuel system on the 6UZ1X is a high-pressure common rail design, the manual repeatedly emphasizes keeping every fuel opening sealed, replacing removed high-pressure pipes with new ones, and treating the injector and supply pump internals as precision components that must not be contaminated.

Engine Specifications Covered

This Isuzu 6UZ1X engine workshop manual contains the full factory specification set for the engine. Highlights include:

• Engine type: Water cooling, 4-cycle, in-line 6-cylinder, 24-valve, OHC, direct injection diesel
• Cylinder layout and bore x stroke: L6, 120 mm x 145 mm
• Displacement: 9.839 L
• Compression ratio: 17.5
• Compression pressure: 2746 kPa (28 kg/cm2) at 200 rpm; service limit 2260 kPa (23 kg/cm2)
• Maximum output: 270 kW / 1950 rpm (367 PS / 1950 rpm)
• Maximum torque: 1435 N.m / 1500 rpm (146 kg.m / 1500 rpm)
• Fuel injection timing: 0 degrees BTDC
• Fuel injection order: 1-5-3-6-2-4
• Injection pump type: Electronic control fuel injection system (common rail type)
• Governor type: Electronic
• Valve clearance (cold): Intake 0.2 mm, Exhaust 0.3 mm
• Engine oil capacity: Full 30-41 L, oil pan 25-36 L, remaining in engine 5 L
• Coolant capacity: Full 28.9 L, on-engine 22.5 L
• Idle speed: 900 rpm
• Maximum engine speed at no load: 2000 rpm
• Turbocharger: RHG6 (IHI)
• Thermostat valve-opening temperature: 80-84 degrees C; full-open 95 degrees C at 11 mm lift
• Starter: 24 V – 5.5 kW
• Generator capacity: 24 V – 1.2, 1.5, 2.5 kW
• Dimensions: 1235 x 953 x 1244 mm
• Weight: 840 kg (not including air cleaner)

What This Manual Lets You Do

With this Isuzu 6UZ1 Tier 3 engine workshop manual you can carry out a full engine overhaul or targeted repair – remove and reinstall the cylinder head with the correct M15 and M10 bolt torque plus angle method, adjust valve clearance at the cold specification using the rocker arm and bridge adjust screws, remove and refit the camshaft carrier and camshaft with correct alignment of the U mark on the cam gear, replace pistons, piston rings, connecting rod bearings and crankshaft bearings using Plastigauge and micrometer measurements against the printed service limits, remove and press-fit cylinder liners with the correct grade selection and liner extrusion measurement, service the timing gear train and flywheel, overhaul the water pump, replace the thermostat, bleed the fuel system, service the fuel filter, disassemble and rebuild the starter and generator, remove and inspect the turbocharger, and diagnose the preheating system. Every one of these jobs is documented with the assembly clearances, tightening torques and service limits you need to get it right the first time.

Why This Isuzu 6UZ1 Manual Matters

Diesel engines in this class are expensive to repair and unforgiving of incorrect tolerances. Installing a crankshaft bearing with the wrong oil clearance, torquing a cylinder head bolt without the specified angle method, contaminating a common rail fuel passage, or reassembling a turbocharger with the wrong axial play can all lead to premature failure, low oil pressure, seizure or a breakdown on the road. The 6UZ1X workshop manual gives you the exact values, sequences, special tools and inspection limits the engine was designed around, so your repair ends up reliable rather than repeat work.

IMAGES PREVIEW

Instant PDF Delivery

The Isuzu 6UZ1 Tier 3 engine workshop manual is delivered as an instant PDF download – no shipping, no waiting. Once your order is complete you can open it on any laptop, tablet, desktop or smartphone, zoom in on the exploded diagrams and torque tables, print the pages you need for the workshop, and keep a permanent reference copy for every future service on your 6UZ1 or 6UZ1X engine.
