Mercedes-Benz OM 460 LA 6-Cylinder Diesel Engine Workshop Manual (Engine 457.960)

Description

Mercedes-Benz OM 460 LA 6-Cylinder Diesel Engine Workshop Manual

This Mercedes-Benz OM 460 LA Workshop Manual is a complete technical reference for the 6-cylinder in-line diesel engine identified as Model 000.001 with Engine 457.960. Every procedure in this OM 460 LA workshop manual is presented exactly as issued, with job-card style repair sheets, illustrated exploded views, torque specifications, and special tool part numbers for each task.

File Details

• Manual type: Workshop Manual (repair/overhaul procedures)
• Brand / Engine: Mercedes-Benz OM 460 LA, 6-Cylinder In-line Diesel Engine
• Validity: Model 000.001 with Engine 457.960
• Language: English
• Page count: 225 pages
• File format: PDF, instant digital download

Chapters Covered

The OM 460 LA workshop manual is organized into function groups (FG) covering the complete engine from crankcase to fuel system. Chapters covered include:

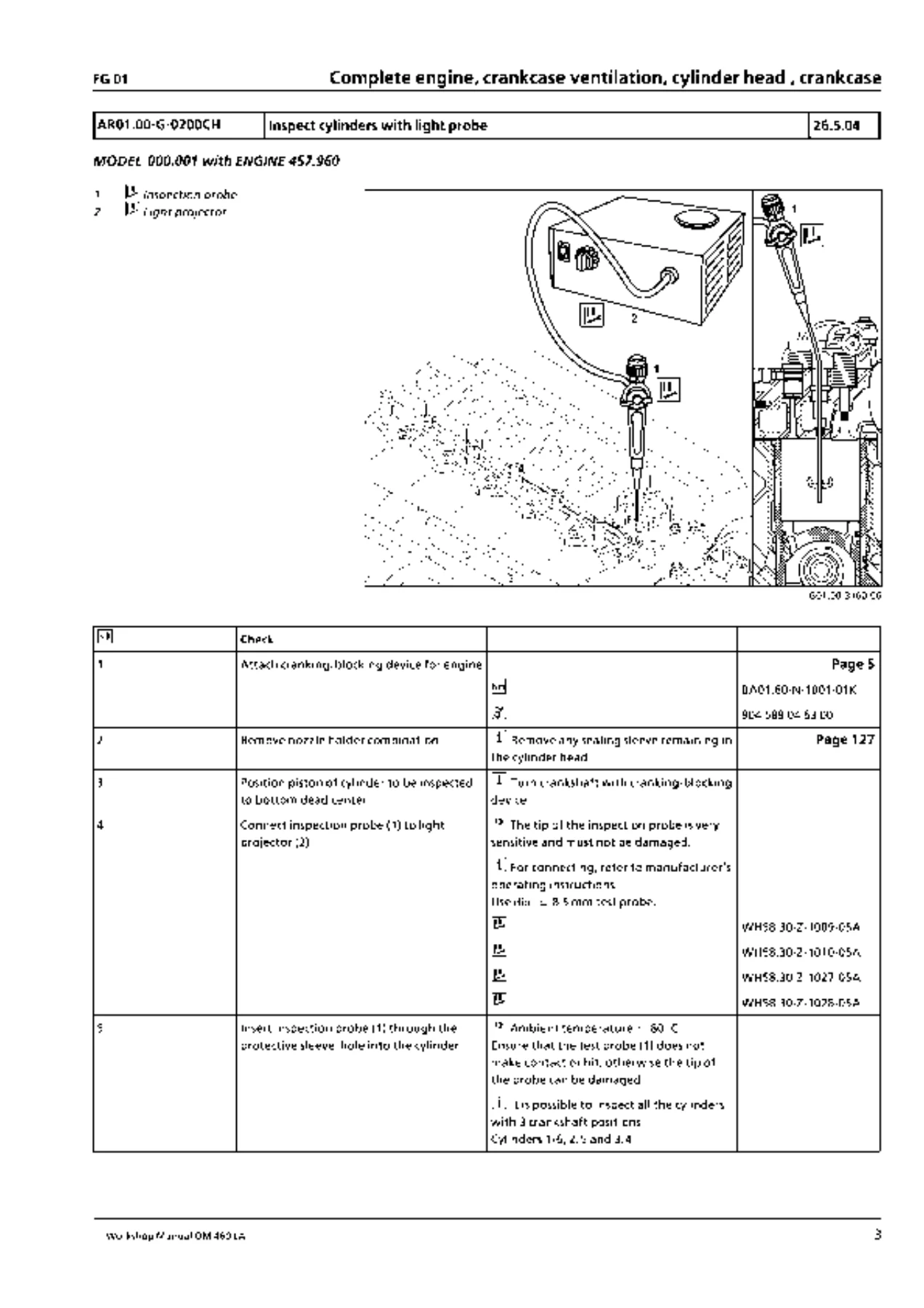

• Inspect cylinders with light probe
• Testing compressor pressure
• Check engine parts for wear and damage
• Additional test work at cylinder head and cylinder head gasket
• Remove/install cylinder head cover
• Remove/install oil separator
• Check cylinder head and cylinder head gasket for wear and damage
• Remove/install cylinder head
• Check/face grind cylinder head contact surfaces
• Check cylinder barrel for wear and damage
• Remove/install housing cover at front
• Remove/install cover of camshaft sprocket
• Measure cylinder bores
• Remove/install oil pan
• Remove/install constant-speed throttle
• Remove/install timing case
• Check piston and conrod for wear and damage
• Additional test work at piston/conrod and cylinder contact surface
• Remove/install piston
• Remove/install piston rings
• Additional tests for crankshaft, main bearing, or connecting rod bearing repair
• Remove/install race on crankshaft
• Replace front and rear crankshaft radial seals
• Remove/install crankshaft gear
• Remove/install belt pulley/vibration damper
• Remove/install flywheel
• Check flywheel, re-machine; replace ring gear of flywheel
• Remove/install race and guide bearing in flywheel
• Remove/install and assemble/disassemble rocker arms assembly
• Remove/install camshaft sprocket and camshaft
• Replace valve stem seals; remove/install valves
• Set valve clearance
• Remove/install and clean nozzle holder combination
• Remove/install MR/PLD control unit and MR/PLD unit pump
• Remove/install injection lines MR/PLD
• Remove/install air intake hose
• Check turbocharger; remove/install exhaust gas turbocharger
• Remove/install charge air pipe, sensor, and charge air manifold
• Remove/install alternator and fan poly-V-belts and tensioning devices
• Check compressor for oil ejection; remove/install compressor and cylinder head compressor
• Remove/install exhaust manifold and engine brake flap fittings
• Remove/install starter and alternator
• Remove/install belt pulley and controller for alternator
• Engine oil change and filter replacement
• Check oil pressure; fill engine oil circuit
• Remove/install oil spray nozzles and oil pressure relief valve
• Remove/install oil pump and oil filter housing
• Remove/install oil-water heat exchanger and oil pressure/temperature sensor
• Remove/install coolant pump and coolant thermostat
• Remove/install fan and bracket for viscous fan
• Remove/install main fuel filter and fuel pump
• Remove/install bearing for fuel pump drive
• Remove/install fuel heat exchanger

Taken together, this OM 460 LA workshop manual gives a technician everything needed to work through the engine from the crankcase and cylinder head down to the fuel system, following the same job-card structure and specification tables used on the workshop floor.

Built for Real Repair Work

Each job card in this Mercedes-Benz OM 460 LA manual lists the exact steps in sequence, calls out the model/engine validity for that procedure (Model 000.001 with Engine 457.960), and cross-references companion pages for related jobs, so a technician is never left guessing which sequence to follow on the cylinder head, crankshaft, camshaft, or injection system.

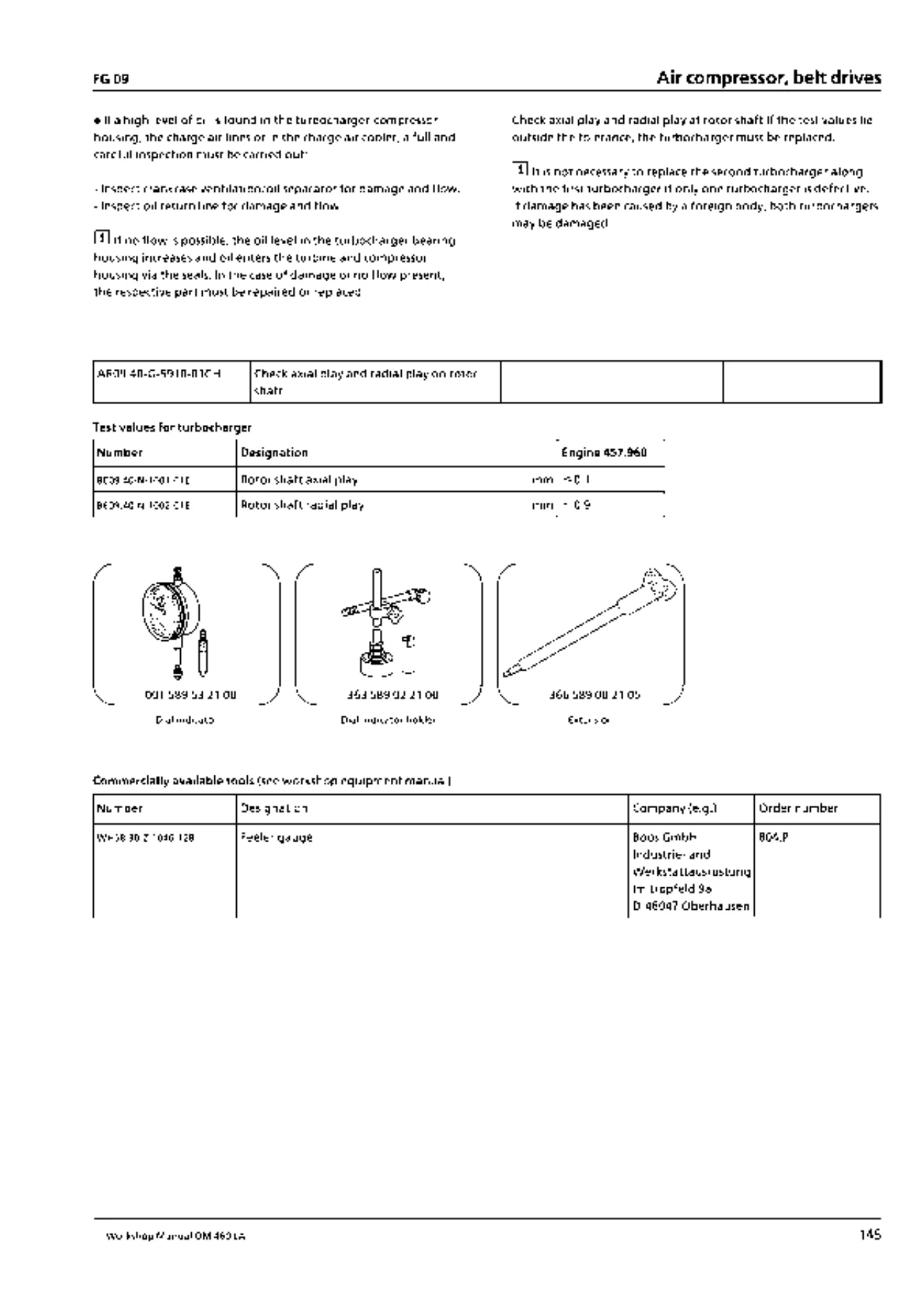

Every removal and installation procedure carries its associated tightening torques in Newton-metres, and pages throughout the manual list the exact Mercedes-Benz special tool numbers (drifts, installation/removal devices, dial gauges, dial indicator holders) required for the task — for example, checking turbocharger rotor shaft play calls for a specific dial gauge and dial indicator holder, with the axial and radial play tolerances printed directly in the test-values table.

IMAGES PREVIEW

Why Buy This OM 460 LA Workshop Manual

With this manual you can carry out cylinder head removal and resurfacing, piston and connecting rod inspection, crankshaft bearing work, camshaft and valve train service, injection nozzle holder and MR/PLD unit pump removal, turbocharger inspection, and the full oil, coolant, and fuel circuit component replacements — all to the correct specifications rather than by guesswork. Following the printed torque values and tool call-outs protects the rebuilt engine from comebacks caused by under- or over-tightened fasteners or mismeasured clearances.

This Mercedes-Benz OM 460 LA 6-Cylinder Diesel Engine Workshop Manual is delivered instantly as a PDF after checkout — there’s no shipping wait. Read it on a phone, tablet, laptop, or shop PC, print out only the job cards you need for the bay, and keep the full workshop manual on hand for the next OM 460 LA job that comes through the shop.
