Kirloskar SL90 Series 6SL9088 6SL1500 6SL8800 Engine Workshop Manual

Description

Kirloskar SL90 Series Engine Workshop Manual

The Kirloskar SL90 Series 6SL9088 6SL1500 6SL8800 Engine Workshop Manual is a workshop-level repair and overhaul reference for the six-cylinder SL90 engine family. It covers the 6SL9088TA1, 6SL9088TA, 6SL1500TA1, 6SL1500TA and 6SL8800TA variants and is written for trained service engineers and technicians carrying out dismantling, inspection, reconditioning, assembly, adjustment and troubleshooting work. The manual explains the SL90 construction, provides engine specifications and service limits, and then takes the reader through top overhaul, major overhaul and component-level inspection procedures.

The SL90 series is described here as a vertical in-line, six-cylinder, four-stroke direct-injection diesel engine with liquid cooling, available in turbocharged and turbocharged after-cooled configurations for power generation, industrial and automotive applications. Alongside repair procedures, the manual supplies tightening data, operating clearances, condemnation limits, special-tool references, preservation instructions and system troubleshooting information that can be used while assessing engine condition and planning overhaul work.

File Details

• Manual type: Workshop Manual
• Brand: Kirloskar Oil Engines Limited
• Model: SL90 Series
• Covered engine models: 6SL9088TA1, 6SL9088TA, 6SL1500TA1, 6SL1500TA, 6SL8800TA
• Language: English
• Page count: 110 pages
• File format: PDF

Engine Data, Limits and Workshop Reference

A major strength of this Kirloskar SL90 workshop manual is the amount of dimensional and service information gathered before the overhaul sections. General specifications include cylinder arrangement, combustion system, cooling system, direction of rotation, compression ratio, bore, stroke, swept volume, aspiration, firing order, starting system, operating speed, power ratings, fuel-injection equipment and dry engine weight. The specification section then moves into tightening practice and a dedicated torque table for critical fasteners including main-bearing cap bolts, connecting-rod bolts, cylinder-head bolts, flywheel bolts, flywheel-housing bolts and other engine hardware.

For inspection work, the manual provides nominal dimensions, clearances and wear or condemnation limits for major components. These cover cylinder-head and valve-guide dimensions, valve stems and seats, valve springs, rocker gear, valve clearances, bumping clearance, cylinder liners, pistons, piston rings, connecting rods, intermediate gears, camshaft journals and bushes, crankshaft journals and crankpins, crankcase bores, lube-oil pump data and water-pump data. This makes the SL90 Series engine workshop manual useful not only while dismantling and assembling the engine, but also when deciding whether a component can remain in service, requires reconditioning or should be replaced.

Chapters Covered

• 1. Specification Data
  • Foreword and general instruction

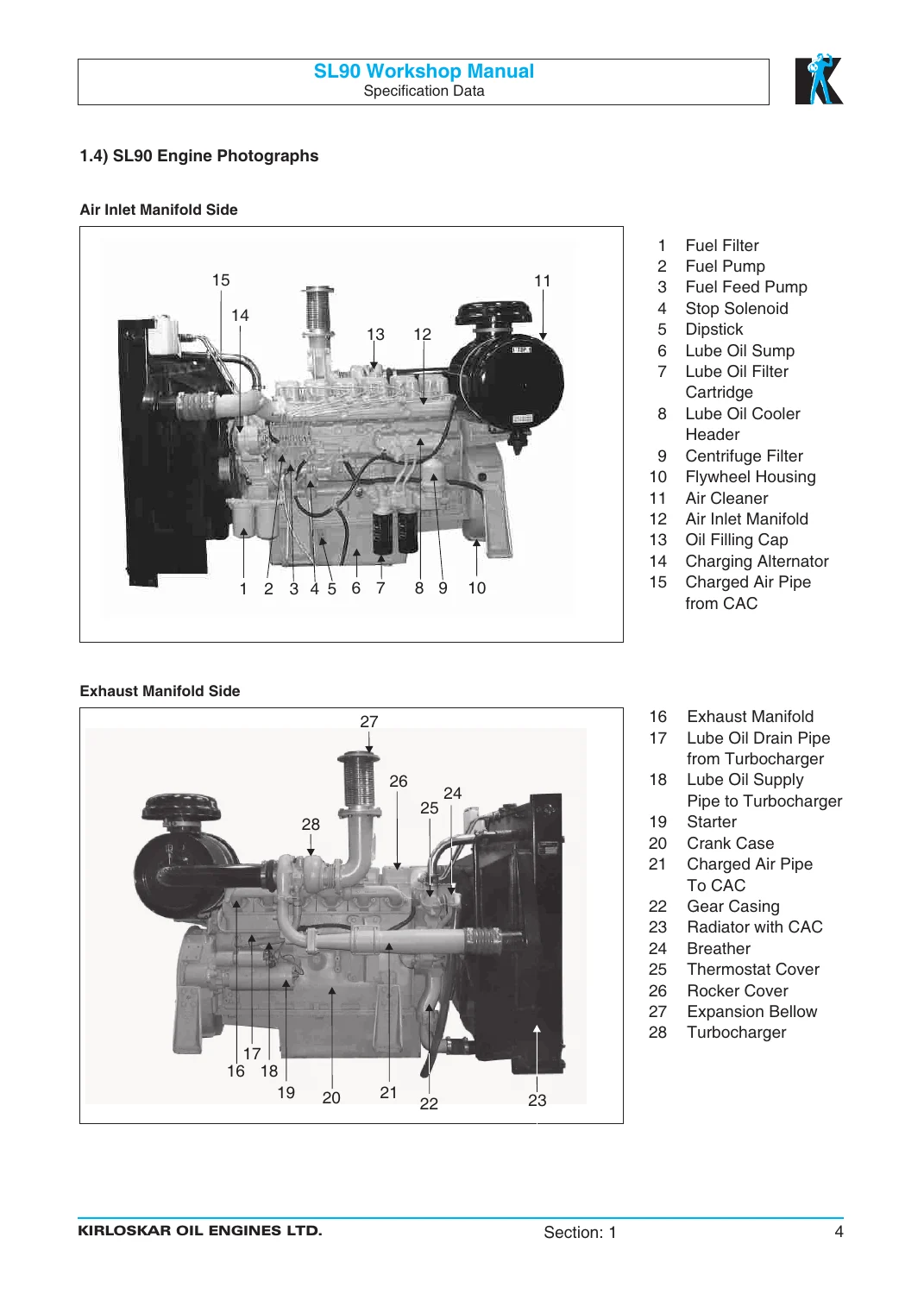

  • Engine description and SL90 engine photographs
  • General specifications for SL90 series engines
  • Tightening high-tensile fasteners by angular torque method
  • Tightening torque table
  • Nominal dimensions, clearances and limits of important components
  • List of special tools and standard tools
  • Engine preservation and consumables
• 2. Top Overhauling
  • Dismantling instructions
  • Cleaning and inspection of parts
  • Assembly
• 3. Major Overhauling
  • Engine dismantling instructions
  • Cleaning and inspection of sub-assemblies and parts
  • Engine assembly
• 4. Inspection, Servicing and Installation of Major Sub-Assemblies and Components
  • Inspection and servicing of crankcase and crankshaft
  • Inspection and servicing of cylinder liner, connecting rod and piston assembly
  • Inspection and servicing of cylinder head and camshaft
  • Inspection and servicing of intermediate gear assembly and water pump

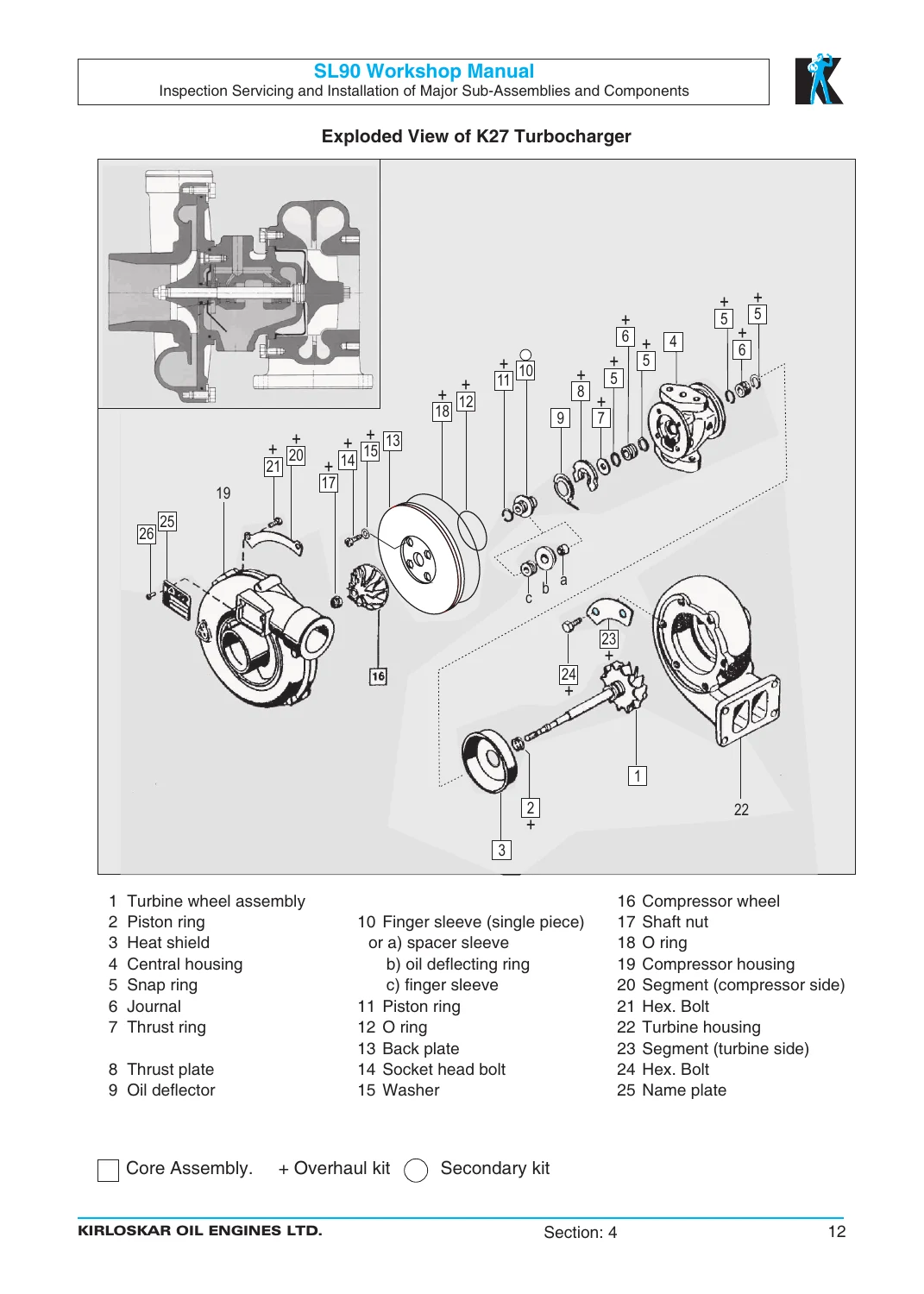

  • Inspection and servicing of turbocharger
  • Valve recess and cylinder-head surface-flatness checks
  • Replacing valve guides and valve-seat inserts
  • Assembly of piston and connecting rod
  • Piston-ring butt-clearance checks and piston-ring fitting
  • Crankshaft installation, crankshaft end-play and bearing-shell checks
  • Valve lapping and valve-seat checking
  • Inspection and servicing of oil spray nozzles
  • Gear backlash, fuel-timing setting and valve-tappet setting
  • Lubricating-oil filter replacement and fuel-system bleeding
  • Lube-oil cooler, radiator and charge-air-cooler servicing
  • Auto-electrical inspection and oil-seal fitting
  • Dry-type air-cleaner, centrifugal-filter and fan-drive servicing
  • Exhaust-manifold servicing and radiator cleaning
  • Lube-oil pump inspection and servicing
• 5. Trouble Shooting
  • Engine fails to rotate or rotates slowly
  • Engine rotates freely but does not start or has starting difficulty
  • Engine starts and stops, misfires, or does not reach governed speed
  • Engine speed instability and diesel contamination of lube oil
  • Fuel-injection equipment wear, diesel knock and mechanical knock
  • Excessive vibration, battery discharge and load-taking problems
  • Engine overheating and low lube-oil pressure
  • Black smoke, no-load smoke and full-load smoke
  • Blue smoke and white smoke
  • Oil or water leakage and bearing wear
  • Liner, piston and piston-ring wear or seizure
  • Excess blow-by, high lube-oil consumption and high fuel consumption

Together, these chapters take the technician from identification and measurement through disassembly, inspection, repair decisions, reassembly, adjustment, commissioning and fault diagnosis. The top-overhaul section addresses removal, cleaning and inspection of upper-engine components before reassembly, while the major-overhaul section extends the work into the crankshaft, bearings, camshaft, gear train, oil pump and other lower-engine assemblies. The component-servicing section supports both levels of overhaul with detailed checks and fitting procedures for individual parts and systems.

IMAGES PREVIEW

Overhaul, Inspection and Reassembly Guidance

The manual is especially useful when an SL90 engine is being stripped for planned overhaul. It describes preparation and dismantling sequence, marking and retaining components by cylinder position, cleaning carbon and deposits, checking serviceability against the stated dimensions and limits, and replacing specified seals, joints, gaskets, O-rings, washers and critical fasteners during overhaul. Reassembly guidance covers cam bushes, crankshaft and bearings, piston and connecting-rod installation, cylinder liners, gear train, cylinder heads, fuel system, turbocharger, oil filters, cooling equipment, starter and alternator connections.

Adjustment procedures include angular tightening, gear-backlash checks, fuel timing by spill cut-off, valve-tappet setting, crankshaft end-play measurement and piston-ring checks. The manual also identifies special tools for jobs such as engine turning and lifting, injector extraction, cylinder-liner pulling, valve-seat insert removal, crank-gear removal, cam-bush installation and oil-seal fitting. Engine testing after overhaul is described with staged loading and regular checks of oil pressure and water temperature.

Troubleshooting for SL90 Engine Problems

The troubleshooting section connects symptoms with likely causes across the air, fuel, lubrication, cooling, exhaust, electrical and mechanical systems. It covers starting failure, slow cranking, difficult starting, misfiring, unstable speed, overheating, low oil pressure, excessive smoke, oil or water leakage, bearing wear, liner and piston seizure, blow-by, high oil consumption and high fuel consumption. For technicians diagnosing a running engine before dismantling, this gives a practical route from symptom to systems and components that should be inspected.

Repair and Overhaul Your Kirloskar SL90 With the Correct Workshop Data

The Kirloskar SL90 Series 6SL9088 6SL1500 6SL8800 Engine Workshop Manual supports major workshop jobs including top overhaul, complete engine dismantling, component inspection, dimensional checking, crankshaft and piston work, cylinder-head servicing, valve and timing adjustments, turbocharger-related inspection, lubrication and cooling-system servicing, reassembly and post-overhaul testing. Having the correct tightening values, clearances, wear limits and repair sequences matters when rebuilding an engine where small errors in fit, timing or adjustment can affect reliability and service life.

Purchase includes instant PDF delivery after payment, with no physical book or shipping delay. The manual can be viewed on a compatible phone, tablet or computer and printed for convenient workshop reference.
