SANY SY365H(BH)-10 Crawler Hydraulic Excavator Shop Manual PDF Download

Description

SANY SY365H(BH)-10 Shop Manual Overview

This 592-page SANY SY365H(BH)-10 crawler hydraulic excavator shop manual is the full service and repair reference prepared for professional technicians. It covers the SY365H-10 and SY365BH variants powered by the Isuzu GH-6HK1XKSC-01 engine, supplying every structural description, standard value table, test procedure, DTC-based fault diagnosis path and component removal sequence needed to keep the machine productive.

The manual opens with safety rules and terminology standards, then moves systematically through technical specifications, structure and function of every major assembly, measured standard values, adjustment methods, electrical and hydraulic troubleshooting charts, and detailed removal and installation instructions ending with complete hydraulic oil circuit and electrical diagrams.

File Details

• Manual type: Shop Manual / Service Manual
• Brand and model: SANY SY365H(BH)-10 (covers SY365H-10 and SY365BH)
• Language: English
• Page count: 592
• File format: PDF
• Publisher: Sany Heavy Machinery Co., Ltd.

Models and Equipment Covered

The document applies to the SANY SY365H(BH)-10 crawler hydraulic excavator family. Explicit coverage includes the SY365H-10 and SY365BH configurations. Engine data is given for the Isuzu GH-6HK1XKSC-01 (also designated GB3-6HK1X-212-2000), a 6-cylinder 7.8 L diesel producing 212 kW at 2000 rpm and 1080 N·m at 1500 rpm. Overall operating weight is listed as 36 000 kg for the SY365H-10 and 37 000 kg for the SY365BH. Bucket capacities of 1.6 m³ (rock) and 1.9 m³ (rock) appear in the technical specification tables.

Systems and Subjects Included

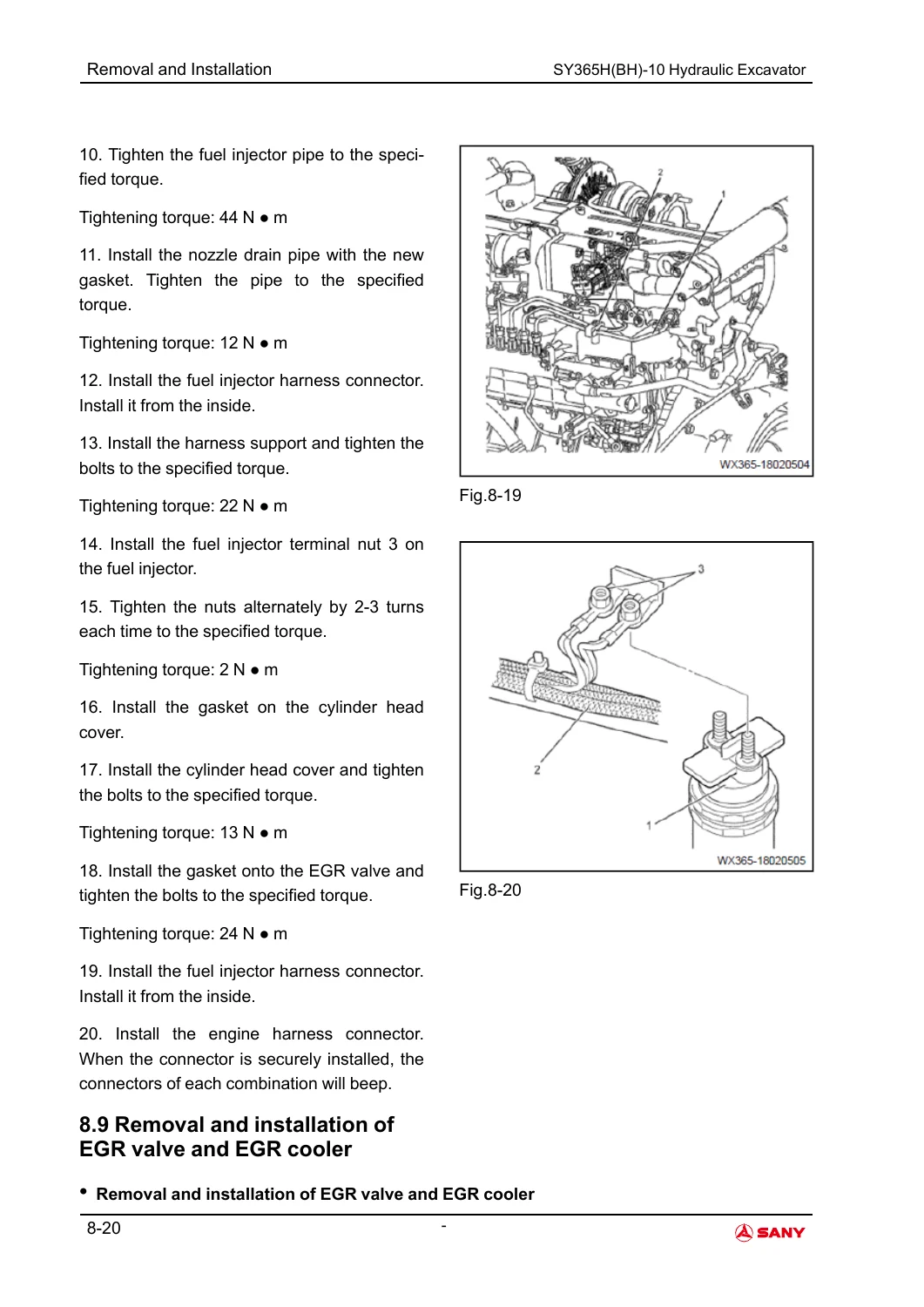

Chapter 4 Structure and Function walks through the engine and cooling system, powertrain (travel reducer, swing reducer, swing bearing), lower structure (track frame, idlers, carrier rollers, track rollers, crawlers), the complete hydraulic system in three parts (pump, regulator, main control valve, swing motor, travel motor, central swivel joint), pilot and solenoid control components, work equipment cylinders, air-conditioning system, engine control, electrical control system and the machine display. Chapter 5 supplies standard values for both engine-related and body-related components. Chapter 6 covers every major test and adjustment procedure. Chapter 7 contains extensive fault-diagnosis tables for electrical mode E and hydraulic/mechanical mode H, including DTC lists from E001 to H024. Chapter 8 provides removal and installation sequences for starter, flywheel, cylinder head, oil pan, EGR, radiator, engine and pump assembly, final drives, swing motor, idler, track, swing bearing, turntable, centre swivel joint, hydraulic tank, control valve, hydraulic pump, pilot valves, cylinders, work equipment, A/C, counterweight, cab and related electrical parts. Chapter 9 reproduces the hydraulic oil circuit diagram and the full set of electrical diagrams.

Work the Manual Supports

• Measurement and adjustment of valve clearance, fan and A/C belt tension, swing-bearing clearance, track tension, hydraulic pressures in work, swing and travel circuits, pilot pressures and solenoid output pressures
• Cylinder drift inspection and residual-pressure release
• Leakage measurement and air bleeding of every hydraulic circuit
• Complete DTC-driven electrical diagnosis and symptom-based hydraulic/mechanical troubleshooting (engine start failure, slow boom/arm/bucket, off-tracking, swing overrun, etc.)
• Step-by-step removal, inspection and reinstallation of major assemblies including final drives, swing mechanism, hydraulic pump, control valve and work equipment
• Reference to tightening torques, coating materials, oil grades and special tools throughout the procedures

Specification and Reference Data

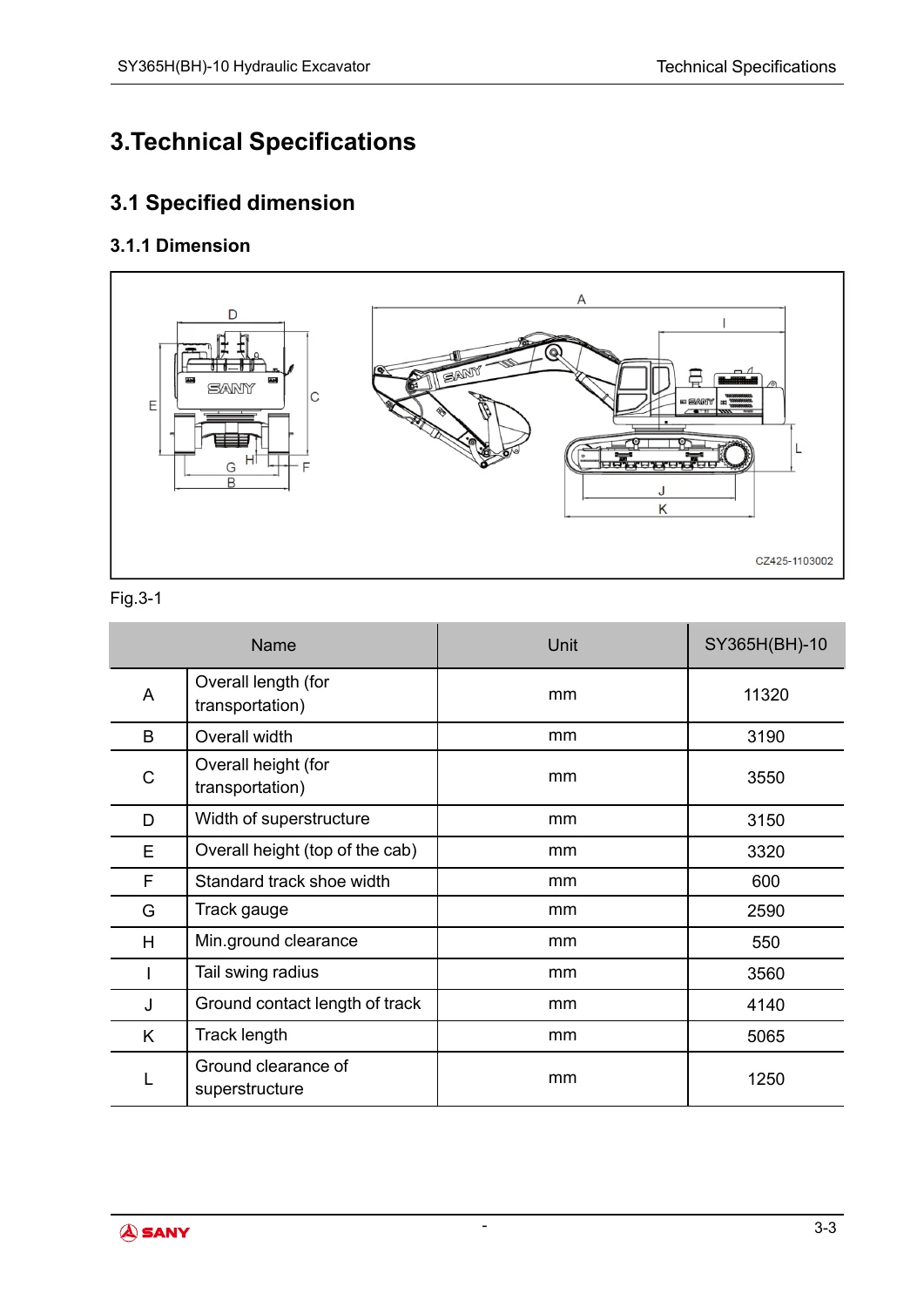

Key figures include overall dimensions (length 11 320 mm, width 3 190 mm, height 3 550 mm), working ranges (max digging depth 7 056 mm / 6 810 mm, max reach 10 773 mm / 10 570 mm), hydraulic system pressures (main relief 34.3 MPa, swing 27.5 MPa), cylinder sizes (boom 140 mm bore, arm 170 mm, bucket 150 mm), track shoe width 600 mm, and the complete oil, fuel and coolant recommendation chart by ambient temperature. Engine performance curves for the GH-6HK1XKSC-01 are also provided.

Get the Manual and Start Working

With this SANY SY365H(BH)-10 shop manual you can measure valve clearance and belt tension correctly, set hydraulic pressures to the published standard values, diagnose DTCs from E001 through H024, and follow the documented removal and installation sequences for the final drives, swing motor, hydraulic pump and work equipment without guesswork. Correct procedures and exact specifications mean the repair is completed right the first time and the machine returns to production faster. The PDF is delivered instantly after payment, ready to open on any phone, tablet, laptop or workshop computer and printable for bench use.
