Scania 16 Marine Engine Parts Catalogue 2015 – D16M DI16M DI16 45M DI16 50M PDF
Original price was: $34.95.$21.95Current price is: $21.95.
Complete Scania 16 Marine Engine parts catalogue (doc 18896, 2015) covering D16M, DI16M, DI16 45M and DI16 50M engines – every assembly, part number and serial breakpoint in one 745-page PDF.
Description

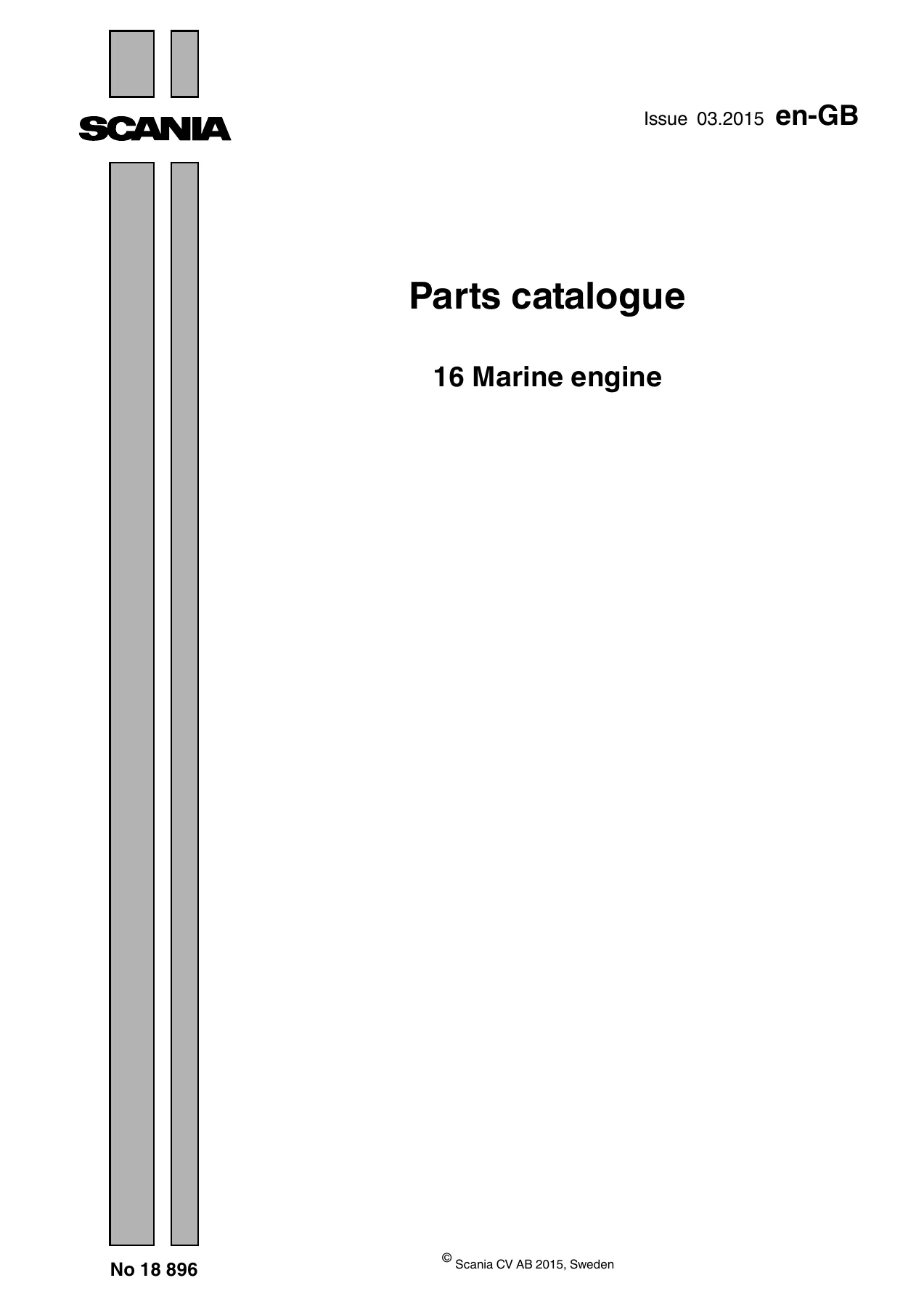

Scania 16 Marine Engine Parts Catalogue – 2015 Edition, Document 18896
This is the full Scania 16 Marine Engine Parts Catalogue, document number 18896, published in 2015. It is the parts identification reference for the Scania 16-litre marine diesel engine range and covers the D16M, DI16M, DI16 45M, DI16 50M and related DI16 marine variants. Every major assembly on the engine is broken down into its individual components, with position numbers, part numbers, quantity, remarks and the engine serial-number breakpoints that decide which part fits which build.
Because Scania changed internal components across production, this catalogue is organised so that the same assembly page shows the correct part for each serial range. That is what makes it usable on a real engine rather than a generic overview – you match the series number on the engine record card, turn to the assembly page, and pick the part listed for that range.
File Details
- Manual type: Parts catalogue
- Brand: Scania
- Engine series: 16 Marine engine (D16M, DI16M, DI16 45M, DI16 50M, DI16 42M / 43M / 52M)
- Document number: 18896
- Edition / date: 2015
- Language: English
- Page count: 745 pages
- File format: PDF
Chapters Covered
- 00 General – consumables, maintenance kits (S, M, L)
- 01 Engine
- Cylinder head – valve guides, valve seats, valves, springs, rocker arms, gasket kits
- Cylinder block – bearing caps, cylinder liners, bearings, thrust bearings, piston cooling nozzles
- Crank mechanism – pistons, connecting rods, crankshaft, torsion damper, flywheel
- Timing gear – camshafts, gears, PTO drive gear, roller tappets, pushrods

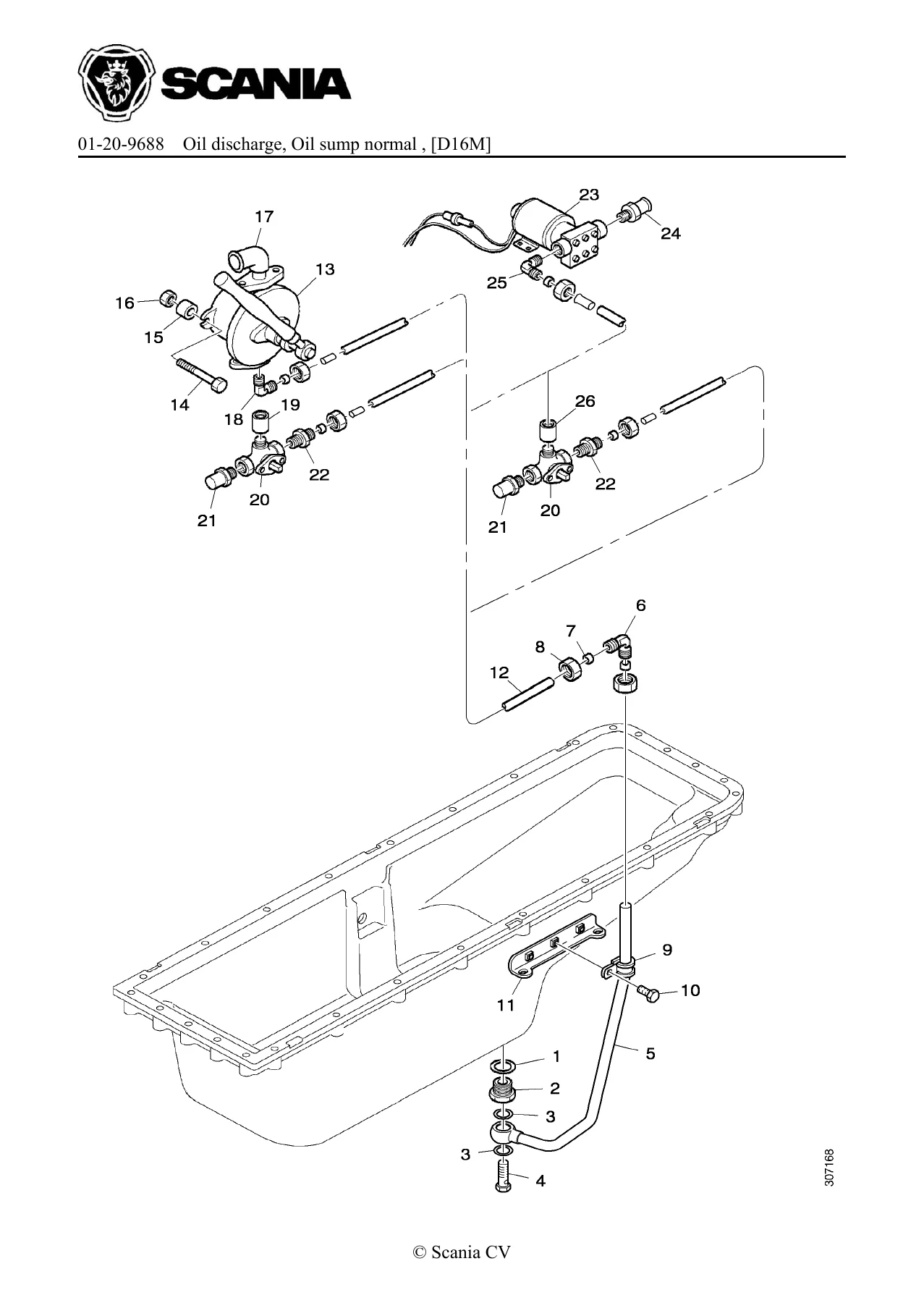

- Lubrication system – oil pumps, oil coolers, centrifugal oil cleaner, turbocharger lubrication, dipsticks
- Exhaust manifold
- Turbocharger
- Intake manifold – charge air cooler, charge air pressure sensor, air pipes
- Air intake – air cleaners (10.6 m2 and 16 m2), separate and turbocharger-mounted
- Engine suspension – high, low, fixed, front, rear, heavy duty, reverse-gear brackets
- Power take-off – front mounted, shaft journal, pulley, SAE B
- Protective casing – catwalk, turbocharger insulation
- Repair kits – gasket kits, oil pipe kits, piston and cylinder liner kits
- 02 Cooling system
- Radiator, expansion tanks (three series variants), sacrificial anode, heat exchangers
- Charge air cooler
- Fan and belt transmissions – coolant pump belts, fan belts, alternator belts, PTO and shaft-journal belt layouts
- Thermostat housing
- Coolant pump and sea water pump (including Gilkes)
- Bilge pump mounting
- Pipes and hoses – engine coolant pipes for heat exchanger and keel cooling, turbocharger coolant pipes, bleed pipes
- Auxiliary heaters – immersion and external engine heaters, connection cables
- 03 Fuel and exhaust systems
- Feed pump and unit injectors (PDE)
- Fuel filter units – reversible filter heads, prefilters, water separators
- Fuel manifolds and fuel pipes
- Exhaust system – connection tubes, silencers
- Unit injector repair kit
- 05 Gearbox, power take-off – reverse gear mounting parts (ZF 350/360, ZF350-1V, TD MG/MGX 5114 A/SC, TD MG 5114 IV, TD MGX 5135 A/SC)
- 10 Compressed air system – compressor (600cc and 720 CR), compressor mounting, repair kits
- 13 Hydraulic pump – 16 dm3 / 150 bar and 22 dm3 / 150 bar pumps, repair kits
- 14 Engine controls – accelerator control, speed setting
- 16 Electrical system
- Central electric unit – junction boxes (marine master, marine slave, coordinator, main supply box), remote control boxes
- Alternator and mounting
- Starter motor and starter relay
- Electrical equipment – electronic control units, coordinator, EMS S6
- Cable routing and cable retainers
- Cable harnesses – engine, junction box
- Electrical parts – contact housing kits
- 17 Instruments – instrument panel, digital display EMS, switch panels (master and slave), switches, plates
- 18 AC compressor – (no parts listed in this edition)
- 19 Index
Across those chapters the catalogue lays out every part that makes up the Scania 16-litre marine diesel – from a single sealing washer on the oil sump drain plug to complete cylinder heads and turbocharger assemblies. Each entry lists the Scania part number, the quantity fitted, position reference on the illustration and, where relevant, the engine serial range the part applies to. Where a part has been superseded, the catalogue shows the current number alongside earlier part numbers. Exploded illustrations sit beside each parts list so the position numbers can be matched visually. This is the document a workshop or parts counter uses to identify exactly which component belongs on a specific build of D16M or DI16 engine.
Serial Number Coverage
Scania splits the 16-litre marine engines into serial-number bands. The catalogue shows parts grouped by these bands so you can confirm fitment against the engine record card. Series ranges visible in the catalogue include:
- EN 6500001-6513510 SSS – early production D16M
- EN 1039758- SSS – later production D16M and DI16M
- EN -1045447 SSS, EN 1045448- SSS, EN 1071370- SSS, EN -1071369 SSS – mid and late build breaks for lubrication, cooling and crankcase ventilation changes
- EN 6513510 and later ranges for belt transmission, oil cooler and rocker cover updates
- Additional breaks for DI16 45M, DI16 50M and DI16 42/43M marine applications
Why This Catalogue Matters
Marine engines are often rebuilt, re-powered or kept in service for decades, and the parts fitted to a Scania 16-litre changed many times over the production run. Ordering a cylinder head gasket, a rocker cover gasket, an oil cooler or a coolant pipe for the wrong serial range means a part that will not seal, will not bolt up, or will not flow correctly. This catalogue removes that risk by showing the correct part number against the correct serial band. It also shows the internal composition of assemblies like the centrifugal oil cleaner, the heat exchanger, the sea water pump, the hydraulic pump and the unit injector so a technician can order individual seals, bearings, rotors and vanes rather than a complete unit.
IMAGES PREVIEW
The catalogue covers both heat-exchanger-cooled and keel-cooled marine installations, side-mounted and front-mounted heat exchangers, reverse gear mounting for ZF and Twin Disc gearboxes, and the specific belt transmission layouts for engines with or without front power take-off and with or without alternator drive. That makes it equally useful for a vessel with a standard Scania marine package and for one with a custom cooling or PTO arrangement.
What You Can Do With It
- Identify the exact part number for any component on a D16M, DI16M, DI16 45M or DI16 50M engine
- Confirm fitment against the engine serial number before ordering
- Rebuild cylinder heads, cylinder blocks, crankshaft assemblies and timing gear with the correct bearings, seals, gaskets and fasteners
- Service the lubrication system – oil pump, oil cooler, centrifugal cleaner and turbocharger oil pipes
- Reassemble the cooling system – heat exchanger, sea water pump, coolant pump, expansion tank, thermostats and pipework for heat exchanger or keel cooling
- Replace fuel system components – feed pump, unit injectors, filter heads, water separators and fuel manifolds
- Set up the air intake and charge air system – air cleaners, charge air coolers, pressure sensors and pipework
- Match engine suspension brackets to the correct reverse gear (ZF, Twin Disc) and mounting configuration
- Source electrical components – junction boxes, electronic control units, cable harnesses, sensors, starter motors and alternators
- Order compressor, hydraulic pump and instrument panel parts
Get the Complete Scania 16 Marine Engine Parts Catalogue
Whether you maintain a single vessel or run a workshop that services Scania marine engines, having the correct parts catalogue on hand saves time, avoids wrong-part orders and keeps rebuilds moving. This PDF is delivered instantly after payment – no shipping, no waiting. It opens on any computer, tablet or phone, can be printed for the workshop shelf, and the complete parts breakdown for the whole Scania 16 Marine Engine range is in a single searchable file.
