Scania GMS Gearbox Management System Fault Code & Troubleshooting Manual

Description

Scania GMS Gearbox Management System Fault Code & Troubleshooting Manual

This is the fault code and troubleshooting reference for the Scania Gearbox Management System, known throughout the workshop as GMS. Instead of describing how the gearbox is built, it works the opposite way round: you read the fault code the control unit has stored, look it up, and get a straight answer about what triggered it, what the vehicle does while the code is active, and exactly which component, connector, cable harness or mechanical part to check next. The manual covers the full spread of GMS-equipped vehicles – Opticruise automated gear changing, Comfort Shift, retarder-equipped trucks, manual gearboxes with splitter and range gear, and the later hybrid drivetrain with BMU, MGU and electric machine, plus Allison GMS transmissions.

File Details

• Manual type: Fault code and troubleshooting reference manual
• Brand: Scania
• System: GMS – Gearbox Management System
• Source reference: 945312623
• Language: English
• Format: PDF
• Page count: 362 pages

Systems and Fault Groups Covered

• Control unit: supply voltage above 35 V, supply voltage below 16 V, internal faults, invalid configuration
• Splitter gear: ratio plausibility, high and low split acknowledgement, no movement to split, loss of split acknowledgement
• Engine control interface: engine control during gear changing, unexpected response from the engine, current engine torque messages
• Drive mode selector: invalid position combinations, invalid values from the selector
• CAN communication: engine control unit, coordinator, BMS, AWD, EBS, sub data bus, checksum and counter faults, time-outs
• Chassis serial number: BMU E81 and MGU2 / MGU2X mismatches

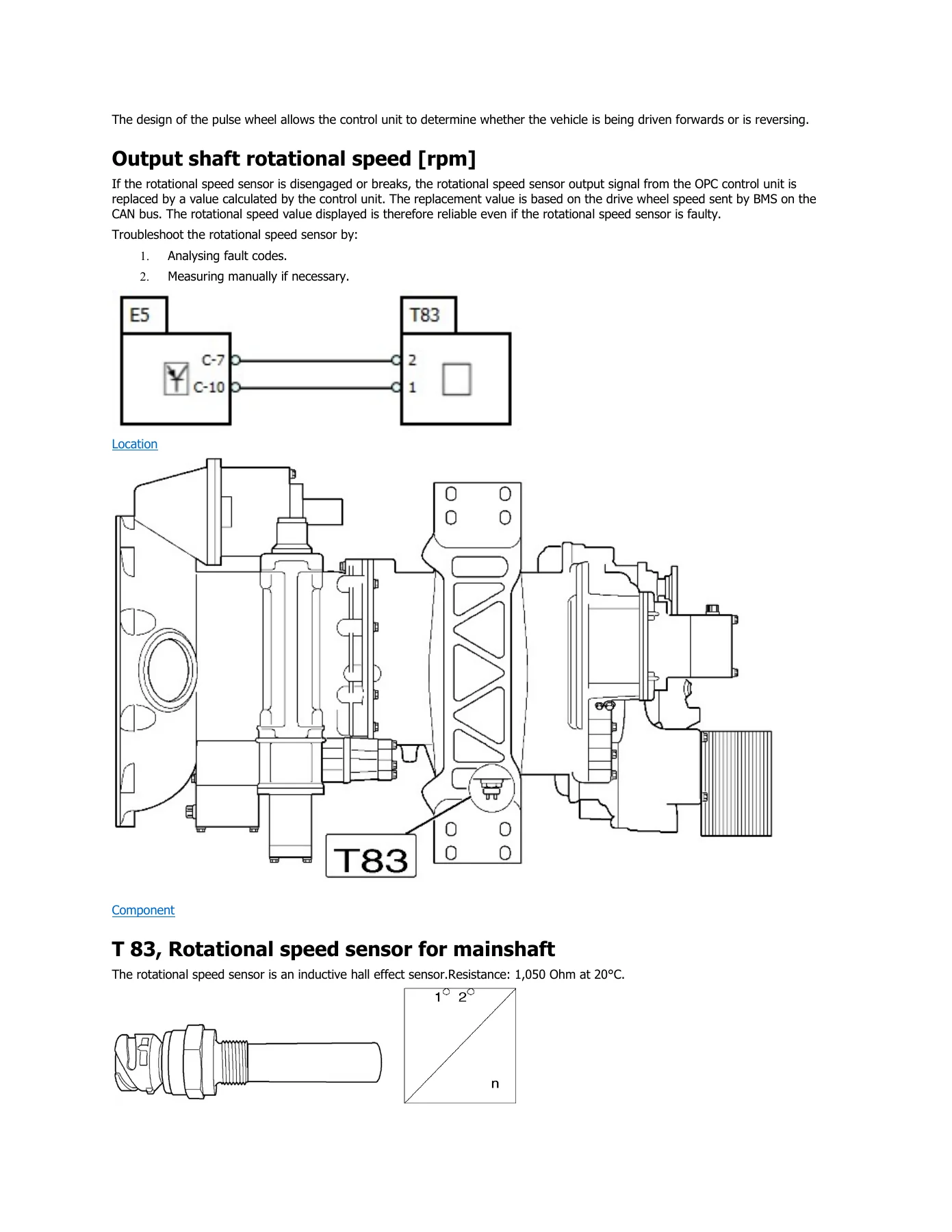

• Rotational speed sensors: output shaft, mainshaft T83, layshaft T129, TCO tachograph, BMS, plausibility faults
• Lateral stroke: no acknowledgement left or right, centre position faults, position sensor T108
• Longitudinal stroke: forward, rearward and neutral acknowledgement faults, position sensor T107
• Range gear: high and low range movement and acknowledgement, position sensor T109
• Splitter gear position sensor T106 including electrical and plausibility faults
• Solenoid valves: V112 Opticruise block, V111 split and range block, layshaft brake, power take-off EG1 and EG2, power steering
• Retarder system: oil pressure, coolant and oil temperature sensors, proportional valve, accumulator and safety valves, freewheeling retarder operating mechanism and position sensor T172
• Hybrid drivetrain: BMU E81, inverter E82 (MGU), electric machine M33, position sensor T76, voltage class B, cooling fan, electric machine oil pump
• Clutch actuator ECA E93 and ECA unit: slave cylinder, angle sensor, oil level sensor T156, overheated and worn clutch
• Coordinator E30: accelerator pedal, clutch pedal, brake circuit, articulation control system messages
• Allison GMS control unit A5

For each code the manual follows the same four-part structure: error identification, cause, notes describing how the vehicle behaves while the code is active, and the action list. That structure is the real value here. The notes tell you what the driver will actually feel – a system locked in gear, no retarder braking, a yellow or red warning lamp in the instrument cluster, a reversing light stuck on, an engine that will not rev during a downshift – and the action list walks through the checks in order, from air supply and pressure equalisation down to spline damage and gear selector locking pins. Cross-references point you to the relevant component check pages, so a fault code entry on lateral stroke leads straight into the V112 solenoid valve block description, the pin and signal table, and the position sensor reference values in millimetres.

Component Reference Material Built Into the Manual

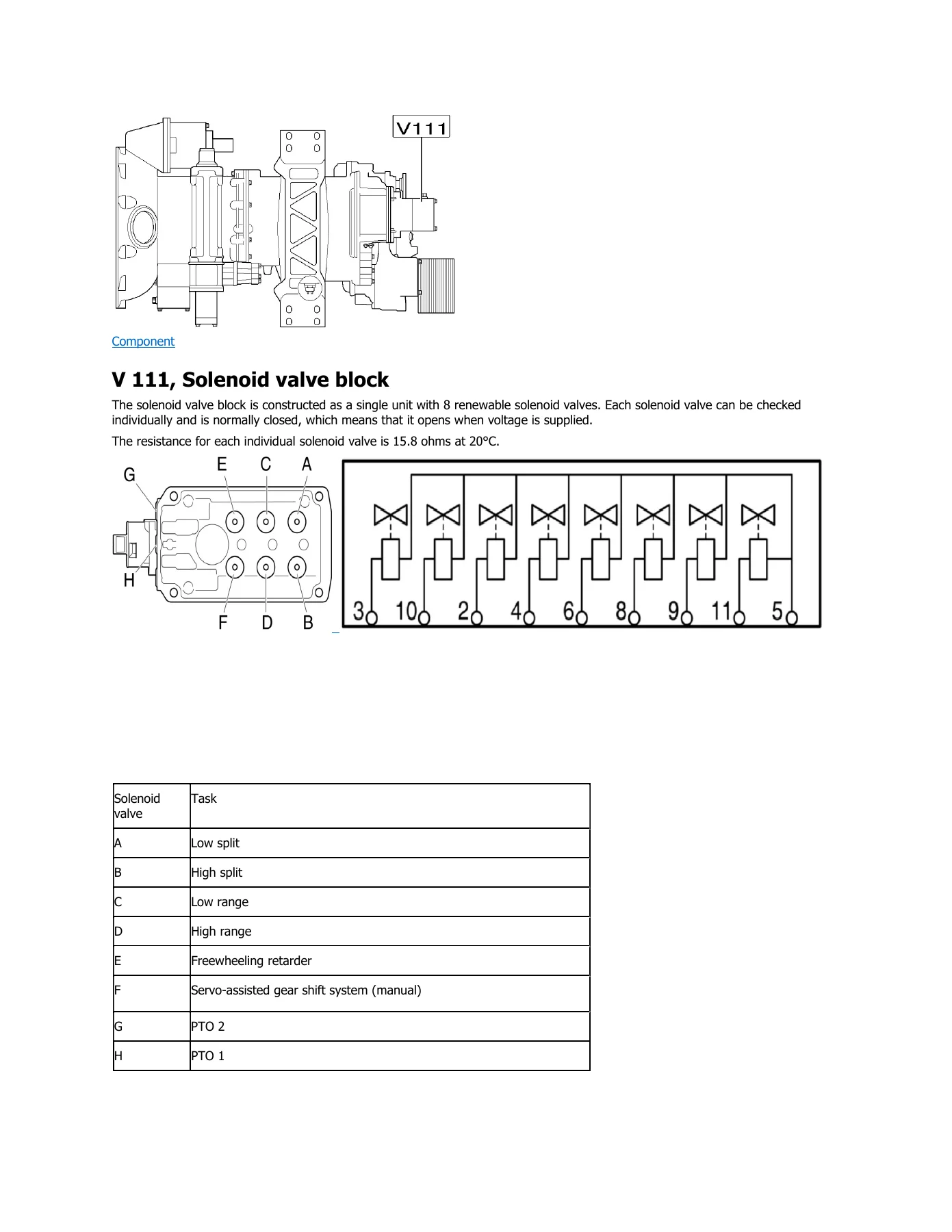

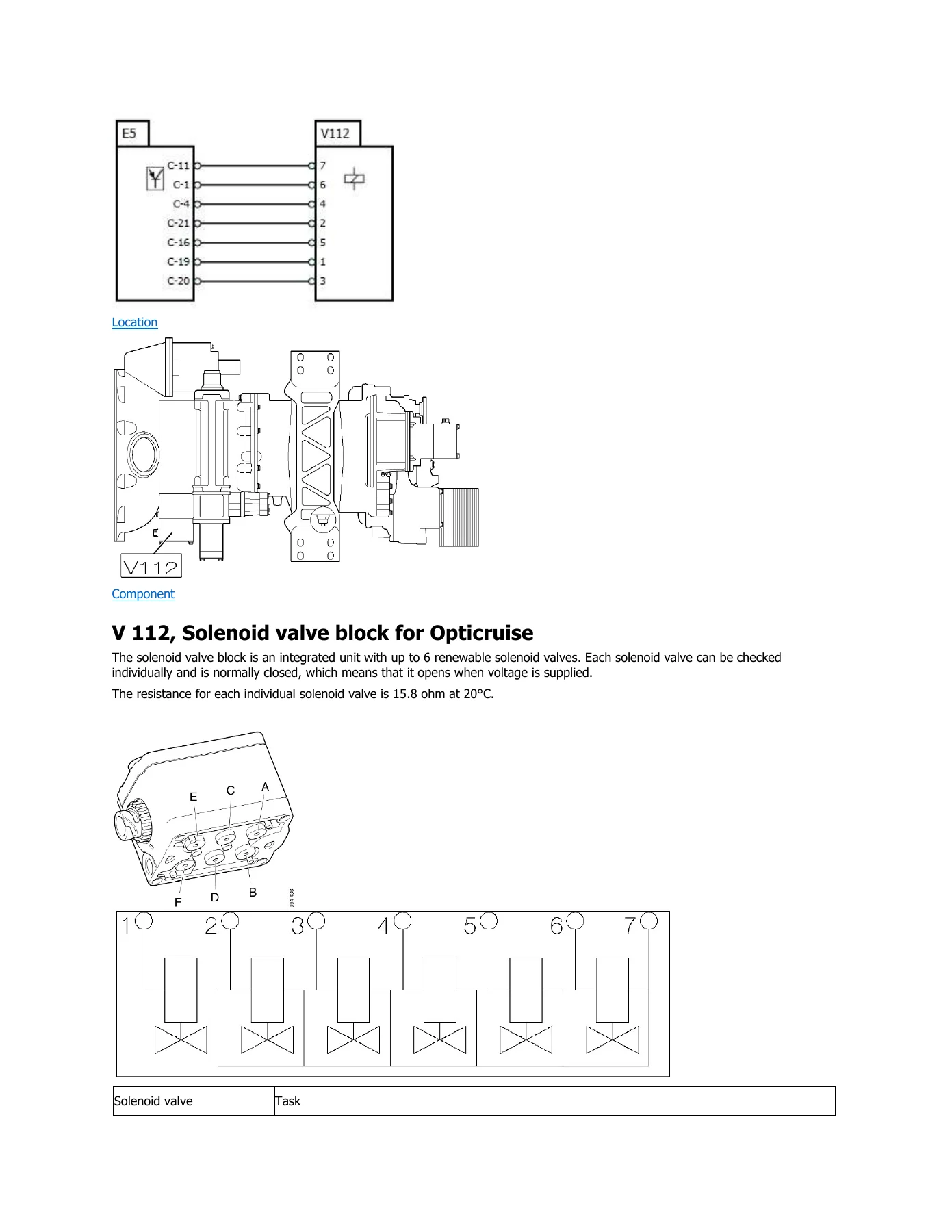

Alongside the fault codes, the manual carries the component-level detail needed to actually verify a fault rather than guess at it. That includes harness-to-harness connectors C193, C194 and C495 with their pin uses and signal types; the P8 central electric unit and P11; ground point G33; the V112 six-valve Opticruise solenoid block with valve lettering, pin assignments and PWM signal types; the V111 eight-valve block covering split, range, freewheeling retarder, servo-assisted gear shift and power take-off; the T106, T107, T108, T109, T129, T83, T80, T86, T63, T156, T161, T172 and T76 sensors with resistance values, supply voltages and output signal descriptions; and the E93 clutch actuator with its CAN pins, wake-up signal and oil level sensor wiring. Position sensor pages give approved measuring ranges and separate reference values for each end position, which is what turns a vague complaint about poor gear selection into a measurable check.

Retarder, Hybrid and Allison Coverage

Retarder-equipped vehicles get substantial attention, since the GMS interacts directly with retarder braking. Fault code entries explain when retarder braking is lost entirely, when only hand-lever braking remains, when the retarder fails to disengage as the accelerator is pressed, and when brake blending is cancelled. The freewheeling retarder operating mechanism is covered in detail, including the synchromesh actuating arm faults, return spring fractures, blocked venting and oil pressure surge conditions that abort engagement. Vehicles with the hybrid drivetrain are covered through their own fault code range, dealing with HEV-CAN time-outs, inverter driver stage shutdown, voltage class B open circuits and short circuits, electric machine overtemperature, rotor position sensor faults and the calibration routines that must be run after renewing the electric machine or inverter.

Who This Scania GMS Fault Code Manual Is For

Anyone diagnosing a GMS-equipped Scania needs the code definitions in front of them. Without them a stored code is just a number, and the temptation is to start swapping parts. With the error identification, cause and action list side by side, the diagnosis becomes a sequence of checks: confirm the air supply to the gearbox, verify pressure equalisation in the valve block, test the solenoid valve, inspect the position sensor attachment and its iron pin, then examine the splines, piston screws, springs and selector shafts only if the electrical side is sound. For hybrid and ECA faults the same discipline applies – check supply voltage, CAN resistance, connector pins and fluid levels before condemning a control unit. This Scania GMS gearbox management system fault code and troubleshooting manual gives you that sequence for every code the system can set, in one place, rather than scattered across separate fault code sheets.

IMAGES PREVIEW

Instant PDF Delivery

You get the complete Scania GMS Gearbox Management System fault code and troubleshooting manual as a PDF the moment payment clears. There is nothing to ship and nothing to wait for. Open it in the workshop on a laptop or tablet, print the fault code pages you are working from so you can carry them to the vehicle, and keep the rest of the file on your phone for the next job. Whether you are chasing a single stored code on an Opticruise truck or working through a retarder or hybrid fault from scratch, the answer is already indexed and ready to use.
