Skyjack SJ6826 RT SJ6832 RT Rough Terrain Scissor Lift Parts Manual 2025

Description

File Details

• Manual Type: Parts Manual
• Brand: Skyjack
• Models Covered: SJ6826 RT, SJ6832 RT
• Equipment Type: Rough Terrain Scissors
• Document Number: 213559AFA
• Language: English
• Page Count: 242
• File Format: PDF

Chapters Covered

• Section 1 – Platform: Main and Extension Platforms, Extension Platform Railing, Left/Right Extension Railing, Front Extension Railing, Main Platform Railing, Left/Right Rear Platform Railing, Left/Right Platform Railing, Full Gate, Control Box, Control Box Cover, Electrical Outlet Box (ANSI/CSA/KC and CE/AS), Platform Mounting Hardware
• Section 2 – Scissors: Scissor Assembly (SJ6826 RT and SJ6832 RT), Scissor Level 1 Inside, Scissor Levels 2 and 4 Inside, Scissor Level 3 Inside, Scissor Level 5 Inside (SJ6832 RT), Scissor Level 1 Outside, Scissor Levels 2/3/4 Outside, Scissor Level 5 Outside (SJ6832 RT), Center Pin, Upper Lift Cylinder, Lower Lift Cylinder (ANSI/CSA/CE/AS and KC), Maintenance Support Stand, Angle Transducer and Beeper, Beeper (KC), Limit Switch, Flashing Light
• Section 3 – Base: Outrigger Hydraulics, Drive System, Outrigger Manifold, Splitter Manifold, Cushion Cylinder, Tie Rod, Steer Cylinder, Counterweight with Outriggers (CE/AS/KC), Counterweight without Outriggers (ANSI/CSA/KC), Ladder, Emergency Lowering Rod, Tires
• Section 4 – Cabinets: Engine Cabinet, Electrical Panel, Hydraulic Cabinet, Main Manifold, Hydraulic Oil Tank, Fuel Tank, Hydraulic Cabinet Door, Engine Cabinet Door, Key Switch, GP-108 Controller, Battery
• Section 5 – Engines: Engine – Kubota WG752, Engine Tray, Vaporizer, Radiator Kit – Kubota WG752, Solenoid – Kubota WG752, Air Intake – Kubota WG752, Exhaust – Kubota WG752, Engine Accessories – Kubota WG752, Propane Tank Mount, Engine – Kubota D902, Radiator Kit – Kubota D902, Air Cleaner Kit – Kubota D902, Exhaust – Kubota D902
• Section 6 – Electrical Harnesses: Platform Control Harness, Engine Pull Out Harness, Main Manifold Harness, Electrical Panel Control Cable, Electrical Panel Harness, Limit Switch Wiring, Horn Harness, Base to Platform Cable, Base to Platform Holding Harness, Pressure Switch Harness (KC), Pressure Transducer Harness, Engine Harness – Kubota WG752, Harness – Kubota WG752, Engine Harness – Kubota D902, Harness – Kubota D902, Outrigger and Hydraulic Generator Harness, Outrigger Auto Level Limit Switch Harness, Outrigger Manifold Harness, Outrigger Auto-leveling Control Module Harness, Outrigger Control Cable, Outrigger Control Module Harness, Tilt Switch Harness (KC), Scissor Harness (KC), Beeper Harness, Light/Beeper Harness, Transducer Harness, Beeper Wiring (KC), Positive Air Shut-off Harness, Limit Switch Wiring – Soft Stop, Trackunit Harness, Flashing Light Relay Harness
• Section 7 – Optional Equipment: Hydraulic Generator (ANSI/CSA and CE), Hydraulic Generator Hoses, Outrigger Control Box, Outriggers PC Board, Wire Locking Pins, Outrigger Assembly, Outrigger, Outrigger Cylinder, Tool Caddy, Cold Weather Start (ANSI/CSA), Scissor Guards (CE), Heavy Duty Pipe Rack, White Noise Alarm, Residual Current Device (RCD), Positive Air Shut-Off Valve, Elevate Telematics, Elevate Telematics Subscription, SGLE
• Section 8 – Hoses: Standard Hose Numbering System, Wheel Motor Hoses, Base Cylinders Hoses, Lift Cylinders Hoses, Pump Hoses, Flow Divider Hoses, Fuel Hoses – Kubota WG752, Fuel Hoses – Kubota D902
• Section 9 – Labels: Label Kits, Top, Right & Left, Front & Back, Hydraulic & Propane Tanks, Railings, Platform Control Box, Outrigger & Hydraulic Generator Box, Outriggers, Base Control, Miscellaneous

This Skyjack SJ6826 RT and SJ6832 RT parts manual gives you the complete illustrated breakdown of every major assembly and subassembly on these rough terrain scissor lifts. Each section presents exploded-view drawings paired with indexed parts lists that include Skyjack part numbers, quantities, and full descriptions using the noun-first method. Whether you are replacing a worn scissor bushing, tracking down a hydraulic hose, identifying the correct engine harness for a Kubota WG752 or D902, or ordering a replacement platform railing, the manual provides the reference numbers and component relationships you need to order the right part the first time.

What This Parts Manual Covers

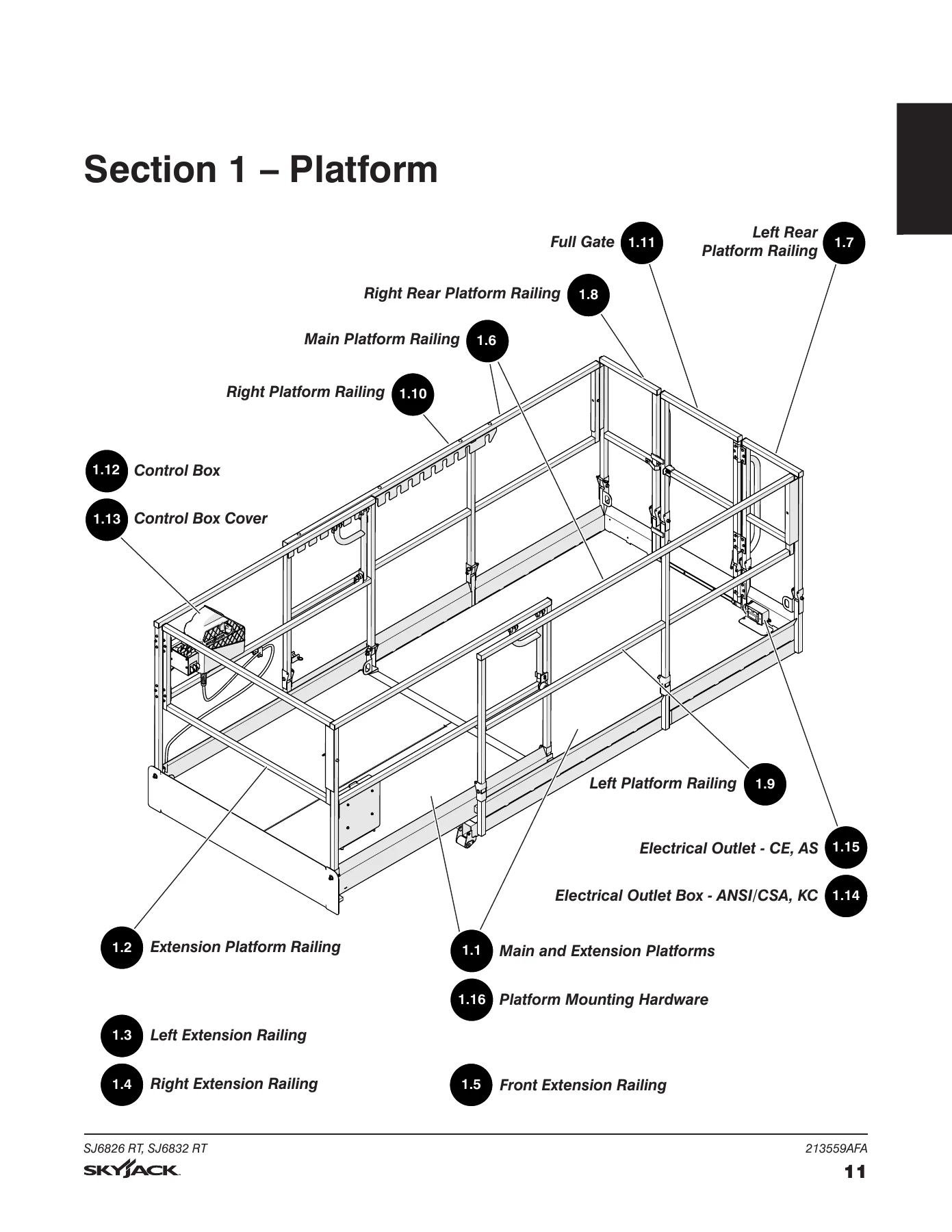

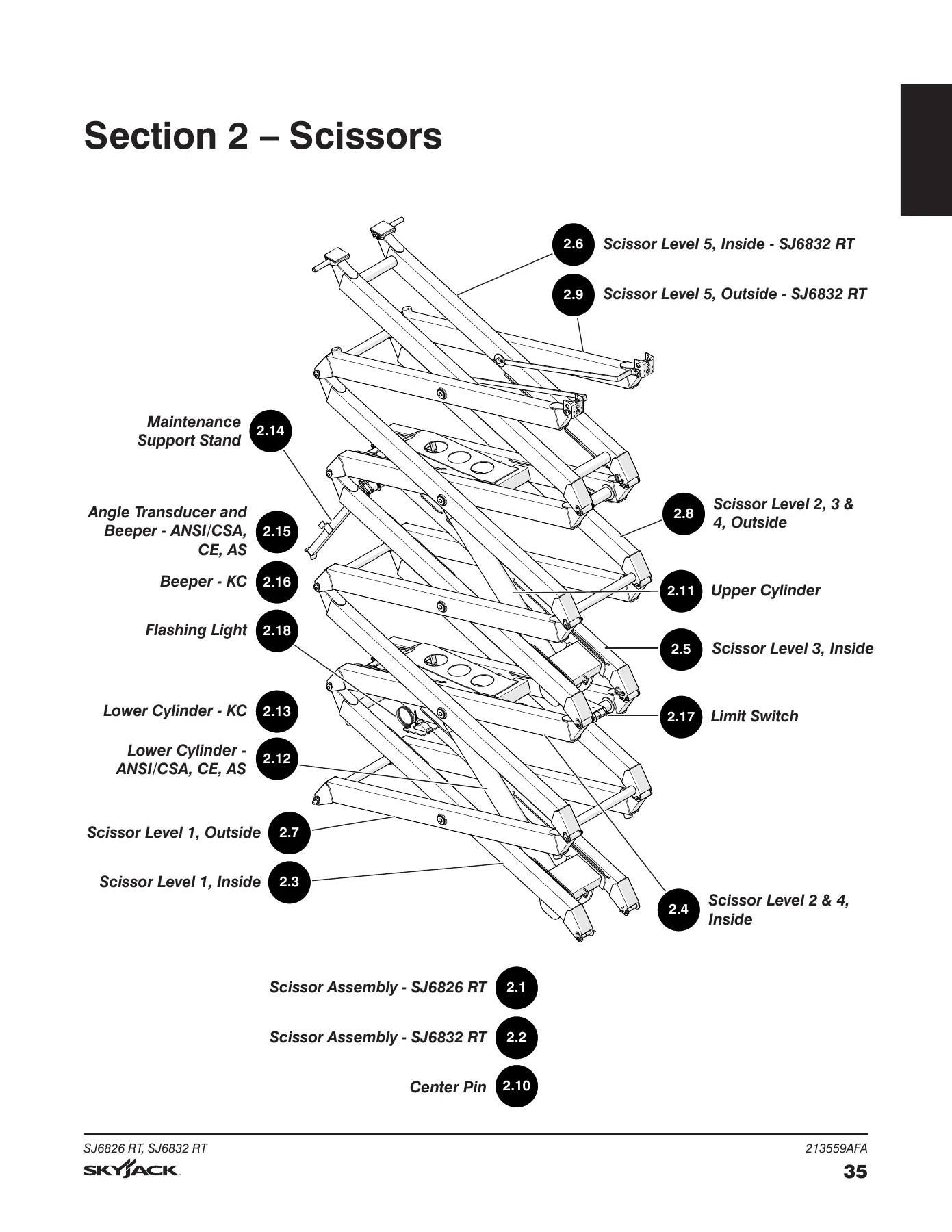

The manual is organized into nine sections that mirror the machine’s physical structure. The Platform section details everything above the scissors, from the main and extension platforms through the railings, full gate, control box, and electrical outlet options. The Scissors section breaks down each scissor level by inside and outside components, covering the center pin assembly, upper and lower lift cylinders, maintenance support stand, angle transducer, beeper, limit switch, and flashing light. The Base section handles the drive system, outrigger hydraulics and manifold, splitter manifold, cushion cylinder, tie rod, steer cylinder, counterweights, ladder, emergency lowering rod, and tires.

The Cabinets section includes the engine cabinet, electrical panel, hydraulic cabinet, main manifold, hydraulic oil tank, fuel tank, cabinet doors, key switch, GP-108 controller, and battery. The Engines section provides component-level breakdowns for both the Kubota WG752 dual-fuel engine and the Kubota D902 diesel engine, along with their respective radiator kits, air intake or cleaner kits, exhaust systems, and accessory packages. The Electrical Harnesses section is particularly comprehensive, covering every harness from the platform control harness down to the individual limit switch wiring and beeper wiring for KC, CE, AS, and ANSI/CSA configurations.

Optional Equipment and Hose Reference

Section 7 covers the optional equipment available for these models, including the hydraulic generator for ANSI/CSA and CE markets, outrigger control box and PC board, wire locking pins, outrigger assembly and cylinder, tool caddy, cold weather start, scissor guards for CE, heavy duty pipe rack, white noise alarm, residual current device, positive air shut-off valve, and Elevate Telematics with subscription options. Section 8 explains the standard hose numbering system and provides hose listings for wheel motors, base cylinders, lift cylinders, pumps, and flow dividers, plus dedicated fuel hose sections for both the Kubota WG752 and D902 engines. Section 9 covers the complete label set, from label kits and safety decals to tank labels, railing labels, control box labels, outrigger labels, and base control labels.

Why This Manual Matters

Ordering the wrong part costs time and money. This Skyjack SJ6826 RT and SJ6832 RT parts manual eliminates guesswork by showing you exactly how components fit together and providing the precise Skyjack part number for every item. The exploded views make it easy to see assembly order and identify adjacent parts that may also need replacement. The recommended service parts table at the front of the manual gives you a quick reference for the most commonly replaced items across a three-year window, helping you stock the right spares before a breakdown occurs.

Instant PDF Delivery

This parts manual is delivered as an instant PDF download. No shipping, no waiting. Access it on any device — laptop, tablet, or smartphone — and print the pages you need for the shop floor. The searchable text and clear illustrations make it a practical everyday reference for mechanics, parts managers, and equipment owners who need fast, accurate parts information for the Skyjack SJ6826 RT and SJ6832 RT rough terrain scissor lifts.
