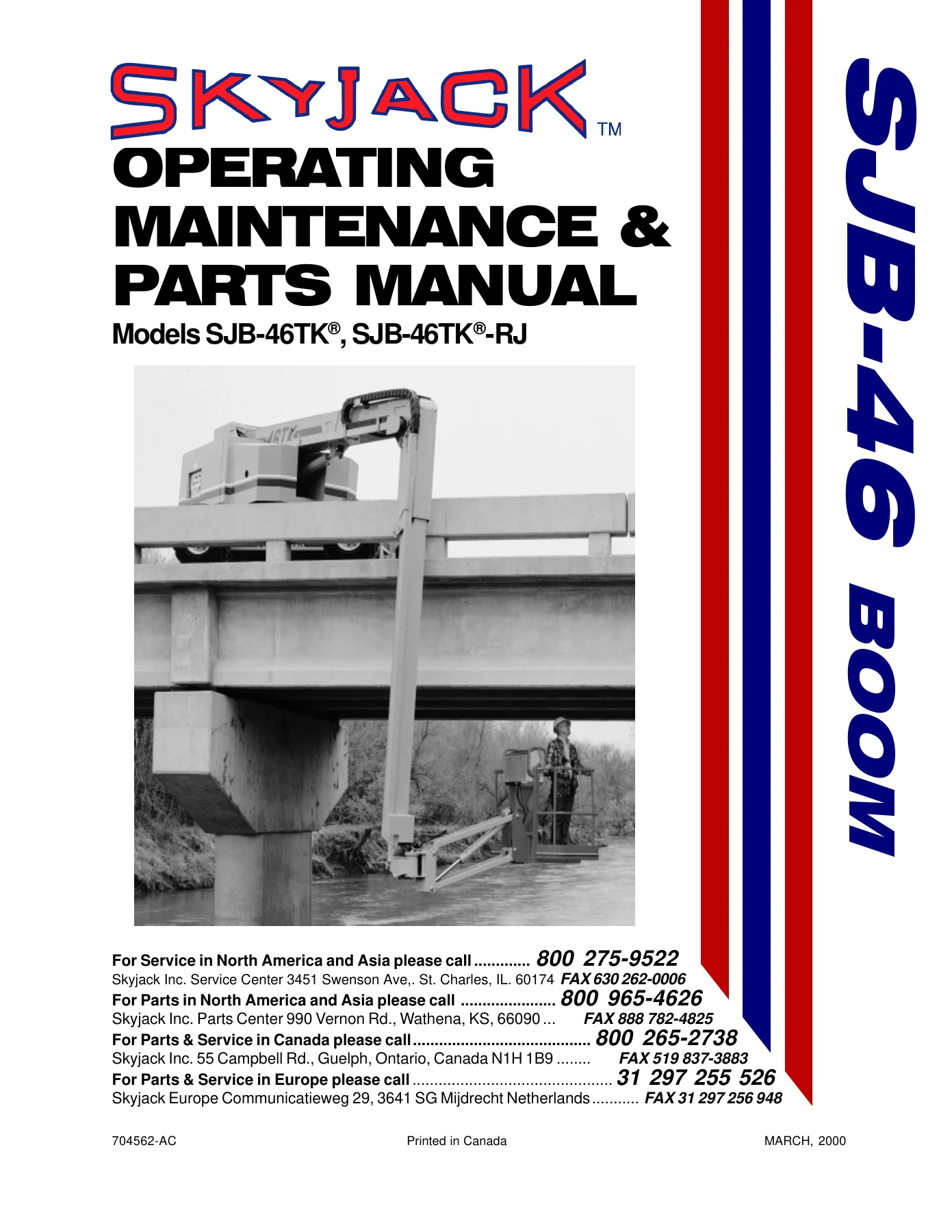

Skyjack SJB-46TK & SJB-46TK-RJ Boom Lift Operating, Maintenance & Parts Manual

Description

Skyjack SJB-46TK & SJB-46TK-RJ Boom Lift Operating, Maintenance & Parts Manual

This Skyjack SJB-46TK & SJB-46TK-RJ Boom Lift Operating, Maintenance & Parts Manual is the complete service documentation for the Skyjack SJB-46TK and SJB-46TK-RJ boom work platforms. Whether you are performing routine maintenance, diagnosing an electrical or hydraulic fault, or ordering replacement parts, this manual provides the procedures, specifications, and exploded diagrams needed to keep these machines running correctly and safely.

File Details

• Manual Type: Operating, Maintenance & Parts Manual
• Brand: Skyjack (SKYJACK, Inc.)
• Models Covered: SJB-46TK, SJB-46TK-RJ
• Document Number: 704562-AC
• Date: December 1999
• Language: English
• File Format: PDF
• Page Count: 244 pages

Chapters Covered

• Section 1 — Introduction: Purpose of Equipment, Use of Equipment, Warnings, Description, Work Platform Major Component Identification
• Section 2 — Operation: Operator Qualifications, Operator’s Responsibility for Maintenance, Maintenance and Inspection Schedule, Owner’s Annual Inspection Record, General Maintenance Hints, Operating Control Identification, Operating Procedures (Prestart Checks, Start and Operation, Shutdown Procedure, Loading and Tie Down Procedure)

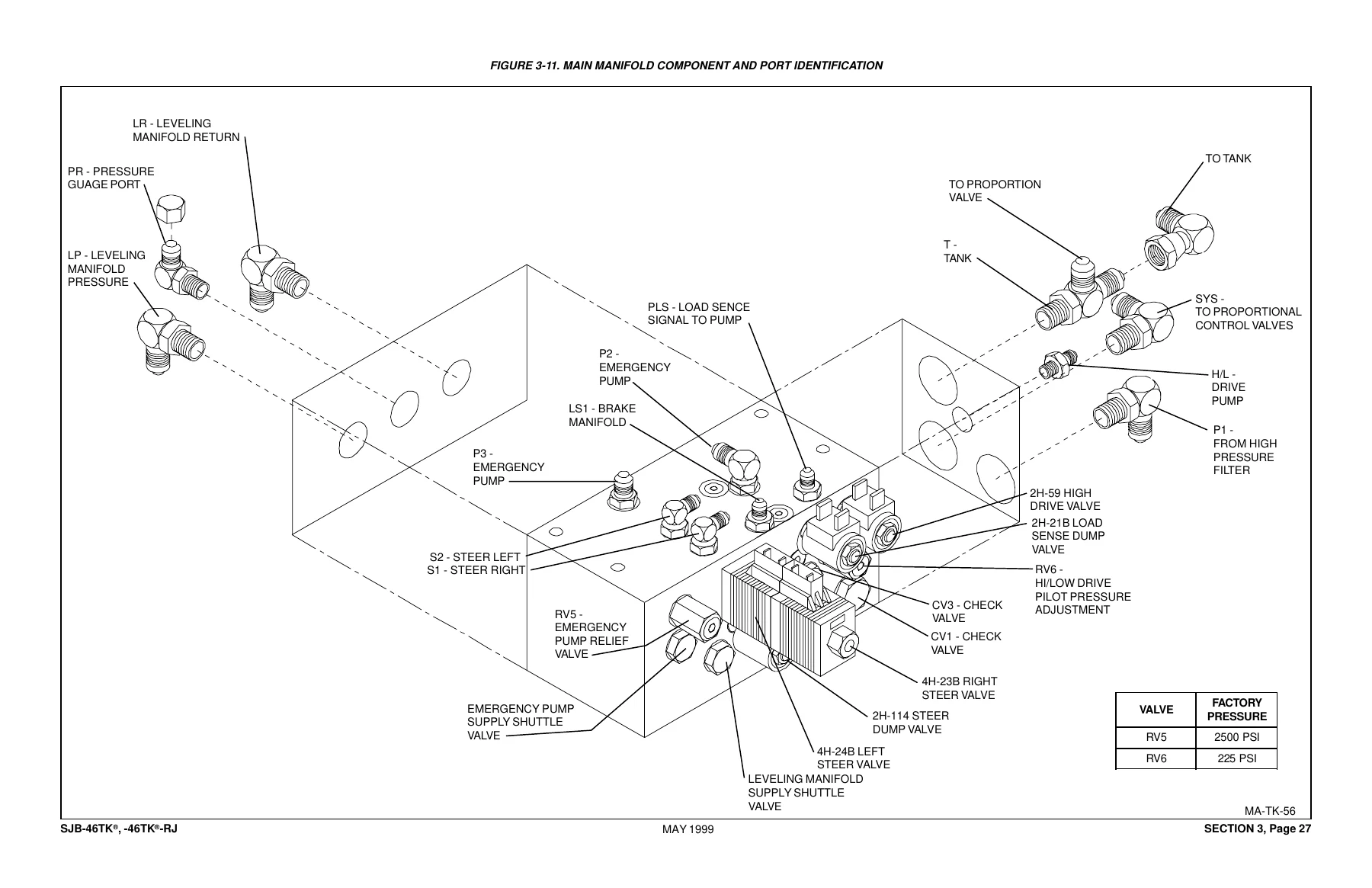

• Section 3 — System Component Identification and Schematics: Electrical Symbols Legend, Hydraulic Symbols Legend, Relay Schedule, Wire Number and Color Code, Control Console Diagrams, Base Control/Electrical Panel Diagrams, Turret Wiring Diagrams, Engine Compartment Wiring Diagrams, Electrical Schematics, Hydraulic Schematics, Main Manifold Component Identification, Platform Leveling Manifold, Brake Manifold, Drive and System Pump, Proportional Valve Assembly
• Section 4 — Troubleshooting: Electrical System Troubleshooting Information, Hydraulic System Troubleshooting Information
• Section 5 — Maintenance and Service: General Maintenance Hints, Replacement Parts, Maintenance and Service Safety Tips, Hydraulic System and Component Maintenance and Repair, Electrical System Diagnostics and Adjustments, Hydraulic System Diagnostics and Adjustments, Standard Hose Numbering System, Cable Carrier Repair

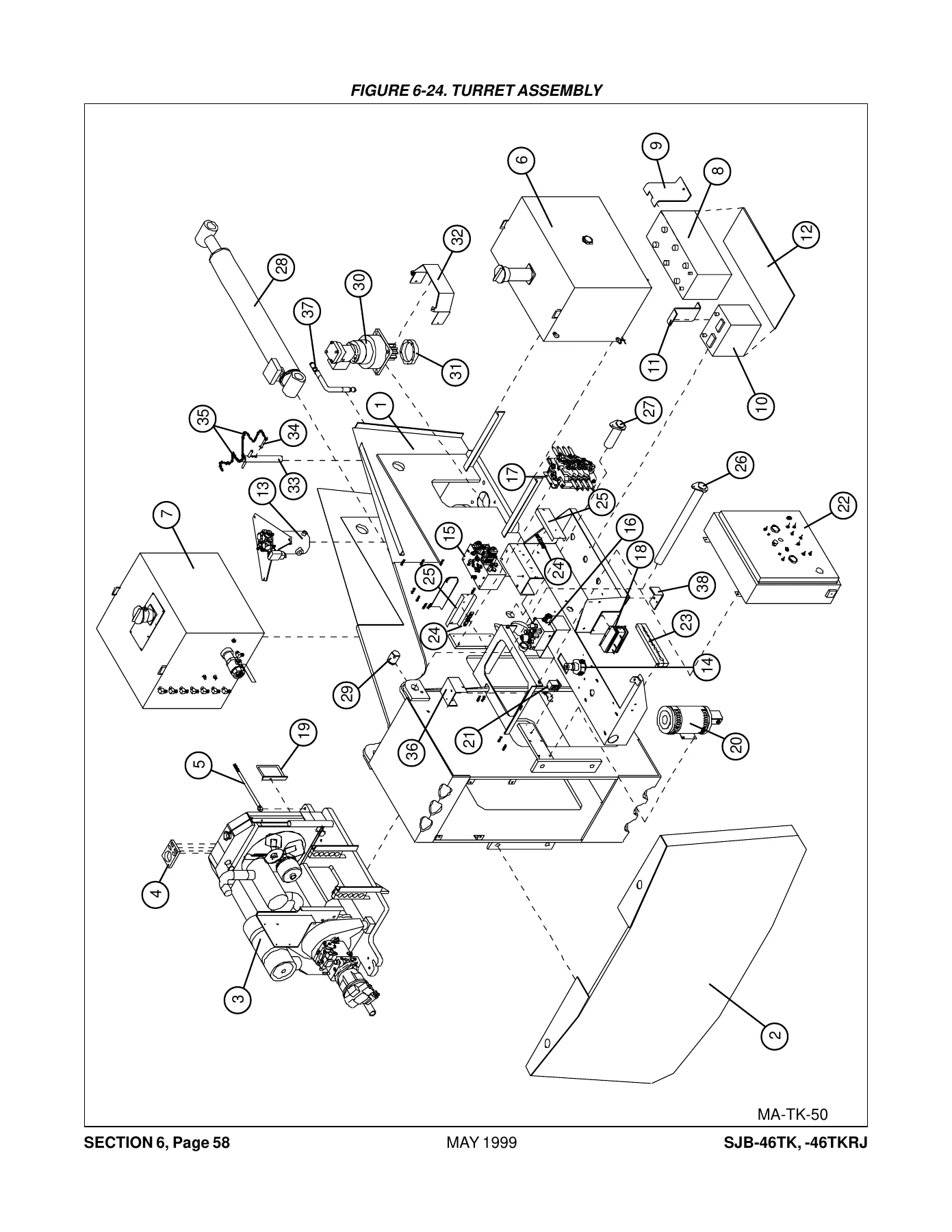

• Section 6 — Parts Lists: Platform Assemblies, Boom Assemblies, Turret Assembly, Engine and Related Parts, Base/Axles/Wheels, Hydraulic and Electrical Components, Options, Labels and Nameplates

This Skyjack SJB-46TK & SJB-46TK-RJ Boom Lift Operating, Maintenance & Parts Manual is organized to guide you through every major system on the machine. Section 1 introduces the equipment and its components. Section 2 covers safe operating procedures, daily inspections, and the maintenance schedule. Section 3 provides the electrical and hydraulic schematics, relay schedules, and component identification diagrams. Section 4 walks through systematic troubleshooting for the electrical and hydraulic systems. Section 5 covers maintenance and service procedures, including hydraulic diagnostics, electrical adjustments, torque specifications, and special tools. Section 6 contains detailed illustrated parts lists for every major assembly, making it straightforward to identify and order the correct replacement parts. Together, these sections give a technician the information needed to safely operate, maintain, diagnose, and repair these Skyjack boom lifts.

Why This Manual Matters

Proper maintenance and correct repair procedures are critical for the safe operation of any aerial work platform. This Skyjack SJB-46TK & SJB-46TK-RJ Boom Lift Operating, Maintenance & Parts Manual provides the manufacturer’s specifications, adjustment values, torque figures, and diagnostic procedures directly from the source. With this manual, you can confidently perform pre-operation inspections, service the hydraulic and electrical systems, troubleshoot faults using the wiring and hydraulic schematics, and identify the exact part numbers needed for repairs. The troubleshooting tables alone can save hours of diagnostic time by pointing directly to the probable cause and remedy.

What You Can Do With This Manual

• Perform daily, weekly, monthly, and annual maintenance and inspections
• Operate the work platform safely following the correct start, shutdown, and loading procedures
• Diagnose and repair electrical faults using the wiring schematics, relay schedule, and wire color codes
• Diagnose and repair hydraulic faults using the hydraulic schematics and troubleshooting guide
• Adjust hydraulic pressures, flow controls, and system settings to factory specifications
• Service the Ford VSG 413 gasoline engine or Deutz diesel engine option
• Identify and order replacement parts using the illustrated parts lists
• Perform brake adjustments, platform leveling calibration, and proximity switch adjustments
• Repair the cable carrier and replace hydraulic hoses using the standard hose numbering system
