Skyjack SJIII 3220 3226 4626 4632 DC Electric Scissor Lift Parts Manual 155181AG 2021

Description

Skyjack SJIII 3220 3226 4626 4632 DC Electric Scissor Lift Parts Manual 155181AG 2021

This is the 2021 edition of the Skyjack Conventional Series parts manual covering the SJIII 3220, SJIII 3226, SJIII 4626 and SJIII 4632 DC electric scissor lifts. It is the document you reach for when you need the correct part number for a gate latch, a hydraulic hose, a holding valve coil, a wheel motor, a control cable pin, a label, or any other replaceable component on these machines. Every assembly is shown in exploded-view illustration with a matching parts list giving index number, Skyjack part number, quantity and description.

File Details

• Manual type: Illustrated Parts Manual
• Brand: Skyjack
• Series: DC Electric Scissor Lifts, Conventional Series
• Models covered: SJIII 3220, SJIII 3226, SJIII 4626, SJIII 4632
• Document number: 155181 (155181AG)
• Edition / date: 2021
• Language: English
• Page count: 148 pages
• File format: PDF

Chapters Covered

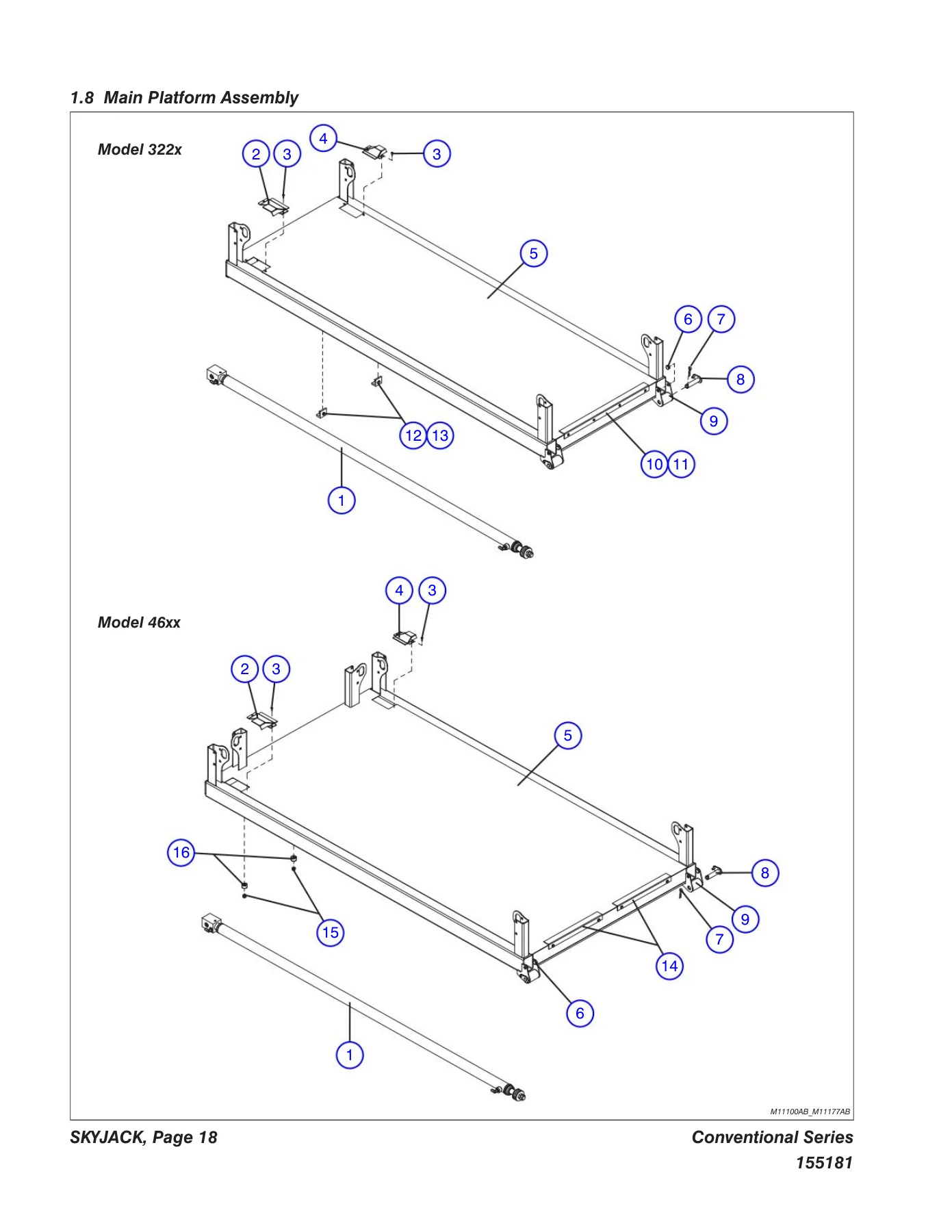

• 1.0 Platform Related Parts — entrance gates and chains, gate latch assembly, side railings (rigid and hinged), extension platform railing, extension slide railing, quick release pins, main platform assembly, extension platform assembly, extension cylinder mounting hardware and assembly, powered extension hose connections, powered extension directional manifold, platform control console, enable controller, console cables, extension platform harness, platform AC outlet, control cable assemblies
• 2.0 Scissor Related Parts — scissor stack assemblies for 3220, 3226/4626 and 4632, scissor stack mounting hardware, connecting hardware, limit switch assembly, lift cylinder and mounting hardware, holding valve assemblies for 3220 and for 3226/4626/4632

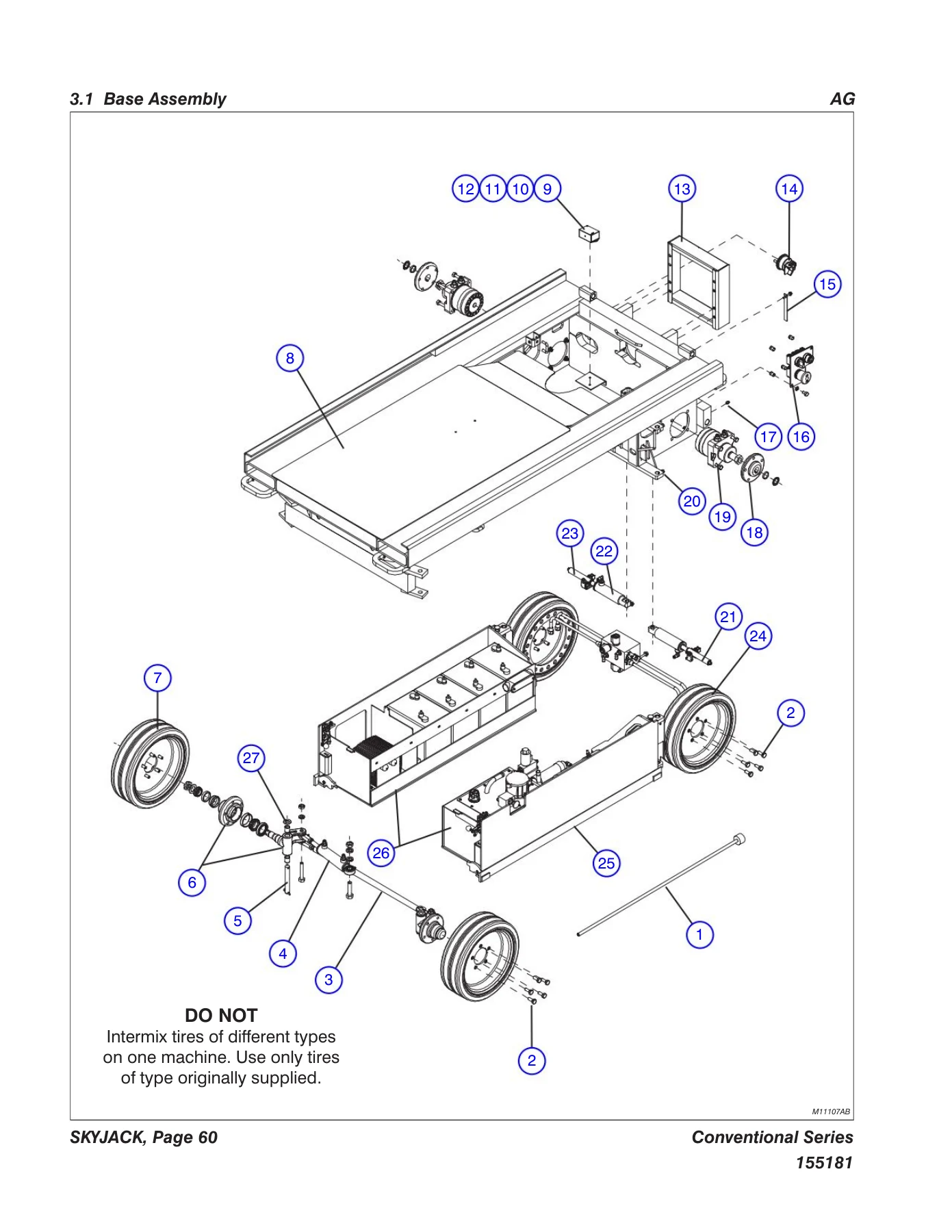

• 3.0 Base Related Parts — base assembly, pothole protection device, wheel and brake assembly, wheels, tie rod assembly, steer cylinder assembly, pin brake cylinder assembly, rear drive manifold, brake release manifold, front hub and spindle assembly, hydraulic hose connections for pin brake and disc brake, base control console
• 4.0 Hydraulic Tray Related Parts — hydraulic/electrical tray assembly, main manifold assembly, pump and motor assembly, proportional manifold assembly, hydraulic hose connections
• 5.0 Battery Tray Related Parts — battery tray assembly, battery charger (Delta-Q and Signet)
• 6.0 Electrical Related Parts — electrical panel hardware assembly, ANSI/CSA EE rated electrical panel, main manifold harness, rear manifold harness, horn/flashing light and tilt switch harnesses, holding valve / charger cutout / pressure switch harnesses, Elevate Telematics harness
• 7.0 Optional Equipment — 24VDC inverter assembly, inverter components, inverter labels, air hose to platform, work light option, flashing amber light option, dual flashing amber light option (diagonal), long cable platform control console, Supergrip wheels for 322x and 46xx, pipe rack, tool caddy, Elevate Telematics, secondary guarding lift enable kit
• 8.0 Labels — label kit, platform control console labels, miscellaneous labels, left and right side chassis labels, chassis front and top labels, rear scissor and platform labels, rear chassis labels
• 9.0 Fluid Tables — fluid table listing oil type and Skyjack part number for the hydraulic system

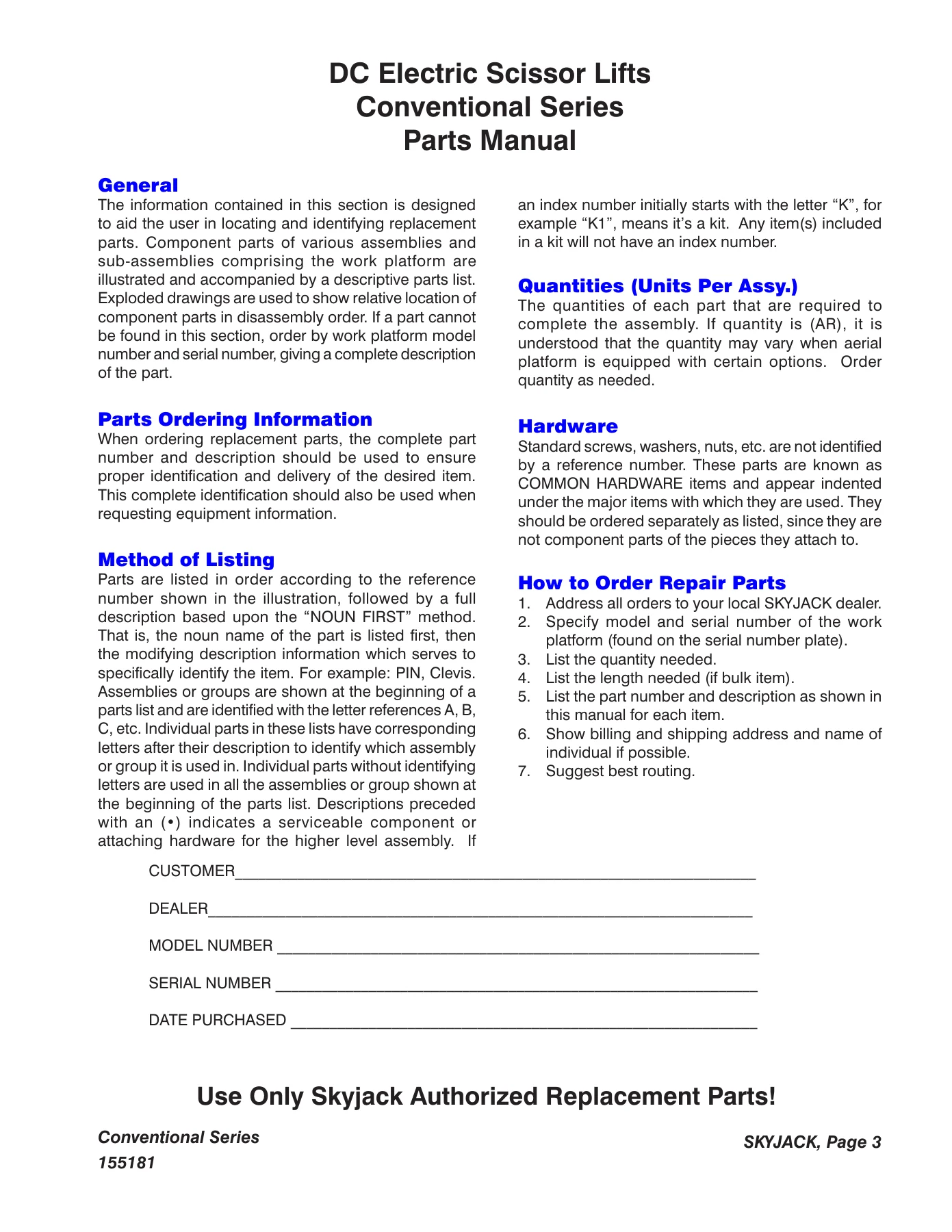

The value of this Skyjack SJIII 3220 3226 4626 4632 parts manual is not just the part numbers — it is the way every number is tied to a picture. Each exploded drawing places components in their true disassembly order, so you can see what sits behind what, which fastener holds which bracket, and which sub-assembly a small item belongs to. Assemblies and groups are introduced at the top of each parts list with letter references (A, B, C…) and the individual line items carry those same letters so you know exactly which model variant uses which part. Items marked with a star are serviceable components or attaching hardware for the higher-level assembly, and any index number beginning with “K” is a kit — the contents of that kit are listed under it without their own index numbers. Quantities are given per assembly, and where a quantity is shown as AR it varies depending on the options fitted, so you order as needed.

What This Parts Manual Lets You Do

Whether you are rebuilding a scissor stack, replacing a leaking lift cylinder, chasing a brake fault on a 46xx, or simply ordering a new gate latch, this manual gives you the complete bill of materials for each system. Platform and railing components, entrance gate and chain assemblies, hinge and latch hardware, extension platform weldments and sliders, roller and bushing part numbers, steer and pin brake cylinders, holding valve blocks and coils, the rear drive manifold, the main manifold and proportional control valve, the pump and motor assembly, battery tray hardware, chargers, contactors and relays, hour meters, beepers, fuses, control cables and 16-pin connectors — all of it is indexed and cross-referenced to the illustration pages.

Correct part identification matters on these machines. Hydraulic fittings, hoses, orifices and holding valves are easy to order wrong if you are guessing from a photo, and a wrong part can hold up a job for days. This manual removes that guesswork: you match the illustration to what is in front of you, note the index number, and order the exact Skyjack part number listed. The same applies to the electrical side — contactors, relays, hour meters, circuit breakers, tilt switches, harness connectors and sealing plugs each carry their own number, so you can replace a single plug instead of a whole harness.

The document also covers the optional equipment fitted to these lifts, which is where a lot of parts searches go wrong. Work lights and their halogens, single and dual flashing amber light assemblies, the 24VDC inverter and its internal board, fan, transformer and GFCI, the long cable control console, Supergrip wheels for both the 322x and 46xx platforms, the air-to-platform hose kit, the pipe rack, the tool caddy and the secondary guarding lift enable kit are all broken down into their component parts. There is a full labels section as well, including the label kit reference, model designation labels, capacity labels, warning and hazard labels, and the EE-rated labels for the ANSI/CSA EE machines.

Serial Number Coverage

This 155181AG edition is based on the following serial number ranges, so check your machine’s serial plate before ordering:

• SJIII 3320 — 60 002 259 to 60 003 131
• SJIII 3226 — 27 006 432 to 27 010 422 (excluding 27 010 035, 27 010 036 and 27 010 207)
• SJIII 46xx — 70 007 139 to 70 010 915 (excluding 70 010 111, 70 010 112 and 70 010 671)

Where the manual splits at a serial break — for example the enable controller assembly or the powered extension hose connections on the 4626 — both the earlier and later configurations are listed so you can identify the correct build for your machine.

Why This Manual Is Worth Having

A parts manual is the difference between ordering once and ordering three times. It tells you the exact fastener, the exact fitting, the exact coil voltage and the exact label part number, and it shows you where each item sits before you take anything apart. The exploded views are also a useful reference during reassembly, when a bracket or spacer that seemed obvious on the way off suddenly is not.

IMAGES PREVIEW

This Skyjack SJIII 3220 3226 4626 4632 parts manual is delivered as an instant PDF download. There is no shipping, no waiting and no physical book to keep on a shelf — the file opens on any phone, tablet, laptop or desktop and can be printed page-by-page for the workshop. Order it once and you have the complete illustrated parts reference for all four models in the 155181AG coverage group, ready whenever a job comes in.
