STILL MX-X Narrow Aisle Order Picker Spare Parts Catalogue 612334V00437 – PDF Download

Description

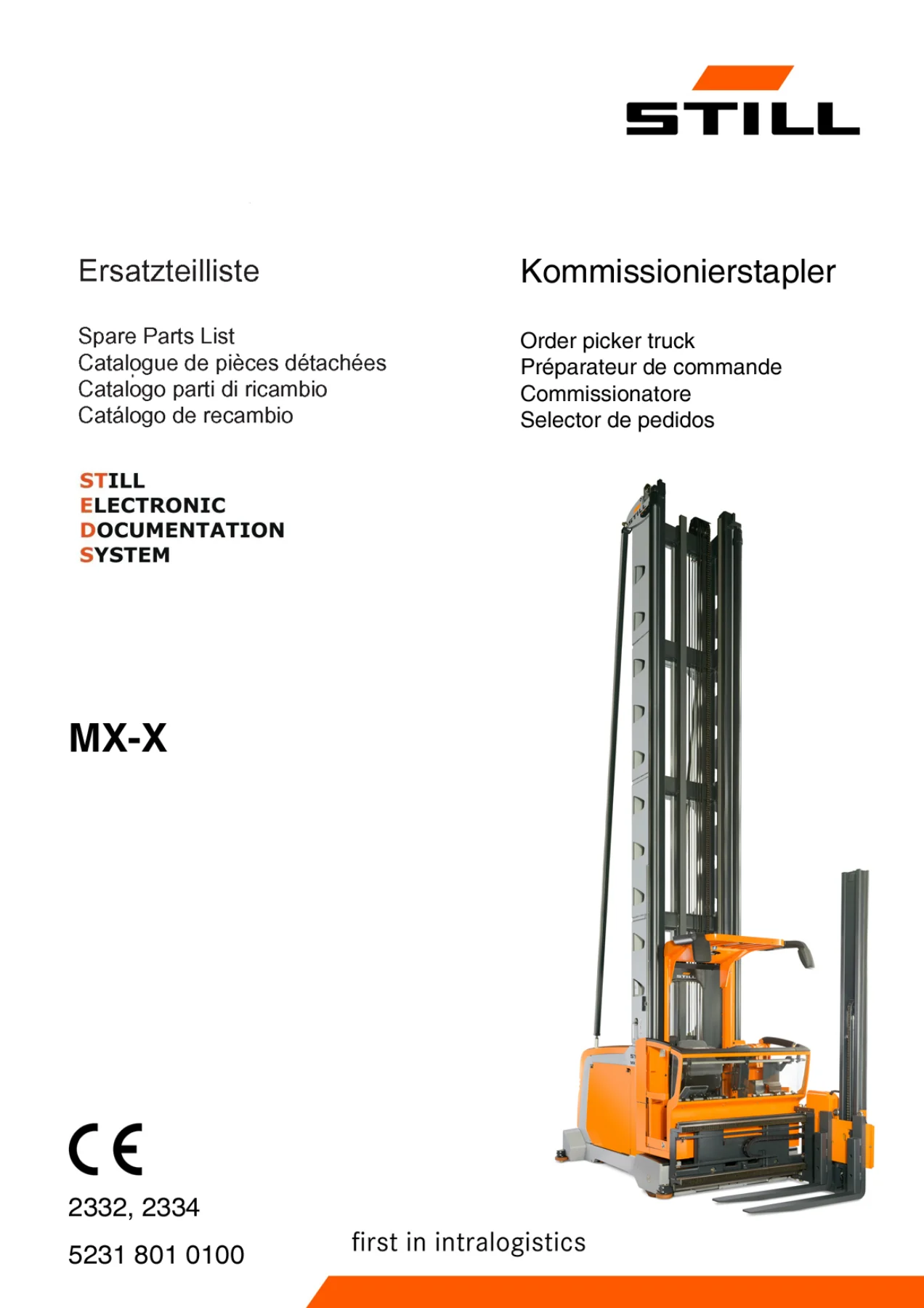

This STILL MX-X spare parts catalogue is the complete parts reference for the MX-X narrow aisle order picker truck, published under document number 612334V00437. Every assembly on the machine is broken down into exploded illustrations with numbered callouts, matched to part-number tables that give the exact figure number, part number, quantity and description for each item. The catalogue runs to 295 pages and is issued in five languages — English, German, French, Italian and Spanish — so the same component can be ordered against the same number whichever language the workshop works in. On the title page the manual carries its own translated names: Ersatzteilliste, Catalogue de pièces détachées, Catalogo parti di ricambio and Catálogo de recambio.

File Details

• Manual type: Spare Parts Catalogue
• Brand: STILL
• Model: MX-X (CE 2332, 2334)
• Document number: 612334V00437
• Machine type: Order picker truck (narrow aisle)
• Languages: English, German, French, Italian, Spanish
• Page count: 295
• File format: PDF

How This Parts Catalogue Is Organised

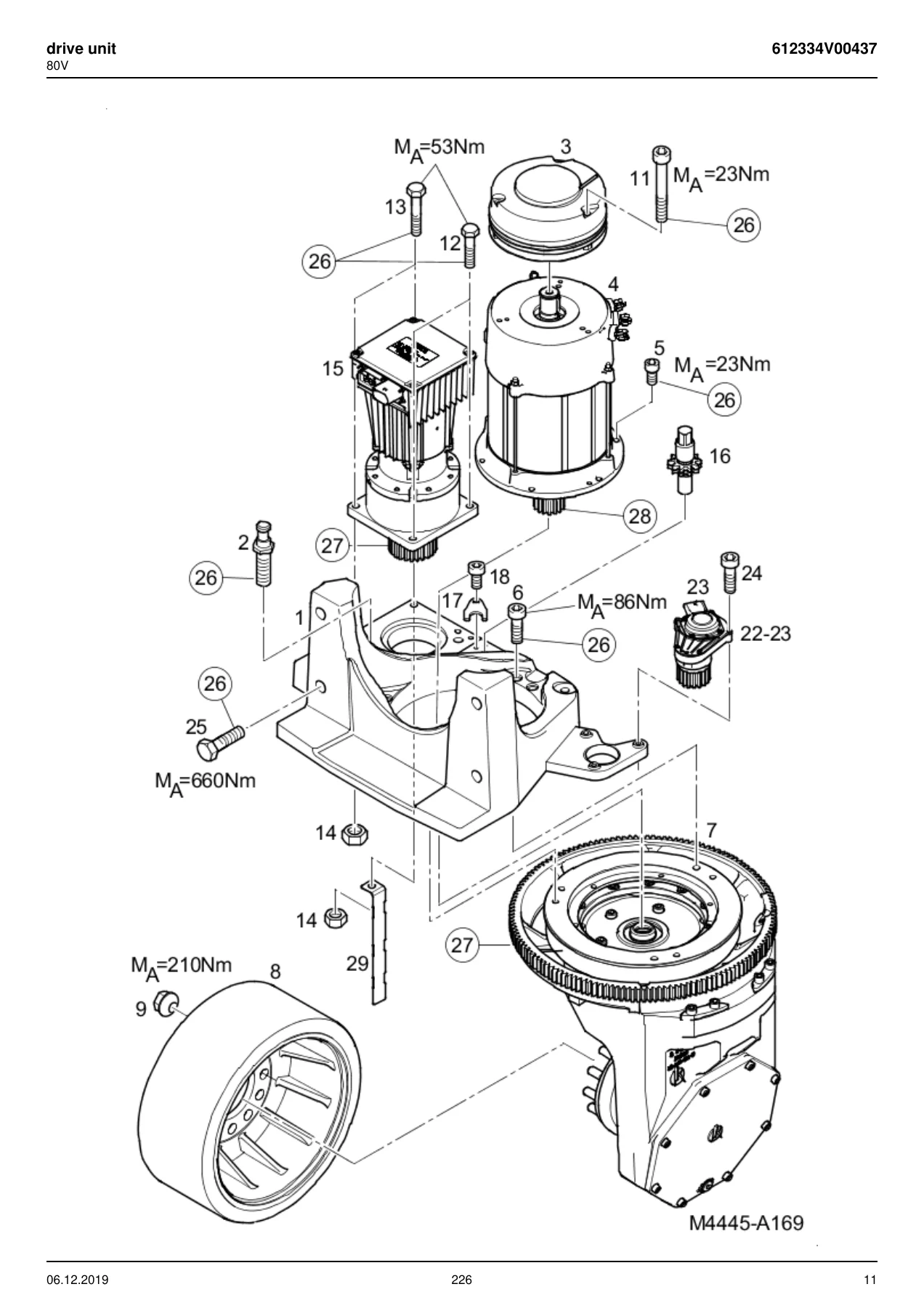

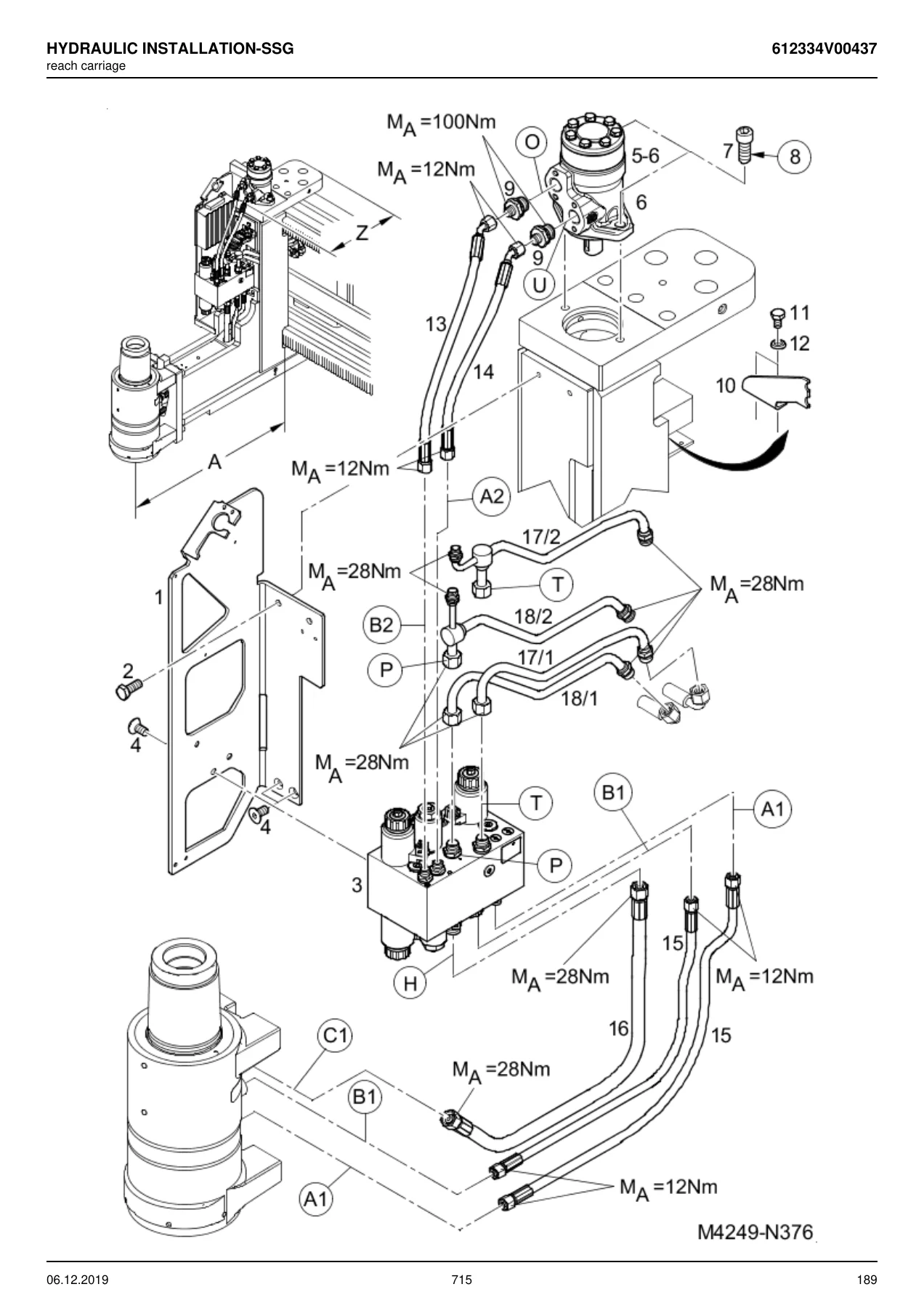

The catalogue follows the same section numbering STILL uses in its electronic documentation system. Each section opens with an exploded drawing of the assembly, and the numbered balloons on that drawing point to a table listing figure number, part number, quantity and description for every component. That layout lets you identify a part visually first and confirm it by number afterwards — which is how parts ordering actually happens in a workshop when something fails on the truck. Sections are grouped by function rather than by location on the machine, so drive components sit together under the drive unit and mast components sit together under the lift mast.

Chapters Covered

• 1 Electric Motor
• 2 Mechanical Drive Axle
• 3 Chassis
• 4 Driver’s Position
• 5 Steering System
• 6 Mechanical Rail Guidance
• 8 Wheels and Tyres
• 9 Braking System
• 10 Controls
• 11 Electrics/Electronics
• 12 Electronic Controls
• 13 Hydraulics
• 14 Working Hydraulics
• 15 Valves
• 16 Load Lifting System
• 17 Lift Mast
• 19 Load Carrier
• 20 Attachment
• 21 Special Equipment Narrow Aisle Trucks
• 22 Other Accessories

Drive, Axle and Running Gear

The drive group covers the 7 kW 80 V motor, the units-compartment cooling fan with its axial blower, guard grille and mounting hardware, and the mechanical drive axle. The gearbox is broken down to individual bearings, shaft seals, bleeder valves and screw plugs, and the drive wheel assembly is listed with its Vulkollan tyre, wheel nuts and the spring-operated brake that sits on the motor. Wheels and tyres, the braking system and the chassis sections sit alongside these, with load wheels, taper roller bearings and axle hardware listed for the rail-guidance side of the truck.

Steering and Rail Guidance

The steering group is listed as a complete 80 V steering unit with its pinion gear, grooved ball bearing, locking ring, parallel key and pour-able plastics. The mechanical rail-guidance chapter covers the roller assemblies, the front and rear supports, the support rails and the rail light switch that tells the truck it is aligned with the aisle. This is the section to work from whenever a truck starts tracking poorly in the racking or the rail switch stops reading.

Controls, Electrics and Electronics

Driver’s-position hardware — the operating panel, joystick assembly, steering knob, key switch, emergency stop button, seat, backrest and overhead guard — is itemised here, together with the control board, main current part and the 80 V static frequency changer. Cable harnesses, control-current cables, fuses, contactors, plugs, sockets and terminals are all broken out individually, right down to the tab sizes and pin contacts. The section also covers the displacement transducer, distance sensor and the height-measurement hardware used by the mast.

Hydraulics, Valves and Pump

The hydraulic chapters cover the oil tank and breather filter, the hydraulic installation at the frame, the hose runs to the mast, the pump motor and gear pump, and the valve banks AV6799 and AV6841 with their solenoid coils, throttle valves, non-return valves, pressure relief valves and seal sets. Pipe unions, pipe clamps, hoses and flexible formed hoses are itemised with their diameters, so a burst line can be matched exactly rather than approximated.

Lift Mast, Load Lifting and Carriage

The lift-mast section covers the mast installation and bracing, the upright mounting parts with their support rollers and eccentric bushes, the lift-cylinder installation, main and auxiliary lift chains, and the cable routing up the mast. The load-lifting system adds the additional lift mast for the turret head, the lift cylinder for the auxiliary mast and the main-unit lift cylinder. Load carrier coverage includes the fork carriage, its mounting parts and support rollers, the fork arms, and the fork tine spacer.

Attachments, Special Equipment and Accessories

The attachment section covers the carrier, the reach carriage (Schubschlitten) with its roller assemblies, load castor and bearing cover, and the reach-carriage panelling. Special equipment for narrow aisle trucks includes the emergency rope device and the aisle-end safety device with its solenoid switches and buffers. The final chapters list the plate arrangement, manufacturer’s plates and the various labels, symbols and warning plates fitted to the truck.

Who This Parts Catalogue Is For

This is a working document for anyone who maintains or repairs an MX-X order picker: workshop technicians ordering replacement parts, fleet managers keeping a spare-parts stock, and service companies quoting on a repair. Because every entry is a STILL part number tied to a diagram, there is no ambiguity about which variant of a bearing, hose or roller you need — you identify the assembly on the drawing, find the callout, and order the exact item. For machines that are long out of production, that level of detail is the difference between a one-week repair and a month of guesswork.

Get the Catalogue Delivered Instantly

The STILL MX-X spare parts catalogue 612334V00437 is supplied as a PDF, delivered immediately after payment — no shipping, no waiting for a disc, no dealer visit. Open it on a laptop in the workshop, a tablet on the shop floor or a phone at the racking, and print the pages you need for the job. Keep it on file as the parts reference for the whole life of the truck. Whether you are chasing a single contactor or rebuilding a drive unit, the exploded views and part-number tables in this 295-page catalogue give you the correct number the first time.
