STILL RCE 25 Series 1293 Electric Forklift Spare Parts Catalogue 2023 Multilingual PDF

Description

STILL RCE 25 (Series 1293) Electric Forklift — Multilingual Spare Parts List

This is the complete parts catalogue for the STILL RCE 25 electric counterbalance forklift, series 1293, published in 2023 under the STILL Electronic Documentation System. Every component, sub-assembly, fastener, seal and wear part used across the RCE 25 platform is listed with its original STILL part number, required quantity, description and applicability note. Headings and part descriptions are presented multilingually in German, English, French, Italian, Spanish and Portuguese, so the same page works for a workshop in São Paulo, a parts desk in Rotterdam or a fleet engineer in Milan.

File Details

• Manual type: Spare Parts List / Parts Catalogue (Ersatzteilliste)
• Brand: STILL
• Model: RCE 25 (Series 1293)
• Equipment: Electric Fork Truck / Chariot élévateur électrique / Carrello elevatore elettrico / Carretilla elevadora eléctrica
• Language: Multilingual — German, English, French, Italian, Spanish, Portuguese
• Page count: 435 pages
• File format: PDF
• Document system: STILL Electronic Documentation System
• Year: 2023

Chapters Covered

• Drive Components — Axles, Steering System, Wheel and Tyre Assy, Brake System
• Traction Motor Assy
• Transmission Gear
• Mechanical Drive Axles Assy
• Service Brake Assy / Parking Brake Assy
• Basic Structure, Attachment Parts, Exterior Design and Labeling, Safety Equipment
• Chassis and Bodywork
• Outside Mirror
• Design and Labeling
• Working Hydraulics Controls, Individual Control Lever
• Cable Installation Components, Electrics / Electronics Components, Light Controller, Energy Supply, Assisting Systems
• Power Cables, Main Harness
• Ventilator Components, Acoustic Cooling System, Drive Motor
• Work Light, Drive Light, Warning Light
• Converter Smartlink Value KCCU
• Charger, Li-Ion Battery, Battery Changing Tool
• Lift 800mm Speed Limit 2km/h
• Basic and Working Hydraulics, Cylinder, Hydraulic Line
• Pump-Motor Unit, Oil Tank & Hydraulic Oil Filter, Directional Control Valve
• Tilt Cylinder
• Oil Supply Hydraulic Line, Working Hydraulic Line, Steering Hydraulic Line
• Standard Mast, Duplex Mast, Triplex Mast
• Load Support, Fork Arms
• Fork Carriage, Integrated Sideshift Assy, Sideshift Hook-On, Load Backrest

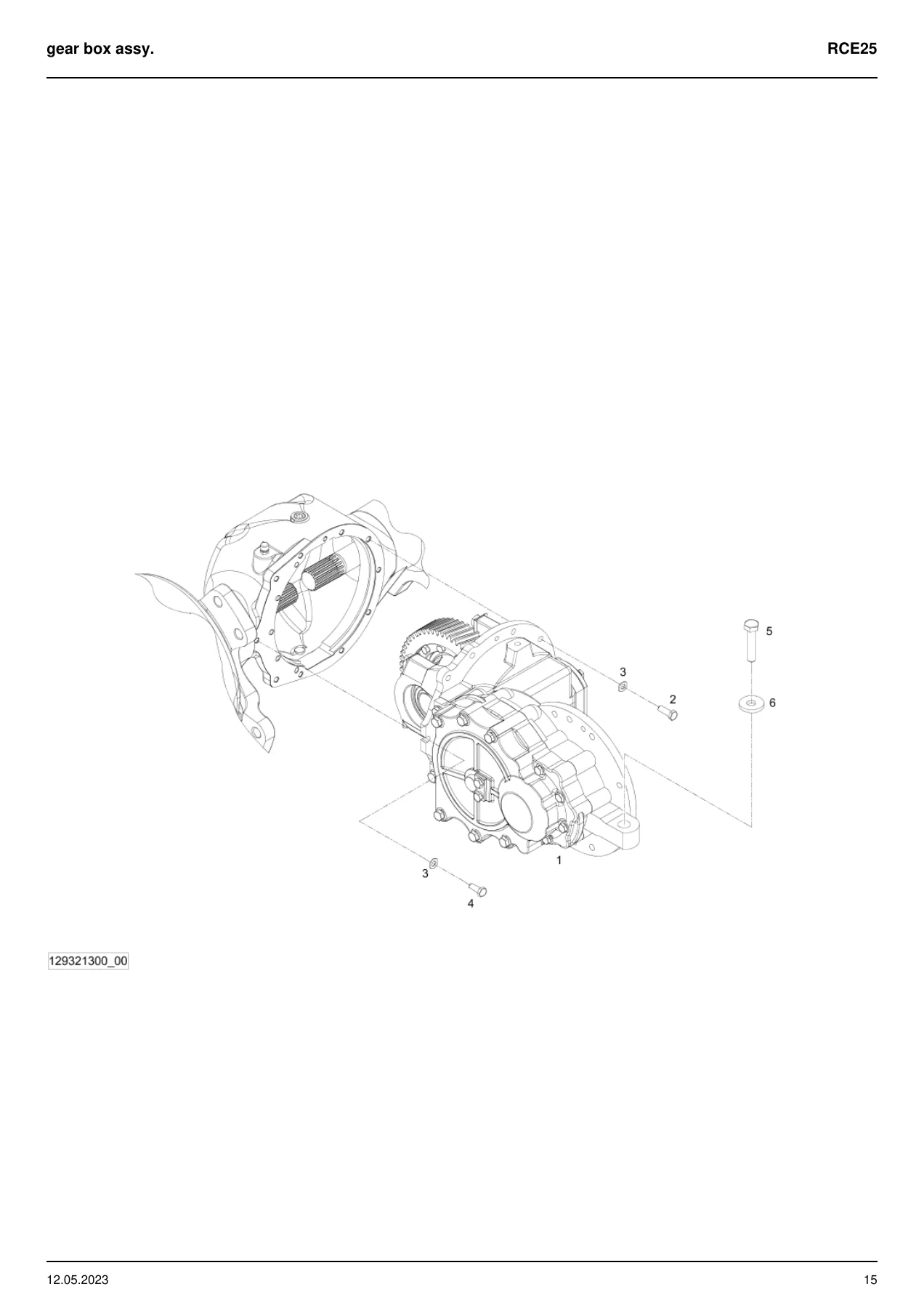

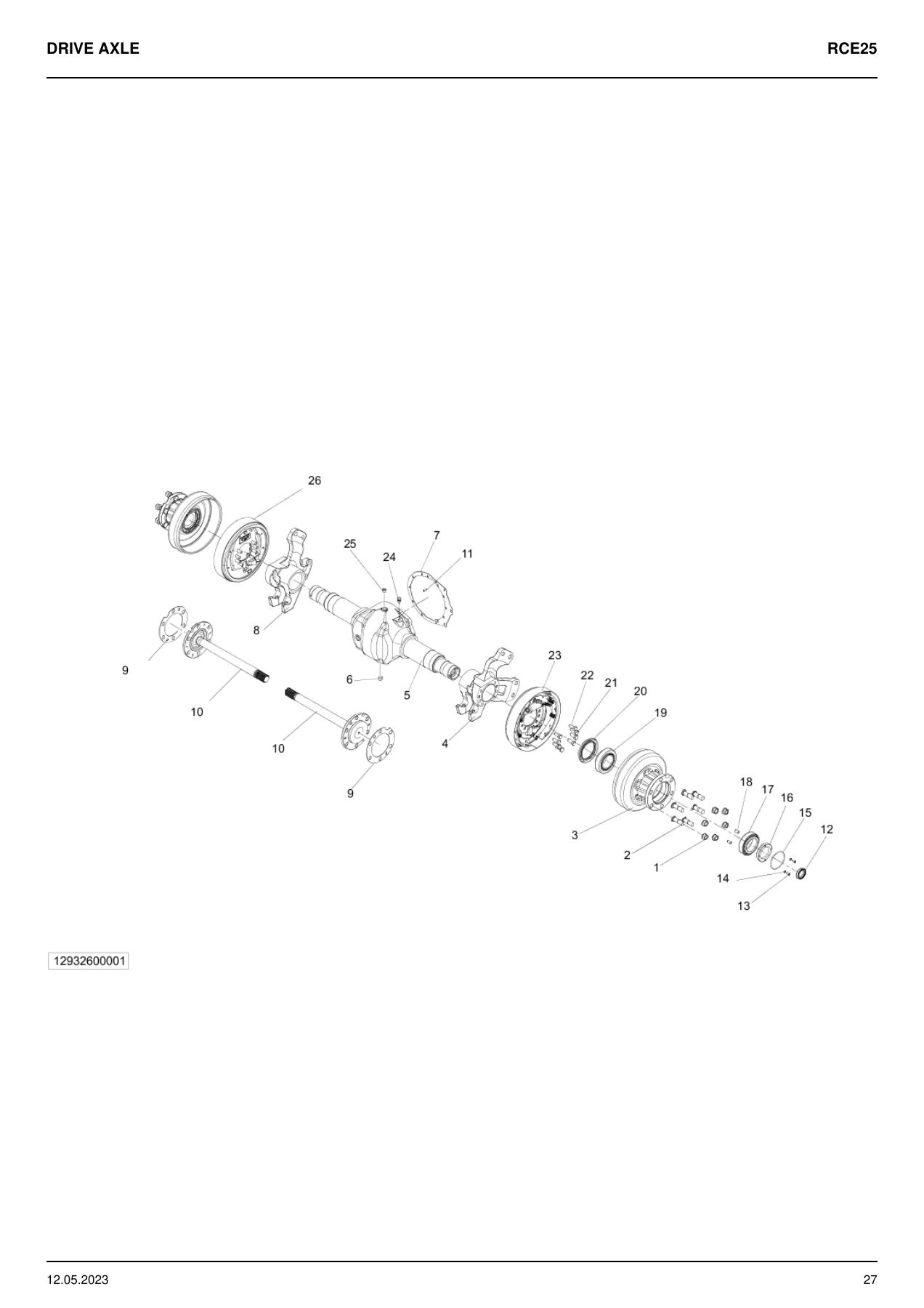

Drive Components, Traction Motor and Transmission

Exploded diagrams and itemised part lists cover the traction motor assembly — rotor assy., stator assy., cover assemblies, wiring harness, NTC sensor, gear, grooved ball bearings 6206-2RS and 6007-2RS, shaft seal, disc spring, snap rings and cable ties — the transmission gear assembly with its hexagon head screws and washer stack, the mechanical drive axle with spacer, washer and M22 bolts, and both the service brake and parking brake assemblies down to individual springs, levers, plates, pins and wheel cylinders. The traction motor section alone itemises 27 line items with quantities, so a rebuild kit can be built directly from the page.

Steering Axle, Wheel Hub and Tyre Assembly

The steering axle chapter details the axle beam 3.5T, kingpins, axle stubs (left and right), wheel hubs, tapered roller bearings 30207, 32209 and 33206, shaft seal AS-75x100x10, threaded bolts, slotted nuts, locking plates and joining plates. The Wheel and Tyre section lists pneumatic, solid and solid no-nose tyre options across sizes 23×9-10/18PR-CL62, 23×9-10-CL403, 23×9-10/16PR-C604, 18×7-8/14PR-CL621 and 18×7-8/14PR-C604, with matching disc wheels 6.50F-10, 4.33R-8, side rings, wheel bolts and hexagon nuts. Original tyre brand codes are preserved exactly as printed.

Hydraulics — Pump, Valve, Cylinder and Line

The hydraulics portion is one of the deepest in the catalogue. The pump-motor unit is itemised to cover, terminal board, temperature sensor, bearings, shaft seal and contact plate. The gear pump, mounting flange, oil tank with suction and return filters, oil dipstick and flanged branch are all listed. Two directional control valves are catalogued — the standard 2-way / 3-way / 4-way valve and the ISO3691 variant with its valve cartridge and seal set — plus limit switches, potentiometers and compression spring. Tilt cylinders in 6/10 and 6/6.5 bore configurations list piston rods, cylinder pipes, guide pieces, back-up rings, piston seals and full seal kits. The oil supply, working, tilt and steering hydraulic lines are catalogued hose-by-hose with pipe unions, O-rings, hose clips, clamping pieces and cable ties.

Masts, Carriages and Load Handling

Three mast families are covered: Standard (S), Duplex (D) and Triplex (T). Each mast outer, inner and (for triplex) middle assembly is listed for every lift height from 2700 mm through to 6500 mm, together with leaf chains, chain wheels, locking rings, support rollers, shim rings, lubricating nipples, hose pulleys and routed hose lines. Lift cylinder assemblies are catalogued for left, right and middle positions, itemised by lift height and with set-of-seals kits shown. Fork carriage assemblies for S, D and T masts, integrated sideshift (ISS), hook-on sideshift and load backrests appear with their wear strips, seals, dampers, piston barrels and retaining rings. Fork arm part numbers are listed from 1000 mm to 2000 mm length in both Class C and Class H variants.

Electrical System, Batteries and Assisting Systems

The electrical chapter lists power cables, main harnesses for Lead-acid and Li-Ion batteries (Inland, CE and Australia variants), charger, contactors, fuses, fuse holders, voltage transformers, keypads, display units, buzzers and Smartlink KCCU converter components. The Li-Ion battery section details 80V 206Ah, 277Ah and 412Ah batteries with their BMU, contactors, relays, emergency off switch, battery female connector assemblies, cable guides and Anderson/REMA connectors. Warning beacon, work light, headlight, tail light and BlueSpot headlight part numbers are also included, together with the Lift 800 mm speed limit sensor kit (magnet, switch, supports and wiring harness).

Chassis, Bodywork, Cab and Interior

Basic structure, chassis and bodywork parts — overhead guard, counterweight 2.0T and 2.5T, front plate, side plates, battery hood with gas springs and hinges, rear panelling, sealing profiles, floor mats, pedal assemblies, driver’s seat with upholstery and seat belt, interior mirror, dashboard, keypad support, angle assemblies and footwell covers — are all catalogued with their mounting hardware and torque-relevant fasteners.

How the Part Numbers Work

Every line in the STILL RCE 25 parts list follows the same structure: figure reference, STILL part number, quantity required, description, replacement part number where applicable, remark, and truck validity. The part number is the number you order against — everything else is context. Where a superseded part number is shown, the “replaced by” column points to the current replacement, so an older 1293-series build can still be serviced without guesswork.

Why a Genuine Parts Catalogue Matters on an Electric Forklift

Electric counterbalance trucks live or die on correct fasteners, correct seals and correct hydraulic fittings. A bearing pressed in the wrong place, an O-ring of the wrong shore rating, a snap ring omitted or a hose union torqued to the wrong value can take a traction motor, a pump unit or a mast cylinder out of service — and a truck off the floor. The RCE 25 parts catalogue removes that risk: every component is identified by the number STILL uses, and every assembly is exploded so you can see how the parts stack before you order or fit them.

Who This Parts List Is For

Forklift service engineers rebuilding a traction motor or transmission. Fleet managers ordering wear parts against a parts list rather than a phone call. Workshops replacing a mast chain, a hydraulic hose or a brake cylinder and needing the exact STILL number. Spare parts desks quoting a customer with a 1293-series truck. Anyone maintaining a STILL RCE 25 who wants to stop ordering by description and start ordering by part number.

IMAGES PREVIEW

Get the STILL RCE 25 Parts Catalogue — Instant PDF Delivery

This STILL RCE 25 (Series 1293) spare parts list gives you complete exploded-view and part-number coverage for the electric forklift across all masts, all battery options and every major assembly — drive, brake, steering, hydraulic, electrical, mast and load handling. Buy once, download the PDF immediately after payment, and keep it on the workshop tablet, the service laptop or the parts desk PC. No shipping, no waiting, print only the pages you need for the job in front of you.
