STILL SD20 Two-Level High-Lift Truck Spare Parts Catalogue – Ident-Nr. 8 054 723 PDF

Description

STILL SD20 Spare Parts Catalogue – Ident-Nr. 8 054 723

This is the complete spare parts catalogue for the STILL SD20 two-level high-lift truck (Doppelstock-Hochhubwagen). Published under Ident-Nr. 8 054 723 and dated 01.07.2017, this 254-page PDF gives you the full exploded-view parts breakdown for every major assembly on the SD20 — from the wheel drive and brake system through to the lifting device, hydraulic equipment and battery maintenance stand. Every part is listed with its STILL part number, quantity and description, so you can identify exactly the component you need before you order.

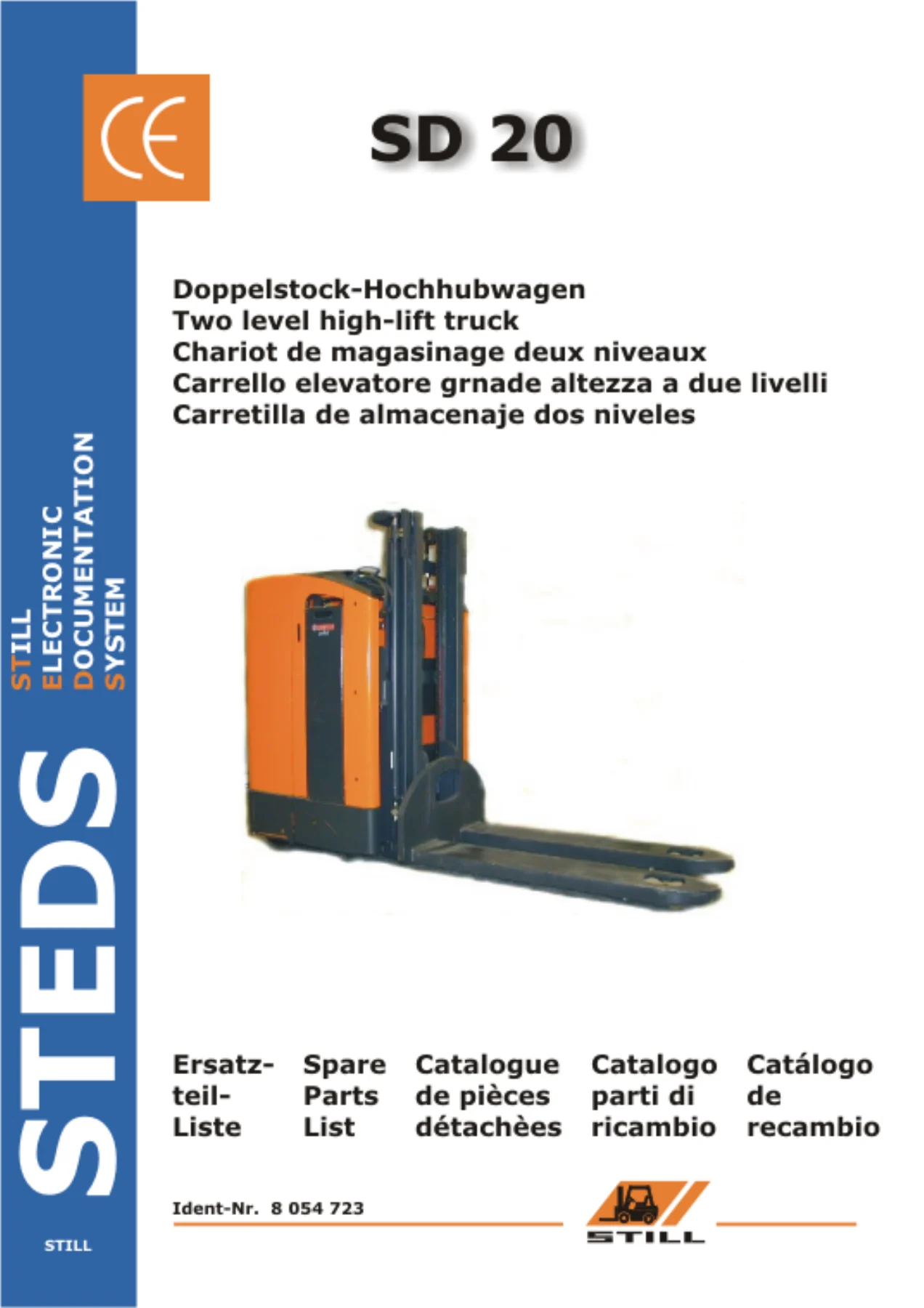

The catalogue is presented in five languages — German, English, French, Italian and Spanish — with the SD20’s own title printed in each: Doppelstock-Hochhubwagen (DE), Two level high-lift truck (EN), Chariot de magasinage deux niveaux (FR), Carrello elevatore grande altezza a due livelli (IT), and Carretilla de almacenaje dos niveles (ES). This makes it usable across international workshops and parts departments.

File Details

• Manual Type: Spare Parts Catalogue
• Brand: STILL
• Model: SD20
• Document Number: Ident-Nr. 8 054 723
• Date: 01.07.2017
• Language: German, English, French, Italian, Spanish
• Page Count: 254
• File Format: PDF

Chapters Covered

The parts catalogue is organised by assembly group, following the SD20’s own lettered section system:

• LEADER
• A – WHEEL DRIVE
• B – STEERING
• C – BRAKE
• E – LIFTING DEVICE
• F – CYLINDER
• K – GUIDE ROLLER
• M – ELECTRIC EQUIPMENT
• N – HYDRAULIC EQUIPMENT
• S – PROTECTIVE EQUIPMENTS
• U – TRUCKBODIES/COVERS
• Y – BATTERY MAINTENANCE STAND

A – Wheel Drive

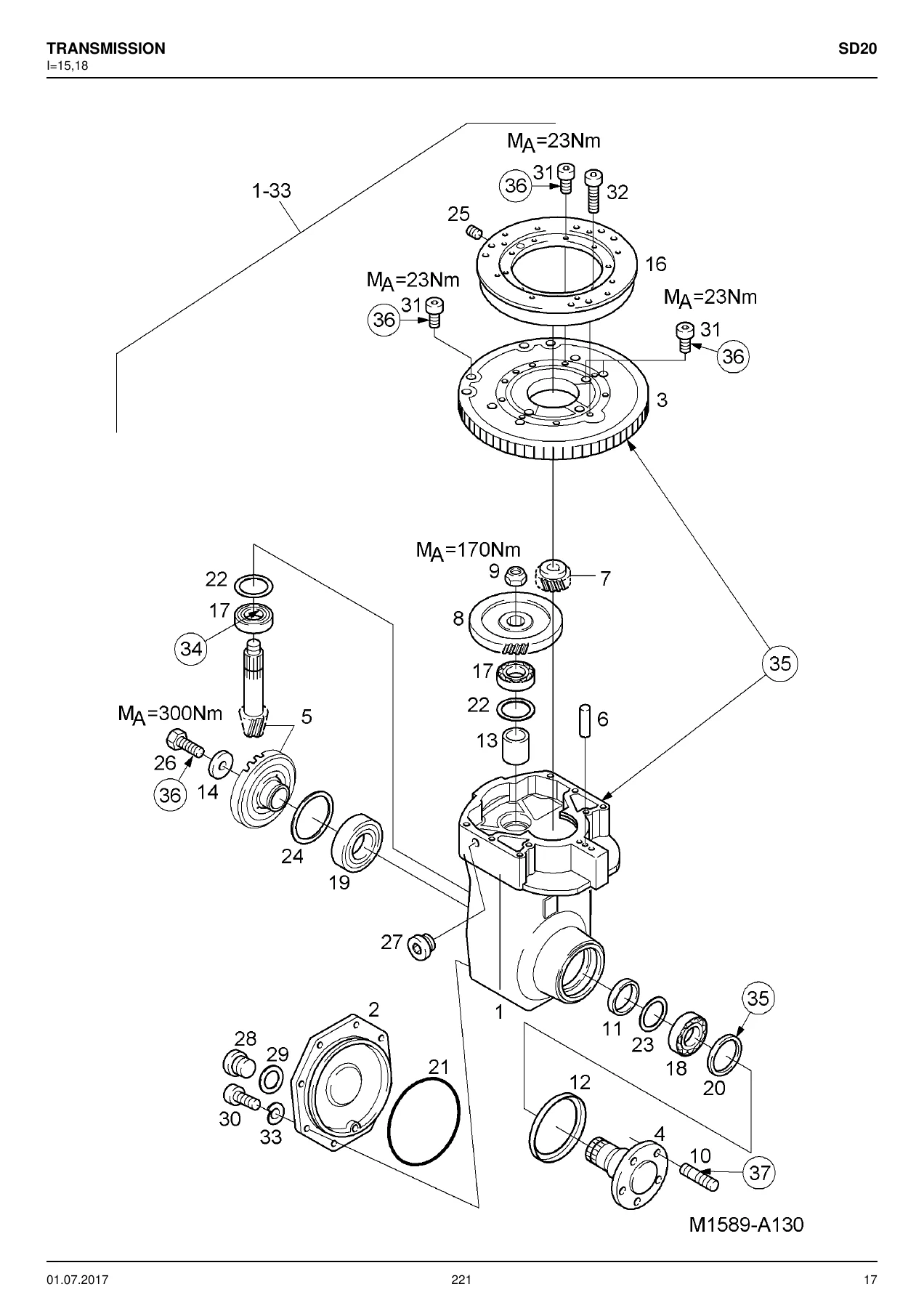

This section covers the complete drive assembly: the 24V/2.0KW motor, the transmission (I=15,18), drive wheel options and the individual bearings, seals, retaining rings and fasteners that make up the unit. It includes exploded views of the motor, the spring-operated brake and the transmission housing, along with part numbers for the armature, brushes, ball bearings, radial seal rings and connecting bridges. Several drive wheel variants are listed — D=250mm/B=100mm/VUKO, D=254mm/B=102mm/VOGI, natural rubber, profiled and electrically conductive versions — so you can match the exact wheel fitted to your truck.

B – Steering

The steering chapter covers the servo unit R 100/0,15, steering transmitter, steering wheel, clutch, potentiometer and the complete steering box assembly. Exploded diagrams show the grooved ball bearings, bushes, steering spindle, seal rings and fasteners, with part numbers for every component. Later and earlier steering transmitter versions are distinguished by date, so you can identify the correct variant for your SD20.

C – Brake

The brake section details the spring-operated brake, including the magnetic plate, rotor, hub, flange and the cheese-head screws and spring lock washers that assemble it. This is a critical safety assembly, and the exploded view plus part-number table lets you order exact replacement components.

E – Lifting Device / F – Cylinder

The lifting device section covers the bellcrank lever, levers, connecting rods, plunger rods, roller forks, rollers, bushings and the many pins, bolts and bearings that make up the lifting linkage. Separate diagrams show the lift cylinder assembly, cylinder barrel, piston rod, scraper ring, seal and circlip. The main lift cylinder (D=32mm/H=795mm/L=1144mm) and base lift cylinder (D=35mm/H=130mm/L=363mm) are both documented with their complete parts breakdown.

K – Guide Roller

The guide roller chapter lists the rollers (D=47mm and D=72mm), eccentric shafts, grooved ball bearings, bushings and mounting hardware used in the mast and lifting gear. Exploded drawings make it straightforward to identify the correct roller and bearing combination for your mast configuration.

M – Electric Equipment

This is one of the largest sections. It covers the control board, electronic control, steering control assembly, module ABUE, relays, contactors, fuses, main current cables, cable harnesses and all the connectors, contacts, diodes and terminal strips. There are separate wiring diagrams for the control board, the drive motor, the horn, the valve signal amplifier, the flashing light and the heating system. Battery cable assemblies are broken down for DIN160A, DIN320A, SBE160A/RT and SBE320A/RT plug types, with pilot contact kits listed. The electric equipment pages also cover the units compartment cooling fan, filter and plug housing.

N – Hydraulic Equipment

The hydraulic section documents the motor-pump unit (24V/2KW), the hydraulic unit, distribution block, valves, magnets, seal kits, tank, air cleaner, air filter, pump, lowering brake valve, relief valve and check valve. Separate hydraulic schematics and exploded views are provided for both the earlier and later versions of the hydraulic installation, split by date (->31.08.2002 and 01.09.2002->). Unions, pipes, hoses, clamping pieces and pipe connections are all listed with part numbers.

S – Protective Equipments

The protective circuit section covers the safety-related components, including the protective circuit hardware and clamps. This is a short but important section for maintaining the truck’s safety systems.

U – Truckbodies / Covers

This section covers the bodywork: truck frame, chassis, doors, coverings, instrument board variants (with and without reading panel), seat adjuster, floor plate, battery lock, gas strut, handle, controller and all the associated covers and fasteners. Cold storage variants are also included, with their specific parts and part numbers. The battery cover, locking screw and cap assemblies are documented here.

Y – Battery Maintenance Stand

The battery maintenance stand chapter covers the battery trolley in two size variants (A=210mm/B=290mm/C=840mm and A=276mm/B=200mm/C=840mm). Each trolley is broken down into its rollers, grooved ball bearings, springs, axles, locking rings, locking devices and warning signs, with part numbers for every component.

Part Number Index

At the back of the catalogue is a complete part number index listing every STILL part number with the page numbers where it appears. This is a fast way to jump straight to the exploded view and parts list for a specific component — useful when you already have a part number from a work order or a previous repair.

Why This Parts Catalogue Matters

Ordering the wrong part costs time and money, especially on a specialised two-level high-lift truck like the STILL SD20. This catalogue removes the guesswork. Every exploded diagram shows exactly how the assembly goes together, and every part is listed with its official STILL part number and quantity. Whether you are rebuilding a transmission, replacing a brake, servicing a lift cylinder, tracing an electrical fault through the cable harness, or ordering a new drive wheel, the correct part number is right there on the page.

The multilingual format means the catalogue works for workshops and parts departments across Europe and beyond. The validity dates attached to certain components — such as the transmission change on 01.11.2003, the control board updates through 2003 and 2004, and the hydraulic installation split in 2002 — help you identify which version applies to your truck, so you avoid ordering a part that fits a different production batch.

IMAGES PREVIEW

Instant PDF Delivery

You get the complete 254-page STILL SD20 spare parts catalogue as a PDF download immediately after payment. No shipping, no waiting for a physical book. Use it on any device — laptop, tablet or phone — in the workshop or at the parts counter. Print the pages you need and keep them beside the truck while you work. This is the same catalogue used by professionals to keep STILL SD20 two-level high-lift trucks running, and it puts every part number, exploded view and assembly detail at your fingertips.
